Unitube Light-armored Cable
Overview

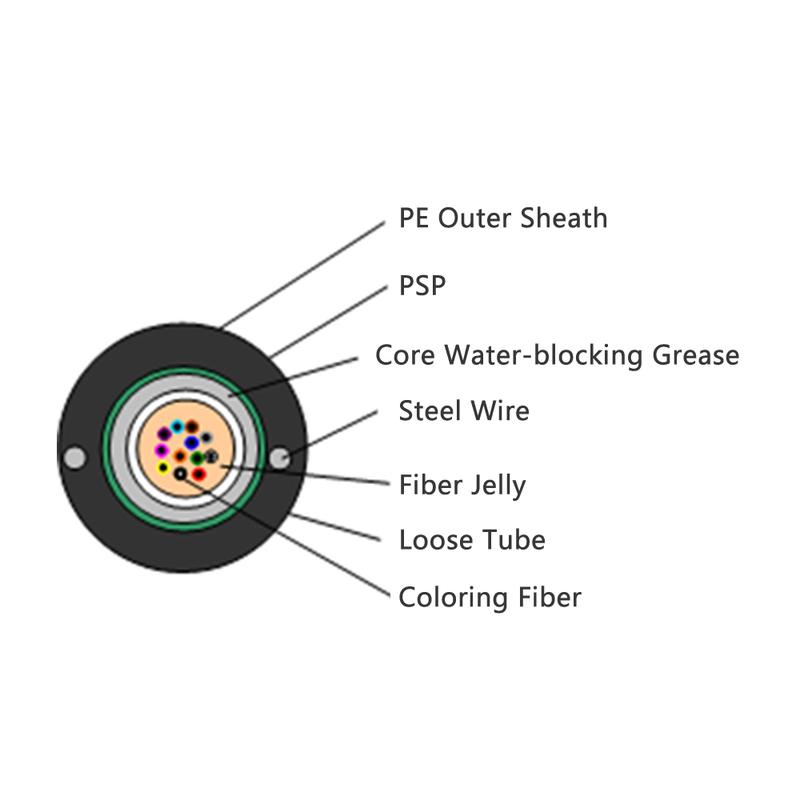

The coloring fiber are positioned in a central loose tube, the PSP is longitudinal covering, parallel steelwire is inside the PE sheath, between steel strip and loose tube are filled with a water-blocking compound.
Features
l Good mechanical and temperature performance.
l Good crush resistance, water-blocking and flexibility
l Application: optical fiber pigtail, building network access, optical fiber communication systems, optical fiber data transmission
Add To Quote List
Add To Compare
Inquiry Now
l Good crush resistance, water-blocking and flexibility
l Application: optical fiber pigtail, building network access, optical fiber communication systems, optical fiber data transmission
| Geometrical Characteristics | |
| Cable Type | 2-12 |
| Cable Dimension (mm) | 9.8 |
| Cable Weight (kg/km) | 110 |
| Geometrical Characteristics | |
| Cable Type | 2-12 |
| Cable Dimension (mm) | 9.8 |
| Cable Weight (kg/km) | 110 |
| Fiber | |
| Fiber Type (core/cladding dimension) | 8.3/125, 50/125, 62.5/125 |
| Environmental Characteristics | |
| Storage Operating Temperature | -40℃～+70℃ |
| Transmission Characteristics | |||
| SMF | 50/125 | 62.5/125 | |
| 1310/1550 (nm) | 850/1300 (nm) | 850/1300 (nm) | |
| Attenuation (dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 |
| Minimum Bandwidth (MHz·km) | / | ≥400/400 | ≥160/500 |
