Outdoor Cabinet Air Conditioners
LongXing Air Conditioner Cooling Solution can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc.
Combined Unit of A/C with HEX
Dimensions : 950*510*200mm
Capacity : 1500W@L35/L35; 1125W@L35/L55
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Heat Exchange Capacity: 80W/K; Internal Airflow: 450m³/h
Alarm: Yes
IP : 55
UV : Pass
Enclosure Air Conditioner AC300
Dimensions : 500*320*175mm
Capacity : 300W@L35/L35; 190W@L35/L55
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 100m³/h
Alarm: N/A
IP : 55
UV : Pass
Enclosure Air Conditioner AC500
Dimensions : 500*320*175mm
Capacity : 500W@L35/L35; 300W@L35/L55
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 120m³/h
Alarm: Yes
IP : 55
UV : Pass
Enclosure Air Conditioner AC1500
Dimensions : 745*445*175mm
Capacity : 1500W@L35/L35; 900W@L35/L55
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 600m³/h
Alarm: Yes
IP : 55
UV : Pass
Thermoelectric Air Conditioner DC200
Dimensions : 400*180*178mm
Capacity : 200W@L32/L32; 300W@L35/L35
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 240m³/h
Alarm: Yes
IP : 55
UV : Pass
Enclosure Air Conditioner DC500
Dimensions : 550*320*175mm
Capacity : 500W@L35/L35;
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 150m³/h
Alarm: Yes
IP : 55
UV : Pass
Enclosure Air Conditioner DC1000
Dimensions : 797*385*165mm
Capacity : 1000W@L35/L35
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 400m³/h
Alarm: Yes
IP : 55
UV : Pass

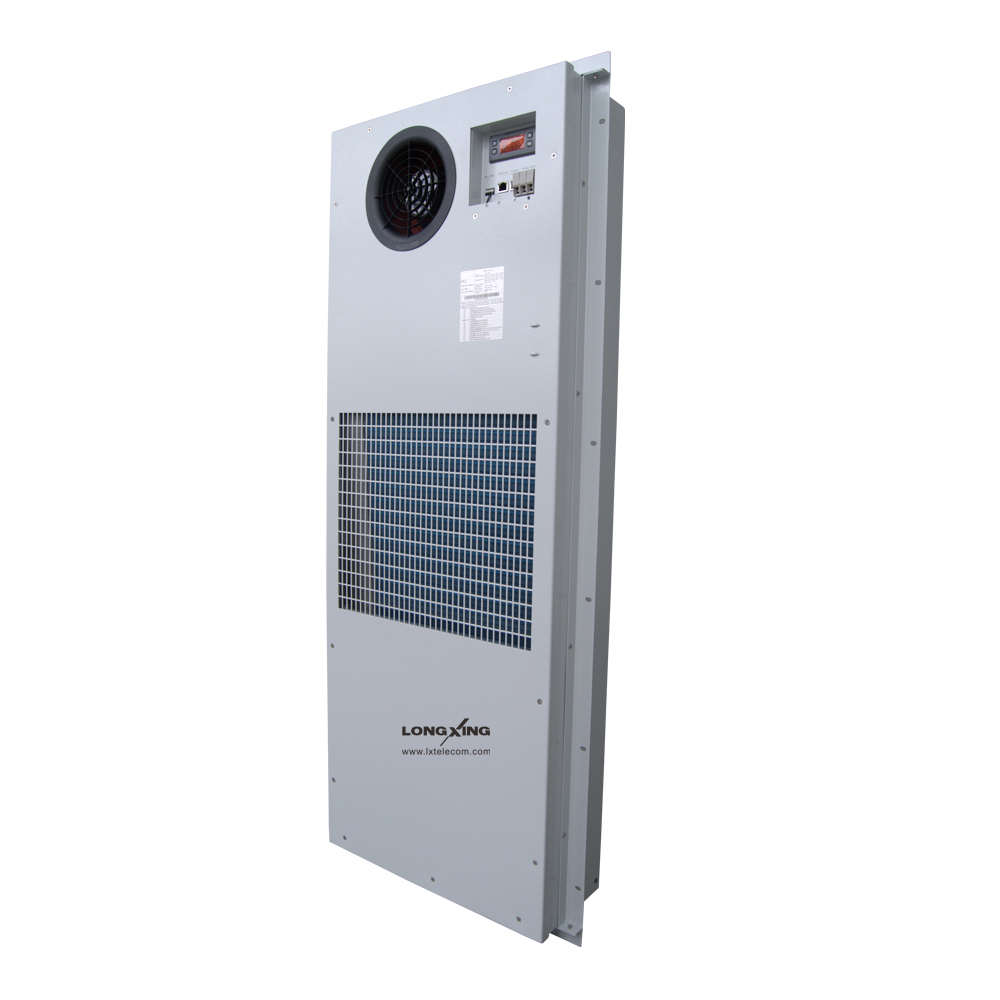

Enclosure Air Conditioner DC1500
Dimensions : 1116*416*170mm
Capacity : 1500W@L35/L35
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 400m³/h
Alarm: Yes
IP : 55
UV : Pass
Enclosure Air Conditioner DC3000
Dimensions : 1154*489*225mm
Capacity : 2500W@L35/L35
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 700m³/h
Alarm: Yes
IP : 55
UV : Pass

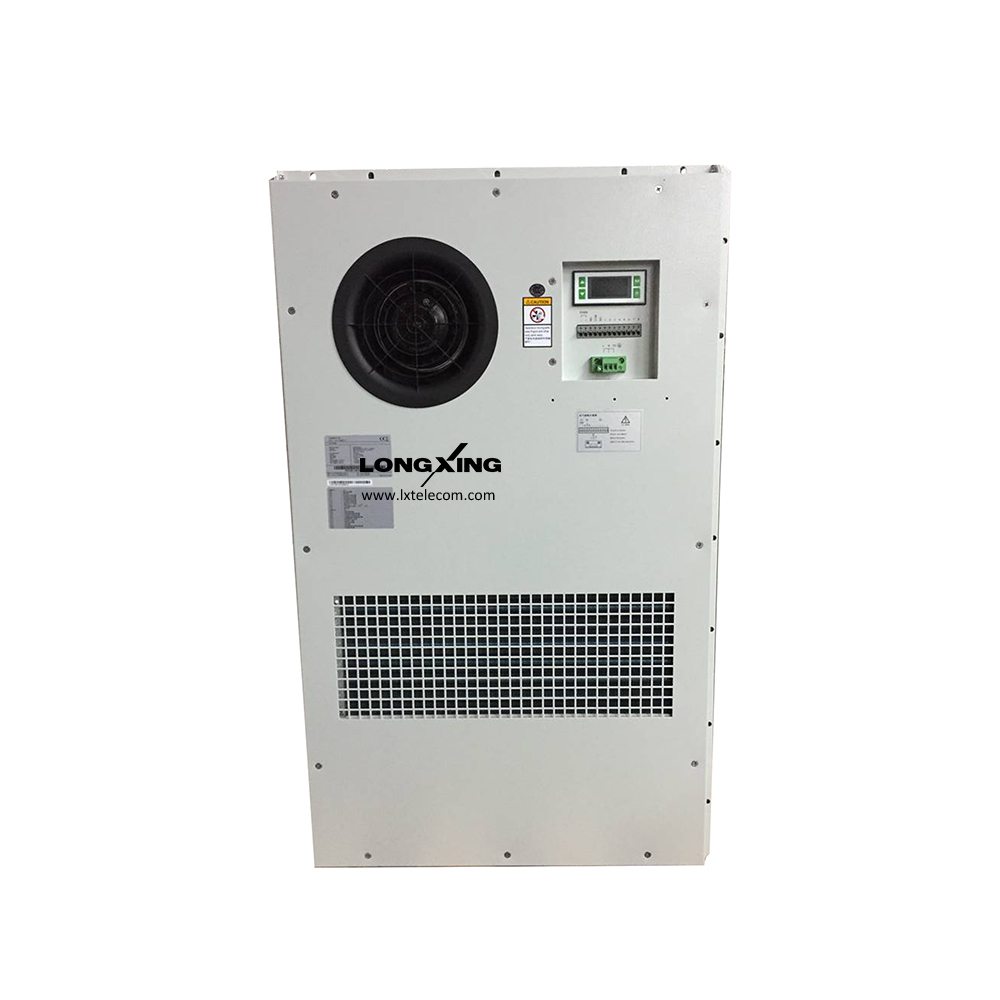

Enclosure Air Conditioner AC2000
Dimensions : 783*479*200mm
Capacity : 200W@L35/L35; 1200W@L35/L55
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 700m³/h
Alarm: Yes
IP : 55
UV : Pass
Enclosure Air Conditioner AC1000
Dimensions : 783*479*200mm
Capacity : 1000W@L35/L35; 650W@L35/L55
Color : RAL7035
Installation: Semi-embedded Mounting
Power Parameters : Internal Airflow: 400m³/h
Alarm: Yes
IP : 55
UV : Pass
