Distribution Modules
LongXing optical distribution modules are designed for the purpose of optic fiber organization, storage and fiber optic fusion protection within closures, patch panels, fiber optical outdoor cabinets etc.
MTP/MPO Adapter Plates LX-M
Capacity: 12/24 cores
Dimensions: Variable
Material: Cold-rolled Steel
Design Style: Pre-terminated
Adapter Type: LC Duplex/QUAD
Applications: MTP MPO Patch Panel, Enclosure
No.of Cable Entries & Exits: N/A
Color: Black
Key Feature: High Density
MTP/MPO Cassette LX-L
Capacity: 12/24 cores
Dimensions: Variable
Material: Cold-rolled Steel
Design Style: Pre-terminated
Adapter Type: LC Duplex/QUAD
Applications: MTP MPO Patch Panel, Enclosure
No.of Cable Entries & Exits: N/A
Color: Black
Key Feature: High Density
MTP/MPO Adapter Plates LX-K
Capacity: 12/24 cores
Dimensions: Variable
Material: Various Metal Options
Design Style: Pre-terminated
Adapter Type: LC Duplex
Applications: MTP MPO Patch Panel
No.of Cable Entries & Exits: N/A
Color: Black
Key Feature: High Density
MTP/MPO Cassette LX-J
Capacity: 12/24/36 cores
Dimensions: Variable
Material: Various Metal Options
Design Style: Pre-terminated
Adapter Type: LC Duplex
Applications: MTP MPO Patch Panel, Enclosure
No.of Cable Entries & Exits: N/A
Color: Black
Key Feature: High Density

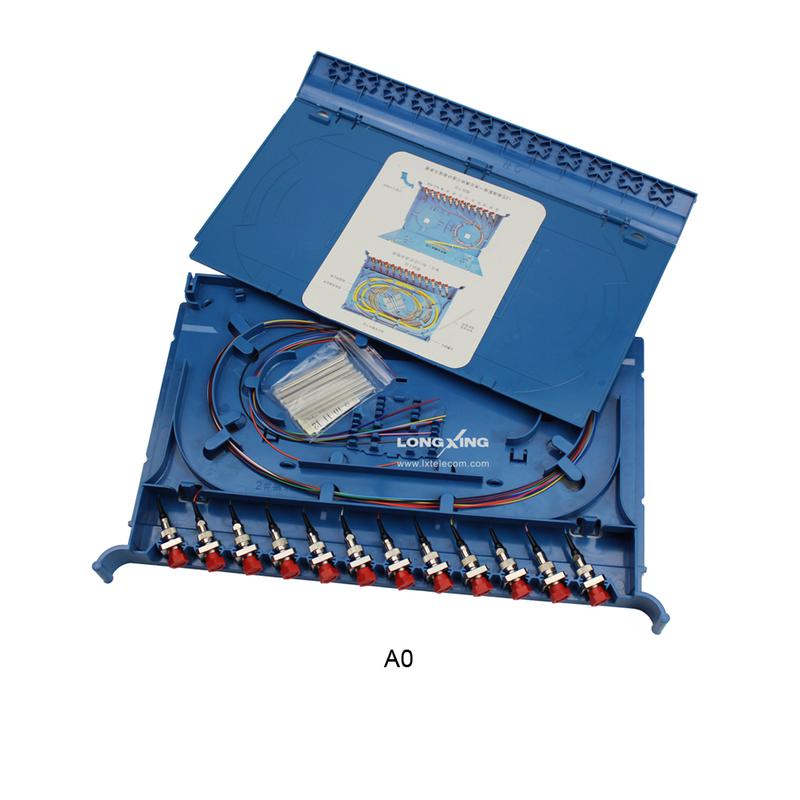

Optical Splice & Distribution Module Series A (A0, A1, A2, A3, A4)
Capacity: 12/24 cores
Dimensions: 25*303.4*205 mm
Material: Plastic
Design Style: Integration
Adapter Type: SC/FC/ST/LC
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: N/A
Color: Blue
Key Feature: Splice and Distribution

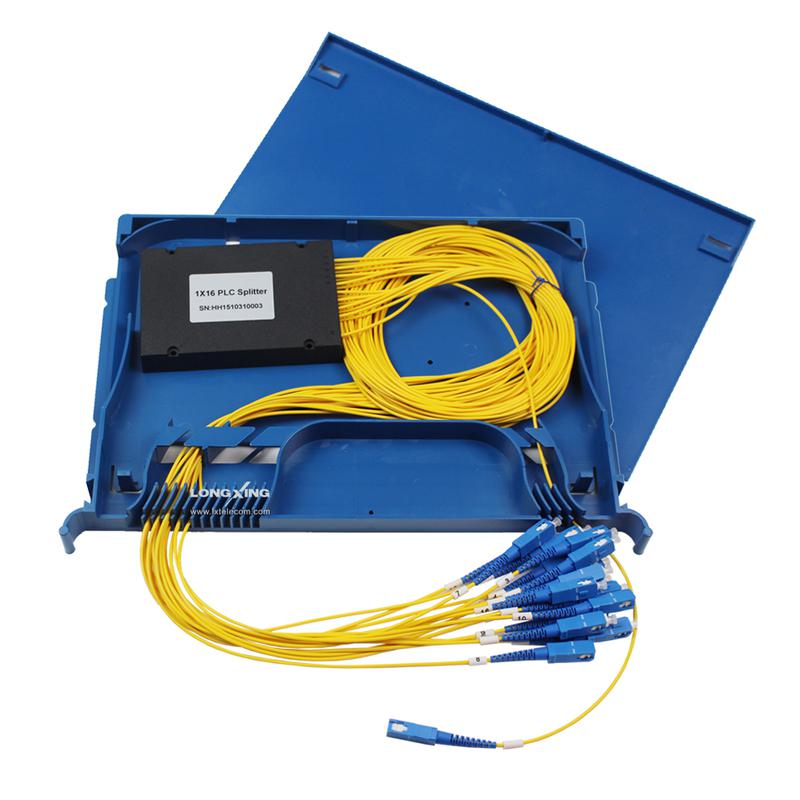

Optical Splice Module Series A (A6)
Capacity: 2/4/8/16 cores
Dimensions: 25*303.4*205 mm
Material: Plastic
Design Style: Splitter
Adapter Type: N/A
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: 1*2/1*4/1*8/1*16/2*4/2*8/2*16
Color: Blue
Key Feature: Splice and Distribution

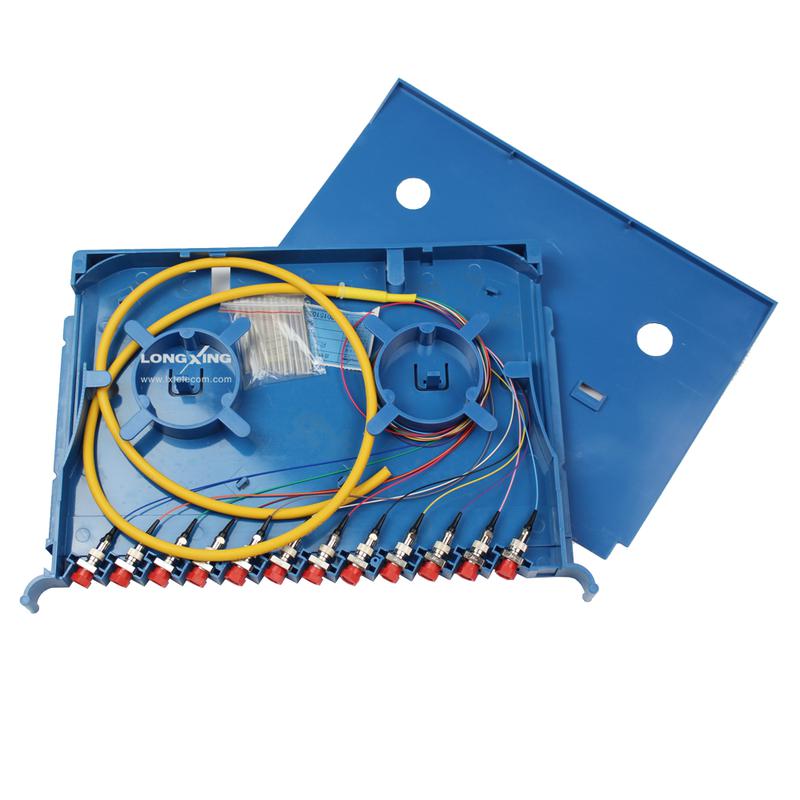

Optical Storage & Patching Module Series A (A5)
Capacity: 12/24 cores
Dimensions: 25*303.4*205 mm
Material: Plastic
Design Style: Patching
Adapter Type: SC/FC/ST/LC
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: N/A
Color: Blue
Key Feature: Storage and Patching
Optical Splice & Distribution Module Series B (B0)
Capacity: 12/24 cores
Dimensions: 25*301*180 mm
Material: Plastic
Design Style: Integration
Adapter Type: SC/FC/LC
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: N/A
Color: Green
Key Feature: Splice and Distribution

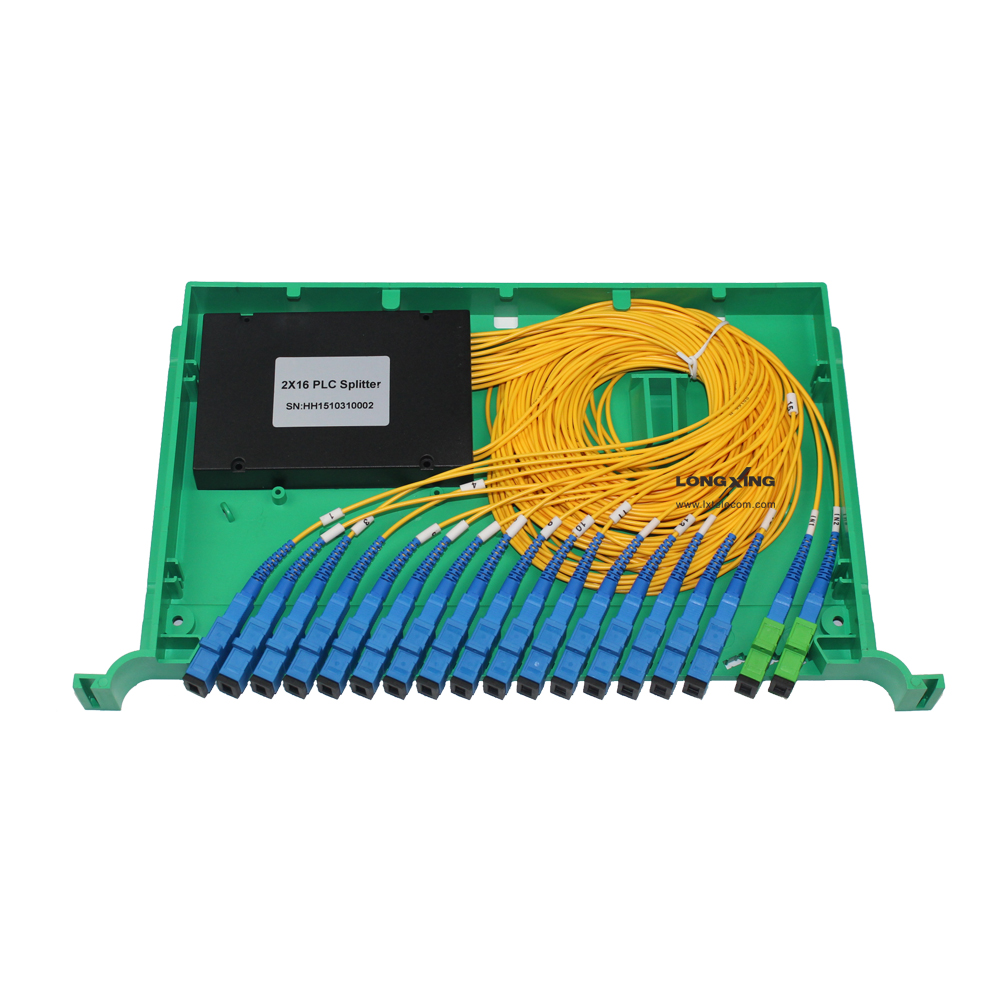

Optical Splice Module Series B (B3, B4)
Capacity: 2/4/8/16/32 cores
Dimensions: 25*301*180 mm
Material: Plastic
Design Style: Splitter
Adapter Type: SC/FC/LC
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: 1*2/1*4/1*8/1*16/1*32/2*16/2*32
Color: Green
Key Feature: HD Splitting and Distribution

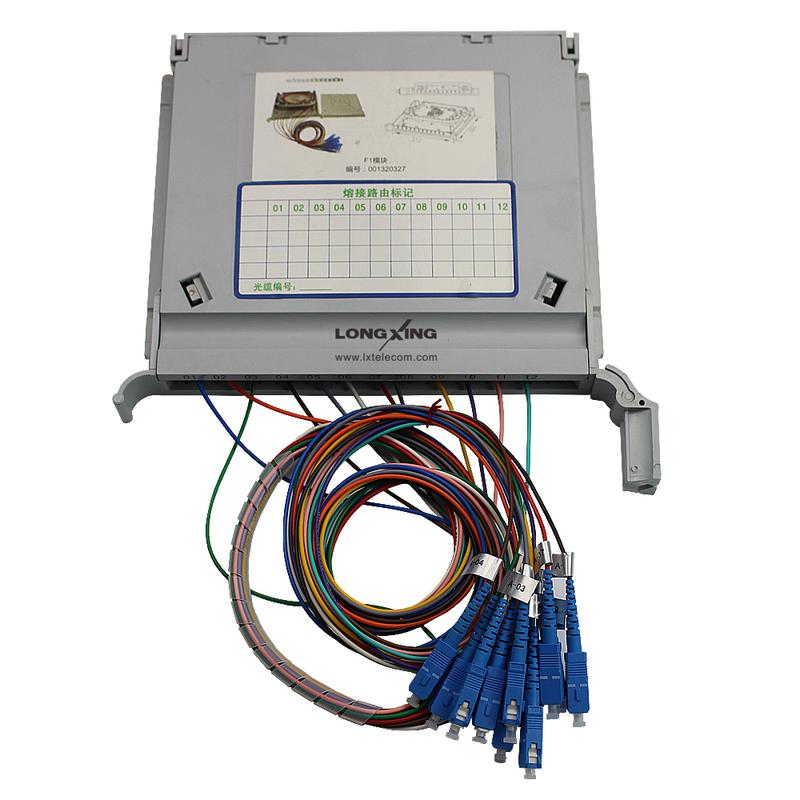

Optical Splice & Distribution Module Series F (F1, F2)
Capacity: 12 cores
Dimensions: 25*212*180 mm
Material: Plastic
Design Style: Integration
Adapter Type: SC/LC
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: N/A
Color: Gray
Key Feature: Splice and Distribution

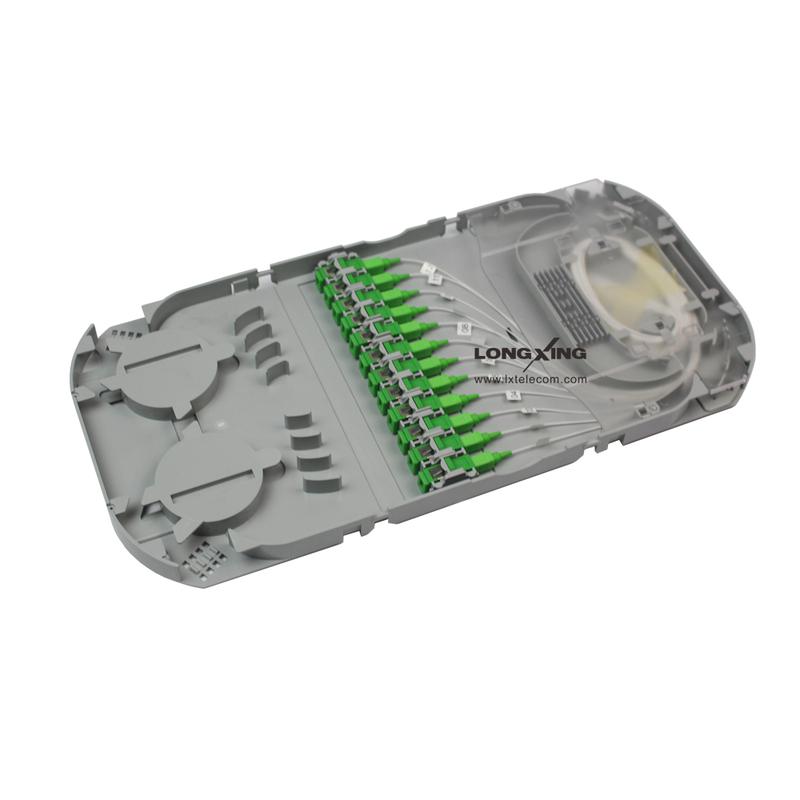

Optical Splice & Distribution Module Series G (G0)
Capacity: 12/24 cores
Dimensions: 25*390*190 mm
Material: Plastic
Design Style: Integration
Adapter Type: SC/LC
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: N/A
Color: Gray
Key Feature: Splice and Distribution

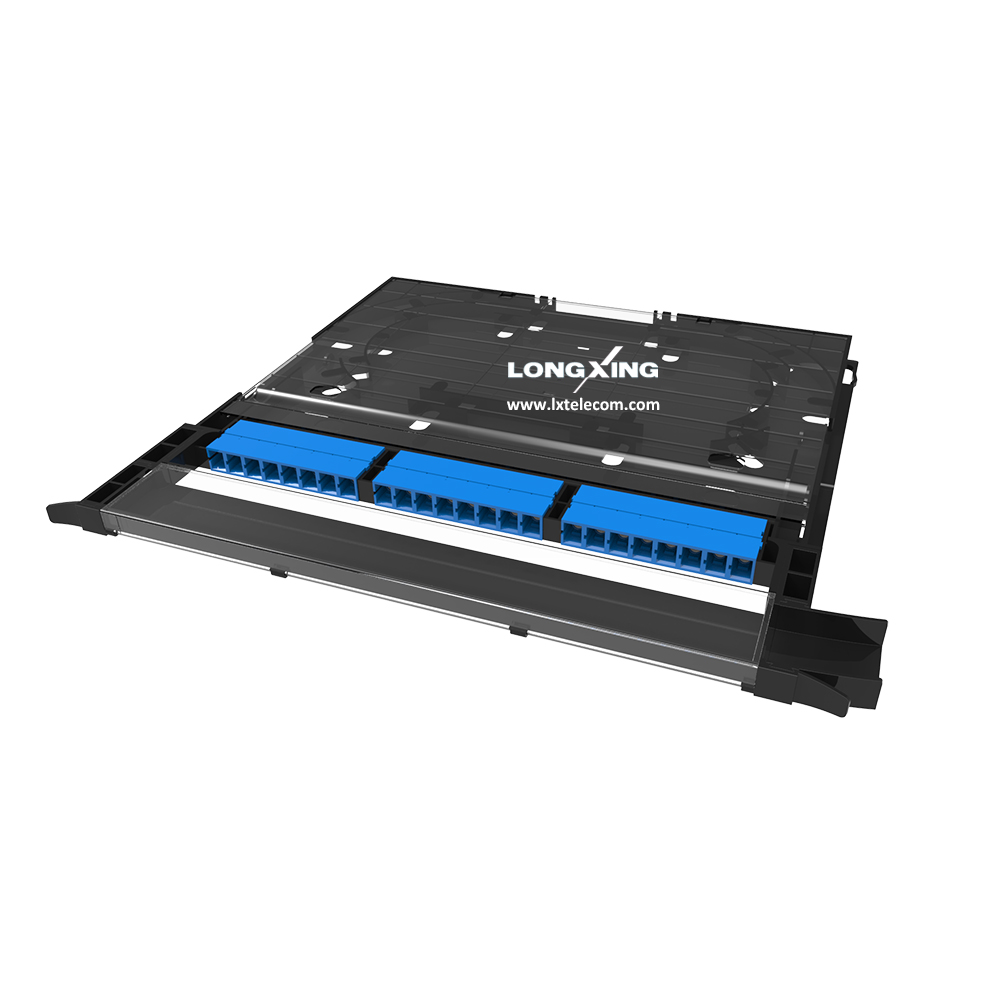

Optical Splice & Distribution Module Series H (H1, H2, H3)
Capacity: 24/36 cores
Dimensions: 13*326*280 mm
Material: Plastic
Design Style: Integration
Adapter Type: SC/LC
Applications: ODF, Patch Panels, Fiber Optical Outdoor Cabinets etc
No.of Cable Entries & Exits: N/A
Color: Black
Key Feature: High Density
