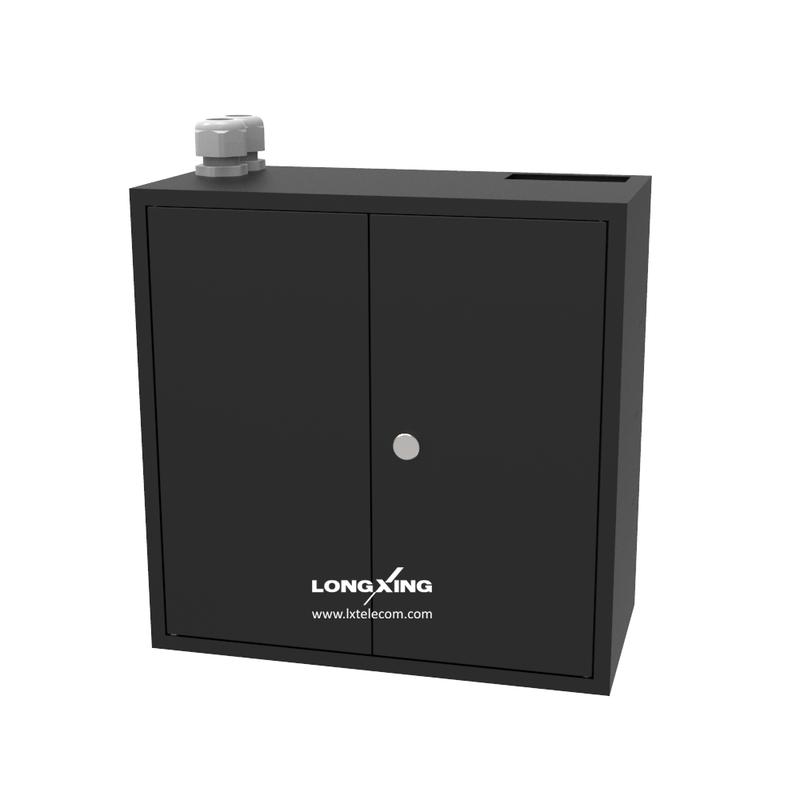

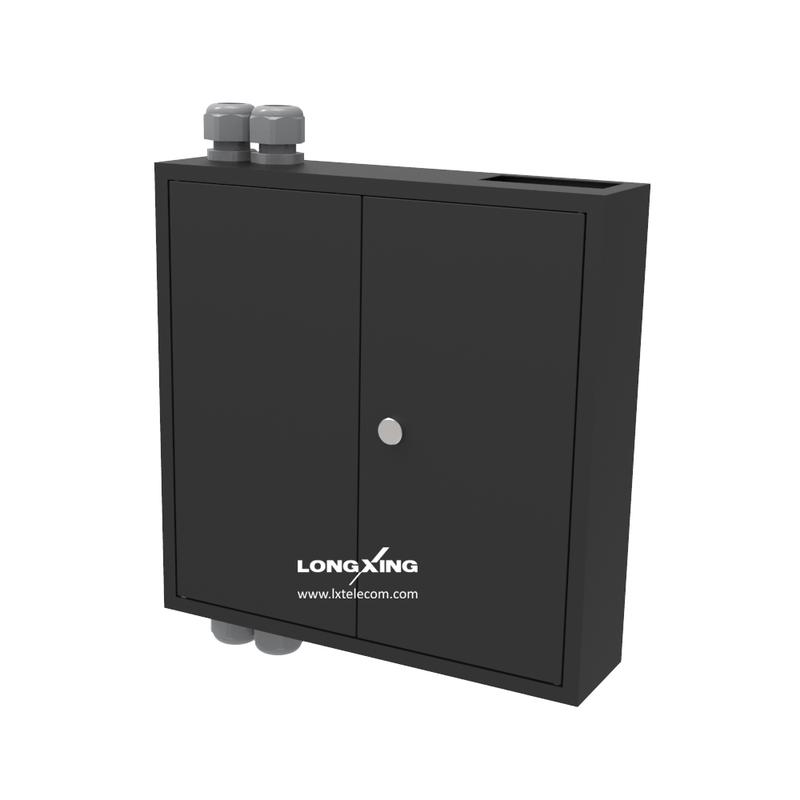

Fiber Optics Distribution Box GP31-1M96A
Overview
LongXing metal distribution box GP31-1M96A is currently being widely used for distributing outdoor optical cable in indoor conditions. It is very suitable for FTTx uses. This box offers ideal environment for fibers to be spliced and well organized under indoor environment.
Features
l The box has functions of cable termination, splicing, distribution and cross-connection.
l Solid structure with the advantages of good performance of dust-proof, pleasing and neat appearance.
l Easy installations: Wall mountable.
l Ideal for indoor uses – cable entrances & exits located on both top and bottom.
l Lock provided on every box ensures the safety of the fibers.

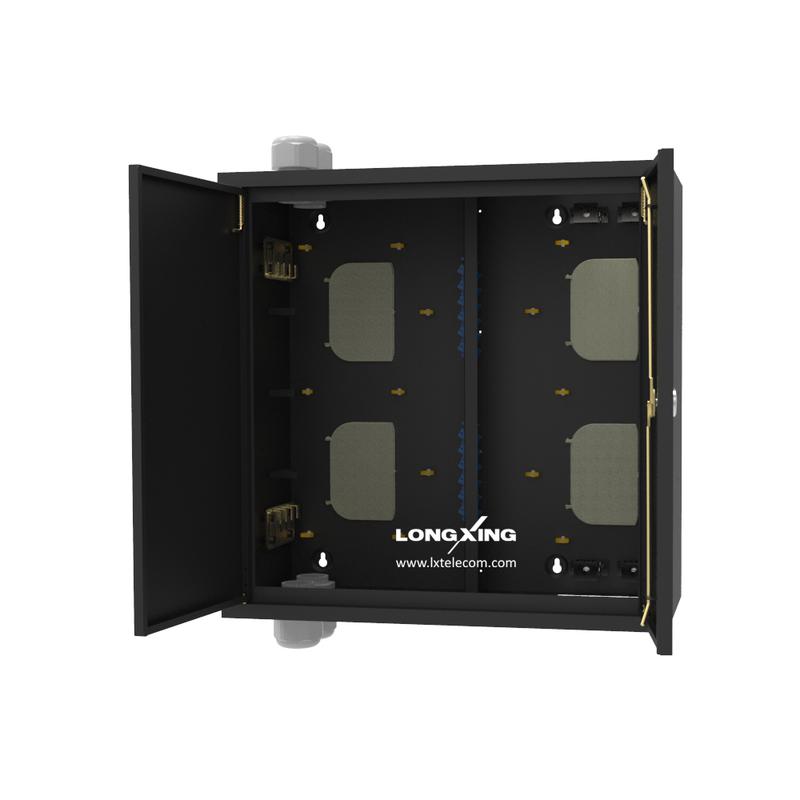

l The central adapter board separates the incoming cables and the exiting fibers
l Adoptable adapter types: SC, LC/Duplex
| Dimensions and Capacity | |||
| Type | Dimensions (W*D*H)mm | Capacity | |
| For Cross Connect (SC) | 600*150*600 | 24 | |
| For Cross Connect (LC) | 600*150*600 | 48 | |
| For Shell and Core buildings (SC) | 600*300*600 | 48 | |
| For Shell and Core buildings (LC) | 600*300*600 | 96 | |
| * Customized design available upon request. | |||
