Dome Fiber Optic Splice Closure GPJ83-D16
Overview

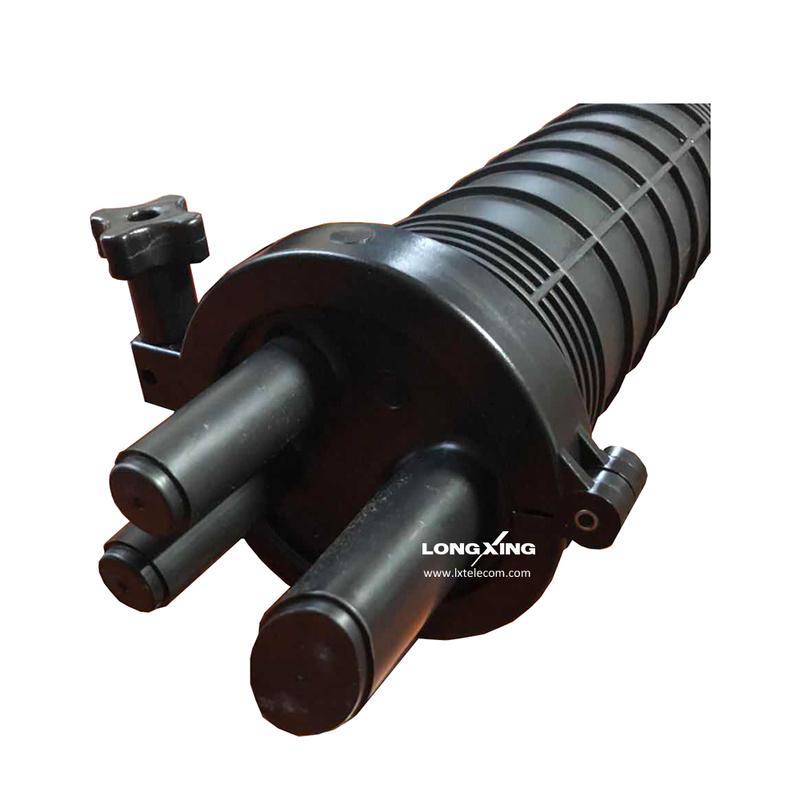

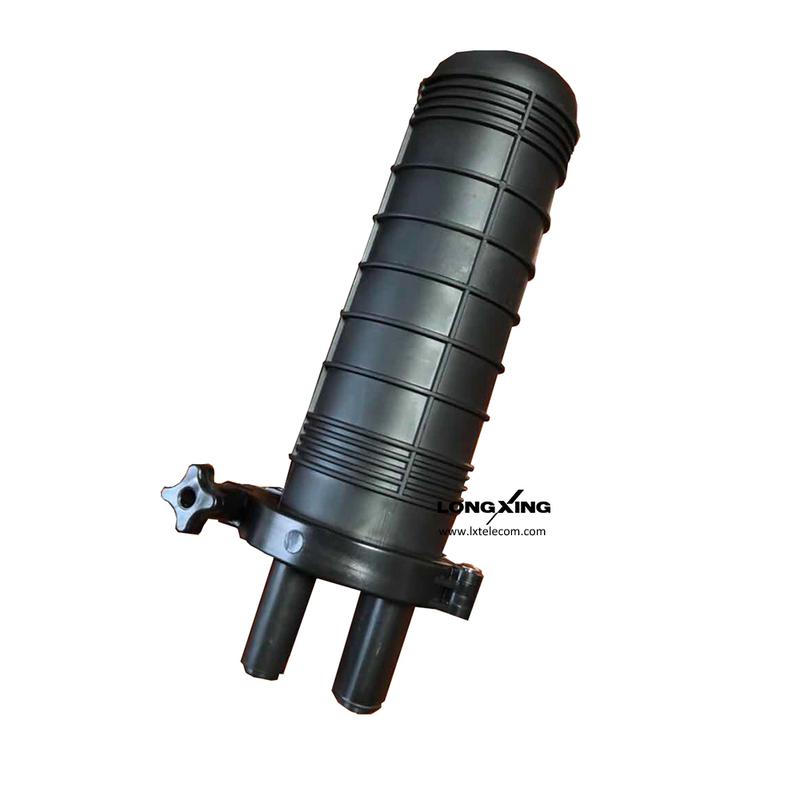

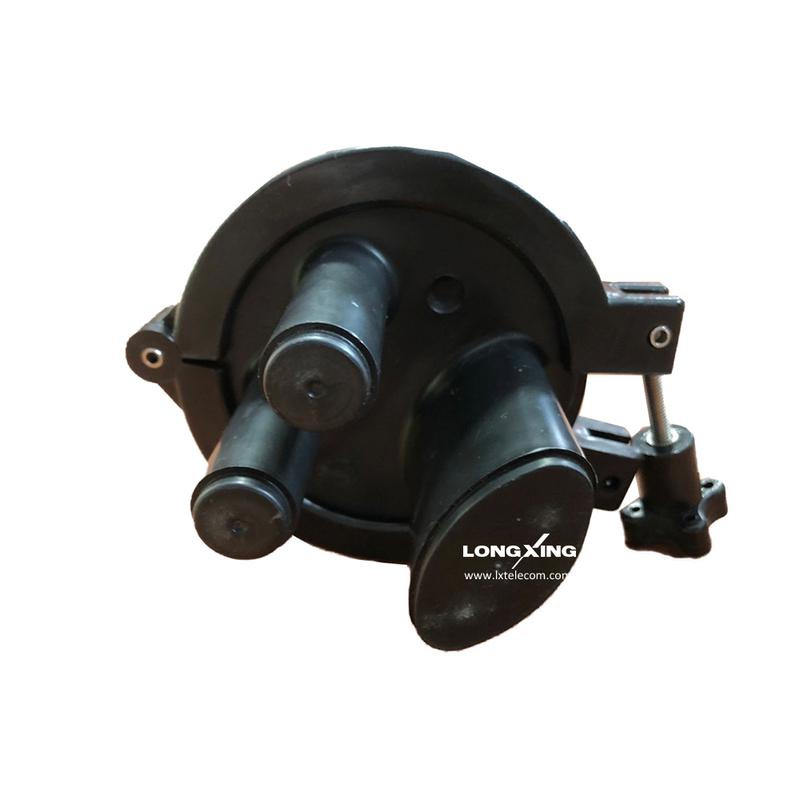

The GPJ83 - D16 Dome Fiber Optic Splice Closure are closures which accommodate the joint part of the cable, that can be used in manhole, in handhole, aerial-hanger, wall-mounting or be directly buried. Each splice case has three Cable Entry Ports. The box is made from the high-quality PC and with the mechanical Sealing Structure filled with Silicon Gum Material. It can be opened after sealing and can be reused.
Features
l Aerial and wall-mounting.
l Ambient temperature ranges from -40 to 60℃.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
l The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber.
Add To Quote List
Add To Compare
Inquiry Now
l Ambient temperature ranges from -40 to 60℃.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
l The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber.
| Dimensions and Capacity | |
| Outside Dimensions (Height*Diameter) | Φ85 × 330mm |
| Weight (excluding outside box) | 1500g |
| Cable Entry Ports | 1& 2 |
| Round Port(mm) | Φ7mm – Φ19mm |
| Max Capacity | 12 ( Single ) / 24 ( Single ) |
| Main Components | |||
| Name of Components | Quantity | Usage | Remarks |
| FOSC Cover | 1 pc | Protecting fiber cable splices in whole | N/A |
| Splice Tray (FOST) | Max. 2 trays | Fixing heat shrink protective sleeve and holding fibers | 6 ( Single ) / 12 ( Single ) |
| Splice Protective Tube | According to the fiber cores | Protecting fiber splices | N/A |
| Heat-shrinkable Tube | 3 pcs | Protecting fiber splices | 1pc: Φ50×150(mm) 2pcs:Φ28×150(mm) |
| Base | 1 set | Fixing internal and external structure | N/A |
| Hanging Hook | 1 set | Aerial-hanging or Wall-mounting | N/A |

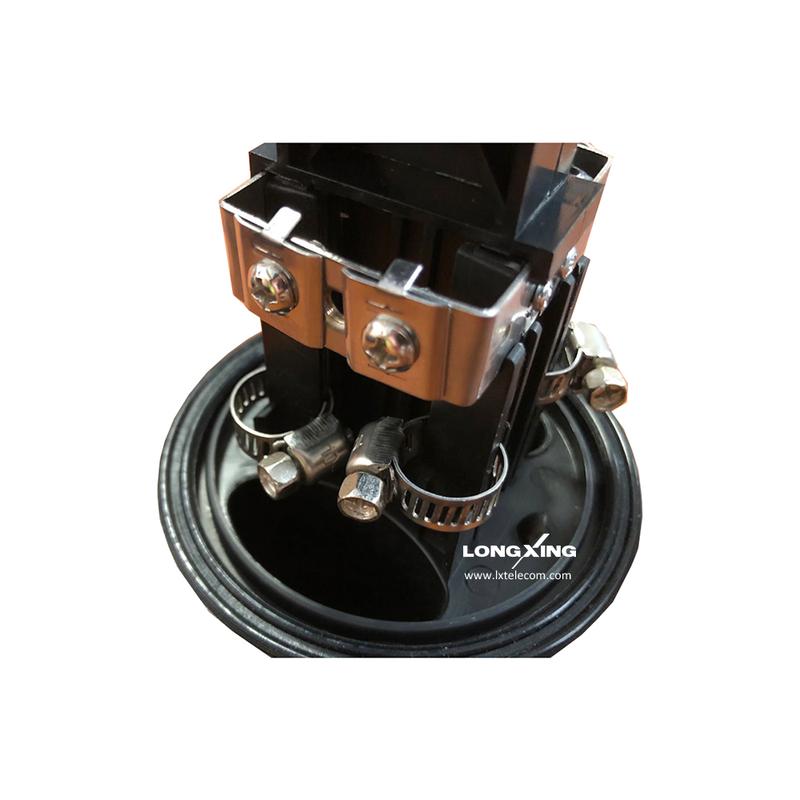

| Hose Clamp | 4 pcs | Fixing fiber cable | Φ8-Φ16(mm) |
| Branch Block | 1 pc | Branching fiber cables | N/A |
| Labeling Paper | 4 pcs | Labeling fiber | N/A |
| Cables Ties | 4 pcs | Fixing fiber with protective coat | 3×100(mm) |
