Wire Mesh Cable Tray

Overview

The wire mesh cable tray designed by LongXing, includes indoor and outdoor use widely used in installation cable in different telecommunication houses, electricity units and engineering project. Easy to install,excellent cable ventilation,energy saving,easy for maintenance and update.Surface Treatment: 3 finishes for carbon steel, Electro zinc (EZ) for indoor use, hot dip galvanized (HDG) for outdoor use, also powder coated(PC) (colors up to customer). Acid washing then polished for stainless steel.

Features

l Material: carbon steel (Q235B), stainless steel ( 304L / 316L ).
l Easy installation and labor-saving.
l On-site fabrication.
l Excellent ventilation.
l Maximum strength for minimum weight.
l Reduce dust retention and improve hygiene of the working environment.
l 10 years warranty for wire mesh tray and fiber runner.
l Only certificated manufacturer with UL for wire meshtray.
l Environmental protection, passed Rohs test.
l Ideal for routing and supporting cables throughout fiber cable networks.
l Customized design upon your request.
Add To Quote List Add To Compare

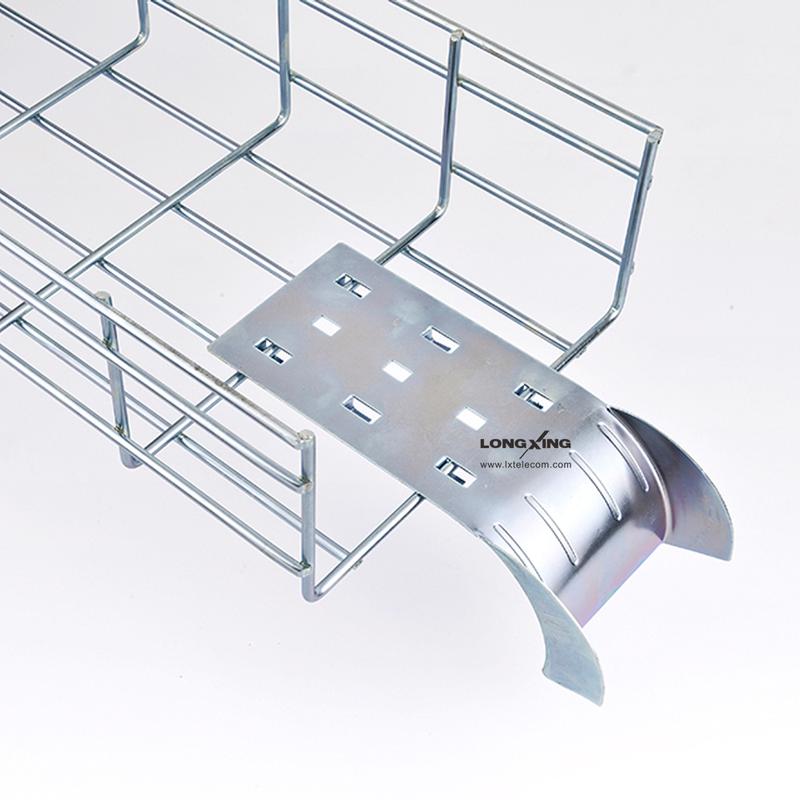

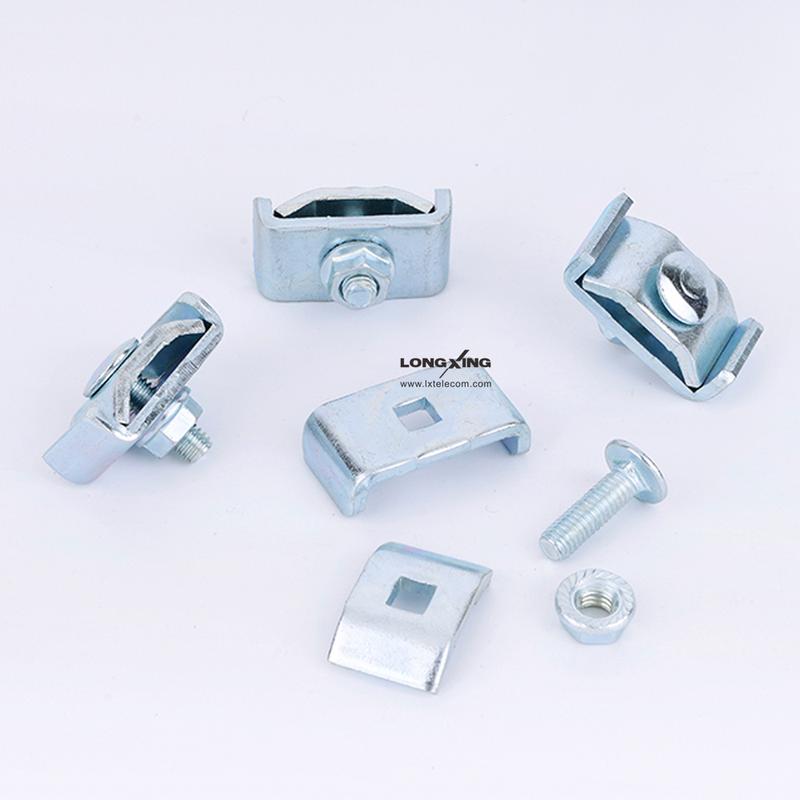

Wire Mesh Cable Tray Accessories

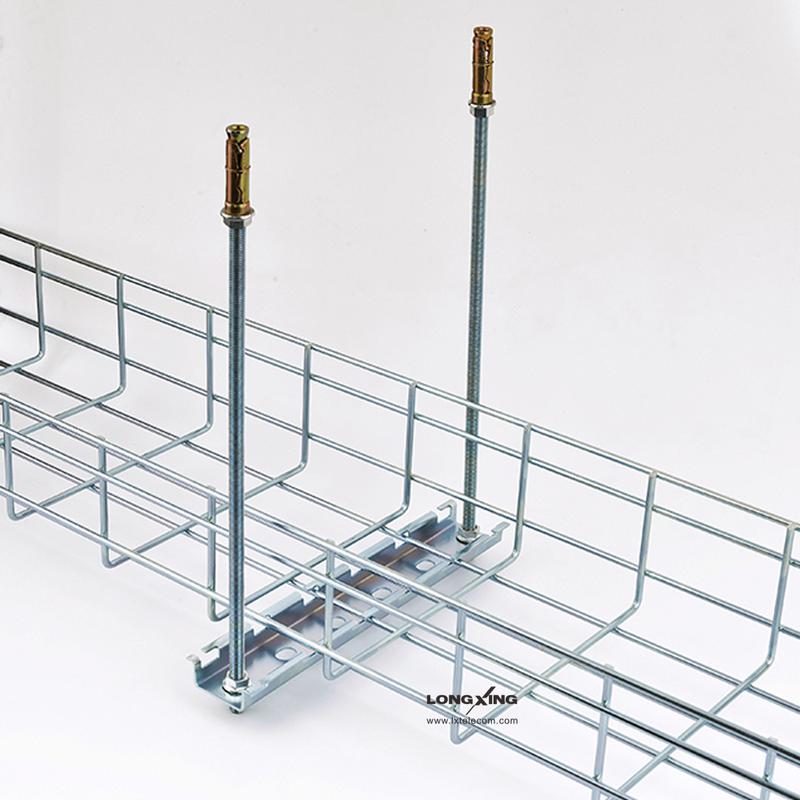

Electro Zinc (EZ) Ceiling Mounting
Hot Dip Galvanized (HDG) Wall Mounting
Powder Coated (PC) Underfloor Mounting

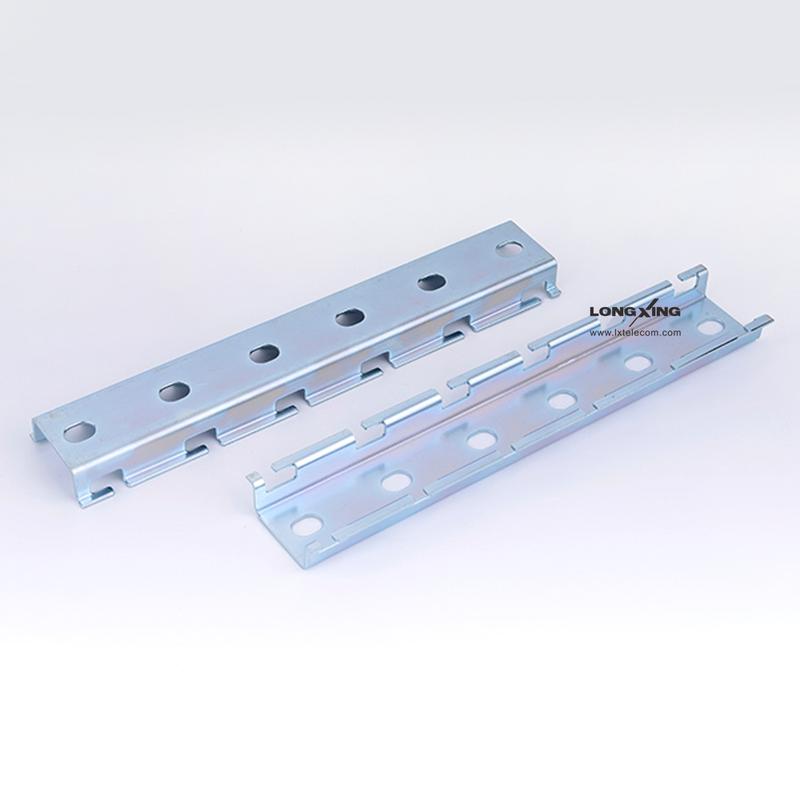

Carbon Steel (Q235B) Connector
Stainless Steel 304L Cable Fixer
Stainless Steel 316L Others



Materials & Surface Finish
Materials Surface Finishing Thickness of Coating Application
Medium Carbon Steel Electro zinc ≥12μm Indoor
Hot Dip galvanized 60μm~100μm Indoor & Outdoor
Powder coated 60μm~100μm Indoor
S304L Acid washing polishing N/A  Indoor & Outdoor
S316L Acid washing polishing N/A High corrosion occasions
