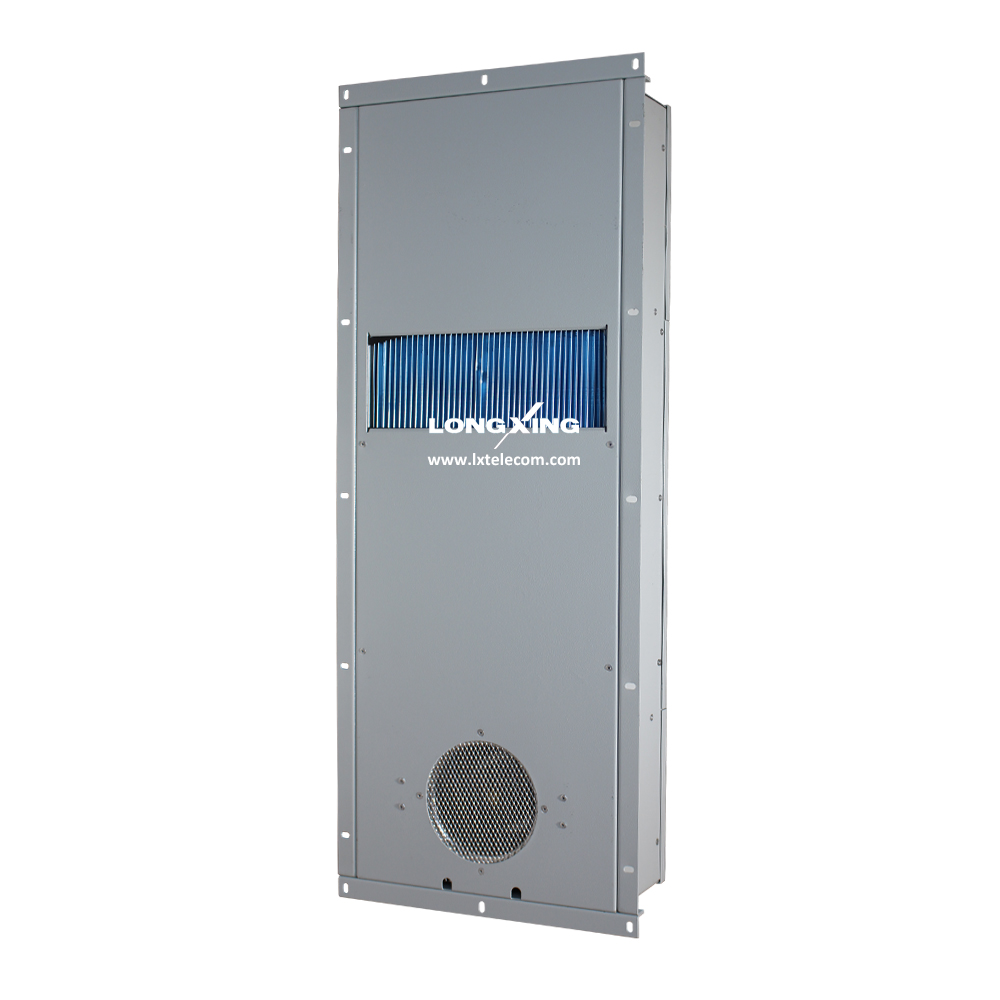

Outdoor Cabinet Heat Exchanger LXRJH-08


LongXing LXRJH Series of heat exchangers can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc.


l Remote measure, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function
l Strict process control and international brand parts deployed to ensure high quality and reliable of this product
l Multiple self protection design & Interchangeable monitoring software interface, RS485 communication(MODBUS protocol)
l Circulation fans stepless speed regulation function
l LED Display, all the settings can changed at the field
l The heating function is optional

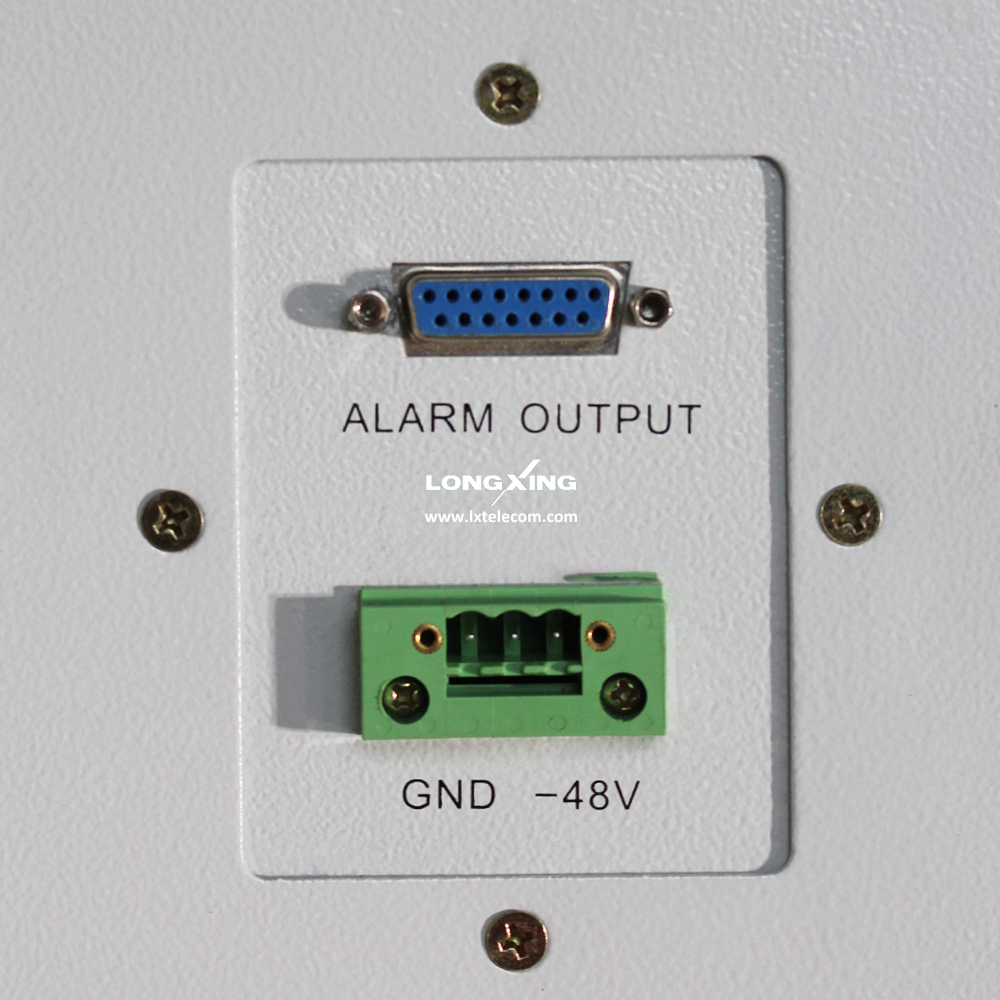

l Dry contact alarm output,NO/NC optional
Add To Quote List Add To Compare
Technical parameters
Name DC Cabinet Heat Exchanger
Code LXRJH-08
Mounting Method Semi-embedded Mounting
Power Supply DC 36~72 VDC
Rated Current DC 1.2A
Start-up Current DC 1.6A
Cooling Capacity 80W/K
Fans 2*DA17251/PWM
Fans Power Consumption 57.6W
Internal Airflow 8.65m³/min
Rated Voltage AC 220VAC±20%
Frequency AC 50~60±3Hz
Rated Current AC 2.7A
Heater Power 500W
Working Temperature Range -40℃~+65℃
Noise Level 50~65dB(A)
IP Grade IP55
Net Weight 16kg
Dimensions(H*W*D)mm 950mmX380mmX149.5mm
CE&RoHS Compliant Yes
Surface Treatment Outdoor type powder coating
Standard color:RAL7035
