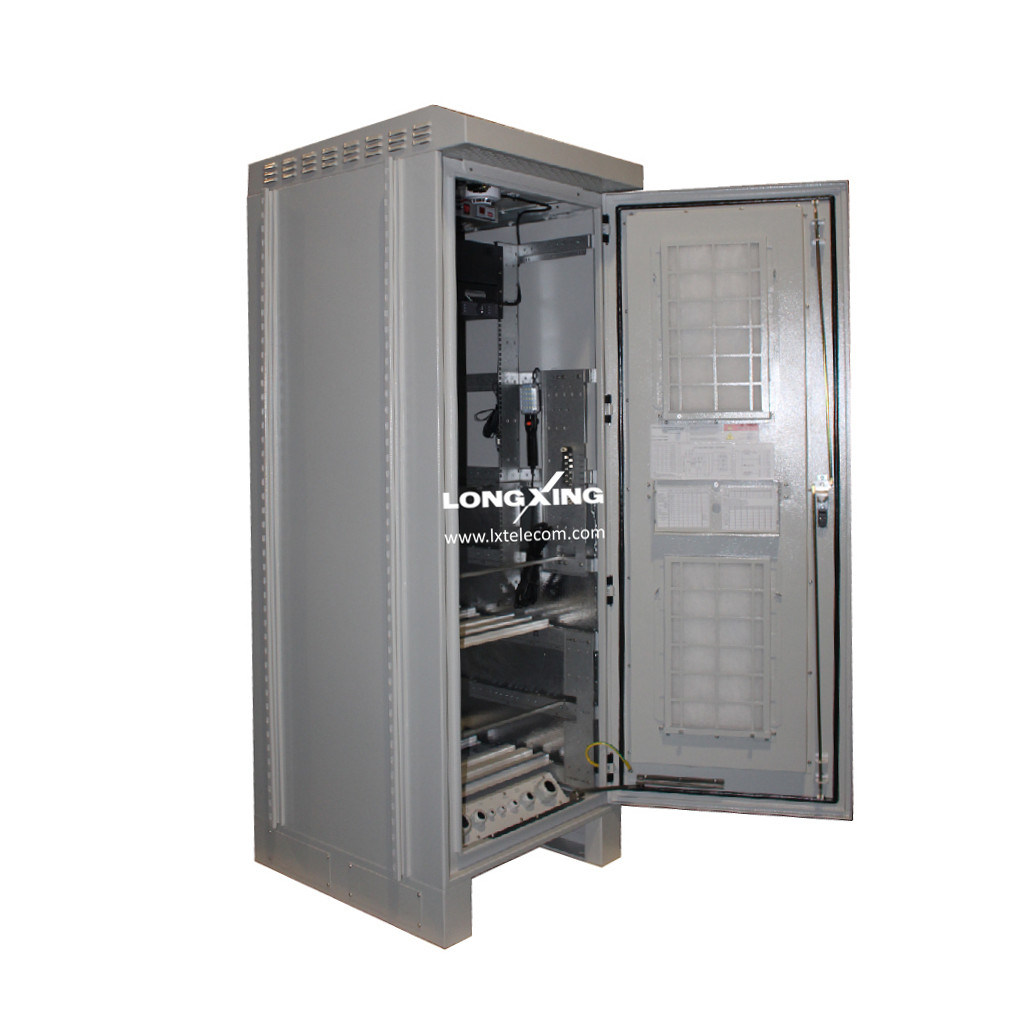

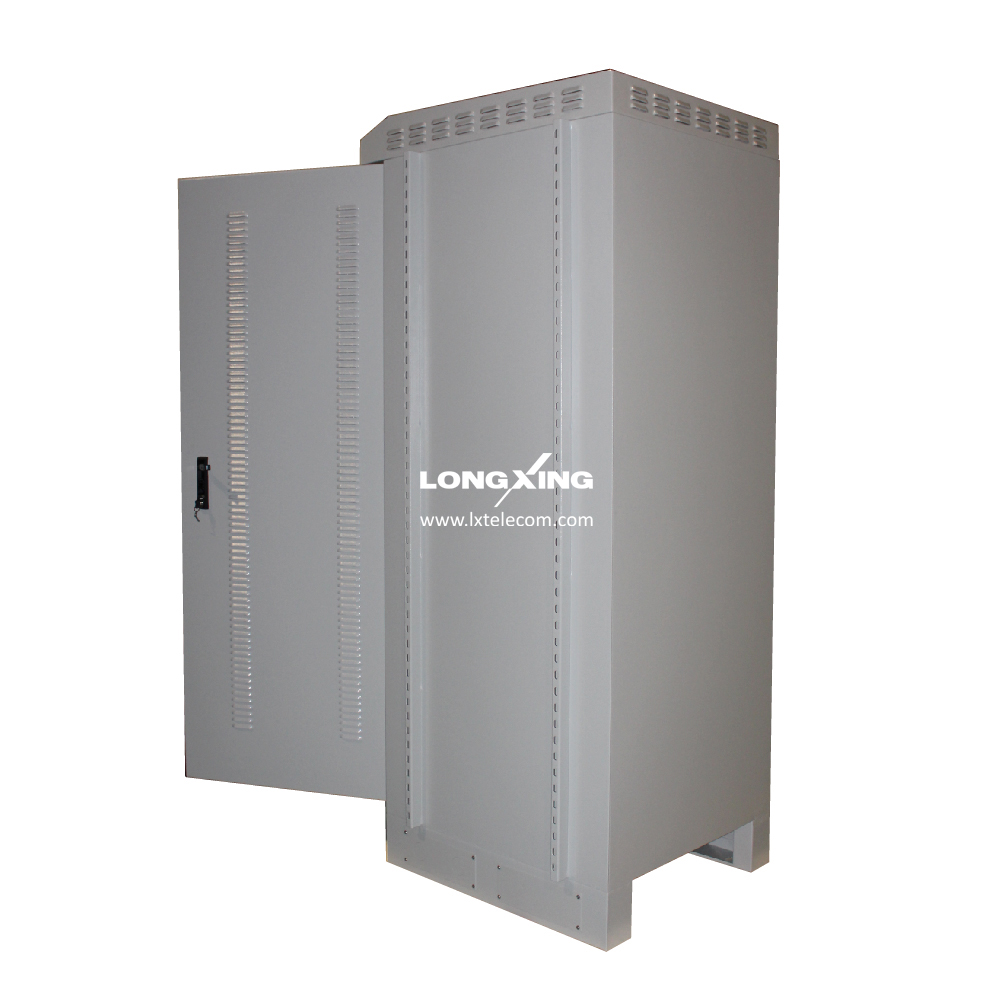

Outdoor Power Cabinet NPX06-H1
Overview
LongXing outdoor power cabinet provides flexible size options, offers the ideal enclosure solution to build the whole base station inside. The cabinets
system supports network equipment, backup batteries, and power systems in a range of severe environmental conditions. 2 levels ( Normal & Master )
safety key mechanism completes the protection of installed equipment.
Features
| Thickness of steel: front doors: 2.0mm, roof: 2.5mm aluminum, other parts: 1.5mm.
| Highly stable and rigid construction.
| 19” installations.
| 2 levels lock ( Normal & Master ) at the front door.
| Switching mode power supplies are available upon request.
Add To Quote List
Add To Compare
Inquiry Now
| Highly stable and rigid construction.
| 19” installations.
| 2 levels lock ( Normal & Master ) at the front door.
| Switching mode power supplies are available upon request.
| Dimensions and Capability | |
| Dimensions(H*W*D) | 2100mm*750mm*800mm |
| Material | Galvanized steel and aluminum; Powder coated |
| Battery Space | Up to 2 string 12V x 4 (200Ah) |
| Enclosure/Plinth’s color | Grey |
| Space for Equipment | 19”12U + 5U optional kits |
| Switching Mode Power Supply | Available upon request |
| Operation Conditions | |
| Temperature | -30℃ ~ 65℃ |
| Humidity | ＜95% |
| Air Pressure | Need to reduce power supply capacity when altitude ＞ 2000m |
| Shipping Information | |
| Package Contents | Outdoor cabinet 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | wooden box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
