Power Distribution Unit Series-2
Overview
LongXing commit to create and produce high quality and highly reliable products to support safe, stable, and dependable power distribution solutions for customers. LX basic power distribution unit can meet the general requirements of power distribution and special demand. Enhanced power distribution unit is based on basic power distribution unit integrating computer serial monitoring technologies to facilitate power supply status and fault evaluation on a remote basis.
Features
l Solid. easy installation.
l Modular composite structure.
l Security and stability.
l Applicable to 19-inch standard cabinet and non-standard cabinet.
l More control, outlet standards, accessibility functions can be customized.
Add To Quote List
Add To Compare
Inquiry Now
l Modular composite structure.
l Security and stability.
l Applicable to 19-inch standard cabinet and non-standard cabinet.
l More control, outlet standards, accessibility functions can be customized.
| Technical Parameters Ⅰ | |

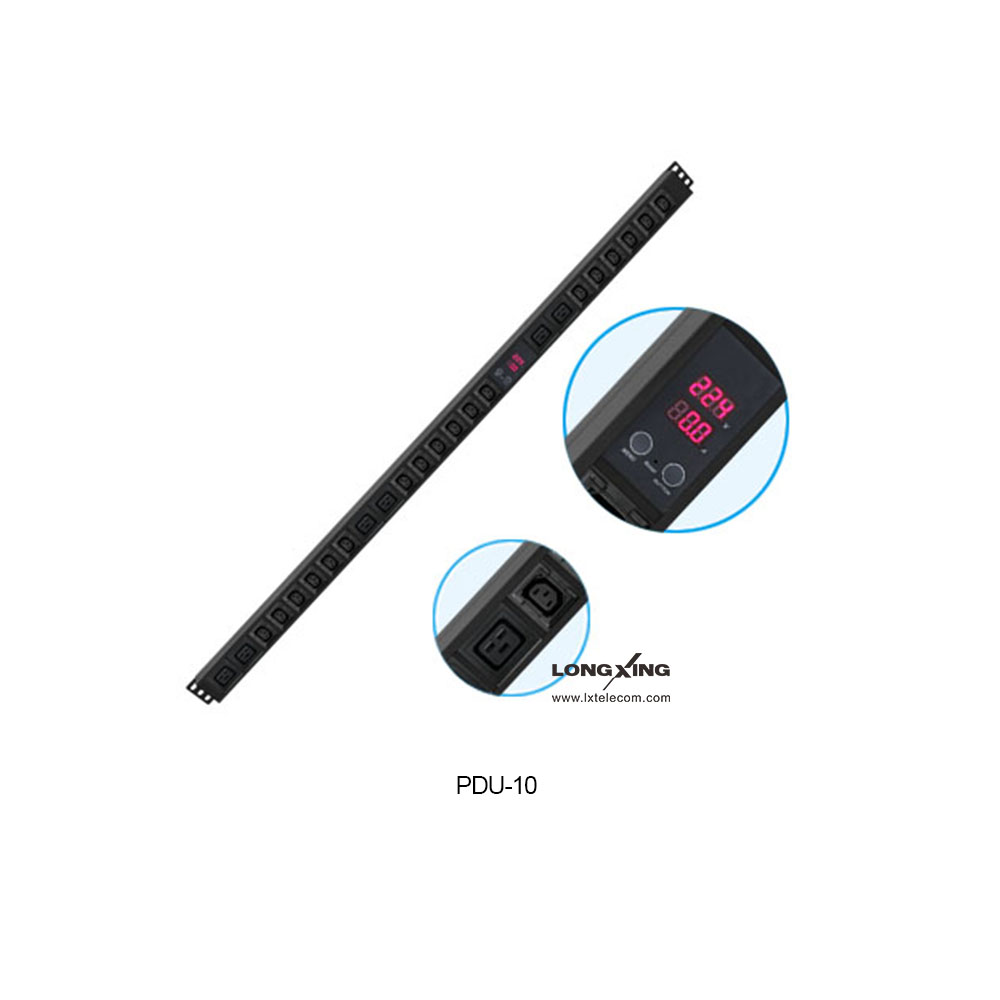

| Model | PDU-10 |
| Functional Module | High voltage DC PDU, with ampere-voltage meter. |
| Product application | Calculate the power consumption per unit time of device for customers to analyze if the entire consumption is efficient and if the load of the PDU is efficient or not. |
| Technical Parameters Ⅱ | |

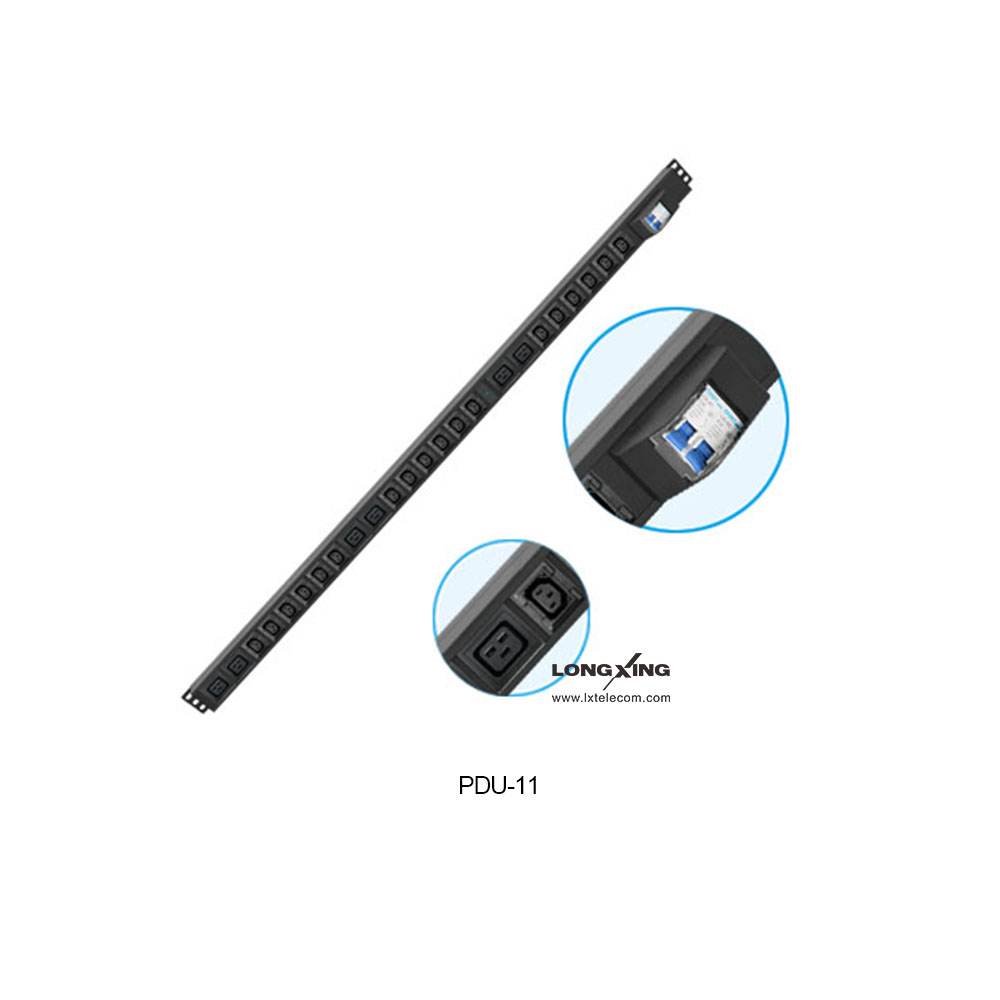

| Model | PDU-11 |
| Dimension | 58 * 44.4*Length （1.3U Width）mm |
| Maximum input current | 32A |
| Outlet | 18 C13, 6 C19 Double-pole circuit breaker |
| Installation | Vertical |
| Technical Parameters Ⅲ | |

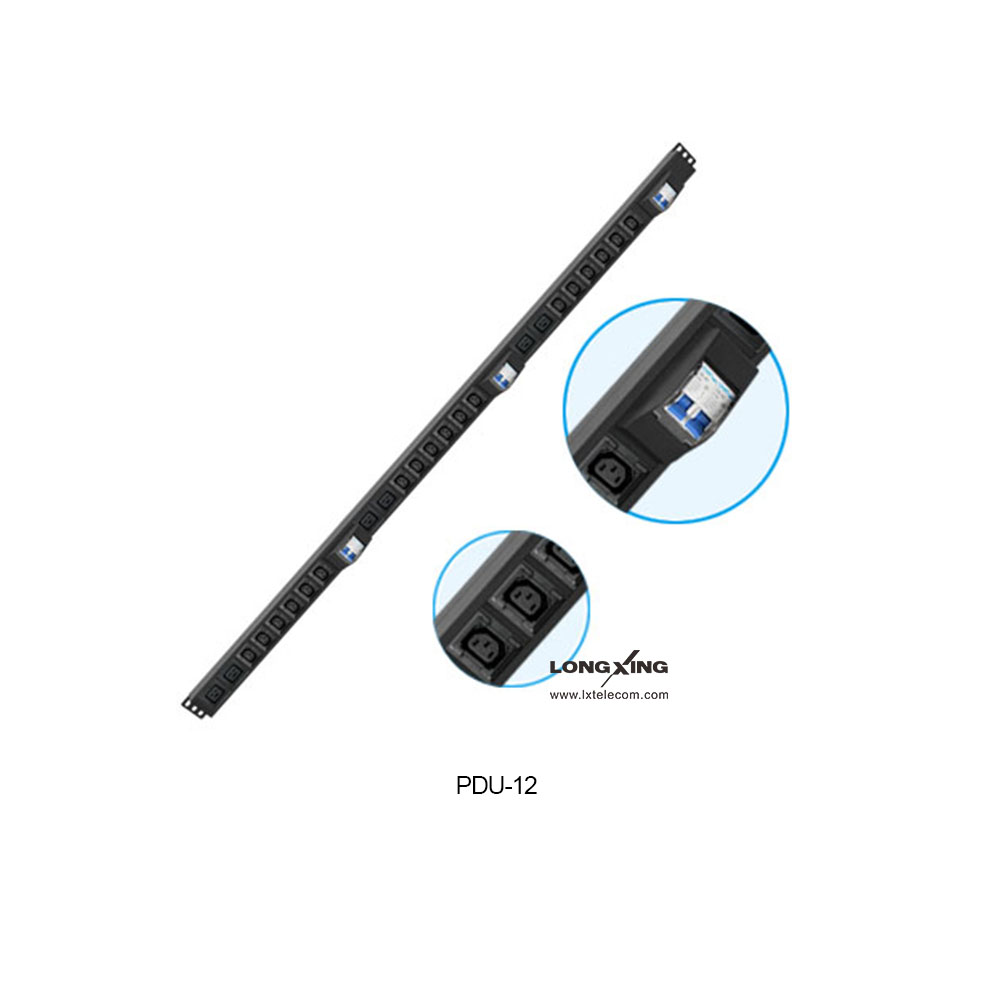

| Model | PDU-12 |
| Dimension | 58 * 44.4*Length（1.3U Width）mm |
| Maximum input current | 3*32A |
| Outlet | 18 C13, 6 C19 Six way single-pole circuit breaker |
