Ceramic Ferrule and Split Sleeve
Overview

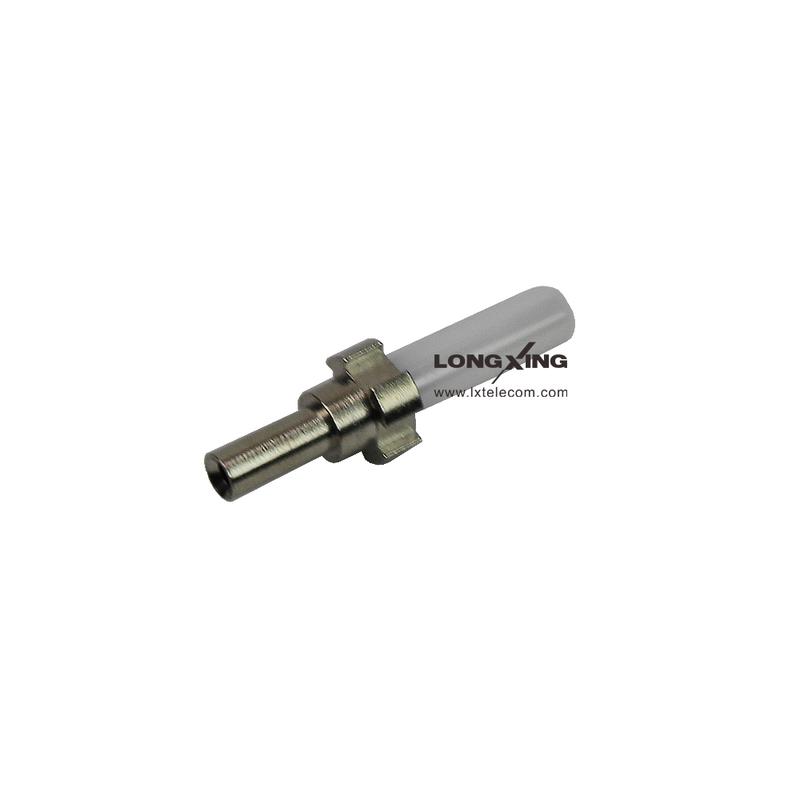

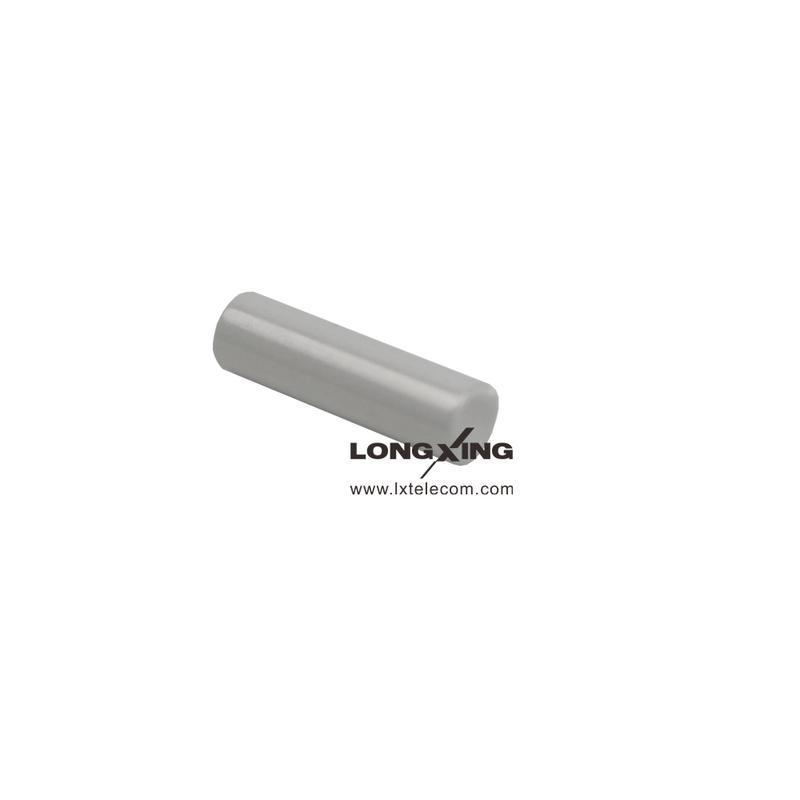

Ceramic ferrules are the core components of fiber optic products. Split sleeves are mainly used in
adapters, which would be used to connect and align two inserted ceramic ferrules together. The quality of ferrule and split sleeve determines in great sense the performance of other components such as connectors, patch cords, etc. Custom length, inner and outer dimensions are available upon request.
Features
l Type: SC, LC, MU, LC
l Good performance of temperature stability
l High performance of mechanical durability and anti-erosion
l Good concentricity and dimensional accuracy
l Low insertion loss and high return loss
l Standard and custom configuration
Add To Quote List
Add To Compare
Inquiry Now
l Good performance of temperature stability
l High performance of mechanical durability and anti-erosion
l Good concentricity and dimensional accuracy
l Low insertion loss and high return loss
l Standard and custom configuration
| Ceramic Ferrule Specifications | |||
| Type | Concentric Degree | Inside Diameter | Outside Diameter |
| SC&FC/SM | ≤0.001 | Ø 0.125+0.001/-0mm | Ø 2.4990±0.0005mm |
| SC&FC/MM | ≤0.004 | Ø 0.1255+0.0015/-0mm | Ø 2.499±0.001mm |
| LC/SM | ≤0.001 | Ø 0.125+0.001/-0mm | Ø 1.2490±0.0005mm |
| LC/MM | ≤0.004 | Ø 0.1255+0.0015/-0mm | Ø 1.2490±0.0005mm |
| MU/SM | ≤0.001 | Ø 0.125+0.001/-0mm | Ø 1.2490±0.0005mm |
| MU/MM | ≤0.004 | Ø 0.1255+0.0015/-0mm | Ø 1.2490±0.0005mm |
| Ceramic Sleeves Specifications | |||
| Type | Length | Inside Diameter | Outside Diameter |
| 50mm Sleeve (For SC/FC Adapter) | 4.0~14.5mm | Ø 2.500±0.005mm | Ø 3.2~4.0mm |
| 25mm Sleeve (For LC/MU Adapter) | 3.5~9.8mm | Ø 1.250±0.005mm | Ø 1.62~2.0mm |
