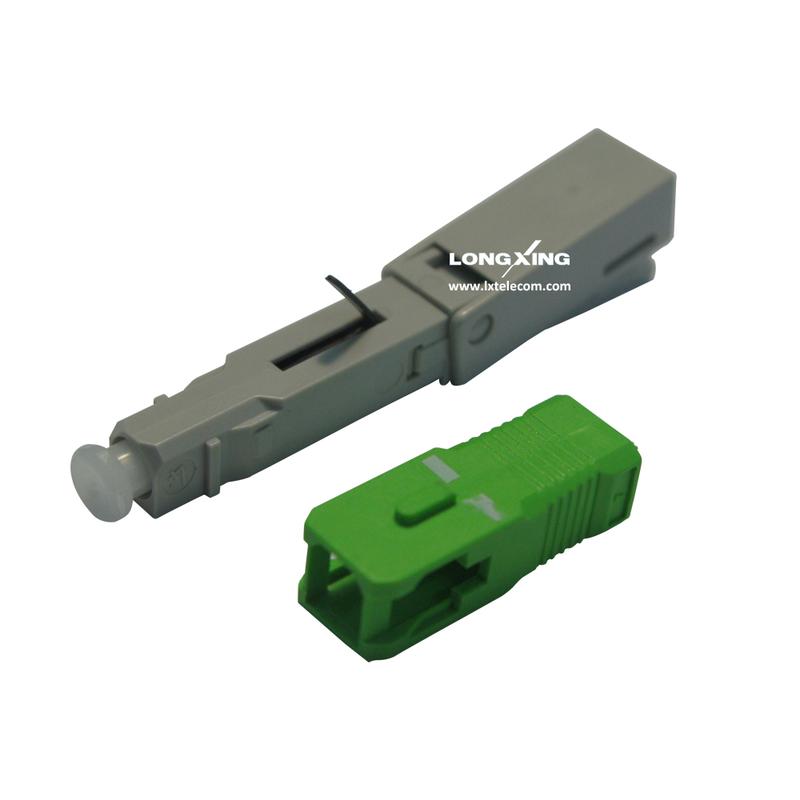

Field Installable Connector SC UPC/APC
Overview
LongXing Fast fiber connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.
Features
l Compatible with standard SC connectors;
l Field installable, cost effective, user friendly;
l UPC, APC polishing optional;
l Reliable durable and superior optical performance
l Low insertion loss and high return loss
l Stable capability and high reliability
l Excellent mechanical capability
Add To Quote List
Add To Compare
Inquiry Now
l Field installable, cost effective, user friendly;
l UPC, APC polishing optional;
l Reliable durable and superior optical performance
l Low insertion loss and high return loss
l Stable capability and high reliability
l Excellent mechanical capability
| Technical Specifications | ||
| Plug Type | SC/UPC | SC/APC |
| Connector Length | 51mm | 51mm |
| Optical Fiber | 2mm*3mm Butterfly Type | 2mm*3mm Butterfly Type |
| Insertion Loss | Average ≤ 0.25dB，Max ≤ 0.5dB | Average ≤ 0.4dB，Max ≤ 0.6dB |
| Return Loss | ≥50dB | ≥60dB |
| Thermal Shock | ≤0.30dB | |
| Storage / Operating Temperature | -40～+80 | |
| Tensile Strength | ≥30 N | |
| Average Assembly Time | ≤2 minutes | |
| Assembly Repeatability | ≥5 times | |
| One-Time Assembly Yield | ≥98% | |
