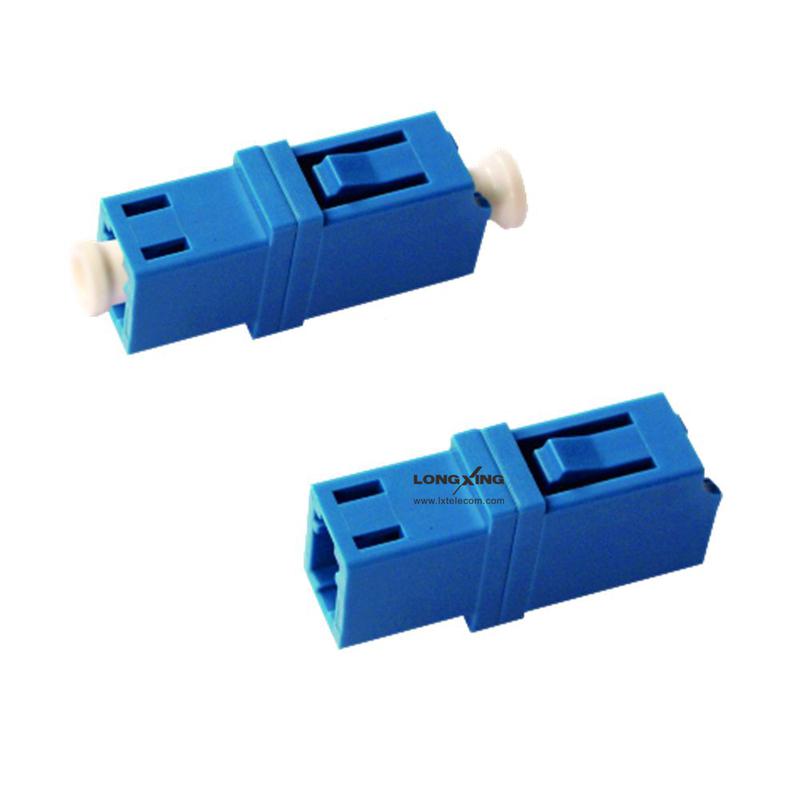

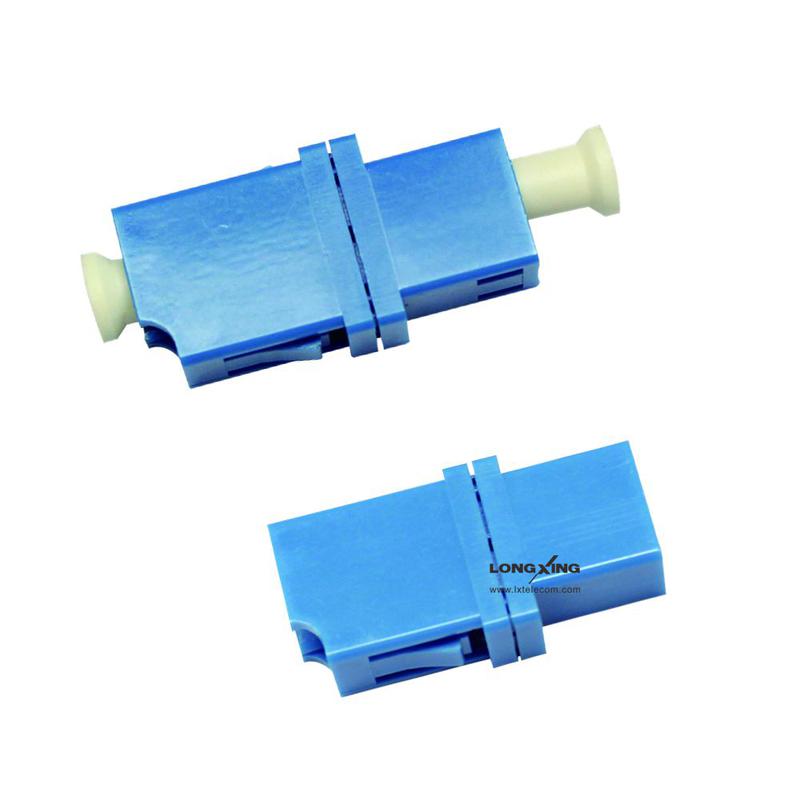

Fiber Optic Adapter LC
Overview

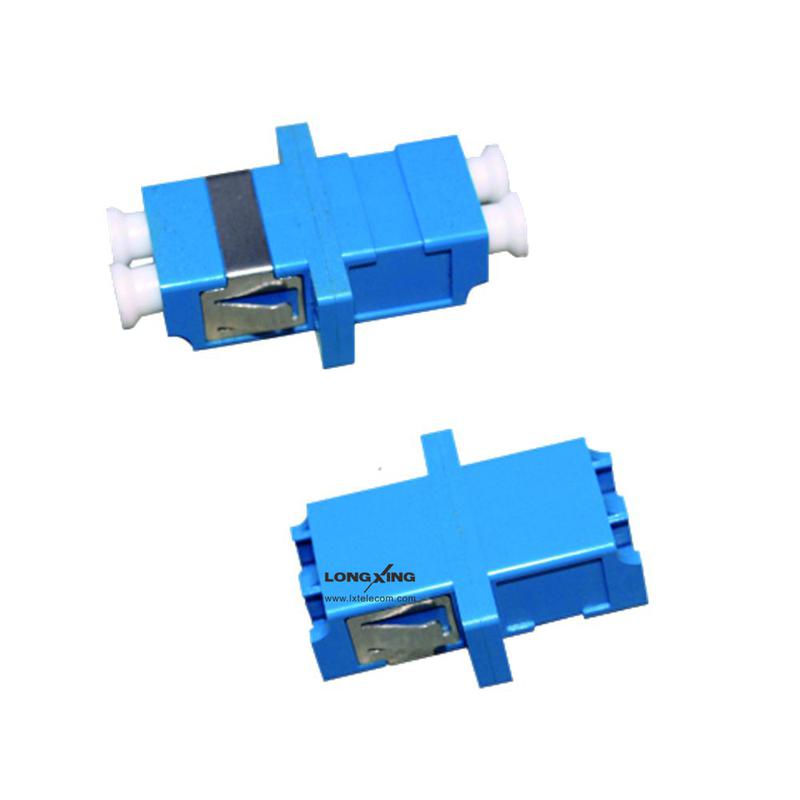

The LC adapter set the standard for small optical fiber interconnects. LC small-form-factor adapters are available as duplex, enabling two connectors to be used in the same footprint.
Features
l Double the capacity, perfect space saving solution
l Small size, large capacity
l Bayonet structure, convenient for installation.
l High return loss, Low insertion loss
l Push-and-pull structure, convenient for operation;
l Split zirconia (ceramic) ferrule is adopted.
l Used to mate two connectors together.
l Usually mounted in a distribution panel or wall box.
l LongXing’s LC adapter is available for all standard connector types in both single mode and multimode.
l The adapters are color coded allowing easy identification of the adapter type.

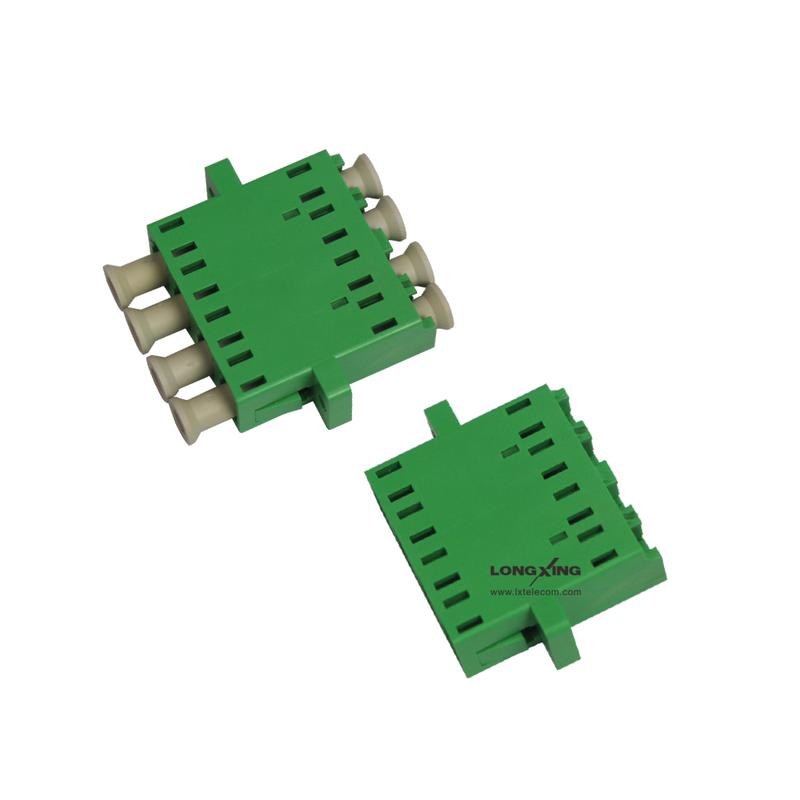

l Available with single-core & multi-core patch cords and pigtails.
Add To Quote List
Add To Compare
Inquiry Now
l Small size, large capacity
l Bayonet structure, convenient for installation.
l High return loss, Low insertion loss
l Push-and-pull structure, convenient for operation;
l Split zirconia (ceramic) ferrule is adopted.
l Used to mate two connectors together.
l Usually mounted in a distribution panel or wall box.
l LongXing’s LC adapter is available for all standard connector types in both single mode and multimode.
l The adapters are color coded allowing easy identification of the adapter type.
l Available with single-core & multi-core patch cords and pigtails.
| Technical Specifications | |||
| Parameters | LC/PC | LC/UPC | LC/APC |
| Working Temperature (°C) | -25 — +75 | ||
| Insertion Loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss( dB) | ≥45 | ≥50 | ≥60 |
