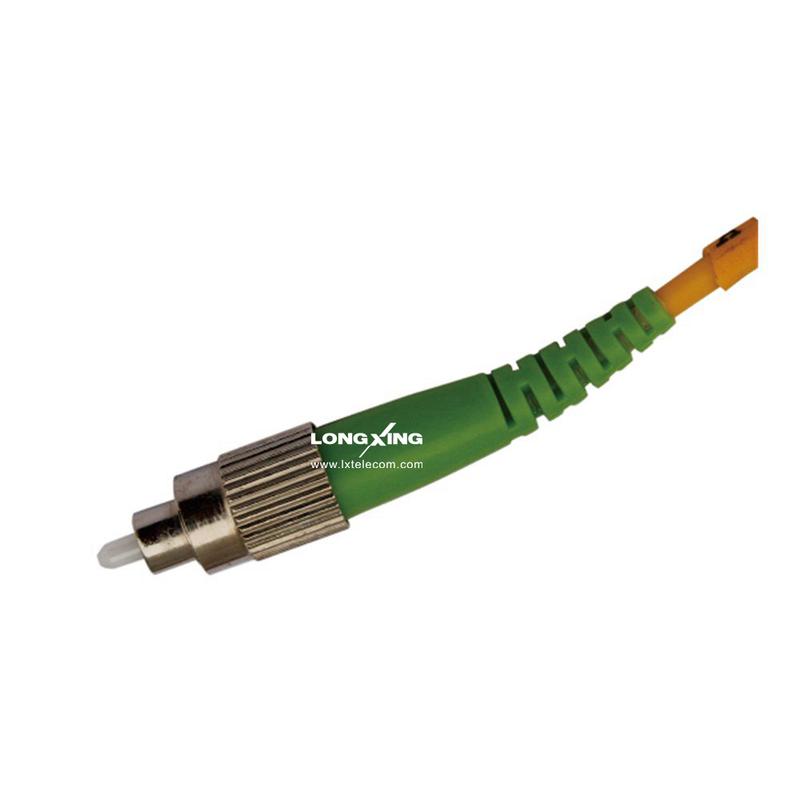

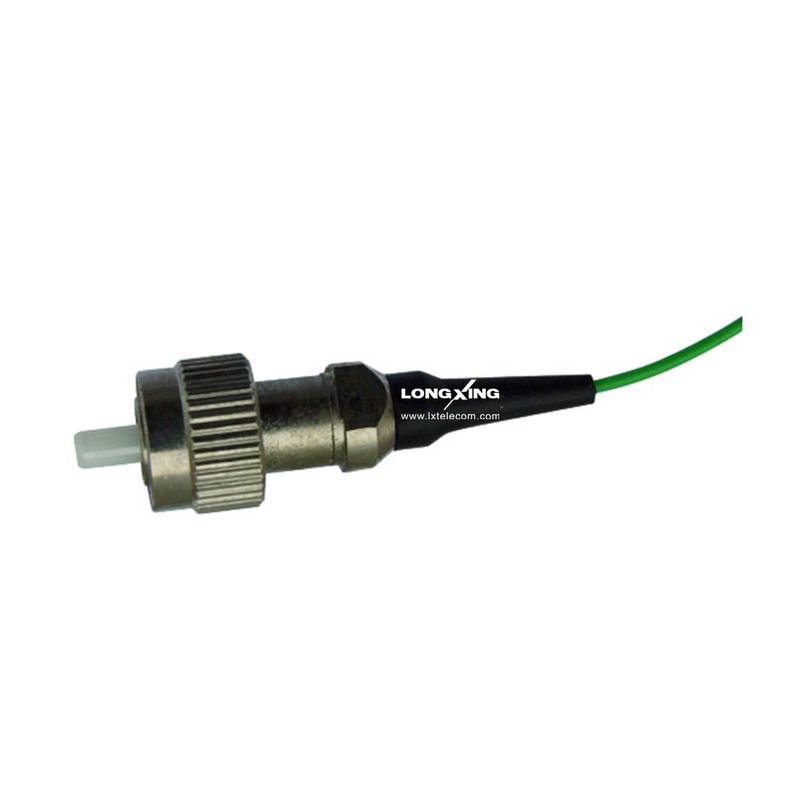

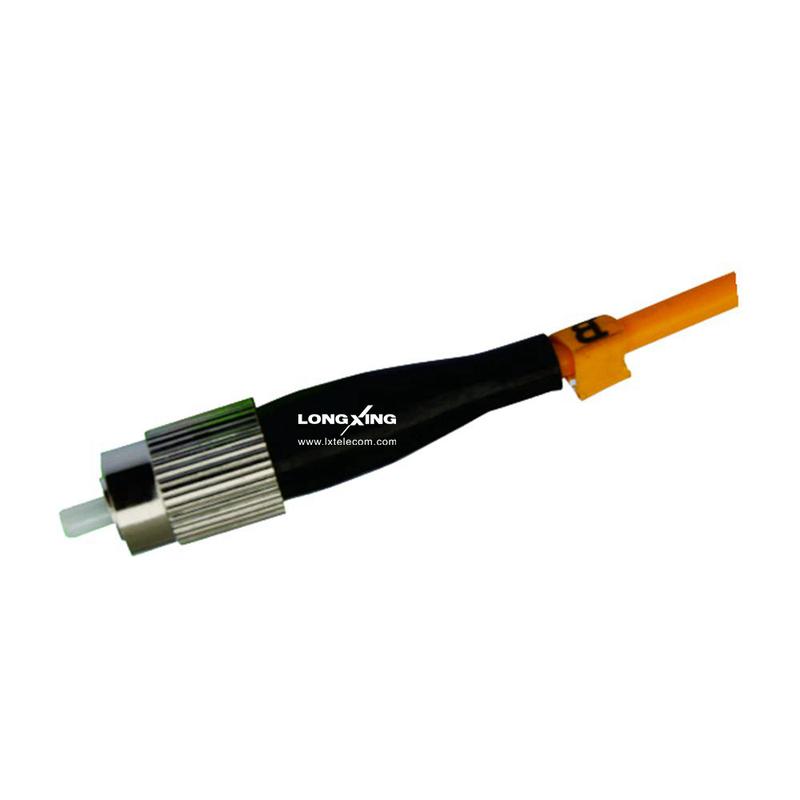

Fiber Optic Connector FC
Overview
The FC
connectors are mainly used for single mode applications were precision is required. With its simple to use locking thread mechanism preventing accidental disconnection, this provides a very secure connection.
Features
l Thread and integration structure with reliable connector;
l Square and round flange;
l Split zirconia (ceramic) ferrule is adopted.
l High return loss, Low insertion loss
l Push-and-pull structure, convenient for operation;
l Split zirconia (ceramic) ferrule is adopted.
l Available fiber diameter: 0.9mm, 2.0mm, 3.0mm
l Usually mounted in a distribution panel or wall box.
l The connectors are color coded allowing easy identification of the connector type.
l Available with single-core & multi-core patch cords and pigtails.
Add To Quote List
Add To Compare
Inquiry Now
l Square and round flange;
l Split zirconia (ceramic) ferrule is adopted.
l High return loss, Low insertion loss
l Push-and-pull structure, convenient for operation;
l Split zirconia (ceramic) ferrule is adopted.
l Available fiber diameter: 0.9mm, 2.0mm, 3.0mm
l Usually mounted in a distribution panel or wall box.
l The connectors are color coded allowing easy identification of the connector type.
l Available with single-core & multi-core patch cords and pigtails.
| Technical Specifications | |||
| Parameters | FC/PC | FC/UPC | FC/APC |
| Working Temperature (°C) | -40— +80 | ||
| Insertion Loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss( dB) | ≥45 | ≥50 | ≥60 |
