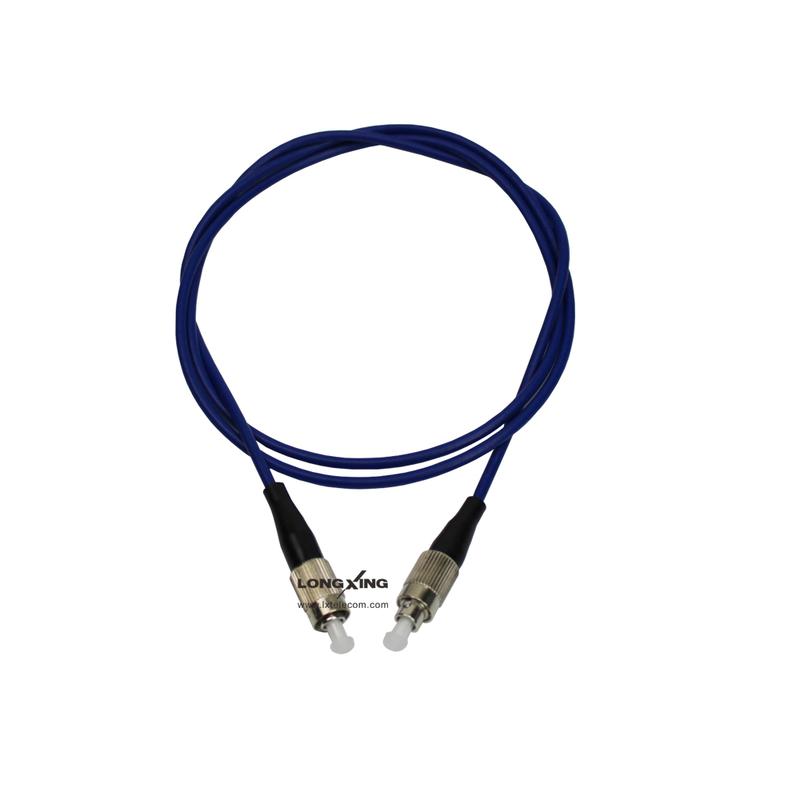

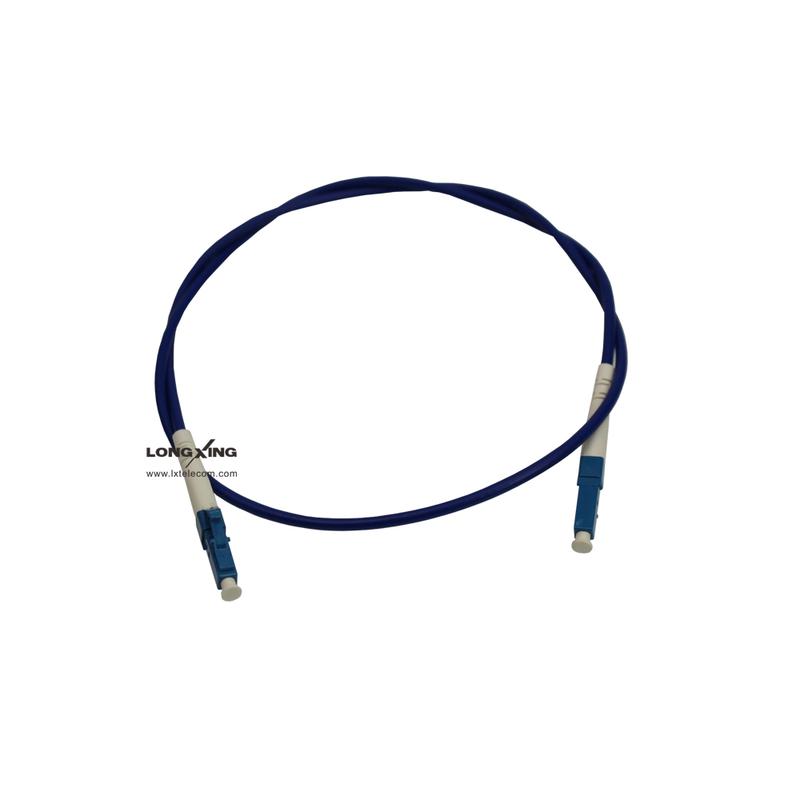

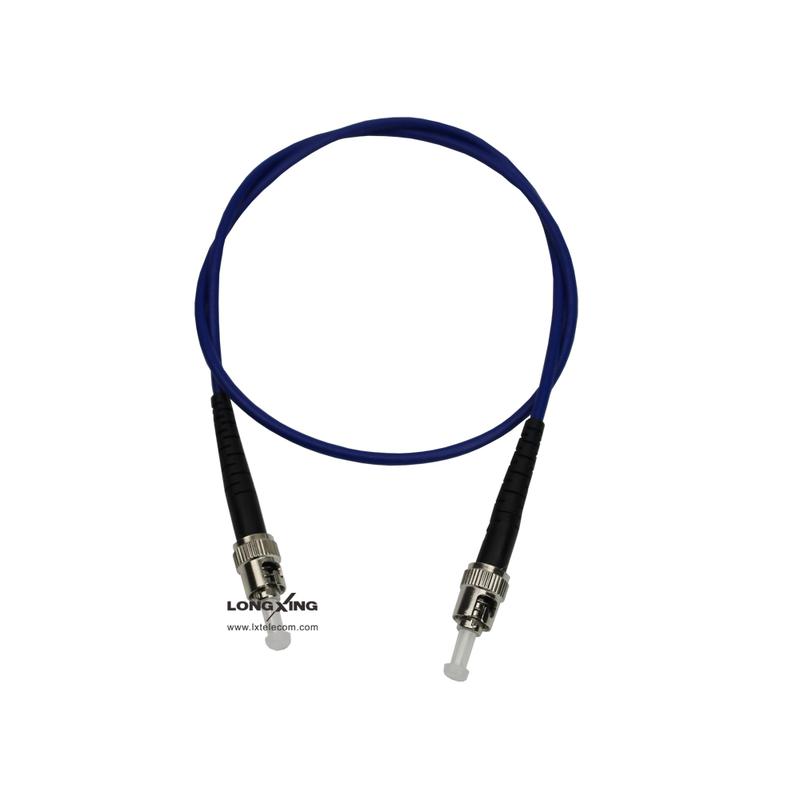

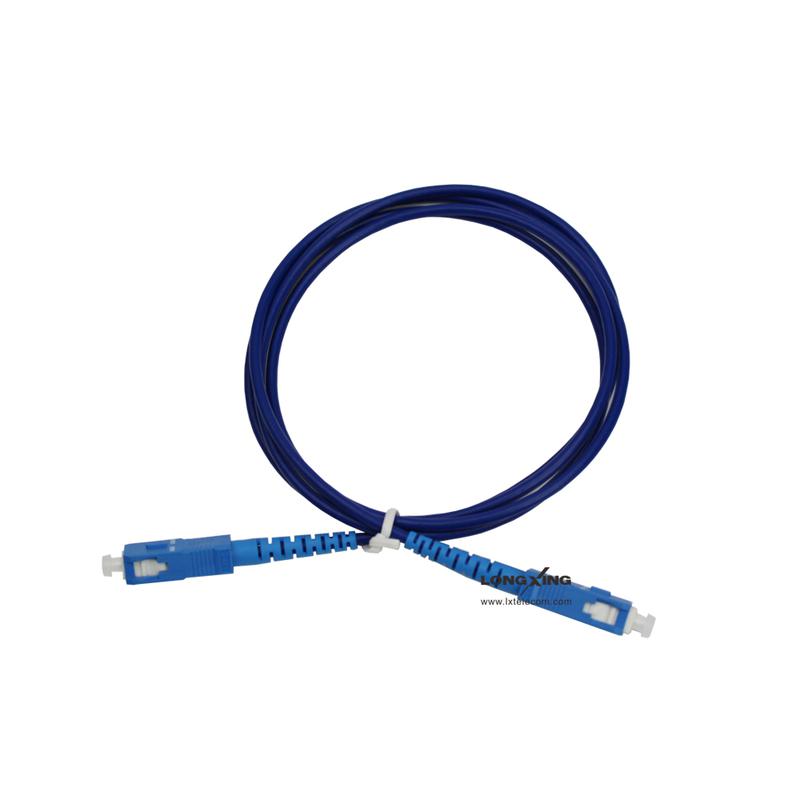

Fiber Optic Patch Cord Armored

Overview

LongXing supplies top quality optical fiber patch cord with very competitive prices, every single piece of patch cord is tested in the workshop before delivering to the customer. Customer/special requirements are welcomed. The LongXing brand of fiber cable assemblies are designed and manufactured in LongXing’s ISO9001 registered facility. The product range covers both single mode and multimode patch cords and pigtails which are fully qualified to RoHS standards. Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Features

l Prevent bending to ensure the secure transmission of optical fiber;
l Good performance of damp-proof, anti-erosion and anti-biten;
l High tensile strength, good repeated bending performance;
Fiber number is upon request.
Add To Quote List Add To Compare

Technical Specifications



Single-mode

Multimode



PC

UPC

APC

PC

Insertion Loss

≤0.25dB

≤0.25dB

≤0.25dB

≤0.25dB

Return Loss

≥50dB

≥50dB

≥60dB

≥45dB

General attenuation

1310 um≤0.35dB/km;1550 um≤0.25dB/km

850 um≤3.0dB/km;1300 um≤1.0dB/km

Operating Wavelength

1310nm, 1550nm

850nm, 1300nm

Repeatability

≤0.1dB

Service Life

>1000 mating cycles

Tight-buffered fiber

Tight-buffered fiber

SM or MM available 0.9mm tight-buffered fiber

Color

SM/ White or yellow MM/ Blue or orange

Stainless steel tube

Stainless steel tube

Material: SUS204

Outer diameter (D)

1.65±0.05mm

Inside diameter (d)

1.15±0.05mm

Thickness (t)

0.25±0.02 mm

Gap (p)

0.22±0.02 mm

Compression resistant strength

≥300KGf/100MM

Arm yarn/Kevlar

Arm yarn

model:1000dtex

Number: 4 branch outside the stainless steel tube

Tensile strength: Short term

≥300N: long term:≥150N.

Jacket

jacket

Material: PVC/LSZH /OFNP

Color

SM/blue; MM/gray

Thickness(t)

0.45±0.05 mm

Outer diameter(D)

2.9±0.1mm

Working Temperature

-40℃~+75℃
