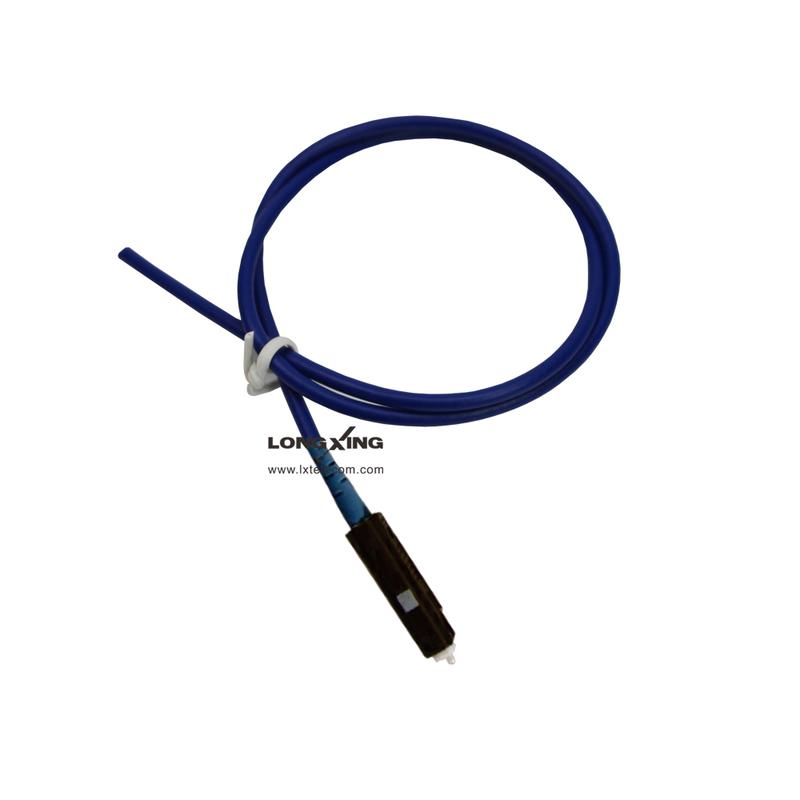

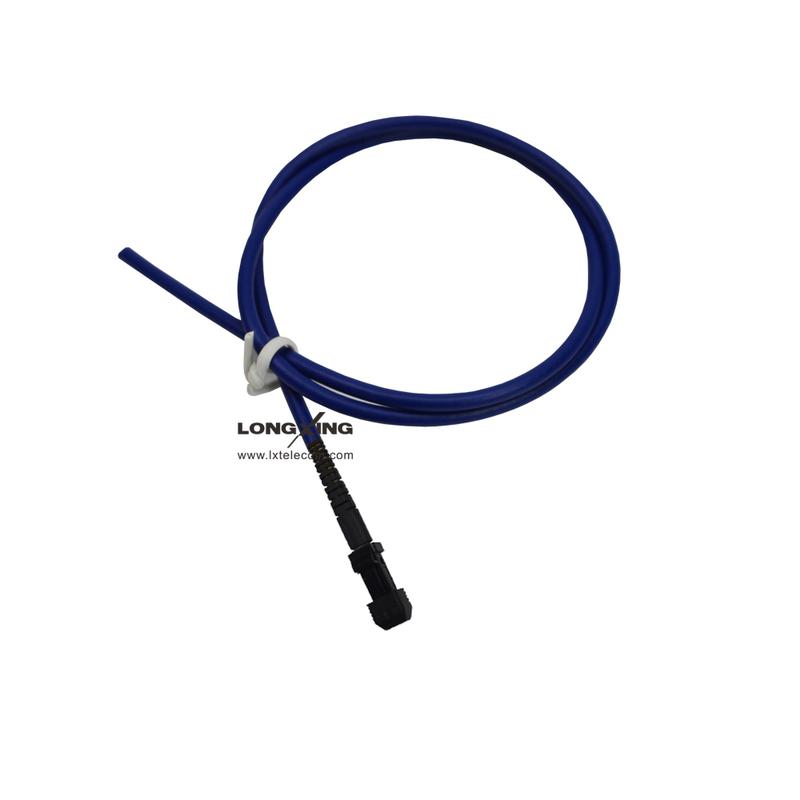

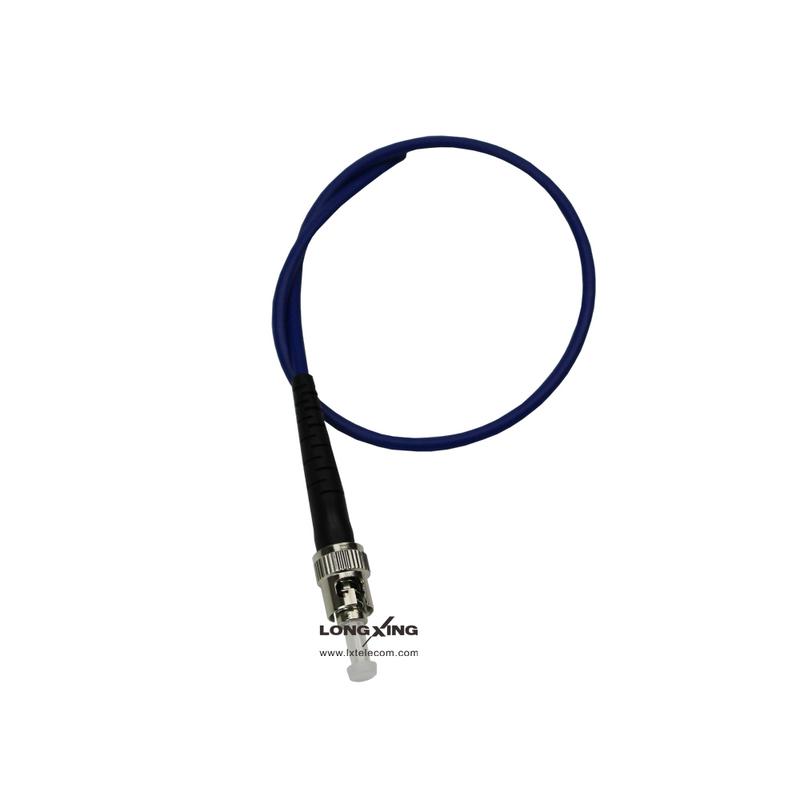

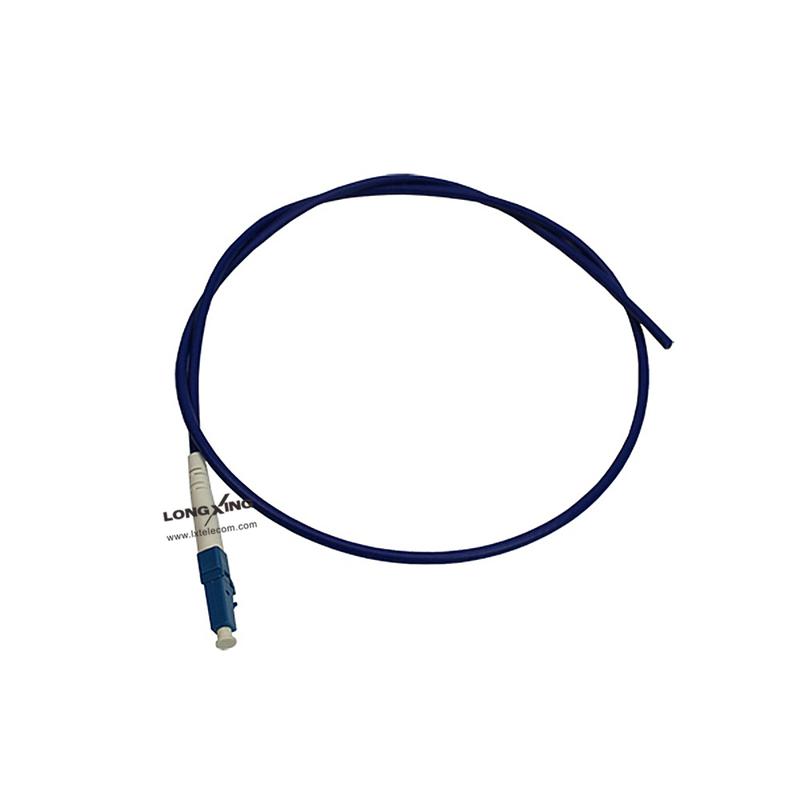

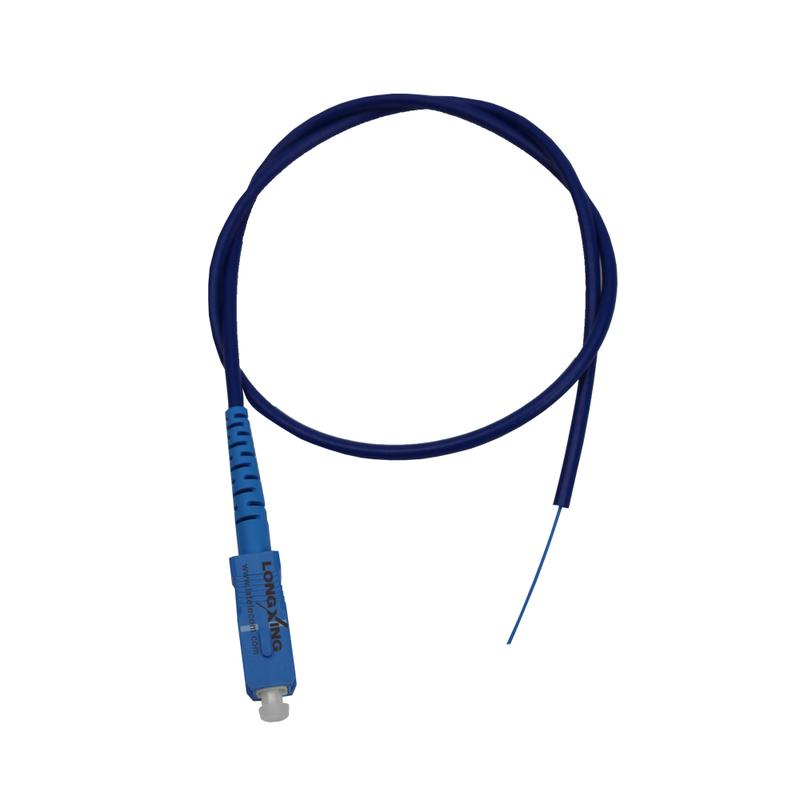

Fiber Optic Pigtail Armored
Overview
The LongXing brand of fiber cable assemblies are designed and manufactured in LongXing’s ISO9001 registered facility. The product range covers both single mode and multimode patch cords and pigtails.
which are fully qualified to RoHS standards. Fiber Optic Pigtails are utilized to achieve accurate mounting for precision alignment of fiber optical components. Assemblies are available in all major fiber optic connector types; a range of cable color options available.
which are fully qualified to RoHS standards. Fiber Optic Pigtails are utilized to achieve accurate mounting for precision alignment of fiber optical components. Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Features
l Prevent bending to ensure the secure transmission of optical fiber
l Good performance of damp-proof, anti-erosion and anti-biten
l High tensile strength, good repeated bending performance
l Fiber number is upon request
Add To Quote List
Add To Compare
Inquiry Now
l Good performance of damp-proof, anti-erosion and anti-biten
l High tensile strength, good repeated bending performance
l Fiber number is upon request
| Technical Specifications | |||
| Parameters | FC/SC/ST/LC/MU/MTRJ(PC) | FC/SC/ST/LC/MU/MTRJ(UPC) | FC/SC/LC(APC) |
| Working Temperature (°C) | -40 — +80 | ||
| Insertion Loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 |
| Return loss (dB) | ≥45 | ≥50 | ≥60 |
| Insertion/pulling force (N) | ≥18 | ≥18 | ≥18 |
| Tensile strength(N) | ≥200(long term) ≥400(short term) |
≥200(long term) ≥400(short term) |
≥200(long term) ≥400(short term) |
| Compressive strength (N) | ≥3000N/100mm | ≥3000N/100mm | ≥3000N/100mm |
