Dome Fiber Optic Splice Closure GPJ83-D01
Overview
LongXing GPJ83-D01 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.
Features
l The protection grade reaches IP 68.
l Aerial and wall-mounting.
l Ambient temperature ranges from -40 to 65℃.
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

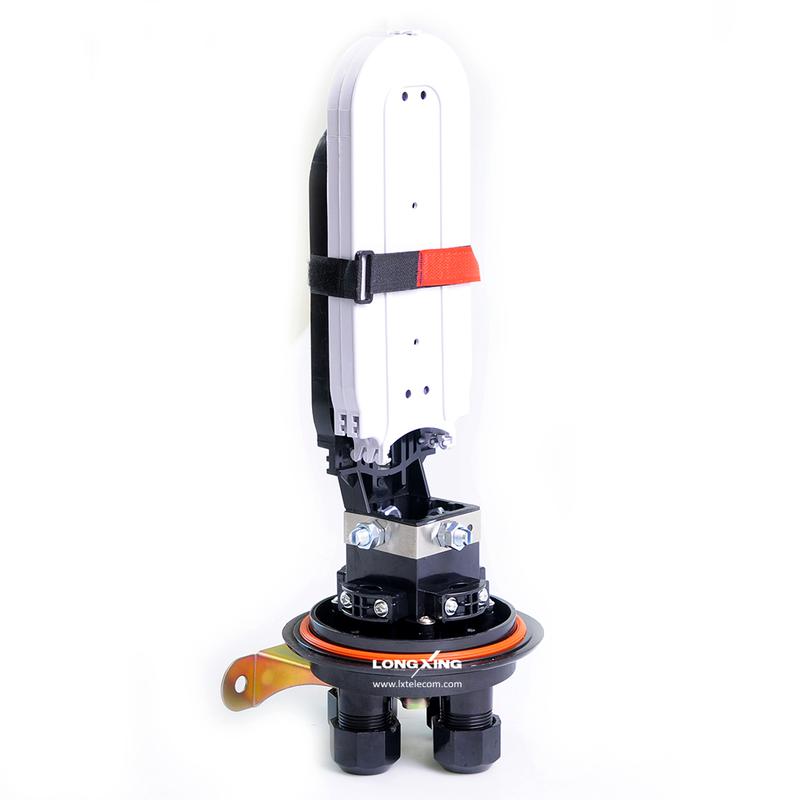

l The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.
| Dimensions and Capacity | |

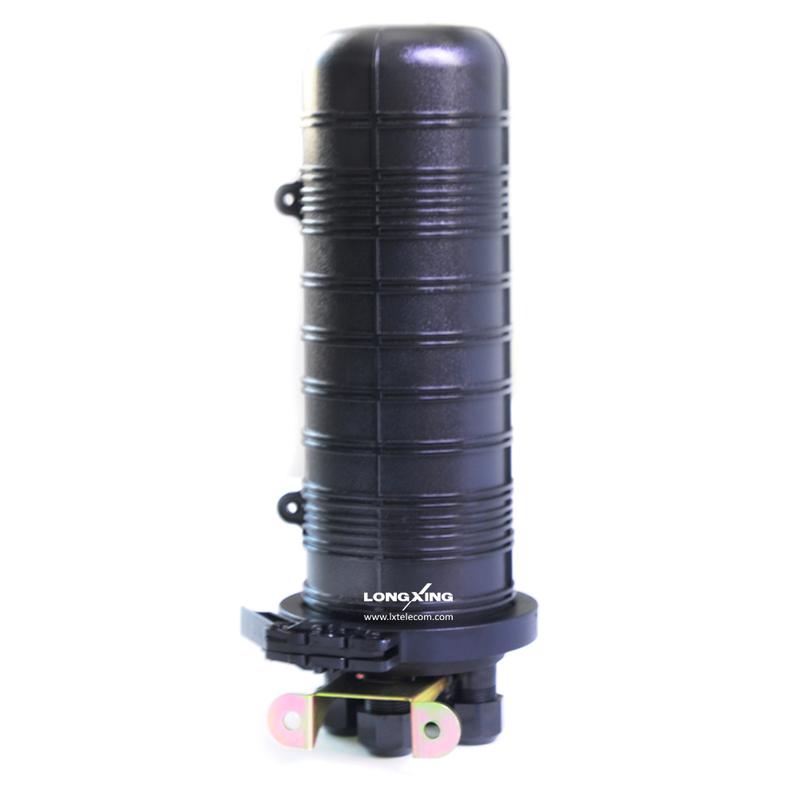

| Outside Dimensions (Height*Diameter) | 430mm*190mm |
| Weight (excluding outside box) | 2670g - 2900g |

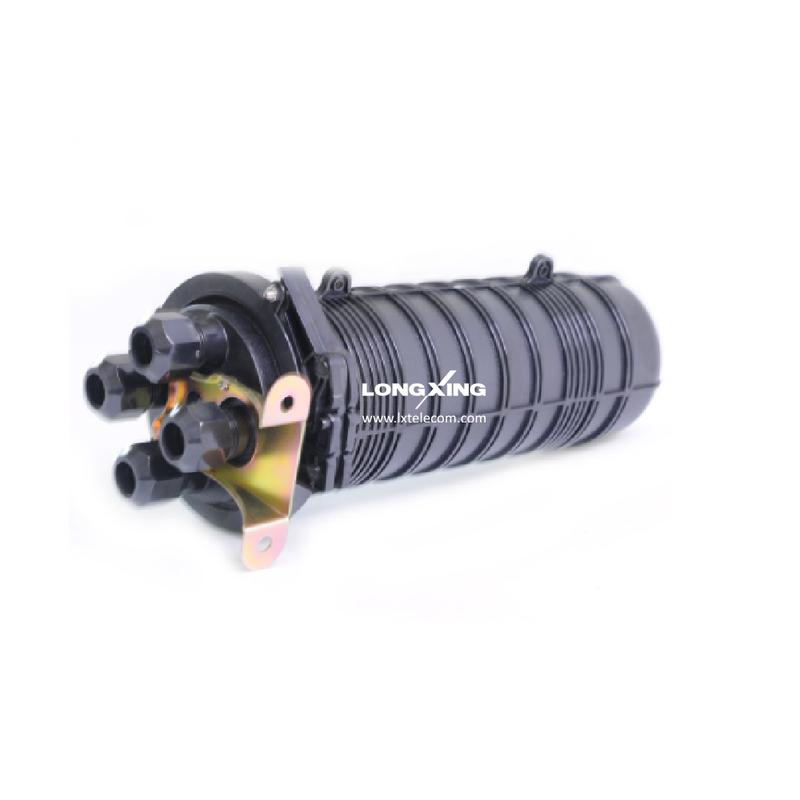

| Number of Inlet / Outlet Ports | 4 pieces |
| Diameter of Fiber Cable | Φ5mm - Φ18mm |
| Capacity of FOSC | Bunchy: 12 cores - 96 cores Ribbon: up to 288 cores |
| Main Components | |||
| Name of Components | Quantity | Usage | Remarks |

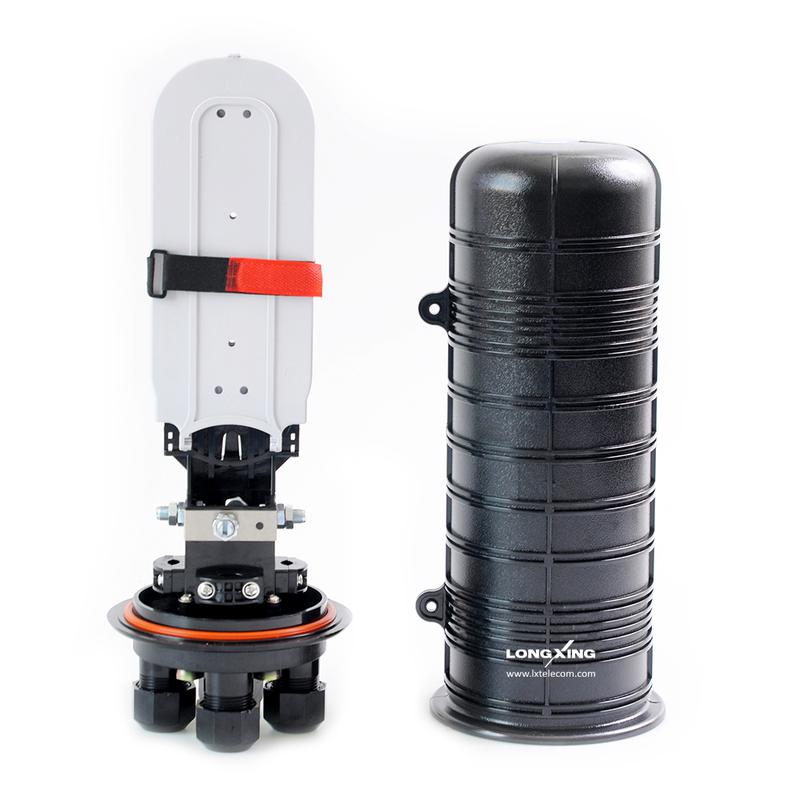

| FOSC Cover | 1 piece | Protecting fiber cable splices in whole | Height*Diameter: 355*150 (mm) |

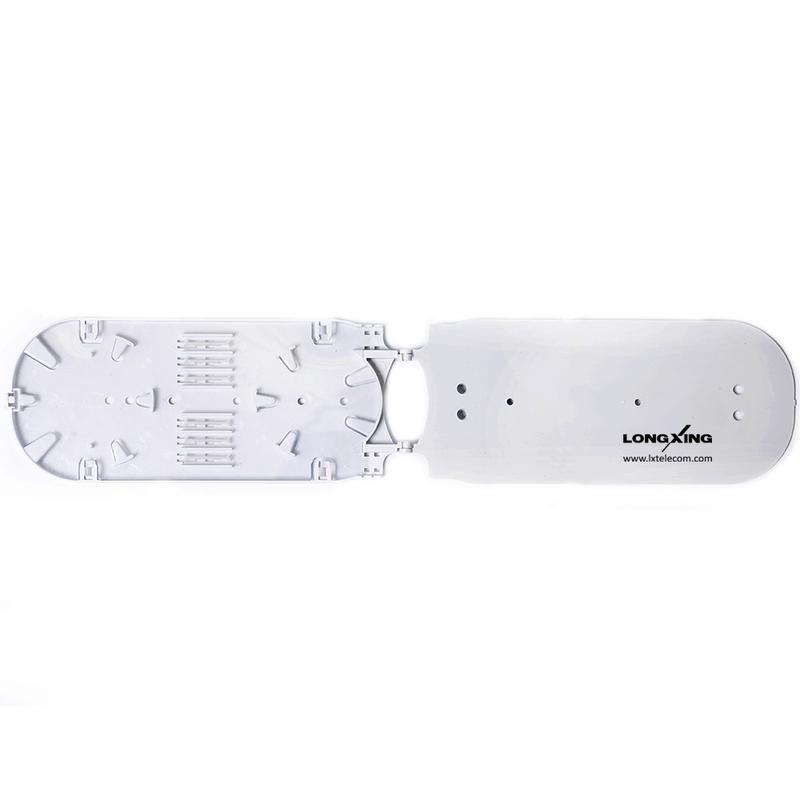

| Splice Tray (FOST) | Max. 6 trays (bunchy) Max. 4 trays (ribbon) |
Fixing heat shrink protective sleeve and holding fibers | Bunchy: 12, 24 (cores) Ribbon: 6 pieces |
| Fiber Holding Tray | 1 piece | Holding fibers with protective coat | N/A |
| Base | 1 set | Fixing internal and external structure | N/A |
| Plastic Hoop | 1 set | Fixing between FOSC cover and base | N/A |
| Seal Fitting | 1 piece | Sealing between FOSC cover and base | N/A |
| Pressure Testing Valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement. |
| Earthing Deriving Device | 1 set | Deriving metallic parts of fiber cables in FOSC for earthing connection | Configuration as per requirement. |
| Seal rings for inlet/outlet ports | 4 pieces | For the inner seal of inlet/outlet ports; the diameter is 12.5mm,can shrink to 7mm | N/A |
| Main Accessories and Special Tools | |||
| Name of Components | Quantity | Usage | Remarks |
| Heat Shrink Protective Sleeve | N/A | Protecting fiber splices | Configuration as per capacity |
| Nylon Tie | N/A | Fixing fiber with protective coat | Configuration as per capacity |
| Earthing Wire | 1 piece | Putting through between earthing devices | To put through as per actual requirement |
| Abrasive cloth | 1 piece | Scratching fiber cables | N/A |
| Labeling Paper | 1 piece | Labeling fibers | N/A |
| Special Wrench | 2 piece | Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube | N/A |
| Measuring Paper | 1 piece | To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape | To measure perimeter with the corresponding measuring paper |
| Seal Tape | 1 ring | Enlarging diameter of fiber cable which fits in with gasket ring. | Configuration as per specification |
| Insulation Tape | 1 ring | Enlarging diameter of fiber cable for easy fixing | N/A |
| Metal Hoop | 1 set | For wall mounting and pole hugging | N/A |
| Buffer Tube | Customized | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
| Desiccant | 1 bag | Put into FOSC before sealing for desiccating air | N/A |
| Shipping Information |
| Specification | Carton Size | Capacity | Net Weight | Remarks |
| Inner Box | 200mm*170mm*455mm | 1 pc | 2.45kg - 2.7kg | Configuration as per weight |
| Outer Box | 885mm*420mm*275mm | 10 pcs | 24.5kg - 27kg | Configuration as per weight |
