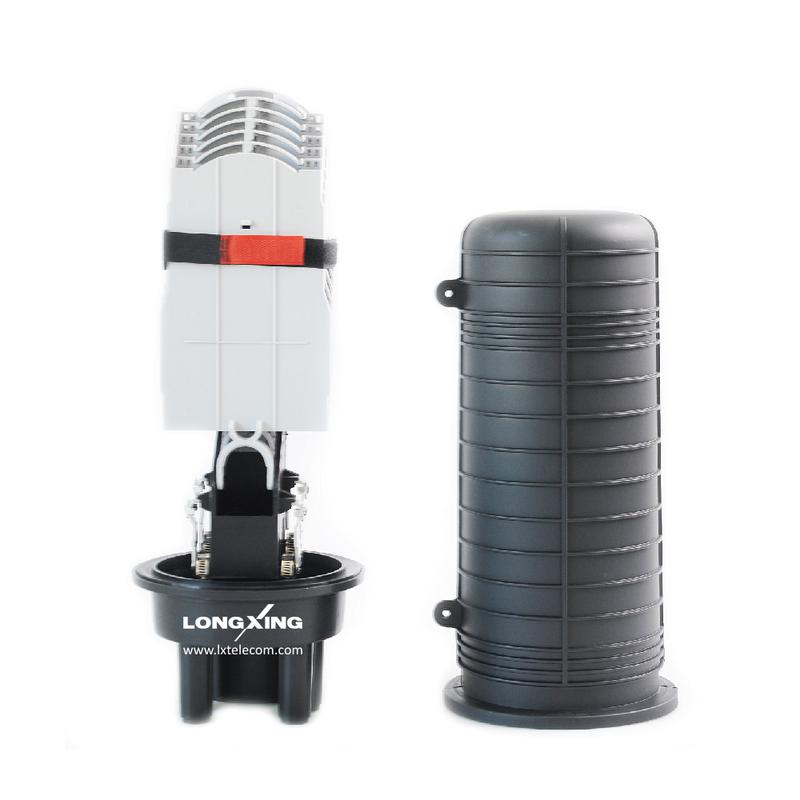

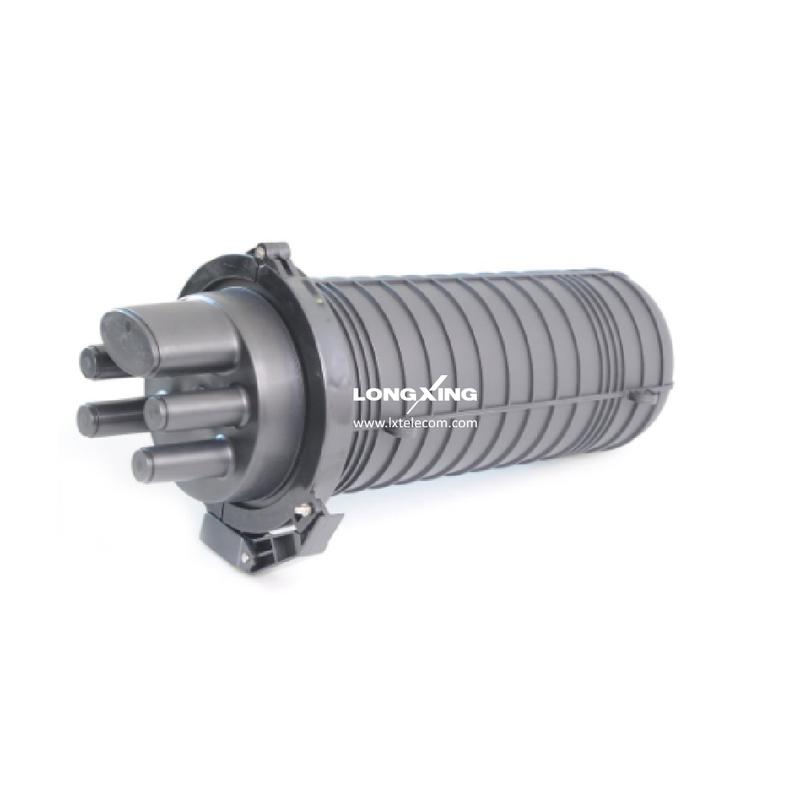

Dome Fiber Optic Splice Closure GPJ83-D10

LongXing GPJ83-D10 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.

l The protection grade reaches IP 68.
l Aerial and wall-mounting.
l Ambient temperature ranges from -40 to 65℃.
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

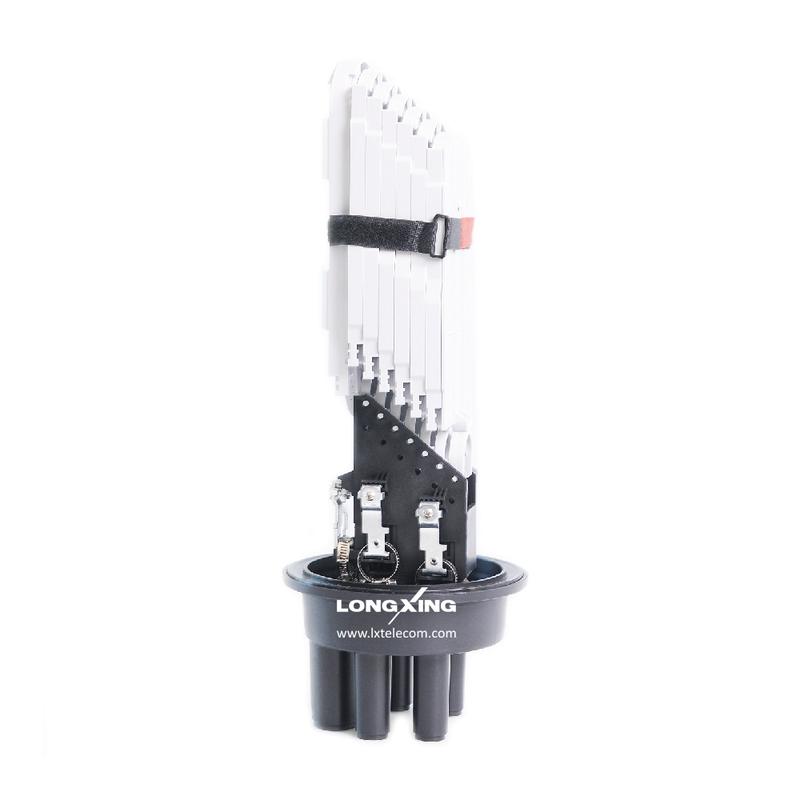

l The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.
