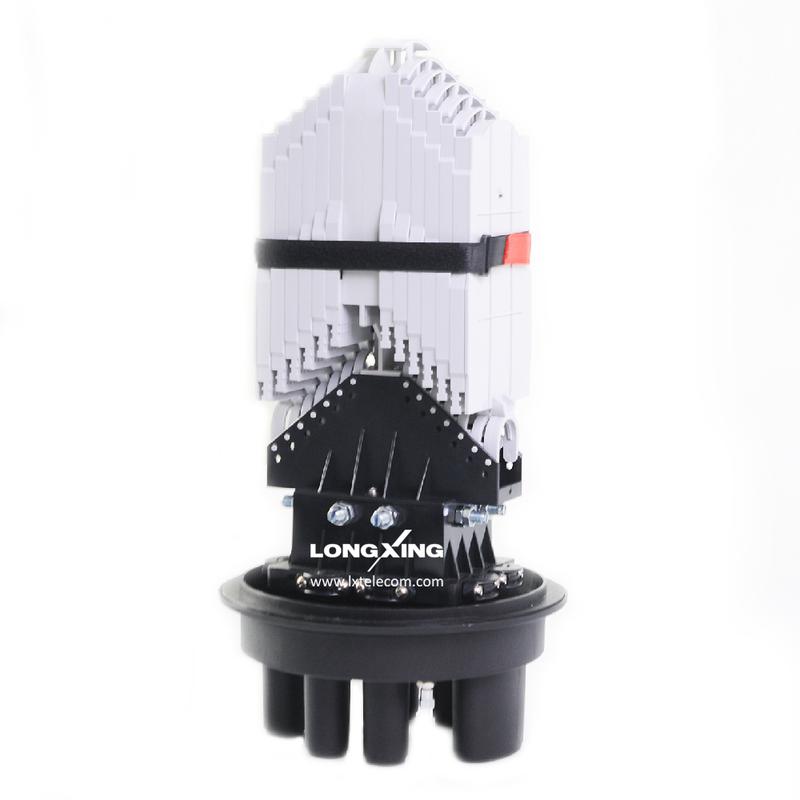

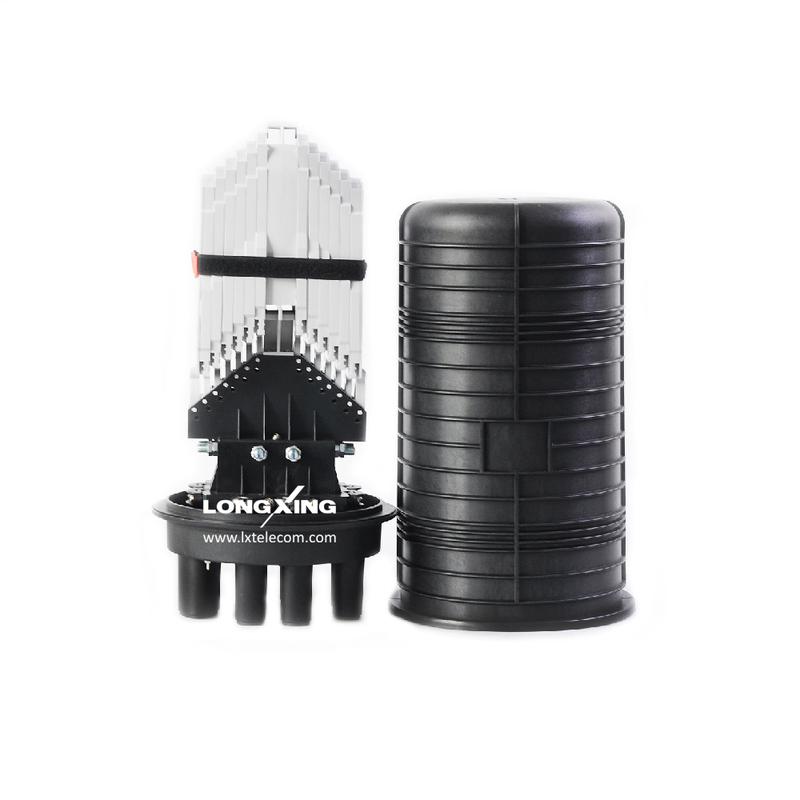

Dome Fiber Optic Splice Closure GPJ83-D11

Overview

l The protection grade reaches IP 68.
l Aerial and wall-mounting.
l Ambient temperature ranges from -40 to 65℃.
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
l The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.

Features

LongXing GPJ83-D11 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.
Add To Quote List Add To Compare
Dimensions and Capacity
Outside Dimensions (Height*Diameter) 515mm*310mm
Weight (excluding outside box) 3000g - 4600g
Number of Inlet / Outlet Ports 7 pieces in general
Diameter of Fiber Cable Φ5mm - Φ38mm
Capacity of FOSC Bunchy: 24 cores - 288 cores
Ribbon: up to 864 cores



Main Components
Name of Components Quantity Usage Remarks
FOSC Cover 1 piece Protecting fiber cable splices in whole Height*Diameter: 360*177(mm)

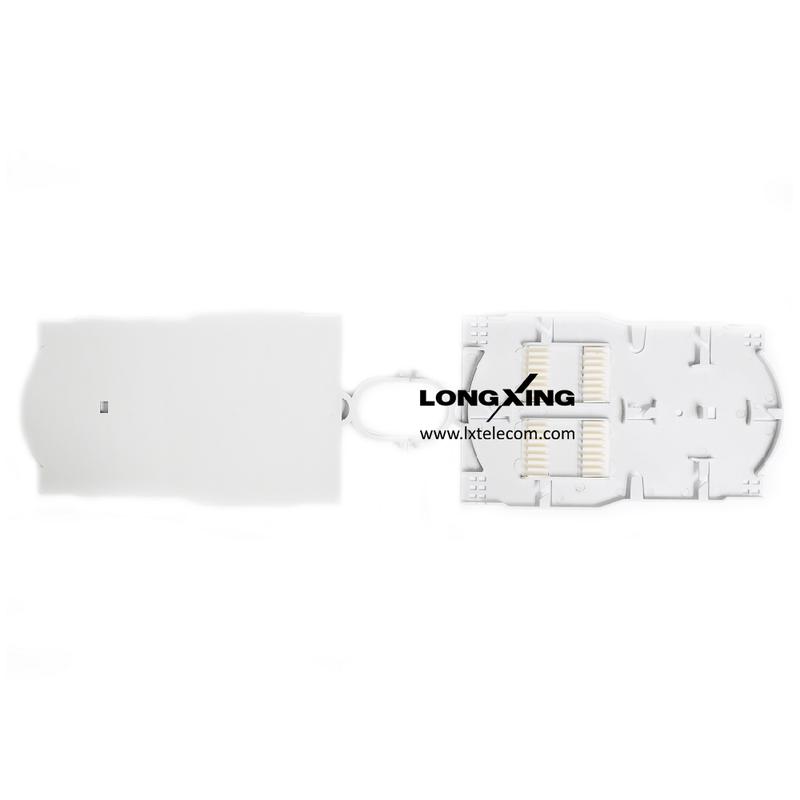

Splice Tray (FOST) Max. 12 trays (bunchy)
Max. 12 trays (ribbon)
Fixing heat shrink protective sleeve and holding fibers Bunchy: 12,24 (cores)
Ribbon: 6 (pieces)
Fiber Holding Tray 1 piece Holding fibers with protective coat N/A
Base 1 set Fixing internal and external structure N/A
Plastic Hoop 1 set Fixing between FOSC cover and base N/A
Seal Fitting 1 piece Sealing between FOSC cover and base N/A
Pressure Testing Valve 1 set After inject air, it is used for  pressure testing and sealing testing Configuration as per requirement.
Earthing Deriving Device 1 set Deriving metallic parts of fiber cables in FOSC for earthing connection Configuration as per requirement.



Main Accessories and Special Tools
Name of Components Quantity Usage Remarks
Heat Shrink Protective Sleeve N/A Protecting fiber splices Configuration as per capacity
Nylon Tie N/A Fixing fiber with protective coat Configuration as per capacity
Heat Shrink Fixing Sleeve (single) N/A Fixing and sealing single fiber cable Configuration as per requirement
Heat Shrink Fixing Sleeve (mass) N/A Fixing and sealing mass of fiber cable Configuration as per requirement
Branching Clip N/A Branching fiber cables Configuration as per requirement
Earthing Wire 1 piece Putting through between earthing devices N/A
Desiccant 1 bag Put into FOSC before sealing for desiccating air N/A
Labeling Paper 1 piece Labeling fiber N/A
Special Wrench   1 piece Tightening nut of reinforced core N/A
Buffer Tube Customized Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
Aluminum-foil Paper 1 piece Protect the bottom of FOSC N/A
