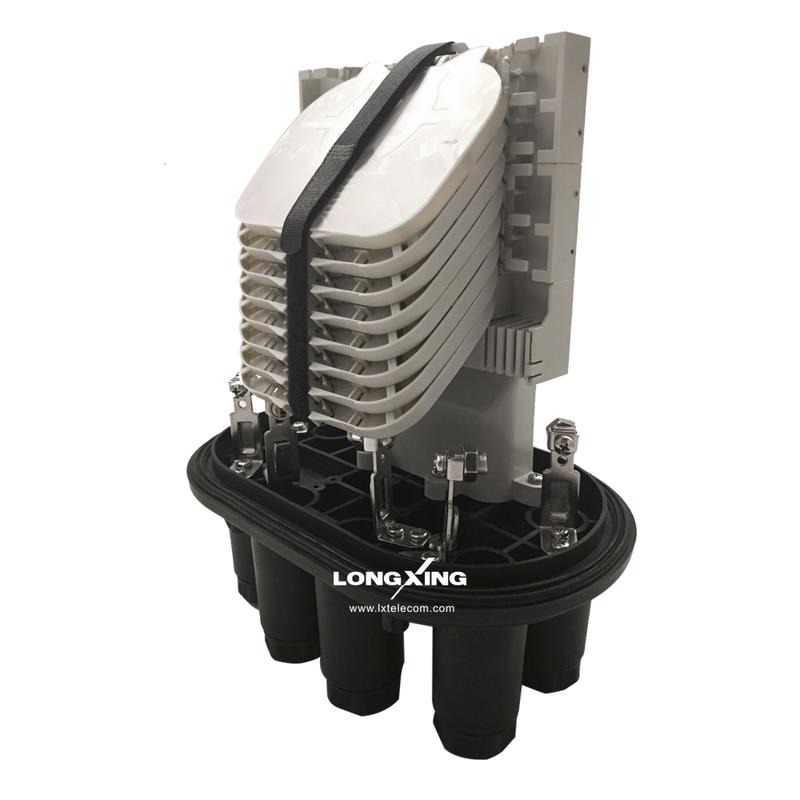

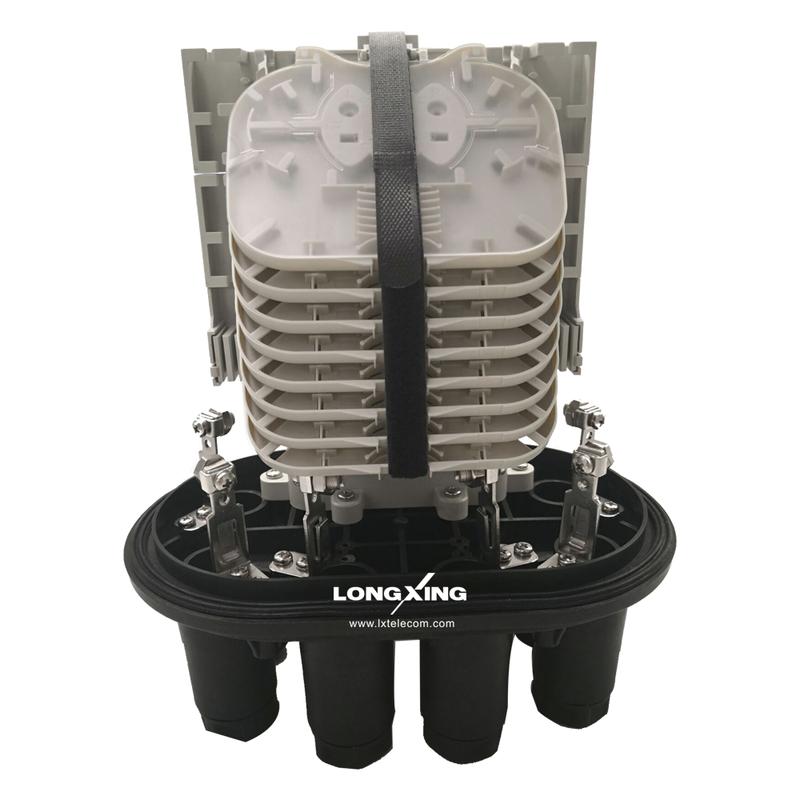

Dome Fiber Optic Splice Closure GPJ83-D18
Overview
The GPJ83-D18 Dome Fiber Optic Splice Closure are closures which accommodate the joint part of the cable, that can be used in aerial-hanger, wall-mounting or pole-mounting. This kind of dome splice closure includes three types, namely GPJ83-D18-A, GPJ83-D18-B, GPJ83-D18-C, GPJ83-D18-D, which differs from sizes, input/output ports numbers, capacity, etc. The box is made from the high-quality PC and with the mechanical Sealing Structure filled with Silicon Gum Material. It can be opened after sealing and can be reused.
Features
l LongXing GPJ83-D18 fiber optic splice closures are specially designed to protect joints of optic cable.
l The scope of application is: aerial, wall-mounting, and pole-mounting. The ambient temperature ranges from –40℃ to +65℃.

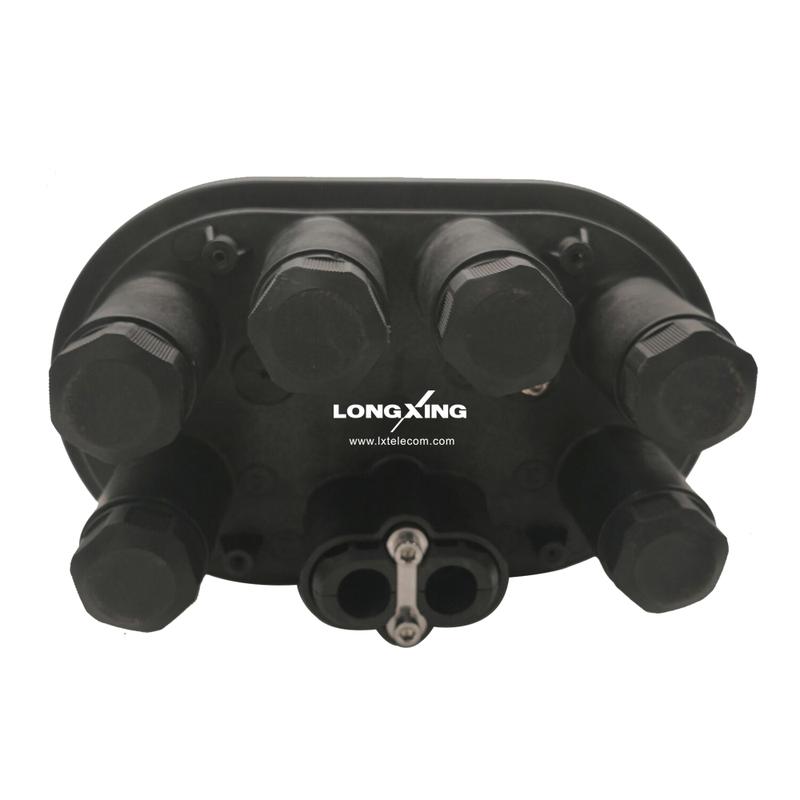

l The closure adopts mechanical and heat shrinkable sealing structure. There is one oval shaped cable port entrances in base, which is used for the sealing of uncut straight-through fiber cable. The small ports are used for branch fiber cable and drop cable.
l To adopt engineering PP plastic with high-strength to make the closure has longer life time and excellent sealing performance.
l It can be installed more splitter trays and 1:8 blockless or bare PLC splitters.
l There are different drop cable elements to be chosen: D18-A: (Φ5-Φ9). Max. 24 pcs drop cable input/output; D18-B: (Φ5-Φ9). Max. 24 pcs drop cable input/output; D18-C: (Φ5-Φ9). Max. 32 pcs drop cable input/output. D18-D: (Φ5-Φ9). Max. 32 pcs drop cable input/output.
l The excellent sealing structure keep good sealing performance after re-entry and re-using.
l It could save installation time.
l The closure adopts mechanical and heat shrinkable sealing structure. There is one oval shaped cable port entrances in base, which is used for the sealing of uncut straight-through fiber cable. The small ports are used for branch fiber cable and drop cable.
l To adopt engineering PP plastic with high-strength to make the closure has longer life time and excellent sealing performance.
l It can be installed more splitter trays and 1:8 blockless or bare PLC splitters.
l There are different drop cable elements to be chosen: D18-A: (Φ5-Φ9). Max. 24 pcs drop cable input/output; D18-B: (Φ5-Φ9). Max. 24 pcs drop cable input/output; D18-C: (Φ5-Φ9). Max. 32 pcs drop cable input/output. D18-D: (Φ5-Φ9). Max. 32 pcs drop cable input/output.
l The excellent sealing structure keep good sealing performance after re-entry and re-using.
l It could save installation time.
| Dimension and Capacity | ||||
| Closure type | D18-A (Small Closure) | D18-B (Medium Closure) | D18-C (Large Closure) | D18-D (Extra Large Closure) |
| Outside dimension (H x W x L) | 345×192×323mm | 445×192×323mm | 490×313×φ281mm | 590×313×φ281mm |
| Weight (excluding outside box) | About 4.50 kg | About 5.5 kg | About 6.80 kg | About 7.15 kg |
| Number of inlet/out ports | 7 pcs | 7 pcs | 9 pcs | 9 pcs |
| Diameter of express cable | Φ8～Φ16mm | Φ8～Φ16mm | Φ8～Φ23mm | Φ8～Φ23mm |
| Diameter of branch/drop cable | Φ8～Φ22mm | Φ8～Φ22mm | Φ8～Φ22mm | Φ8～Φ22mm |
| Capacity of FOSC | 6 - 192 cores | 6 - 384 cores | 6-576cores | 6 -960cores |
| FOST Dimension and Capacity | |||||
| Capacity of fiber optic splice tray (FOST) Type | Splice Tray | Splitting Tray | |||
| Type 1 | Type 2 | Type 3 | Type 4 | ||
| Size | 134*115*4mm | 134*115*8mm | 134*115*8mm | 134*115*4mm | |
| Capacity of FOST | 12F splicing | 24F splicing | 1*splitters 1:4 / 1*splitter 1:8 | 1*splitter 1:4 | |
| Heat-shrink tube storage | Max. 1 layer | Max. 2 layers | Max. 2 layers | Max. 1 layer | |
| Number of FOST (max.) | D18-A | 16 pcs | 8 pcs | 8 pcs | 16 pcs |
| D18-B | 32 pcs | 16 pcs | 16 pcs | 32 pcs | |
| D18-C | 24 pcs (one side) 48 pcs (double sides) | 12 pcs (one side) 24 pcs (double sides) | 12 pcs (one side) 24 pcs (double sides) | 24 pcs (one side) 48 pcs (double sides) | |
| D18-D | 40 pcs (one side) 80 pcs (double sides) | 20 pcs (one side) 40 pcs (double sides) | 20 pcs (one side) 40 pcs (double sides) | 40 pcs (one side) 80 pcs (double sides) | |
