Fiber Optic Splice Closure GPJ83-11 Series
Overview

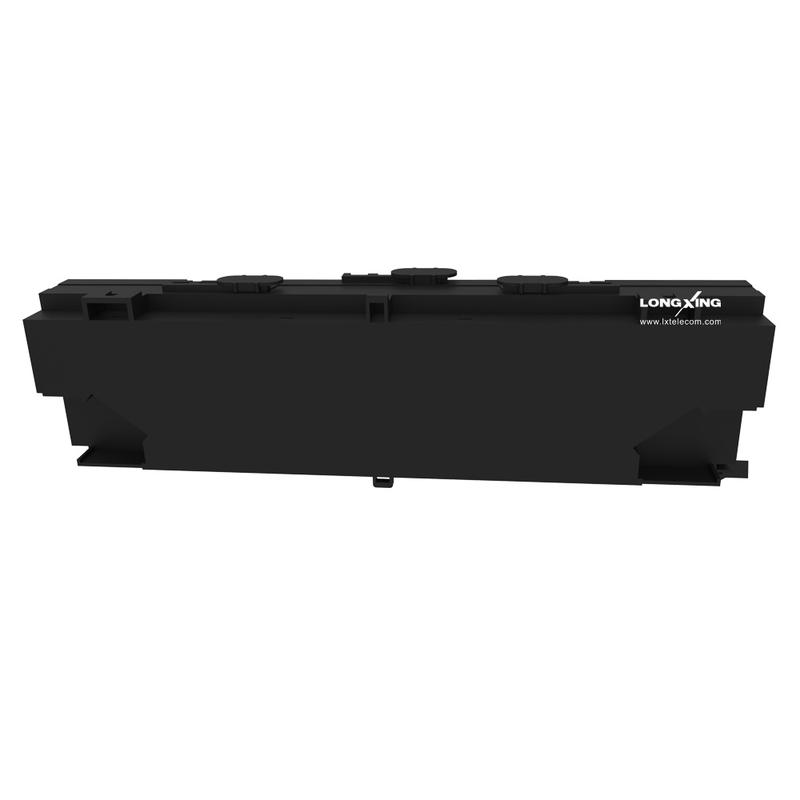

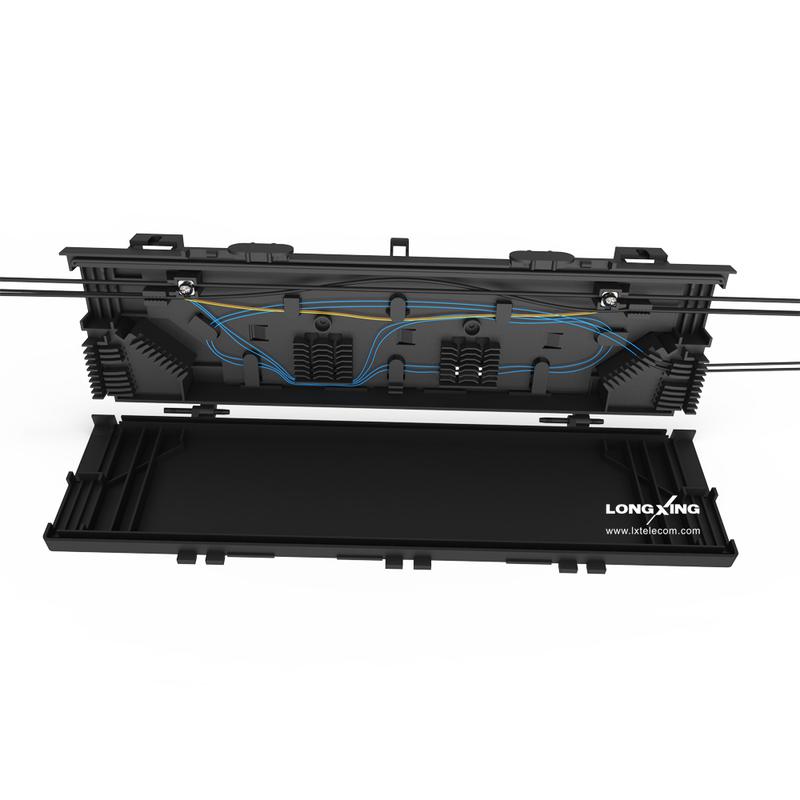

LongXing GPJ83-11 series Aerial Weathertight Splice Closures are designed for aerial strand-mount FTTH drop locations where drop cables are spliced to distribution cables.These free breathing closures combine grommet cable sealing technology and splice tray, the splitter module is also available. Aerial Weathertight Splice Closures are suitable for special feature with SSW cable. These durable, easy to install closures will increase productivity, reduce labor expenses and last through the life time of your network.
Features
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as pleasing appearance.
l The mechanical structure is reliable and has the performance of resisting wild environment.
l Chemical and mechanical resistance for all the aerial application areas in the fiber networks.
l Cover most of the applications in the premise wiring networks like Fiber To The Home (FTTH)

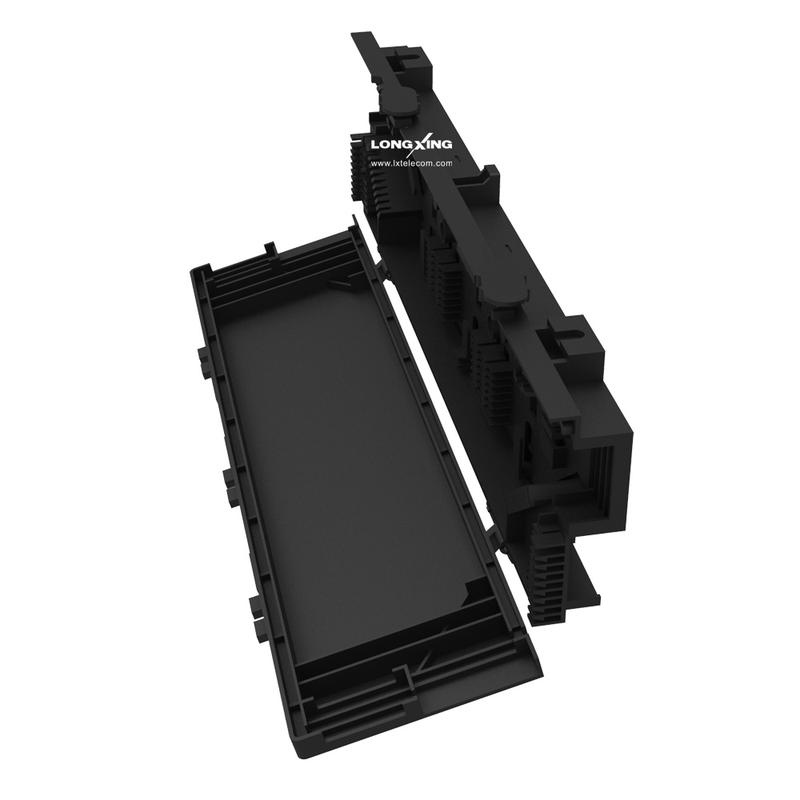

l Closure adopts hinge/buckle mechanism which makes dismantling/assembling easy
l Cable entry section can accommodate 1 main cable with up to 16c SSW cable
l Can accommodate up to 8 drop cables.

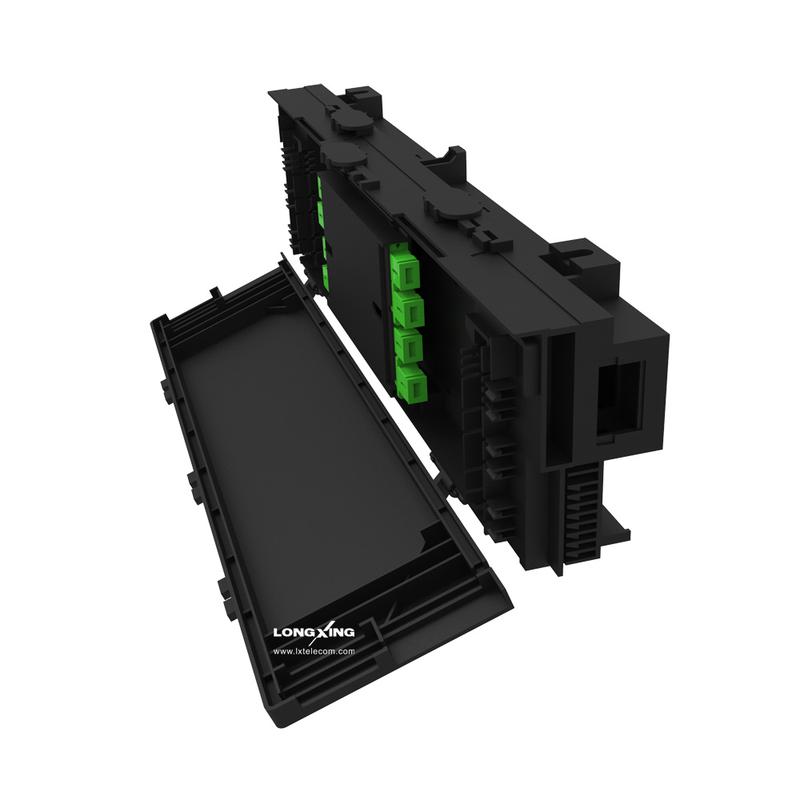

l Convenient attachable splitter module with 1:8 splitter module & 1:4 splitter module for drop cable installation.

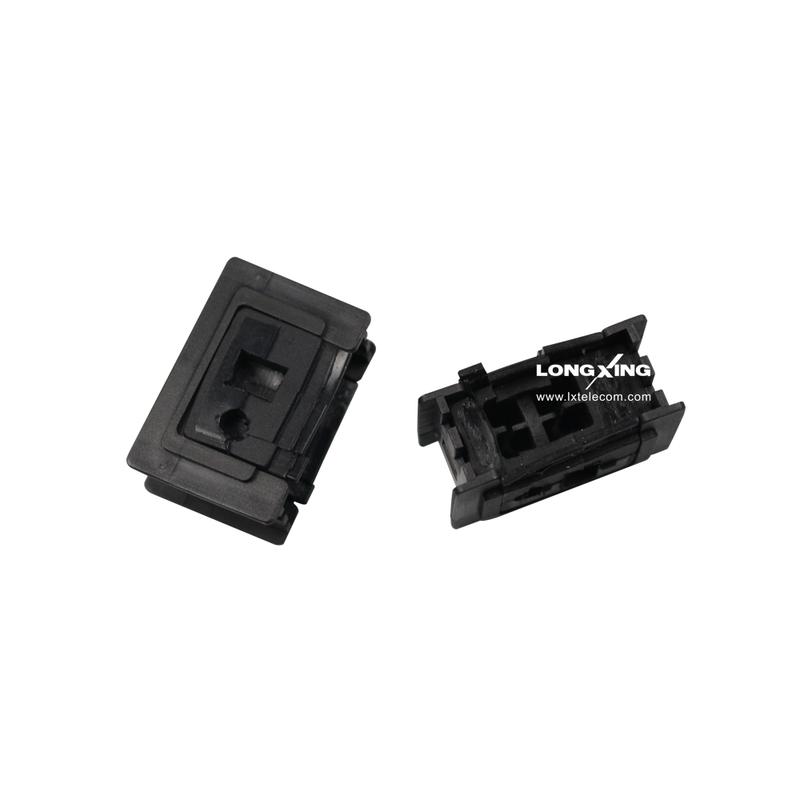

l Re-useable grommet sealing open and close easily for adding or removing drop cables providing efficient cable installation with no mess
Add To Quote List
Add To Compare
Inquiry Now
l The mechanical structure is reliable and has the performance of resisting wild environment.
l Chemical and mechanical resistance for all the aerial application areas in the fiber networks.
l Cover most of the applications in the premise wiring networks like Fiber To The Home (FTTH)
l Closure adopts hinge/buckle mechanism which makes dismantling/assembling easy
l Cable entry section can accommodate 1 main cable with up to 16c SSW cable
l Can accommodate up to 8 drop cables.
l Convenient attachable splitter module with 1:8 splitter module & 1:4 splitter module for drop cable installation.
l Re-useable grommet sealing open and close easily for adding or removing drop cables providing efficient cable installation with no mess
| Dimensions and Capability | ||
| Dimensions (L*W*H) | 416mm*123.7mm*65mm (Splitter module type GPJ83-11B) | |
| Material | Molded plastic | |
| Cable Diameter |
Main cable | SSW aerial optical cable: 1 PC |
| Drop cable | 2×3 mm: up to 8 PCS | |
| Cable Ports | 2 for main cable | |
| Maximum Fiber Storage Capacity | Single-fiber | 12 splices points |

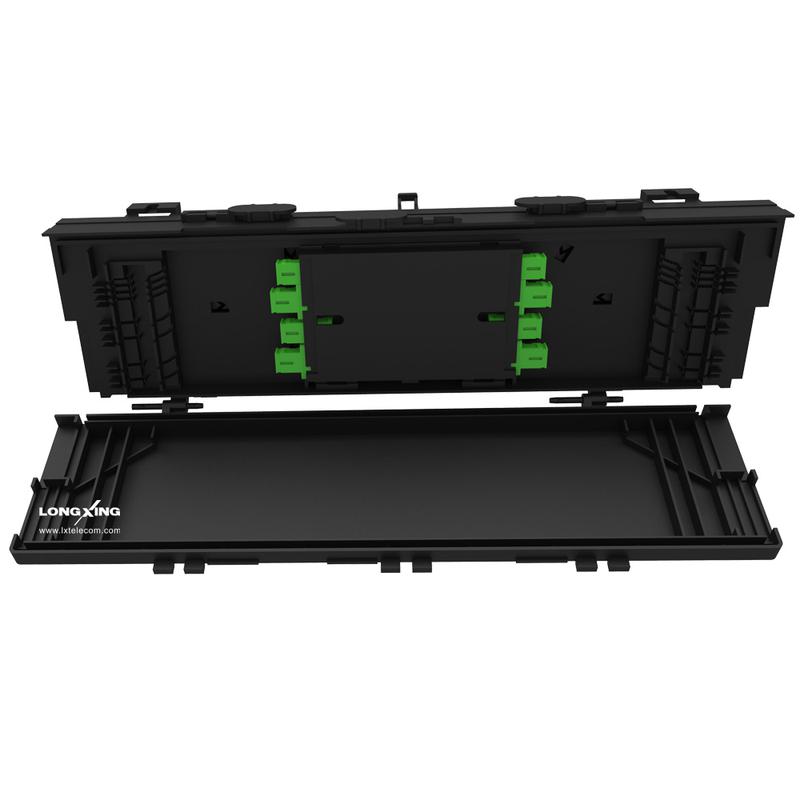

| No. of Optical Adapter | Max. 8×SC adapter | with 1×8 splitter module |
| Technical Characteristics ITU-T L.13 complied | |
| Vibration IEC61300-2-1 |
A=±5mm, f=10Hz, 1,000,000Cy, No splice case degradation. No damage. |
| Cable fixture (bend) IEC61300-2-37 |
Bending radious: 15mm,±90°bending, 3 Cy/cable. No splice case degradation. No damage. |
| Cable retention IEC61300-2-4 |
Mina cable:98N Drop cable: 49N. No splice case degradation. |
| Temperature cycling IEC61300-2-22 |
-20C-20C60C, 8h/Cy. No splice case degradation. No damage. |
| Impace (free drop) IEC61300-2-12 |
0.75m@-15C & + 45C. No splice case degradation. |
| Degrees of protection (IP Code) IEC 60529 |
IPX4 Protected against Wind driven rain proof. (option:IP54 Wind driven rain proof & no effective by dust.) |
| Salt mist IEC61300-2-26 |
5% NaCl for 5 days, without rust. No damage. |
| Re-entris IEC61300-2-33 |
At least 1 thermal cycle to repeat Open & Close the closure sleeve 10 times. No damage. |
| Operation Conditions | |
| Temperature | -40℃~+60℃ |
| Humidity | ≤95% (at 40℃) |
| Air Pressure | 70kPa ~106kPa |
| Shipping Information | |
| Package Contents | Closure, 1 unit; Installation accessories, 1 set |
| Package Dimensions(L*W*H) | 420mm*150mm*100mm |
| Material | Carton box |
| Weight | 1.5 KG |
| Lead Time | 10-15 working days normally |
