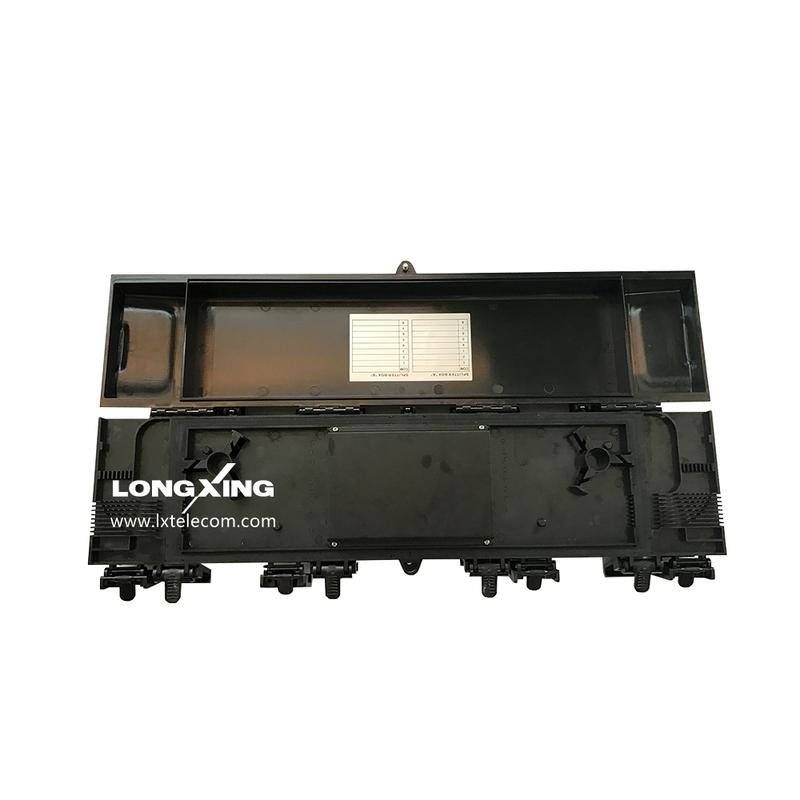

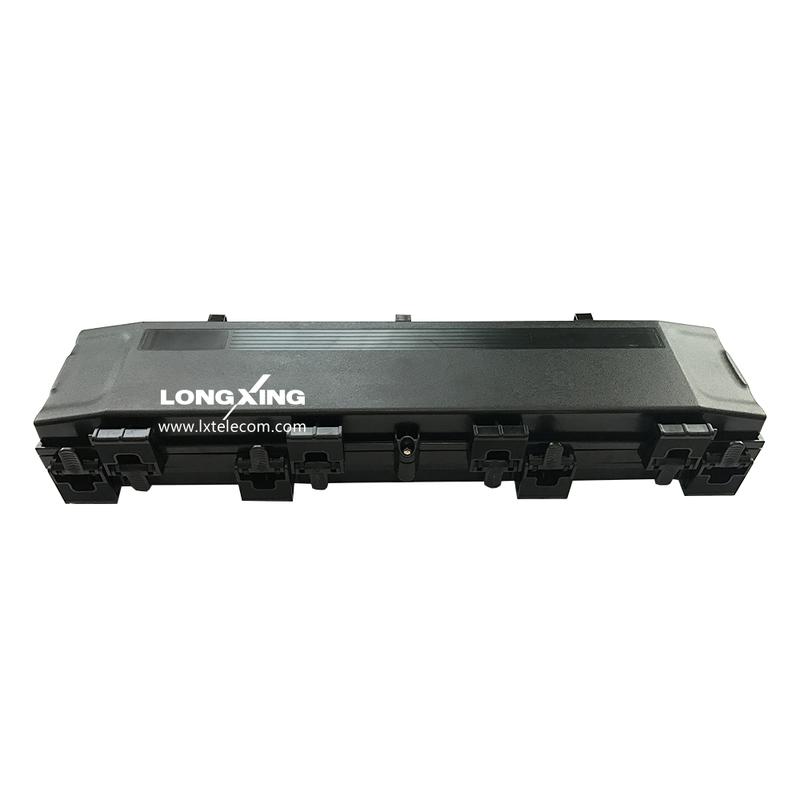

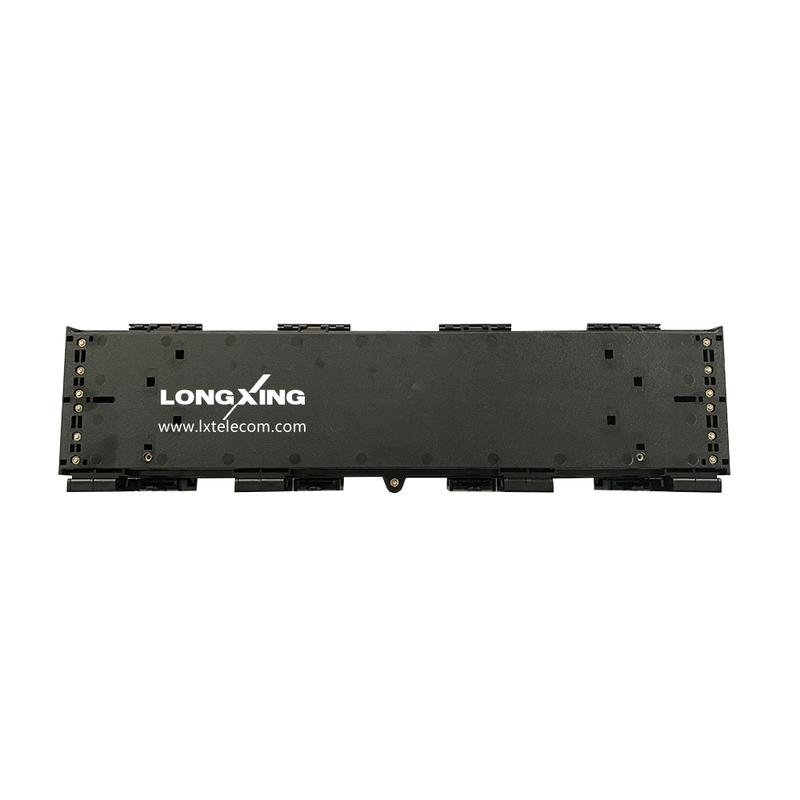

Fiber Optic Splice Closure GPJ83-12
Overview
LongXing GPJ83-12 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Suitable for different ways of cable’s divergent and splicing, including uncut cable.
Features
l Sealing style: Box use mechanical seal style
l Installation style: Aerial
l Box Material: Modified Polymer Plastic
l Seal Material: Vulcanized Silicone Rubber
l The protection grade reaches IP 65.
l Installation Method: Aerial or Hang on the entrance cable directly.

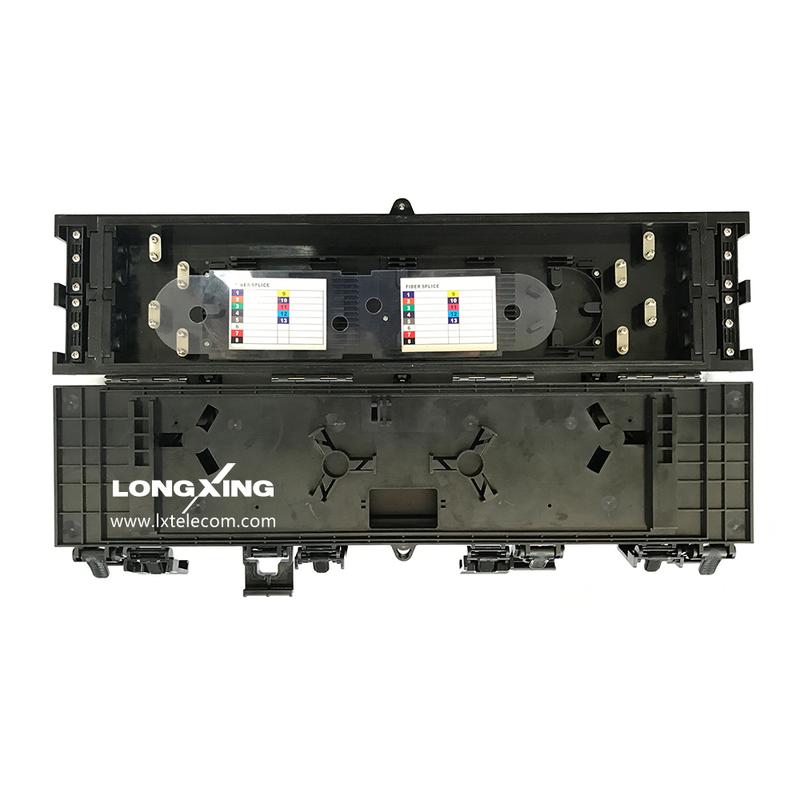

l Two-layer system, bottom layer for splicing, top layer for splitting & distribution.
l Structured construction fixed by simple buckle, easy for operation.
l Ambient temperature ranges from -40 to 65℃.
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
| Dimensions and Capability | |
| Dimensions (L*W*H) | 605mm*167mm*87mm |
| Quantity of Fiber | 4 in, 16 out |
| Adapter Type | SC, LC |
| Max Cable Diameter | 16mm |
| Max Ratio | (1*8)*2 |
| Max Capacity | 24 |
| Main Components | |
| Name of Components | Usage |
| Cover | Protecting fiber cable splices |
| Screw hole | Locking the closure for anti-theft |
| Sticky Label | Marking the cable |
| Middle Housing | Separating and storage the drop cable |
| Drop Cable Gasket | Sealing the drop cable port |

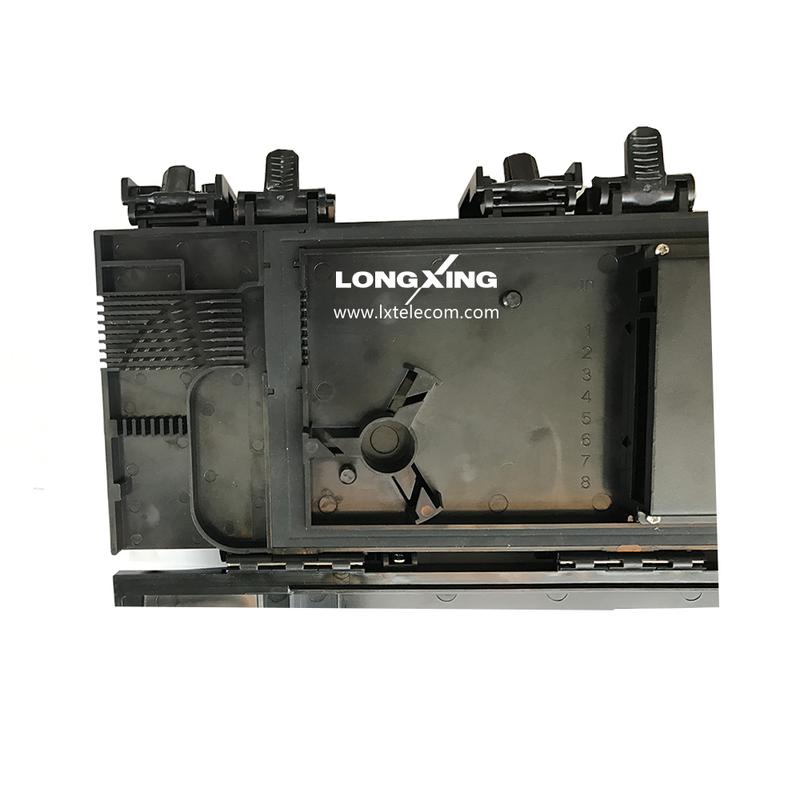

| Splitter Box | Fixing and storage the Splitter and Flange |
| Flange | Splicing the drop cable |
| Hand Screw | Screwing and fixing Splitter Box |
| Lock | Screwing the Housing |
| Base Housing | Installing and fixing Main Cable; installing Splice Tray |
| Main Cable Bracket | Locking Main Cable |
| Main Cable Gasket | Sealing Main Cable Port |
| Bottom Housing Gasket | Sealing the Housing |
| Strength Member Bracket | Locking Messenger and Strength Member |

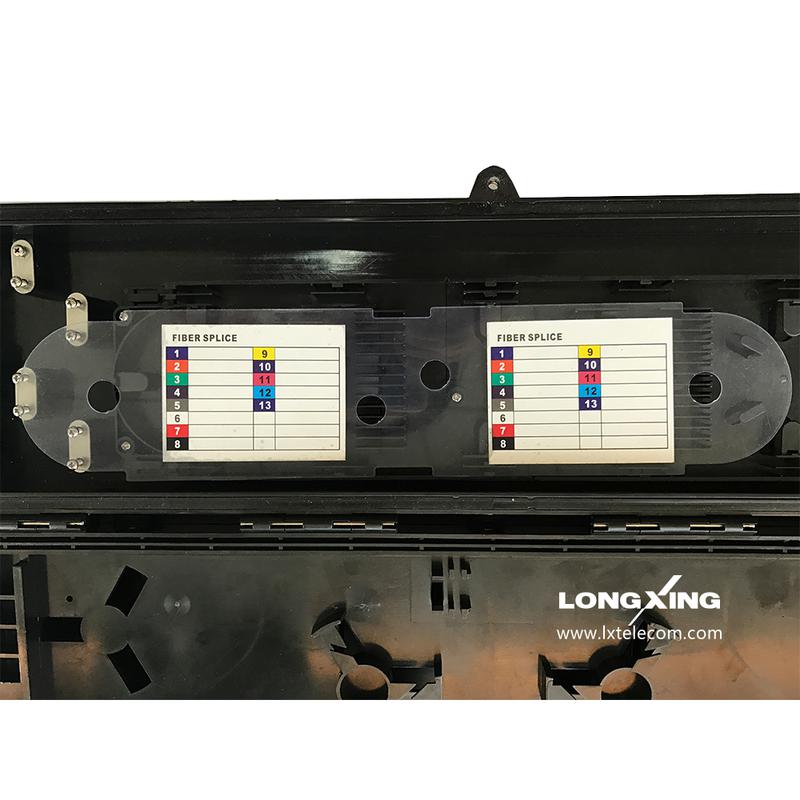

| Splice Tray | Installing the spliced fiber |
| Drop Cable Arrangement part | Installing the Drop Cable |
| Exit of the Drop Cable | Arranging the Drop Cable |
| Shipping Information | ||
| Specification | Carton Size | Capacity |
| Inner Box | 635mm*179mm*98mm | 1 pc |
| Outer Box | 650mm*360mm*325mm | 6 pcs |
