Horizontal Fiber Optic Splice Closure GPJ83-H09
Overview
LongXing GPJ83-H09 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.
Features
l The protection grade reaches IP 68.
l Aerial and wall-mounting.
l Ambient temperature ranges from -40 to 65℃.
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

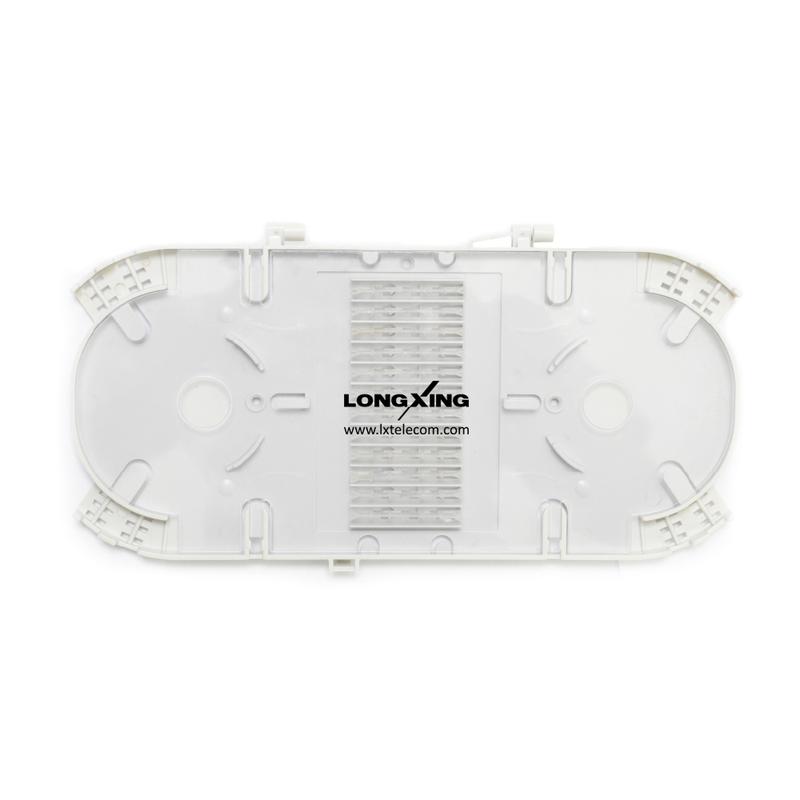

l The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.
| Dimensions and Capacity | |
| Outside Dimensions (L*W*H) | 605mm*215mm*120mm |
| Weight (excluding outside box) | 3050g - 4600g |
| Number of Inlet / Outlet Ports | 2 pieces on each side (total 4 pieces) |
| Diameter of Fiber Cable | Φ8mm - Φ23mm |
| Capacity of FOSC | Bunchy: 48 cores - 144 cores Ribbon: max. 576 cores |
| Main Components | |||
| Name of Components | Quantity | Usage | Remarks |
| Housing (bottom) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 605*215*120 (mm) |
| Housing (cover) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 605*215*120 (mm) |
| Splice Tray (FOST) | Fixing heat shrink protective sleeve and holding fibers | N/A | |
| Seal Fitting | 1 set | Sealing between FOSC cover and FOSC bottom | N/A |
| Ring | 8 sets | N/A | N/A |
| Port Plug | 4 pieces | Sealing empty ports | N/A |
| Fixed Bolt | 1 set | Fixing the housing | N/A |
| Main Accessories and Special Tools | |||
| Name of Components | Quantity | Usage | Remarks |
| Heat Shrink Protective Sleeve | N/A | Protecting fiber splices | Configuration as per capacity |
| Nylon Tie | N/A | Fixing fiber with protective coat | Configuration as per capacity |
| Insulation Tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | N/A |
| Seal Tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| Hanging Hook | 1 set | For aerial use | N/A |
| Earthing Wire | 1 piece | Putting through between earthing devices | N/A |
| Abrasive Cloth | 1 piece | Grind the fiber | N/A |
| Labeling Paper | 1 piece | Labeling fiber | N/A |
| M8 Special Wrench | 1 piece | Fixing bolts of housing and insert plate | N/A |
| M6 Special Wrench | 1 piece | Fixing small bolts of housing | N/A |
| M10 Special Wrench | 1 piece | Tightening nut of reinforced core | N/A |
| Hose Clamps | 4 pieces | N/A | |
| Steady | 4 pieces | N/A | |
| Instruction Manual | 1 piece | Standard installation | N/A |
| Shipping Information | ||||
| Specification | Carton Size | Capacity | Net Weight | Remarks |
| Inner Box | 655mm*230mm*135mm | 1 pc | 2.7kg - 4.7kg | Configuration as per weight |
| Outer Box | 670mm*470mm*290mm | 4 pcs | 10.8kg - 18.8kg | Configuration as per weight |
