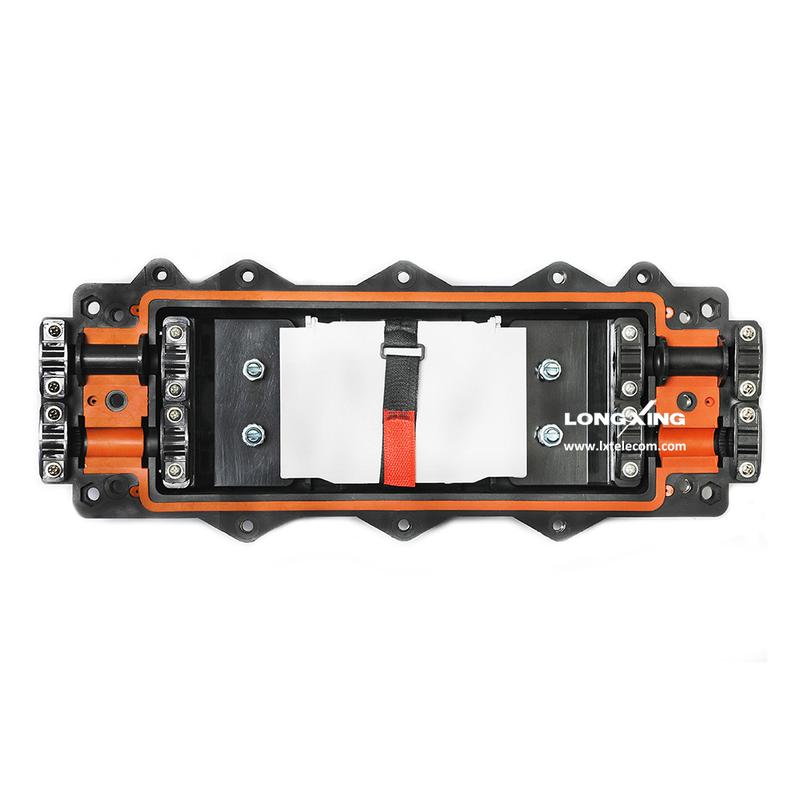

Horizontal Fiber Optic Splice Closure GPJ83-H11
Overview
LongXing GPJ83-H11 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.
Features
l For aerial,buried,wall and pipe wall people use wells
l Ring using a special material that can be repeatedly opened,re-use
l Splice tray easy to use page design
l Quick way to make use of open sealed maintenance easier
l Valve and grounding devices can be installed
l Advanced internal structure design
l Easy to re-enter, it never requires re-entry tool it
| Dimensions and Capacity | |
| Outside Dimensions (L*W*H) | 413mm*160mm*88mm |
| Weight (excluding outside box) | 1580g - 2100g |
| Number of Inlet / Outlet Ports | 2 (pieces) on each side (total 4 pieces) |
| Diameter of Fiber Cable | Φ8mm - Φ16mm |
| Capacity of FOSC | Bunchy: 12 cores - 96 cores Ribbon: max. 144 cores |
| Main Components | |||
| Name of Components | Quantity | Usage | Remarks |
| Housing (bottom) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 413*160*88 (mm) |
| Housing (cover) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 413*160*88 (mm) |
| Splice Tray (FOST) | Fixing heat shrink protective sleeve and holding fibers | N/A | |
| Foundation | 1 set | Fixing fiber cable, reinforced core and FOST | N/A |
| Seal Fitting | 1 set | Sealing between FOSC cover and FOSC bottom | N/A |
| Port Plug | 4 pieces | Sealing empty ports | N/A |
| Fixed Bolt | 1 set | Fixing the housing | N/A |
