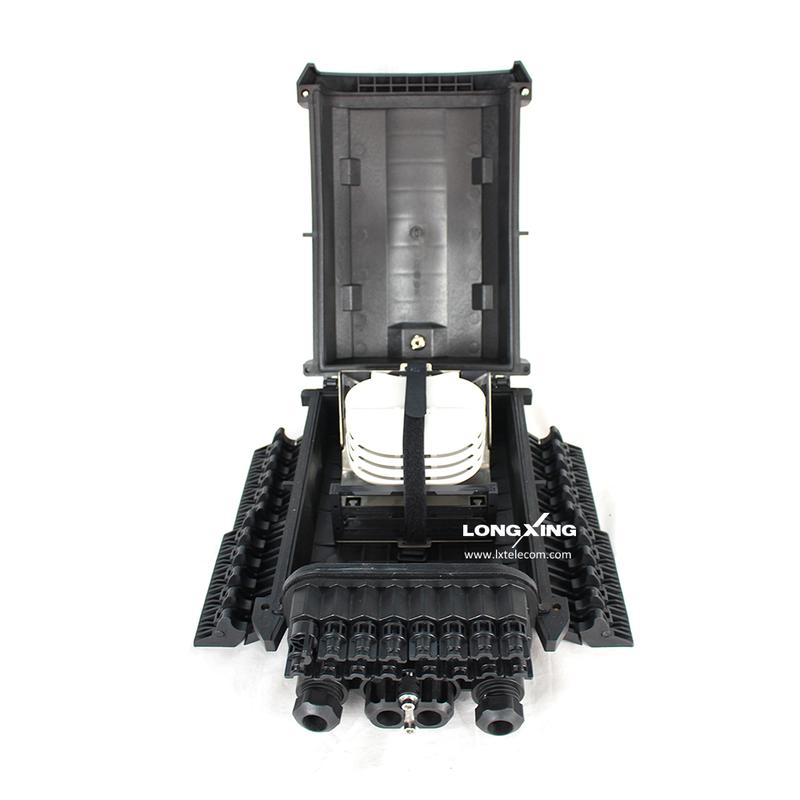

Fiber Optic Splice Closure GPJ83-H15
Overview
LongXing GPJ83-H15 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. It is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures.
Features
l The protection grade reaches IP 68. l Ambient temperature ranges from -40 to 65℃.
Add To Quote List
Add To Compare
Inquiry Now
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
l The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
l Sealing Structure: Thermoplastic rubber
l Body Material: PP
l Assembling method: Aerial, pipelined, wall mounting, manhole
l Body Material: PP
l Assembling method: Aerial, pipelined, wall mounting, manhole
| Dimensions and Capacity | ||

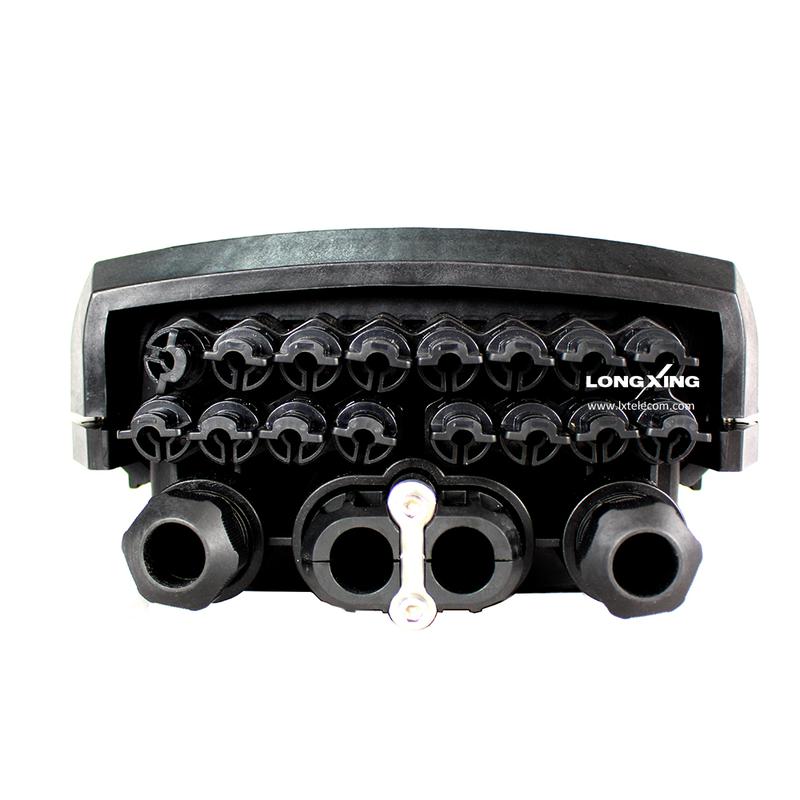

| Cable Ports | 1 oval uncut port | 2 round ports |
| Drop Cable Ports | 16 ports | |
| Applicable Cable Diameter | 10~17.5mm | 8~17.5mm |
| Maximum Capacity | Bunchy: 96 fibers | |
| Quantity of Splice Tray | 4pcs(max) | |
| Impact Test | IK10 | |
| Pull Force | 100N | |
| Dimension | 385(H)×245(W)×130(D)mm | |
| Net Weight | 5KG | |
| Main Components | |||
| Name of Components | Quantity | Usage | Remarks |
| FOSC Cover | 1 piece | Protecting fiber cable splices in whole | N/A |
| FOSC Bottom | 1 piece | Fixing reinforced core, fiber cable and FOST | N/A |

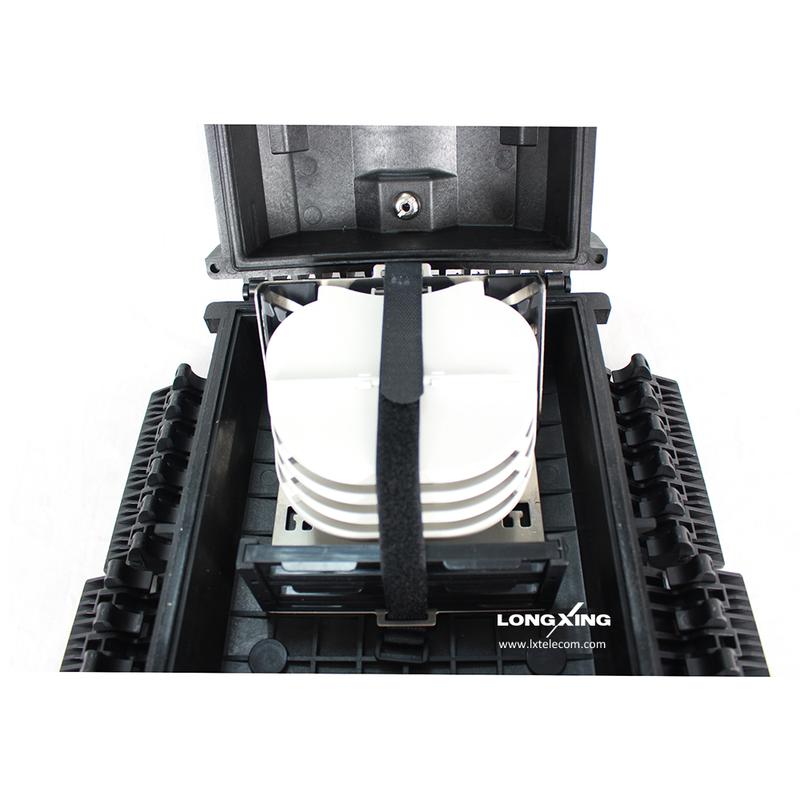

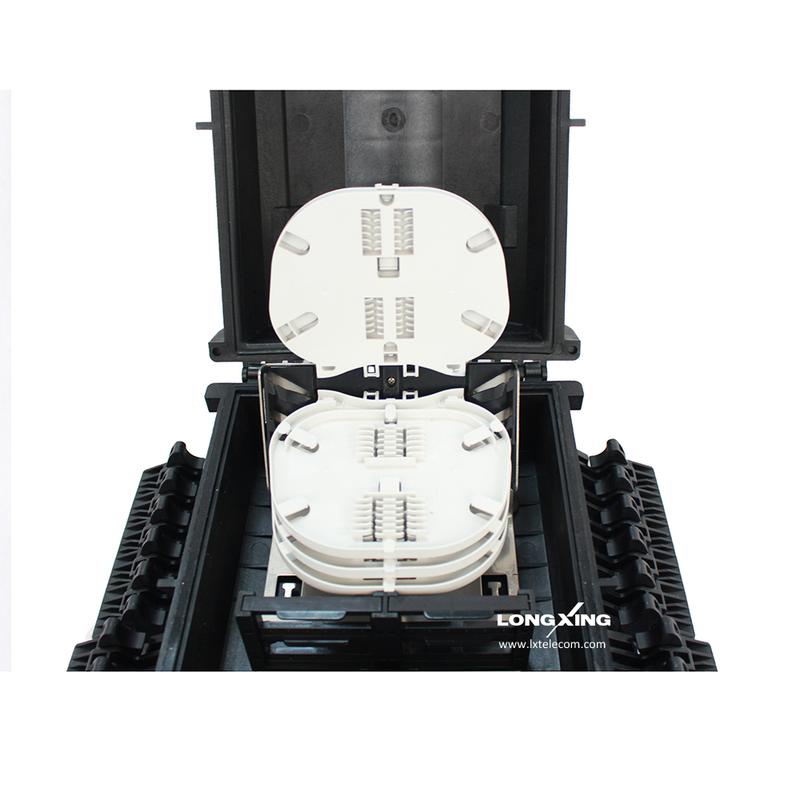

| Splice Tray (FOST) | Max. 4 pcs | Fixing heat shrink protective sleeve and holding fibers | Suitable for: 24 cores |
