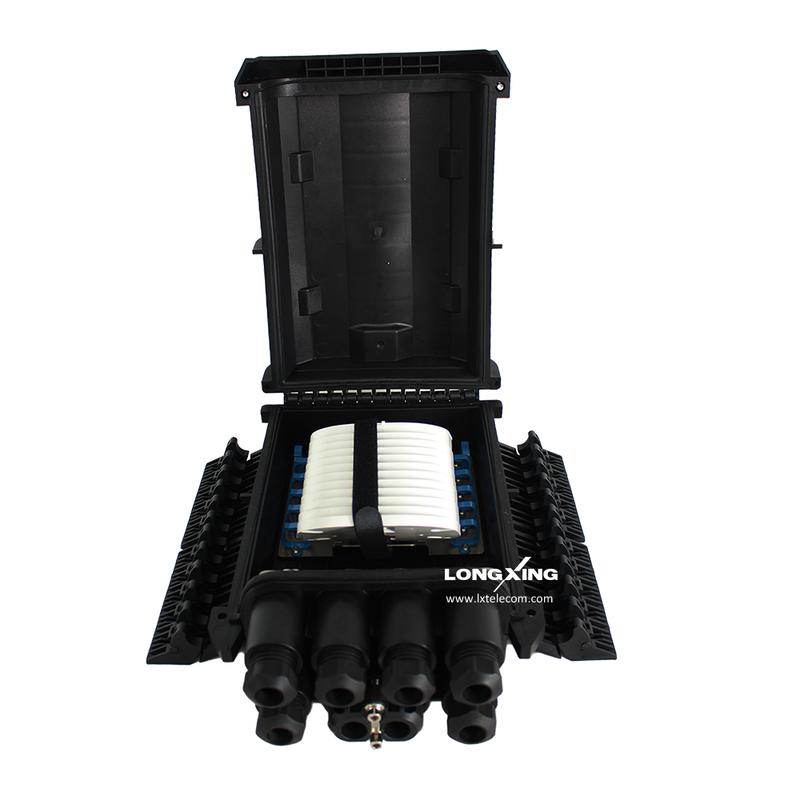

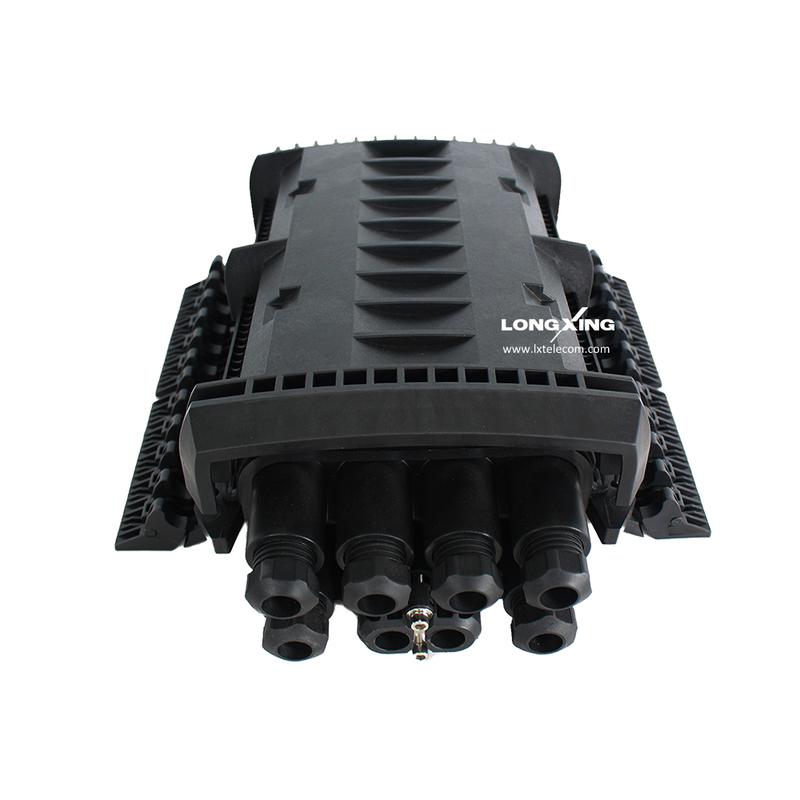

Fiber Optic Splice Closure GPJ83-H16
Overview
GPJ83-H16 Inline Type Fiber Optic Splice Closure (FOSC) is mechanical sealing for reusable application, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
Features
l The protection grade reaches IP 68.
l Mechanical sealing structure and mid-span cable entry.
l Max. splicing capacity of (Single fiber): 288 cores.
l The casing of enclosure is made of PP, which is a kind of high strength engineering plastic.

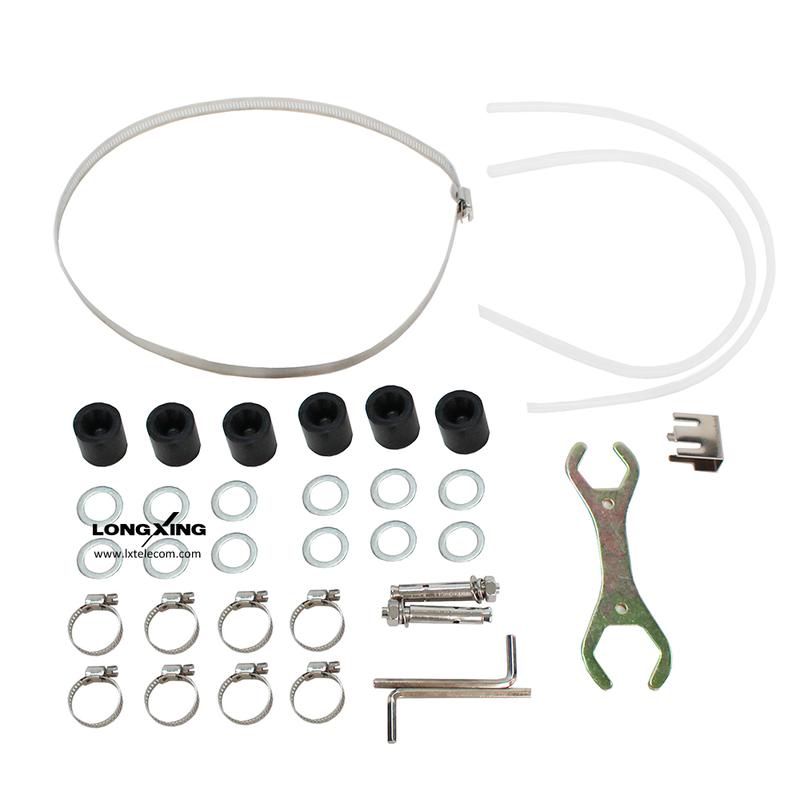

l Reliable cable introducing, fixing, protection, grounding devices.
l Ambient temperature ranges from -40 to 65℃.
l Fiber bending radius control more than 40mm.
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
Add To Quote List
Add To Compare
Inquiry Now
l Mechanical sealing structure and mid-span cable entry.
l Max. splicing capacity of (Single fiber): 288 cores.
l The casing of enclosure is made of PP, which is a kind of high strength engineering plastic.
l Reliable cable introducing, fixing, protection, grounding devices.
l Ambient temperature ranges from -40 to 65℃.
l Fiber bending radius control more than 40mm.
l The closure is of small volume, big capacity and convenient maintenance.
l The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
| Dimensions and Capacity | |
| Dimensions | 395(H)×245(W)×130(D)mm |
| Net Weight | 5 KG |
| Cable Ports | 1 oval uncut port; 6 round ports |
| Applicable Cable Diameter | 10~17.5mm; 8~17.5mm |
| Maximum Capacity | Bunchy: 288 fibers |

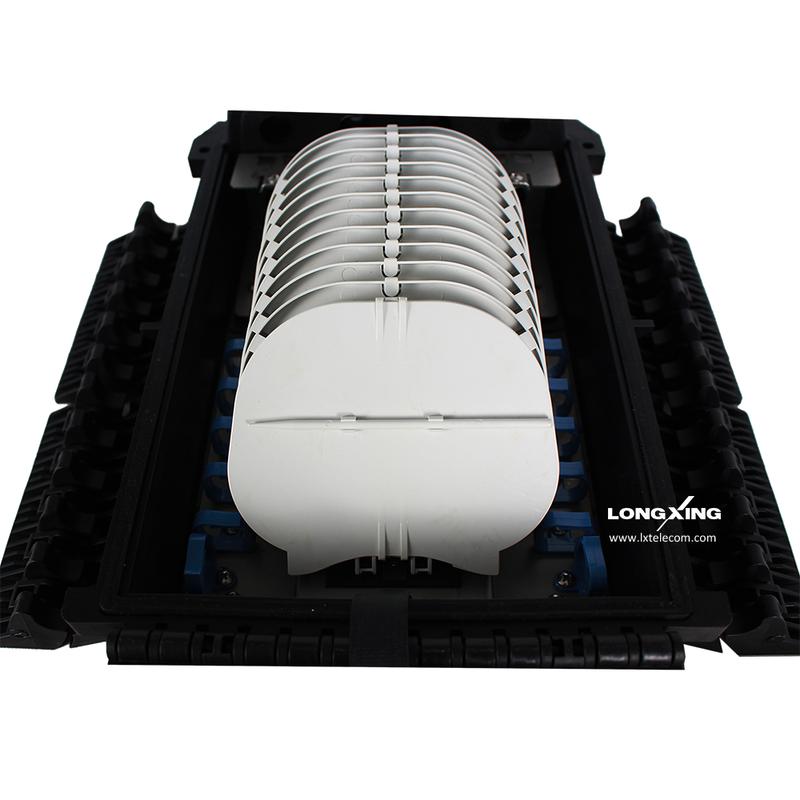

| Quantity of Splice Tray | 12 trays, 24 fibers/tray |
| Body Material | PP |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, pipelined, wall mounting, manhole |
| Sealing | IP68 |
| Impact Test | IK10 |
| Temperature | -40℃~65℃ |
| Order Information | |
| Part Number | Description |
| GPJ83-H16- 1VG-B | 24-core, 8-port |
| GPJ83-H16-2VG-B | 48-core, 8-port |
| GPJ83-H16-3VG-B | 72-core, 8-port |
| GPJ83-H16-4VG-B | 96-core, 8-port |
| GPJ83-H16-6VG-B | 144-core, 8-port |
| GPJ83-H16-12VG-B | 288-core, 8-port |
* The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
