Fiber Optics Distribution Box GP31-1M48A (Pre GP31-1)

Overview

LongXing GP31-1M48A fiber optics distribution cabinet is currently being widely used for distributing outdoor optical cable in indoor and outdoor conditions. It is very suitable for FTTx uses. This cabinet offers ideal environment for fibers to be spliced and well organized under indoor and outdoor environment.

Features

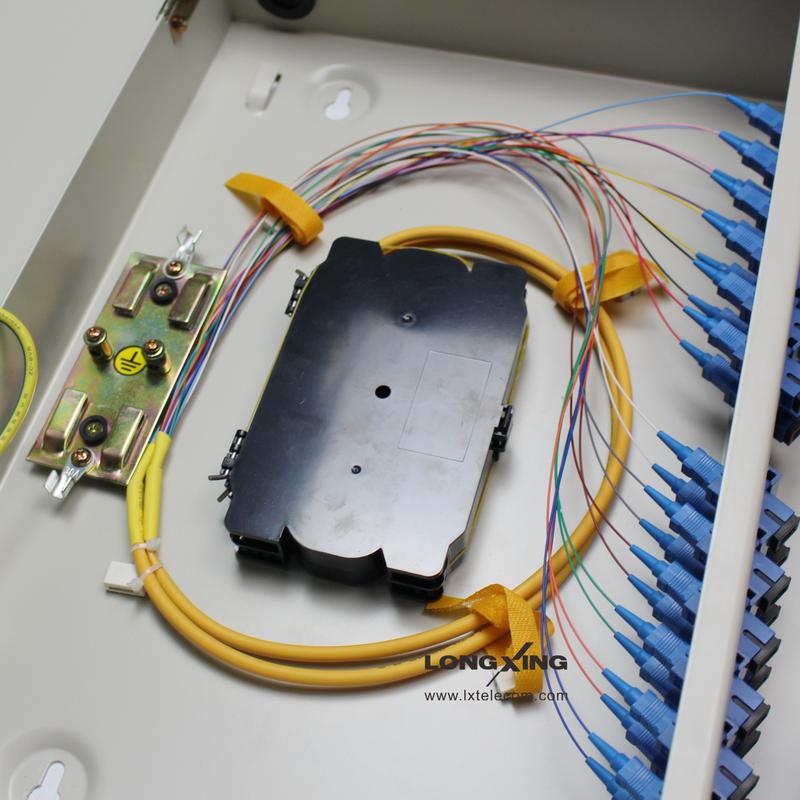

l   The cabinet has functions of cable termination, splicing, distribution and cross-connection.
l   Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.
l   Two types: fillet type and square corner

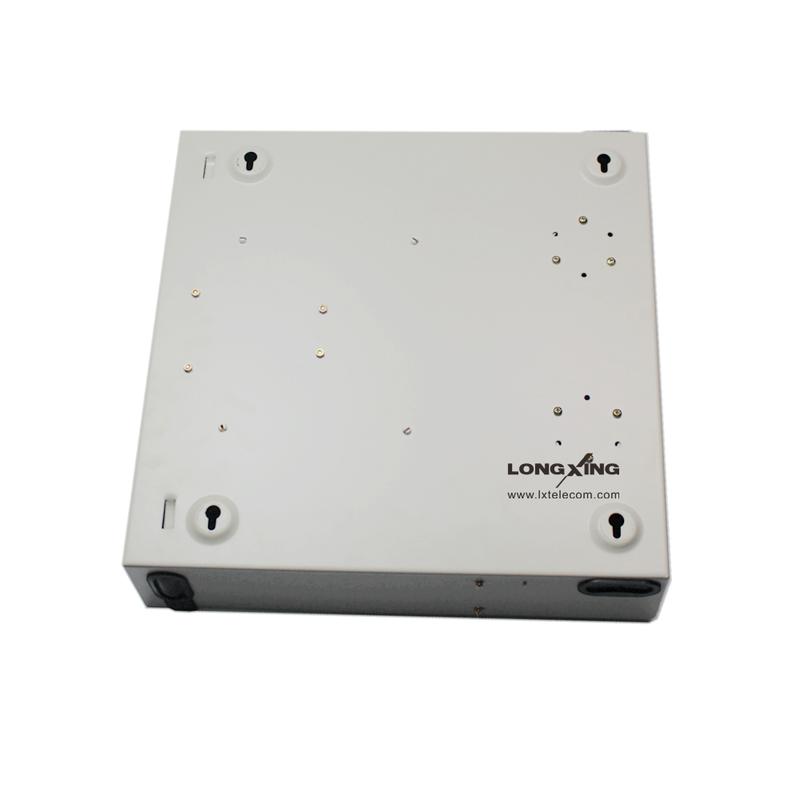

l   Easy installations: Wall mountable.
l   Ideal for indoor uses – cable entrances & exits located on both top and bottom.

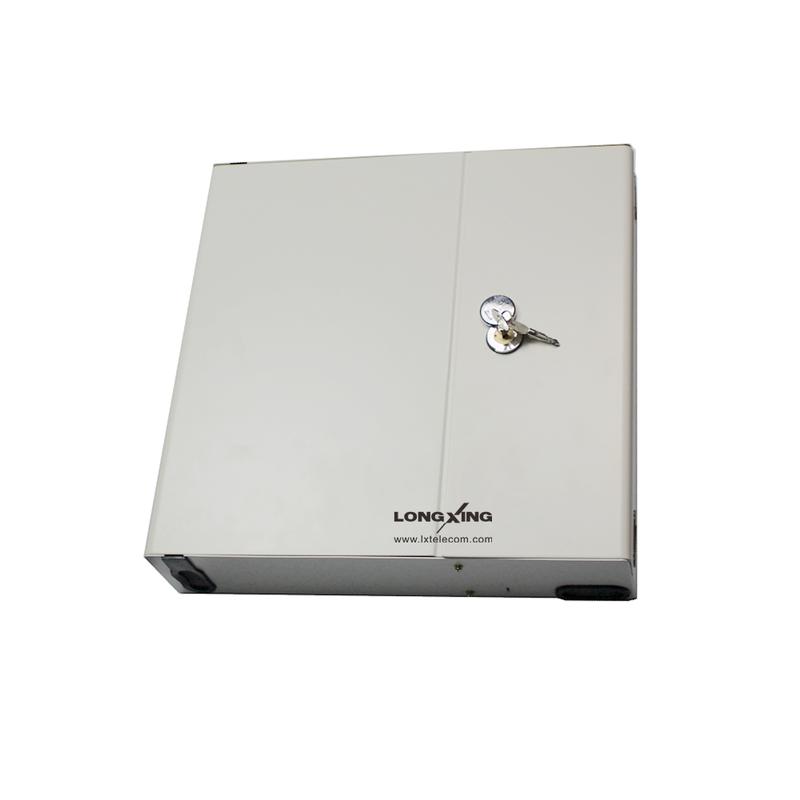

    Lock provided on every cabinet ensures the safety of the fibers.

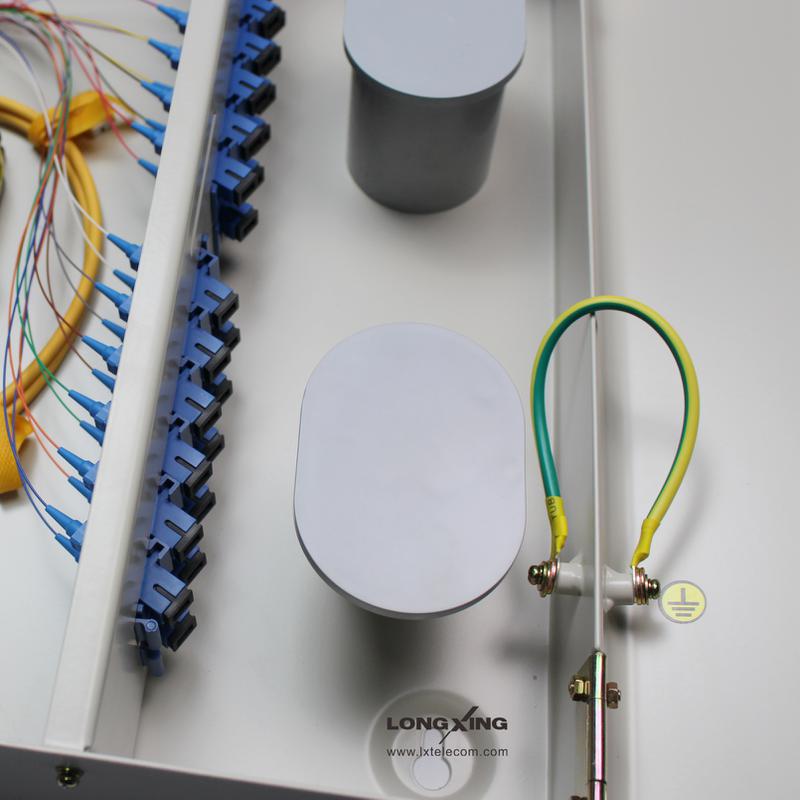

l   The central adapter board separates the incoming cables and the exiting fibers
l   Central adapter board is movable for easier installation (for capacity over 48 cores.)

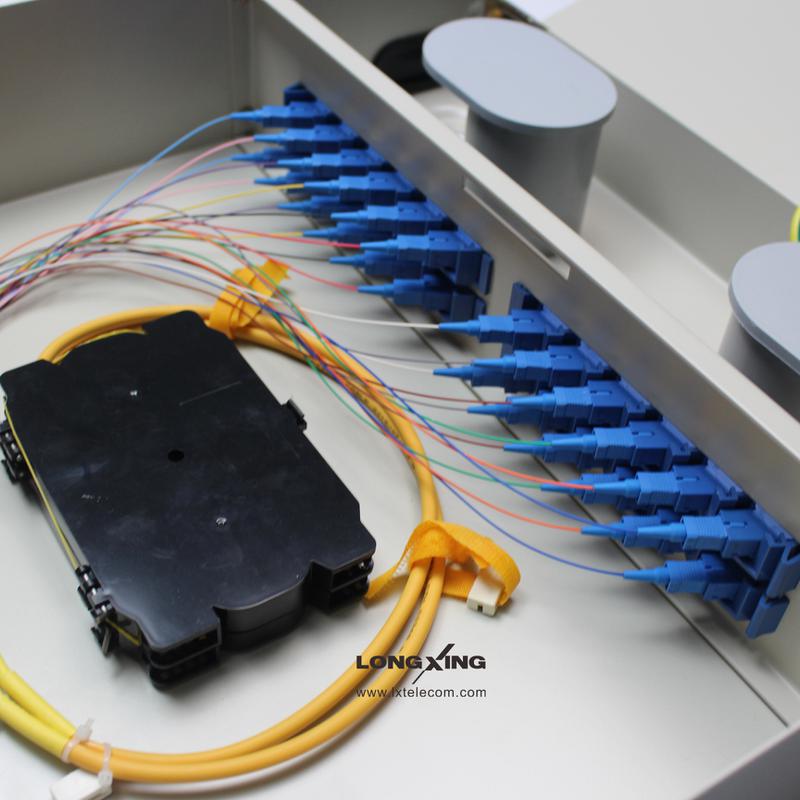

l    Adapters are installed on our 6-position adapter holders, no screws need for installing any type adapters, which is very easy for future maintenance and keeps the transmission loss at low level.
l    Adoptable adapter types: FC, SC, LC/Duplex
Add To Quote List Add To Compare



Dimensions and Capacity
Cabinet Type Dimensions (W×H×D)mm Capacity
FC adapters
Capacity
SC adapters
Capacity
LC (Duplex) adapter
Filleted Corner 380×240×90 12 12 24
425×420×100 24 24 48
425×420×100 24 48 96



Operation Conditions
Temperature -30ºC - 75ºC
Humidity ≤90% (at 30 ºC)
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents Terminal box, 1 unit; Installation accessories, 1 set
Material Carton box
Lead Time 10-15 working days normally
