Fiber Optics Terminal Box GP31-1M48B
Overview

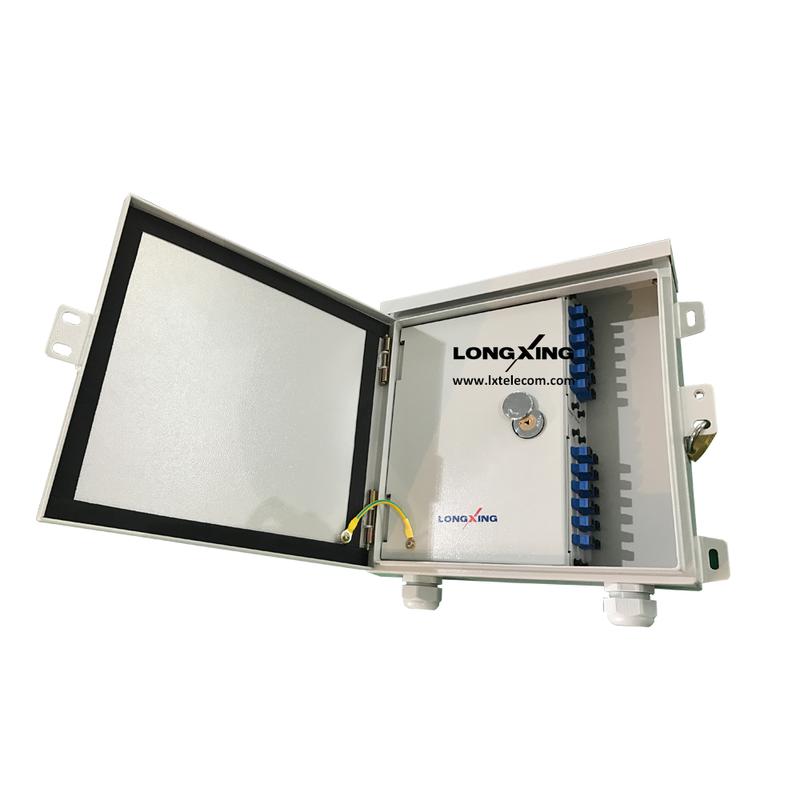

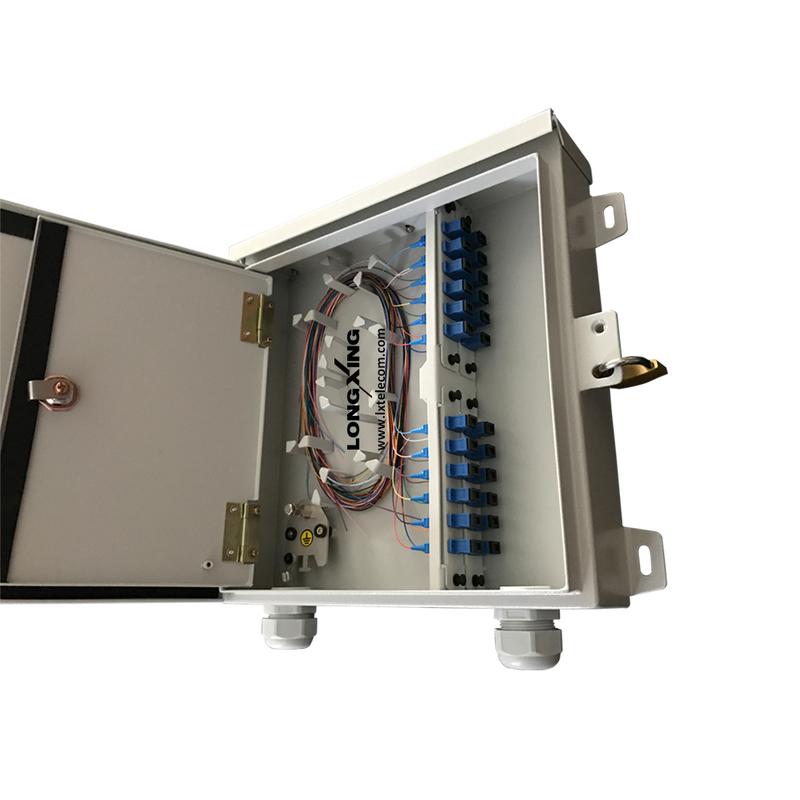

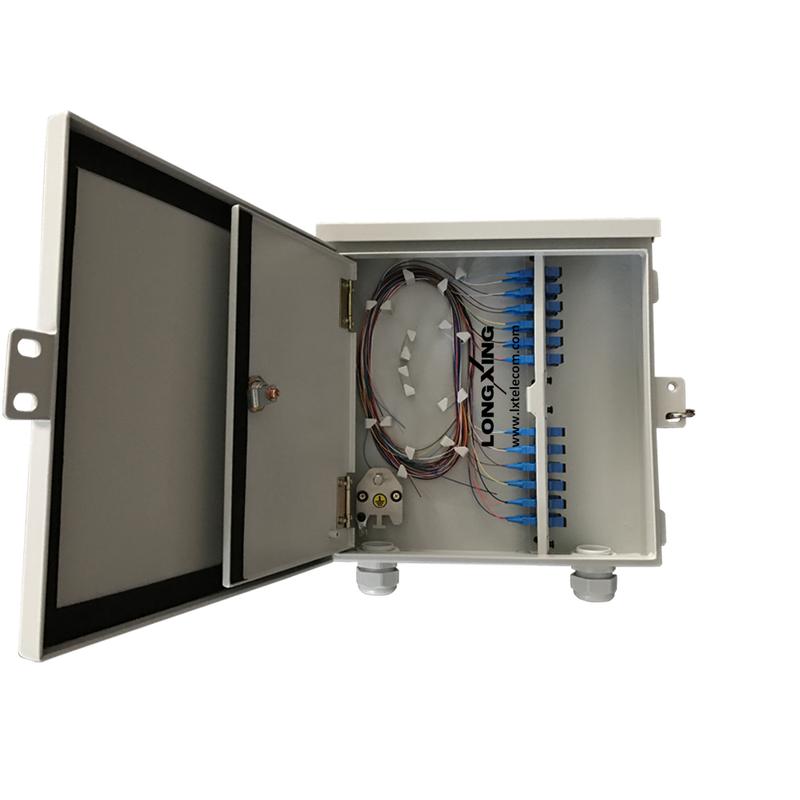

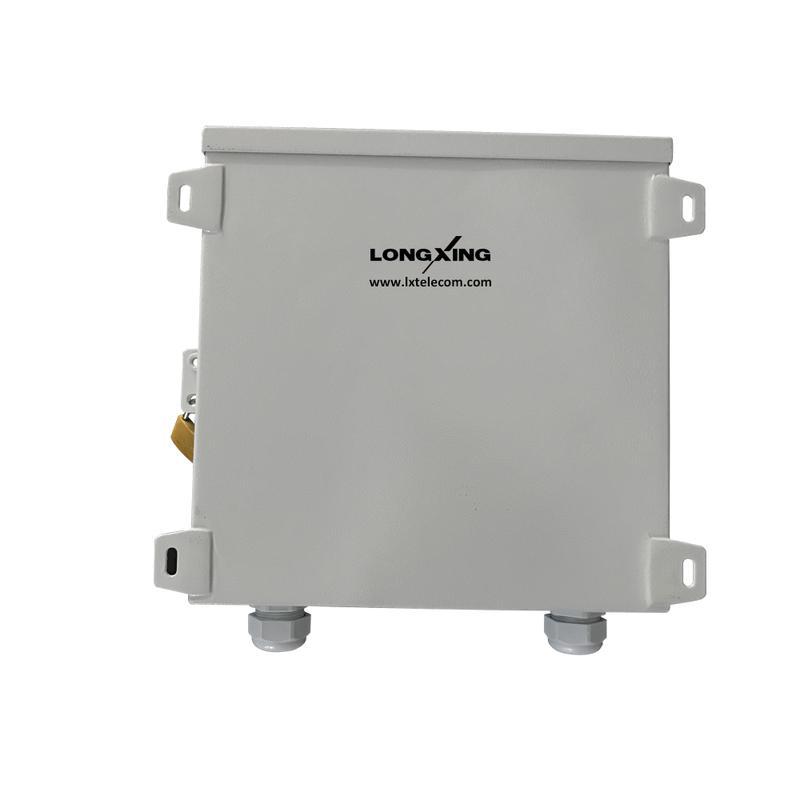

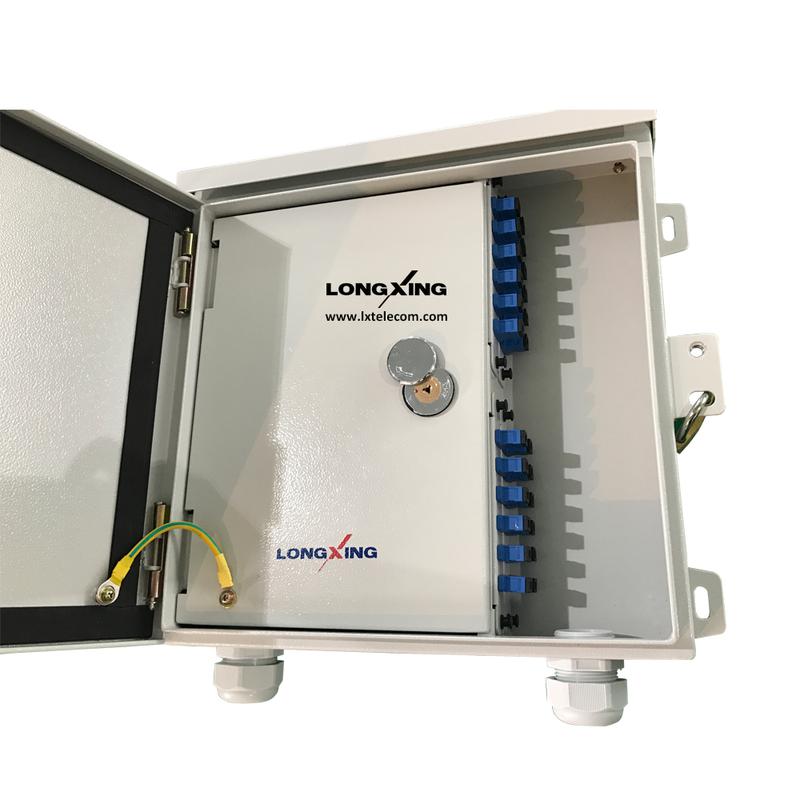

LongXing GP31-1M48B Optical Distribution Box offers ideal environment for optical fibers
termination and distribution. Two doors with different locks offer two safety levels for the box.
Features
l The cabinet has functions of cable termination and distribution.
l Solid and fully-closed structure with pleasing appearance.
l Material: Aluminum alloy - light weight.
l Easy installations: Wall mountable.
l Two doors with different locks ensure the safety of the fibers and offer two safety levels for the box.
l The central adapter board separates the incoming cables and the exiting fibers.
l Adoptable adapter types: FC, SC, LC/Duplex
| Dimensions and Capacity | ||
| Dimension(H x W x D）mm | Capacity for SC | Capacity for LC |
| 343 x 343 x 84 | 24 | 48 |
| Operation Conditions | |
| Temperature | -30ºC - 75ºC |
| Humidity | ≤90% (at 30 ºC) |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Terminal box, 1 unit; Installation accessories, 1 set |
| Material | Carton box |
| Lead Time | 10-15 working days normally |
