Fiber Optics Distribution Box GP31-2M32A
Overview

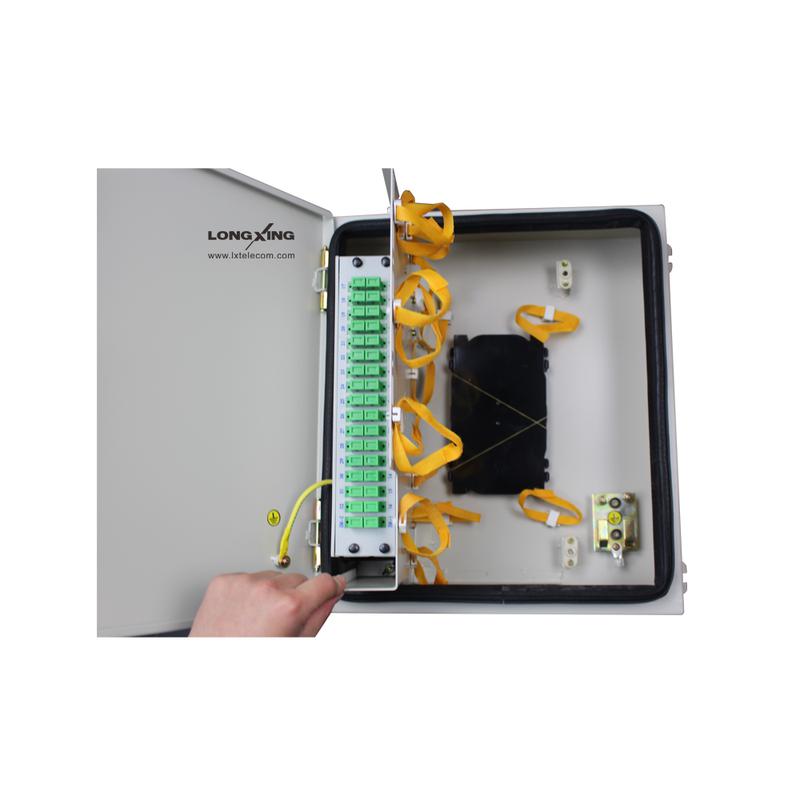

LongXing GP31-2M32A terminal box terminates up to 2 fiber optic cables, offers spaces for splitters and allocates 32 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
l Metal material for the max strength.
l Easy installations: Ready for wall mount – installation kits provided.
l Ready for splitters: designed space for adding rack type splitters.

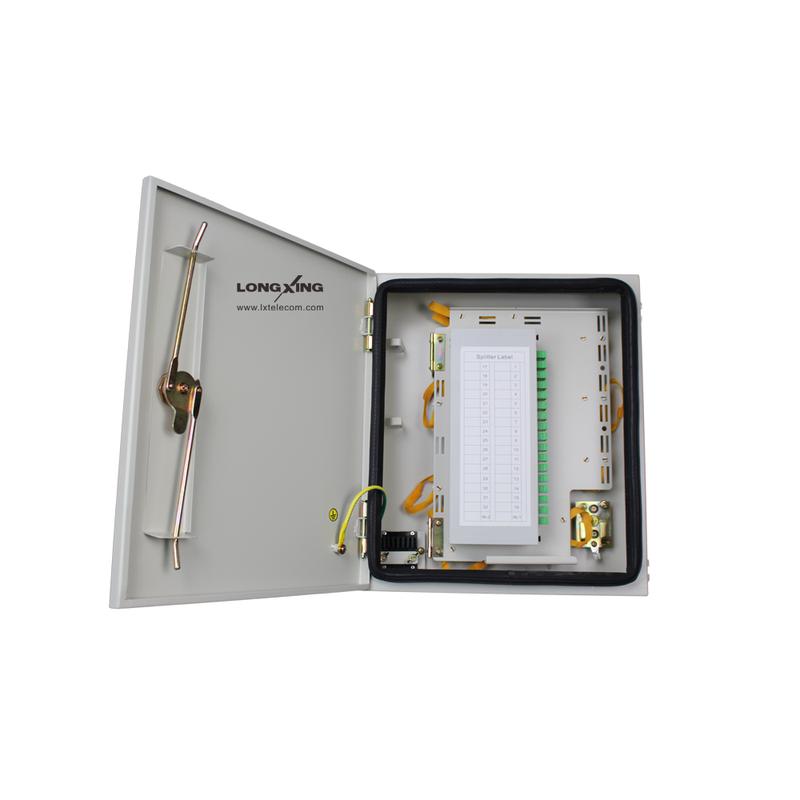

l Space saving! Double-layer design for easier installation and maintenance.
l Upper layer for splitters and distribution
l Lower layer for splicing
l Cable fixing units provided for fixing the outdoor optical cable.
l Accommodates both cable glands as well as tie-wraps
l Lock provided for extra security.
Add To Quote List
Add To Compare
Inquiry Now
l Easy installations: Ready for wall mount – installation kits provided.
l Ready for splitters: designed space for adding rack type splitters.
l Space saving! Double-layer design for easier installation and maintenance.
l Upper layer for splitters and distribution
l Lower layer for splicing
l Cable fixing units provided for fixing the outdoor optical cable.
l Accommodates both cable glands as well as tie-wraps
l Lock provided for extra security.
| Dimensions and Capability | ||
| Dimensions (H*W*D) | 480 mm*360 mm*115 mm | |
| Weight | 10 KG | |

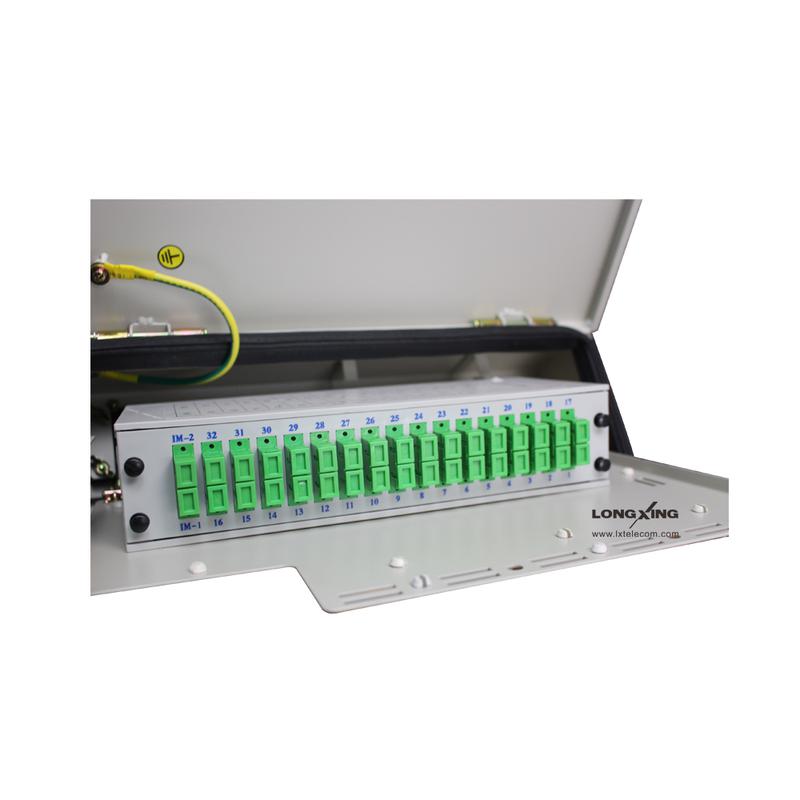

| Adapter Capacity | 32 fibers with SC simplex adapters | |

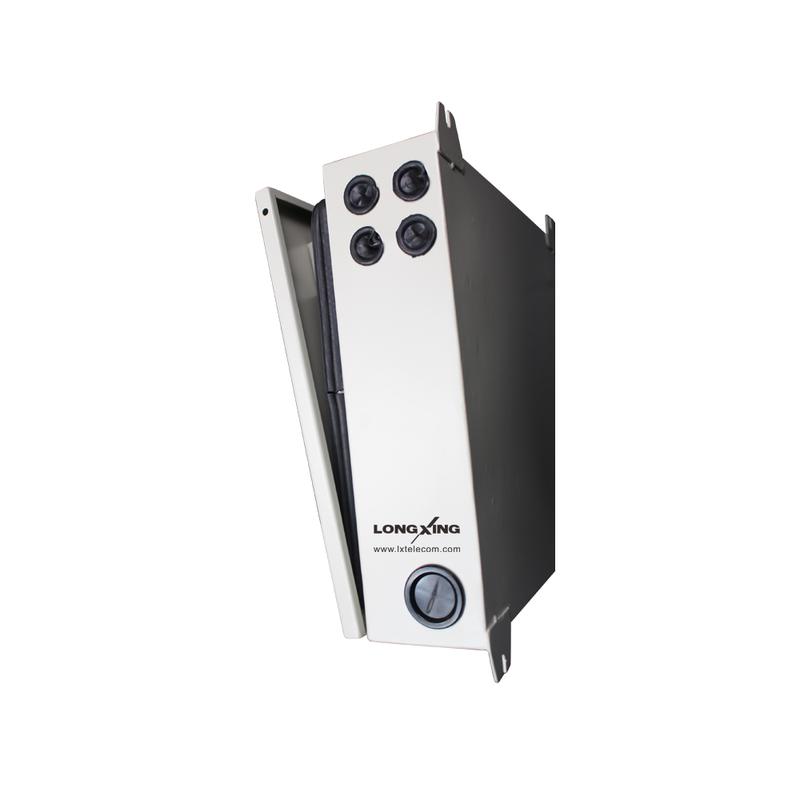

| Diameter of Cable Entrance | Max diameter 28 mm per entrance | |
| Diameter of Cable Exit | Max diameter 42 mm | |
| Optional Accessories | Adapters, Pigtails, Splice Tray, Heat Shrink Tubes, Splitters | |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | ||
| Package Contents | Terminal box, 1 unit; Keys for lock, 2 keys; Wall mount accessories: 1 set. Optional: fusion sleeves, pigtail protection tube, insulating tape, plastic strip, magic Velcro strip, and indoor cable sheath. | |
| Package Dimensions(W*H*D) | 550 mm*430 mm*180 mm | |
| Material | Carton Box | |
| Weight | 13 KG | |
| Lead Time | 10-15 working days normally | |
