Fiber Optics Terminal Box GP31-2M48A

Overview

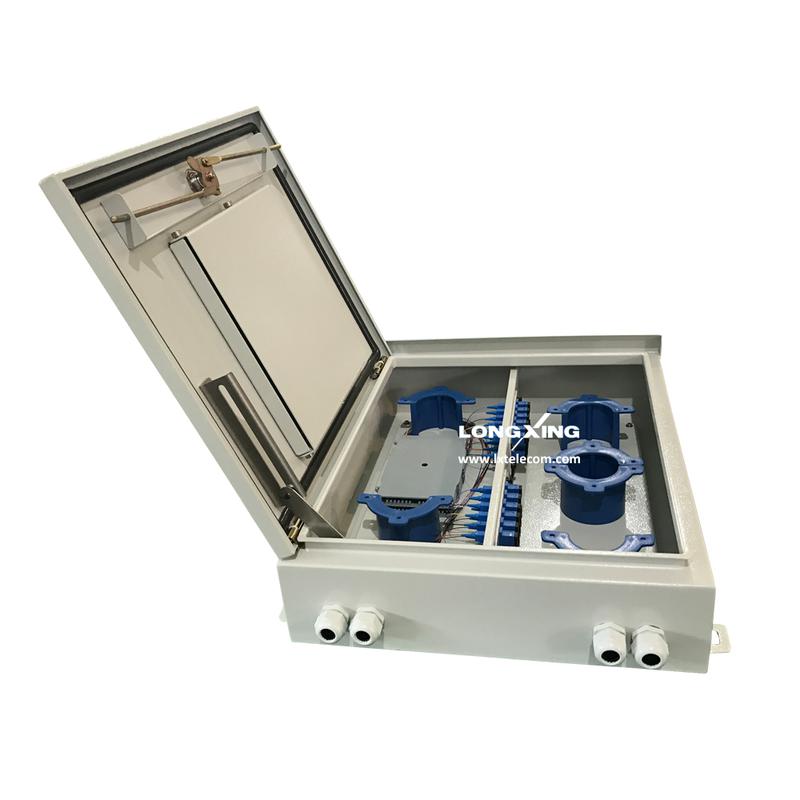

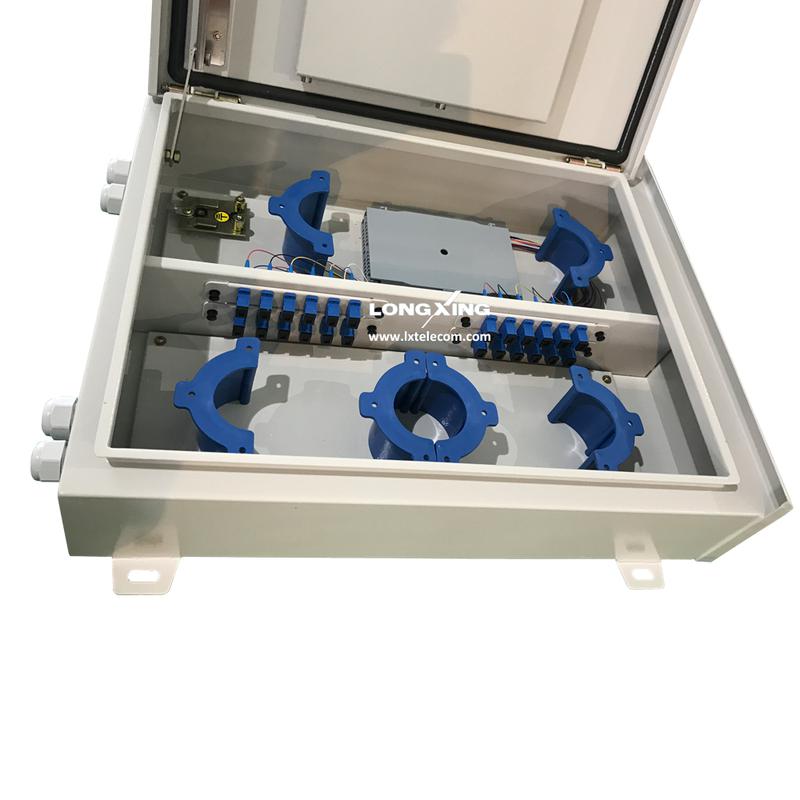

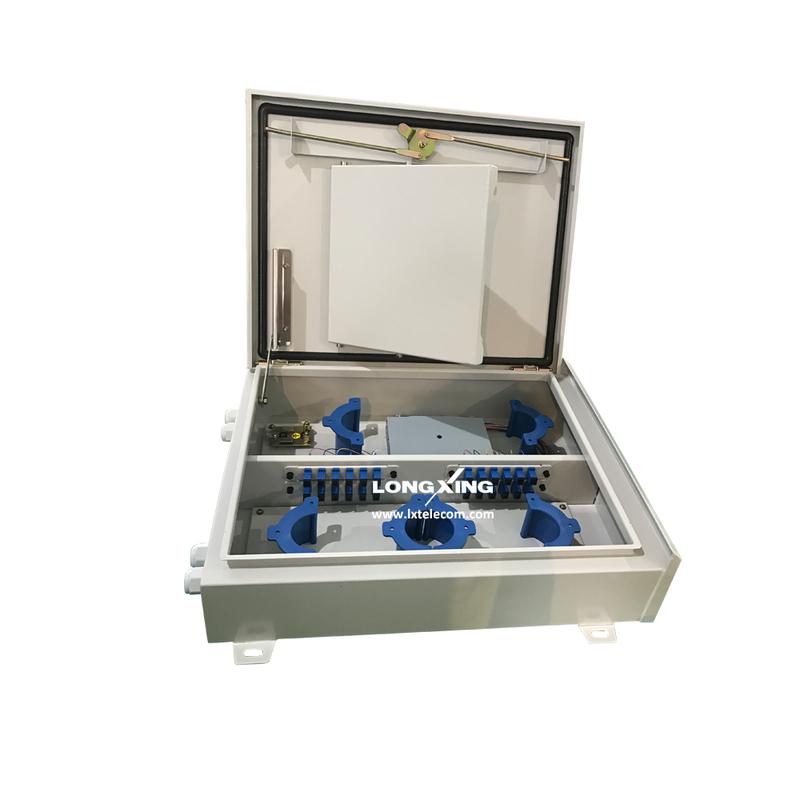

LongXing GP31-2M48A Optical Distribution Box offers ideal environment for optical fibers to be spliced. Folding operation platform makes operation more convenient.

Features

l The box has functions of cable termination, splicing and distribution.
l Solid and fully-closed structure with pleasing appearance.
l Material: Aluminum alloy - light weight.
l Folding operation platform - convenient for operation.
l Easy installations: Wall mountable.
l Lock provided on every box ensures the safety of the fibers.
l The central adapter board separates the incoming cables and the exiting fibers.
l Adoptable adapter types: FC, SC, LC/Duplex

Add To Quote List Add To Compare
Dimensions and Capacity
Dimension(H x W x D)mm Capacity for SC Capacity for LC
525x400x135 24 48

Customized designs available upon request.


Operation Conditions
Temperature -30ºC - 75ºC
Humidity ≤90% (at 30 ºC)
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents Terminal box, 1 unit; Key, 1pc
Package Dimensions(W*H*D) 590mm*460mm*200mm
Material Carton box
Weight 8.5 KG
Lead Time 10-15 working days normally
