Fiber Optics Distribution Box GP31-2M64A (Pre GP31-12N)
Overview
l Metal material for the max strength.

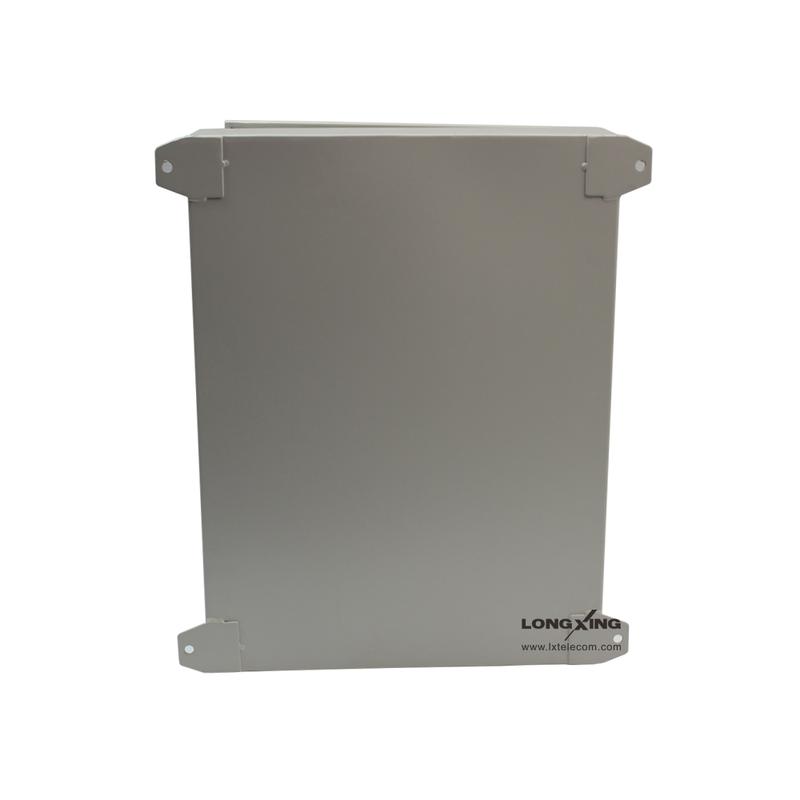

l Easy installations: Ready for wall mount – installation kits provided.
l Ready for splitters: designed space for adding splitters.

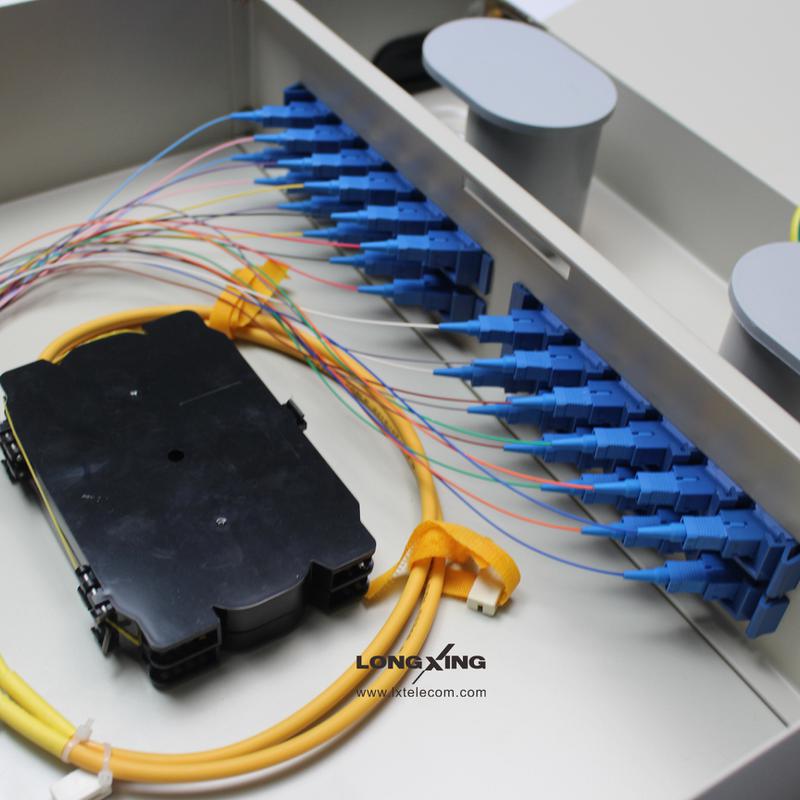

l Space saving! Double-layer design for easier installation and maintenances:

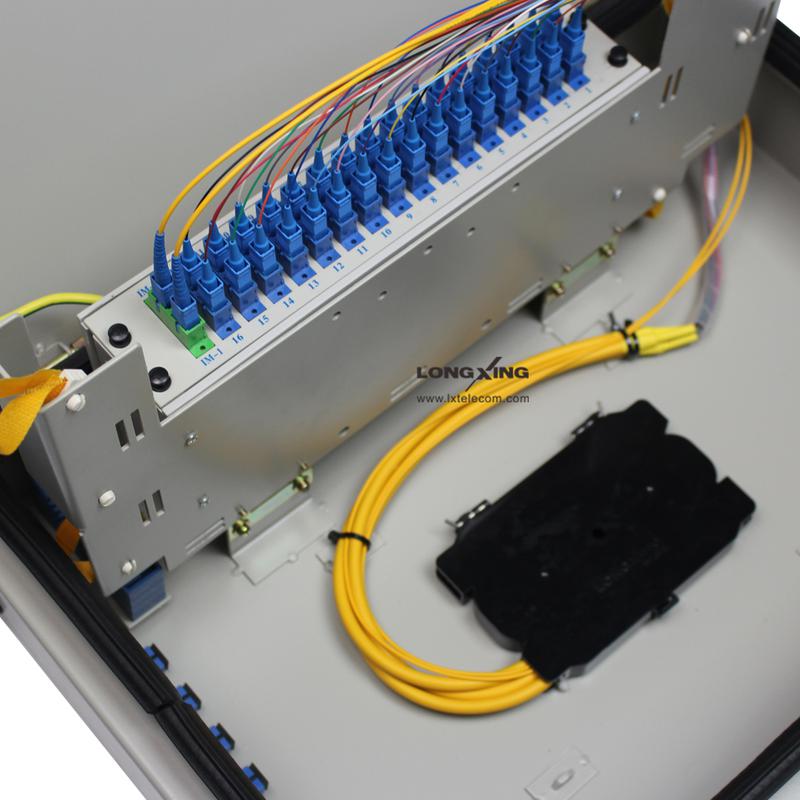

l Upper layer for splitters and distribution
l Lower layer for splicing
l Cable fixing units provided for fixing the outdoor optical cable.
l Accommodates both cable glands as well as tie-wraps
l Lock provided for extra security.
l Easy installations: Ready for wall mount – installation kits provided.
l Ready for splitters: designed space for adding splitters.
l Space saving! Double-layer design for easier installation and maintenances:
l Upper layer for splitters and distribution
l Lower layer for splicing
l Cable fixing units provided for fixing the outdoor optical cable.
l Accommodates both cable glands as well as tie-wraps
l Lock provided for extra security.
Features

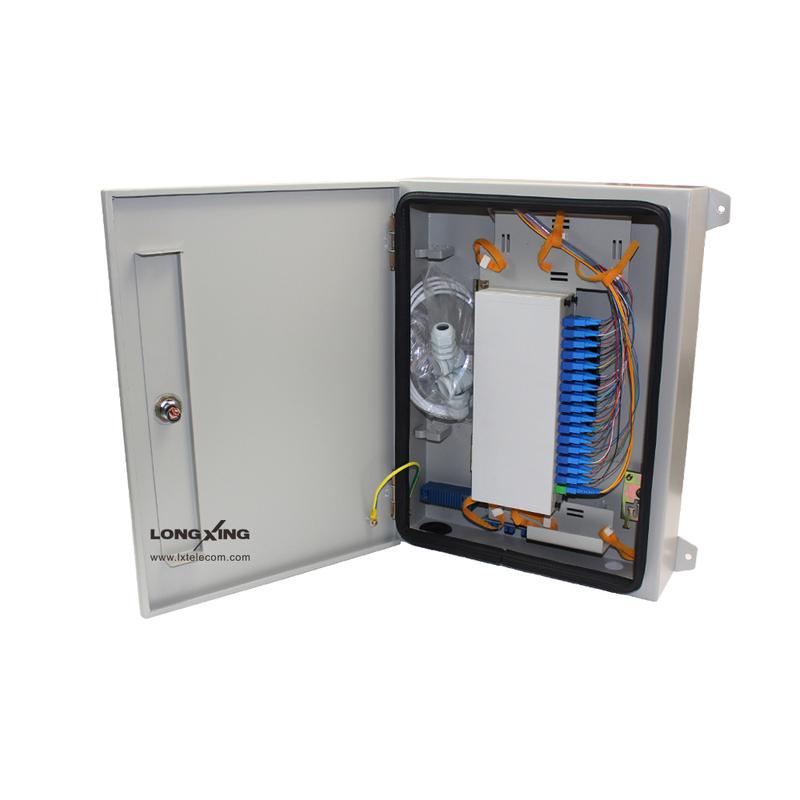

LongXing GP31-2M64A terminal box terminates up to 2 fiber optic cables, offers spaces for splitters and allocates 64 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Add To Quote List
Add To Compare
Inquiry Now
| Dimensions and Capacity | ||
| Dimension(H x W x D）mm | Capacity (FO) | Splitter Ratio |
| 350 x 340 x 100 | 16 SC | 1 / 2 : 16 |
| 460 x 340 x 100 | 32 SC | 1 / 2 : 32 |
| 700 x 500 x 130 | 64 SC | 1 / 2 : 64 |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Terminal box, 1 unit; Keys for lock, 2 keys Wall mount installation accessories, 1 set |
| Material | Carton box |
| Lead Time | 10-15 working days normally |
