Fiber Optics Distribution Box GP31-2M96C (Pre GP31-1-12)
Overview
LongXing GP31-2M96C Optical Distribution Box with splitter offers ideal environment for optical fibers to be spliced. Small in size but large in capacity.
Features
l The cabinet has functions of cable termination, splicing, splitting, distribution and cross-connection.
l Small in size but large in capacity.
l Solid and fully-closed structure with pleasing appearance.
l Ideal for indoor uses – cable entrances & exits located on both top and bottom.
l Easy installations: Wall mountable.
l Lock provided on every cabinet ensures the safety of the fibers.

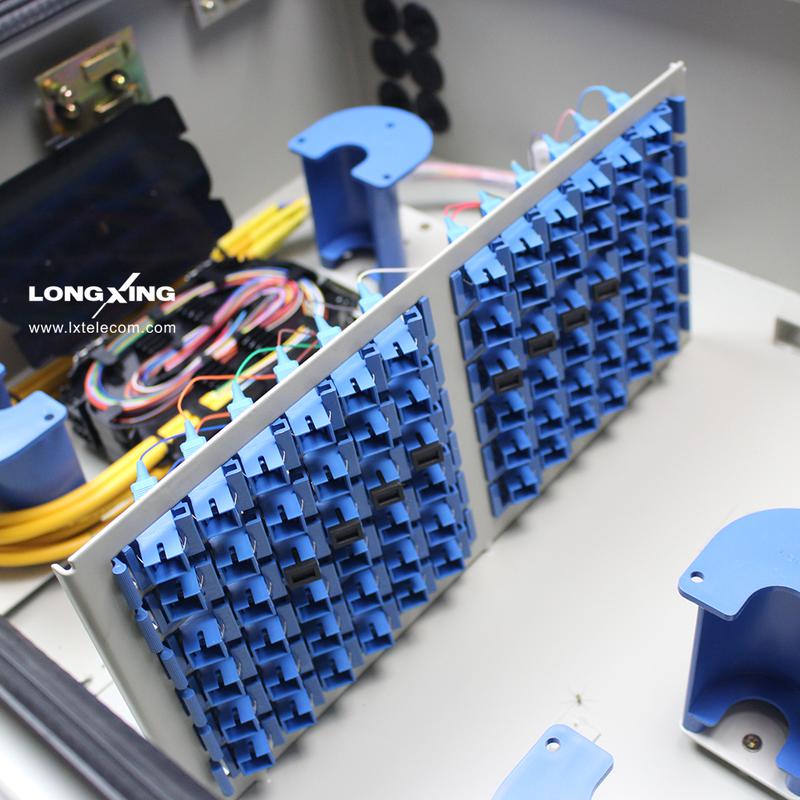

l The central adapter board separates the incoming cables and the exiting fibers.
l Adoptable adapter types: FC, SC, LC/Duplex
Add To Quote List
Add To Compare
Inquiry Now
l Small in size but large in capacity.
l Solid and fully-closed structure with pleasing appearance.
l Ideal for indoor uses – cable entrances & exits located on both top and bottom.
l Easy installations: Wall mountable.
l Lock provided on every cabinet ensures the safety of the fibers.
l The central adapter board separates the incoming cables and the exiting fibers.
l Adoptable adapter types: FC, SC, LC/Duplex
| Dimensions and Capacity | ||
| Dimension(H x W x D）mm | Capacity (FO) | Install location for splitter |
| 460x480x150 | 12 SC | 2 |
| 460x480x150 | 24 SC | 2 |
| 460x480x150 | 48 SC | 2 |
| 460x500x170 | 72 SC | 3 |
| 460x530x260 | 96 SC | 4 |
| Operation Conditions | |
| Temperature | -30ºC - 75ºC |
| Humidity | ≤90% (at 30 ºC) |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Terminal box, 1 unit; Installation accessories, 1 set |
| Material | Carton box |
| Lead Time | 10-15 working days normally |
