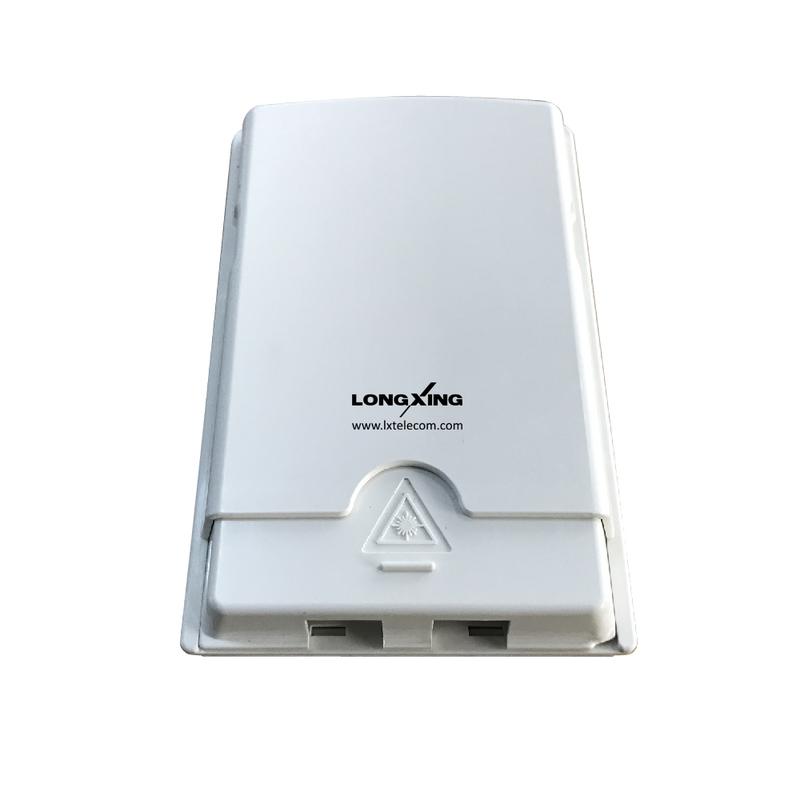

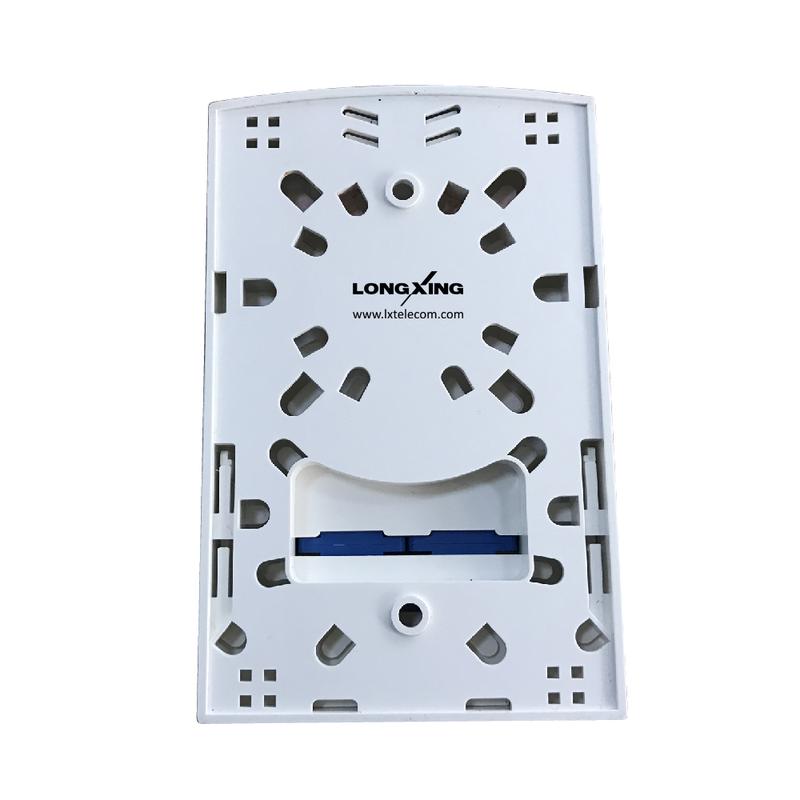

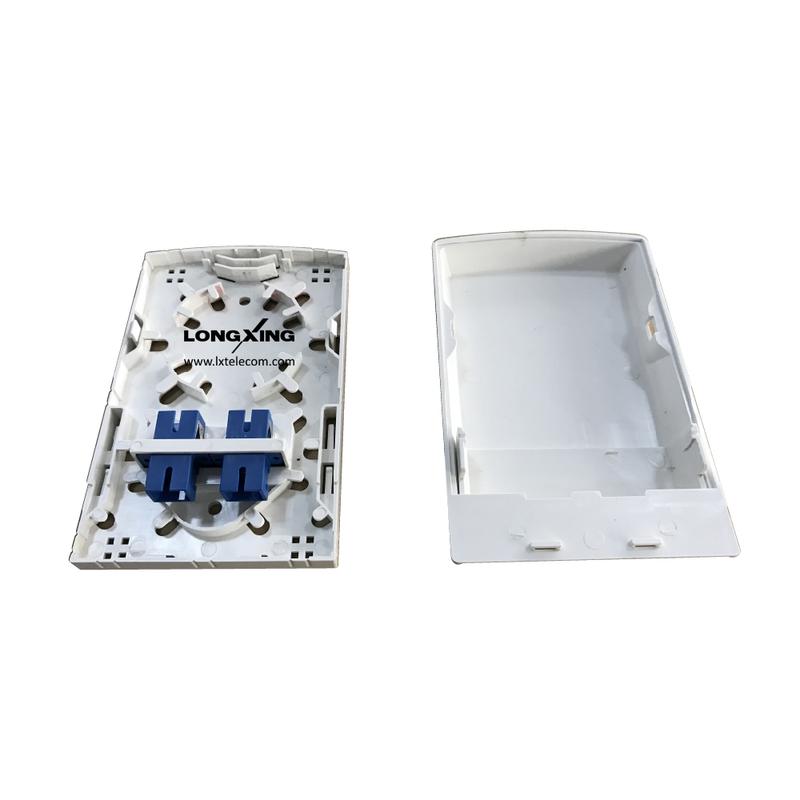

Fiber Optics Distribution Box GP31-1P02B
Overview
LongXing GP31-1P02B Indoor Fiber Distribution Terminal provides Customer Premises Equipment applications with a compact and secure enclosure for connecting fiber cables within building entrance locations, communications closets, and other indoor environments. This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port.
Features
l With protective doors, dustproof
l Suitable for many types of modules, used in cabling work area subsystem
l Embedded type surface, easy for installation and removal
l Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted installation and concealed panel installation
l All modules are solderless mode
Add To Quote List
Add To Compare
Inquiry Now
l Suitable for many types of modules, used in cabling work area subsystem
l Embedded type surface, easy for installation and removal
l Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted installation and concealed panel installation
l All modules are solderless mode
| Dimensions and Capability | |
| Dimensions (W*H*D) | 83.4mm*130mm*24.1mm |
| Adapter Capacity | Accommodates 4 fibers with LC duplex adapters; 2 fibers with SC simplex adapters |
| Number of Cable Entrance/Exit | Up to 4 |
| Pigtail | G652D Ф0.9mm, 0.5m or as per request |
| Applicable Mode | Singlemode & Multimode |
| Tensile strength | >50 N |
| Insertion loss | ≤0.2dB（1310nm & 1550nm） |
