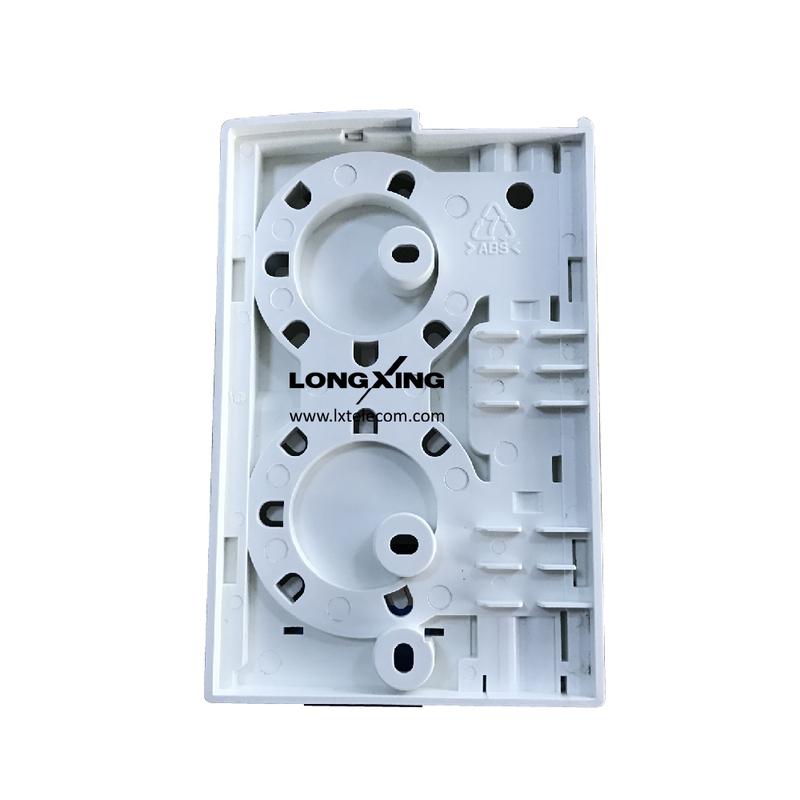

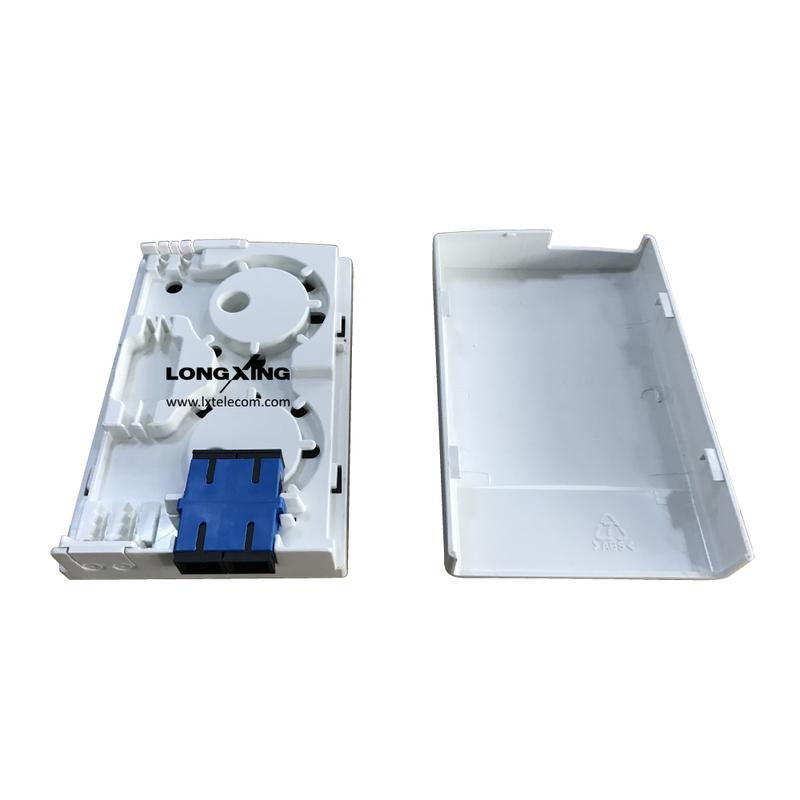

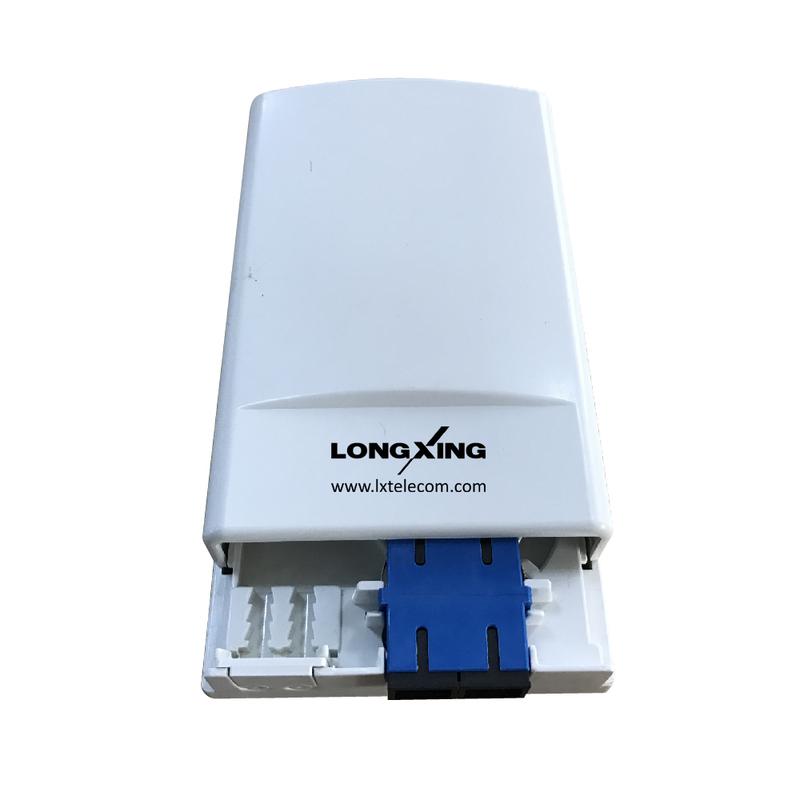

Fiber Optics Distribution Box GP31-1P02C
Overview
LongXing GP31-1P02C Indoor Fiber Distribution Terminal provides Customer Premises Equipment applications with a compact and secure enclosure for connecting fiber cables within building entrance locations, communications closets, and other indoor environments. This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port.
Features
l Slide cover
l With protective doors, dustproof
l Suitable for many types of modules, used in cabling work area subsystem
l Embedded type surface, easy for installation and removal
l Available for fiber optic SC duplex and can be used in both surface mounted installation and concealed panel installation
l All modules are solderless mode
Add To Quote List
Add To Compare
Inquiry Now
l With protective doors, dustproof
l Suitable for many types of modules, used in cabling work area subsystem
l Embedded type surface, easy for installation and removal
l Available for fiber optic SC duplex and can be used in both surface mounted installation and concealed panel installation
l All modules are solderless mode
| Dimensions and Capability | |
| Dimensions (W*H*D) | 79mm*122mm*24mm |
| Adapter Capacity | Accommodates 2 fibers with SC duplex adapters |
| Pigtail | G652D Ф0.9mm, 0.5m or as per request |
| Fiber Cladding Diameter | 125μm ( 652 & 657 ) |
| TBF Diameter | 250μm & 900μm |
| Applicable Mode | Singlemode & Multimode |
| Tensile strength | >50 N |
| Insertion loss | ≤0.2dB（1310nm & 1550nm） |
