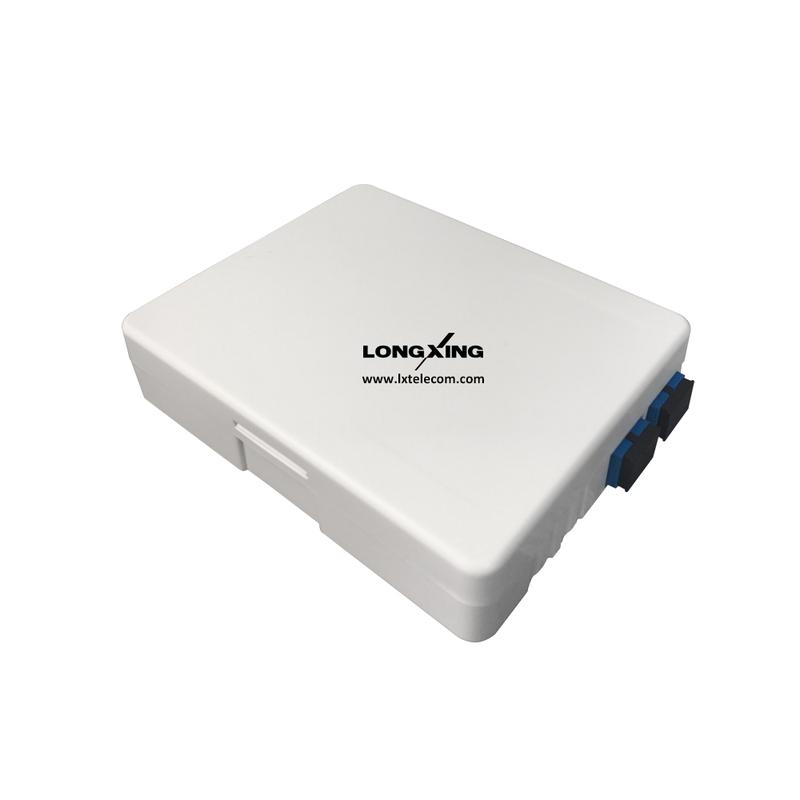

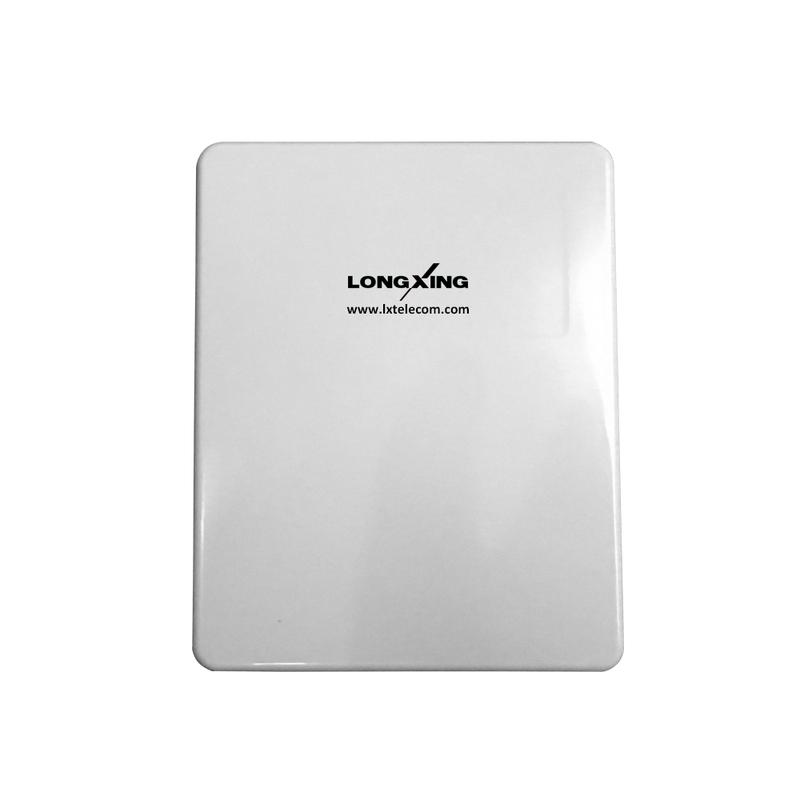

Fiber Optics Distribution Box GP31-1P02E
Overview
LongXing GP31-1P02E optical distribution box terminates one fiber optic cable with up to 2 cores, connecting the drop cable and ONU devices through fiber port. It brings significant improvements resulting in better customer experience when FTTH have to be deployed.
Features
l ABS+PC material used ensures the body strong and light.

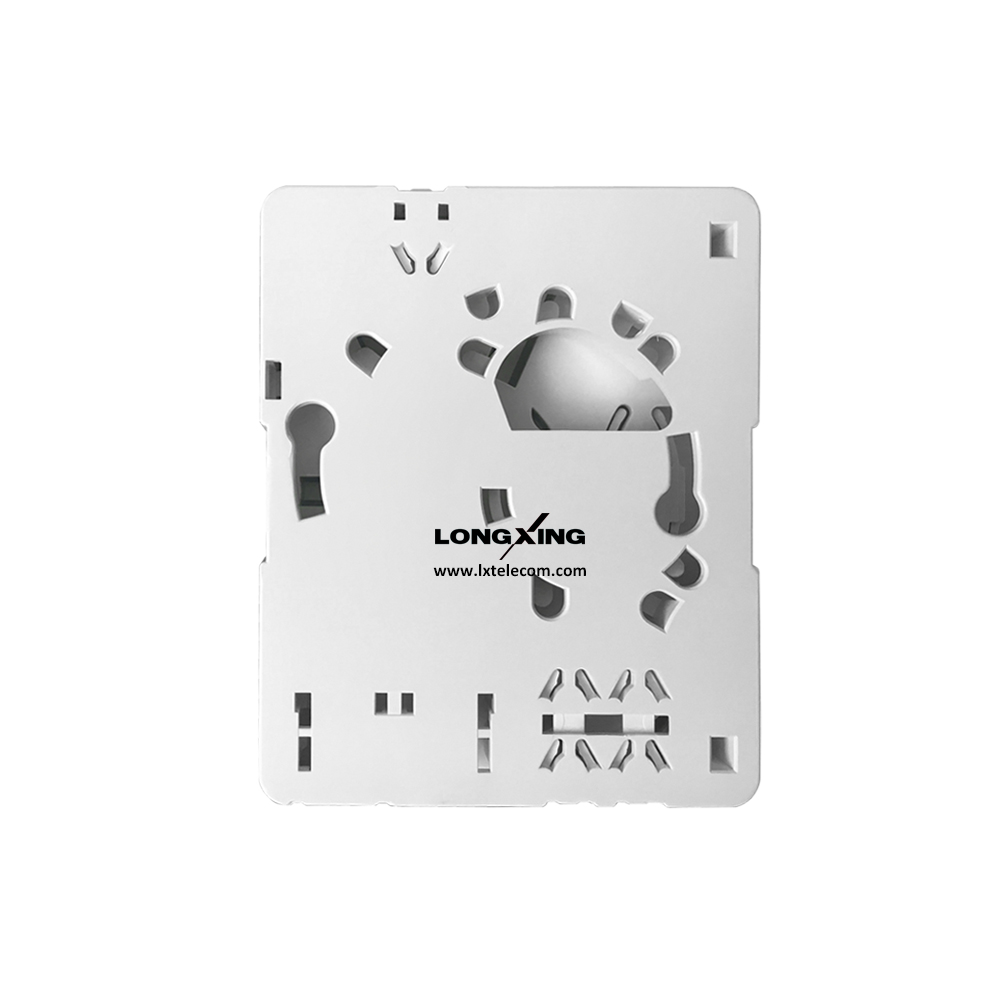

l Easy installations: Mount on wall or just put on the ground.
l Splicing tray can be removed when needed or during the installation for the convenient operation and installation;

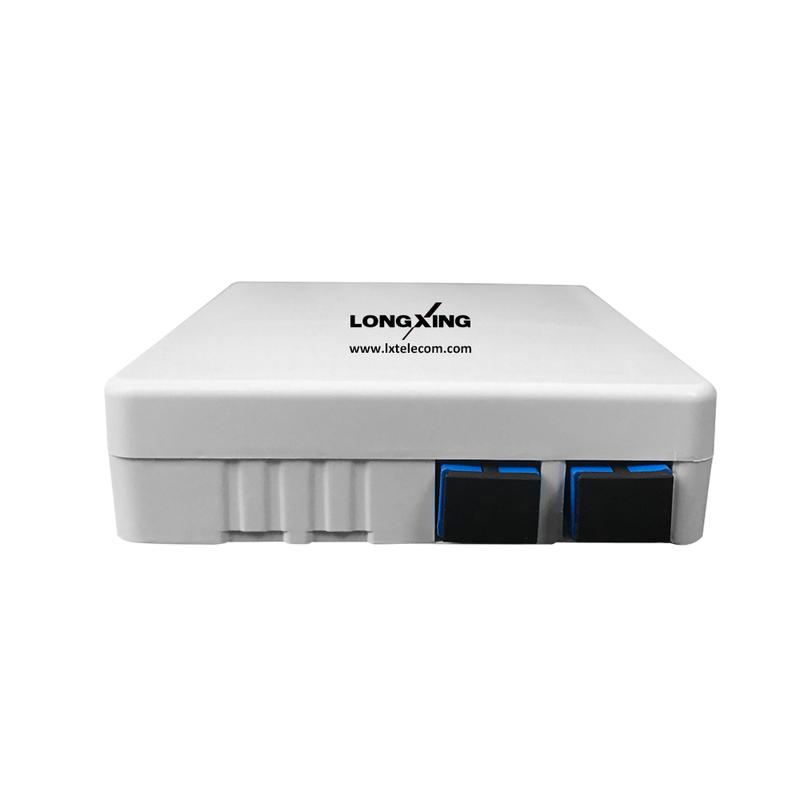

l Adapter slots adopted – No screws needed for installing adapters.
l Plug fiber with no need to open the shell, easily accessible fiber operation.

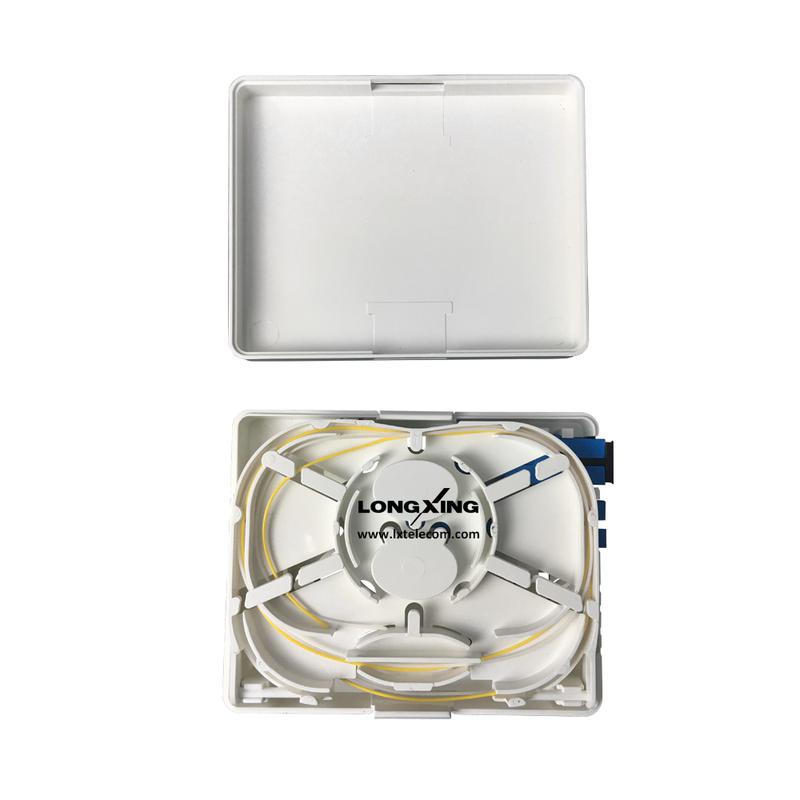

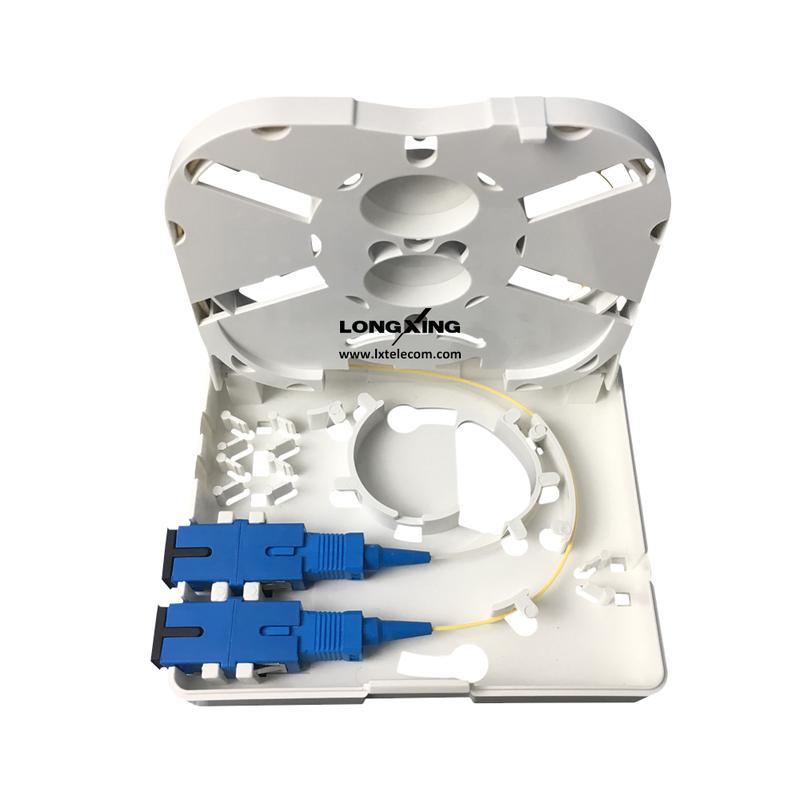

l Double-layer design for easier installation and maintenances:
Upper layer for splicing.
Lower layer for distribution.
Add To Quote List
Add To Compare
Inquiry Now
l Easy installations: Mount on wall or just put on the ground.
l Splicing tray can be removed when needed or during the installation for the convenient operation and installation;
l Adapter slots adopted – No screws needed for installing adapters.
l Plug fiber with no need to open the shell, easily accessible fiber operation.
l Double-layer design for easier installation and maintenances:
Upper layer for splicing.
Lower layer for distribution.
| Dimensions and Capability | |
| Dimensions (L*W*H) | 100mm x 80mm x 22mm |
| Adapter Capacity | 2 fibers with SC adapters |
| Number of Cable Entrance/Exit | 3/2 |
| Capacity | Up to 2 cores |
| Installation | Wall Mounted |
| Pigtail | G652D Ф0.9mm, 0.5m or as per request |
| Optional Accessories | Adapters, Pigtails |
| Weight | 0.16 KG |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Distribution box, 1 unit; Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 20pcs, 250mm×220mm×100mm |
| Material | Carton box |
| Weight | 0.65kg |
| Lead Time | 10-15 working days normally |
