Fiber Optics Distribution Box GP31-1P08A
Overview

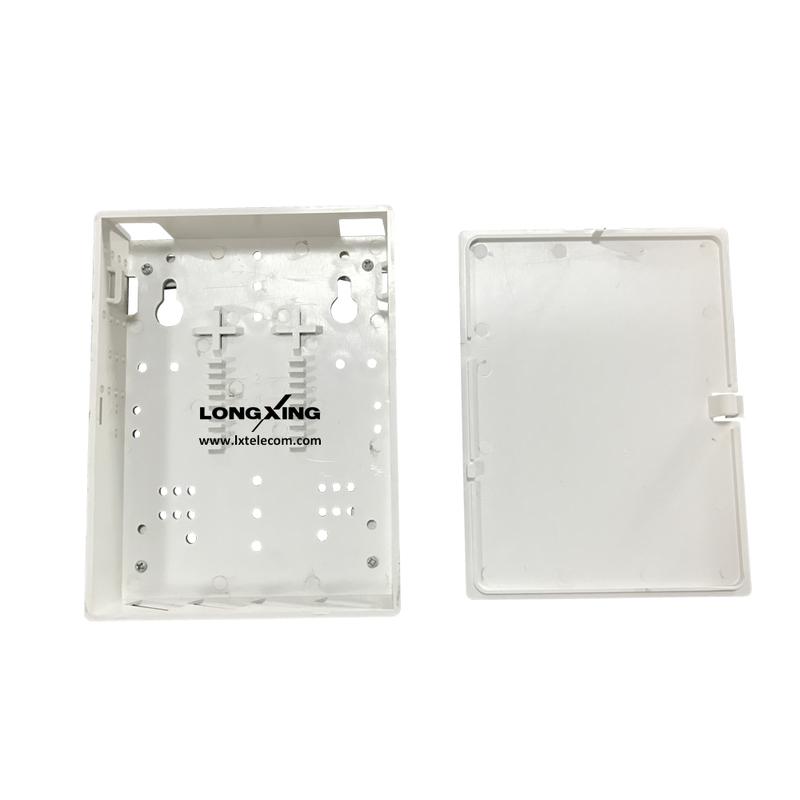

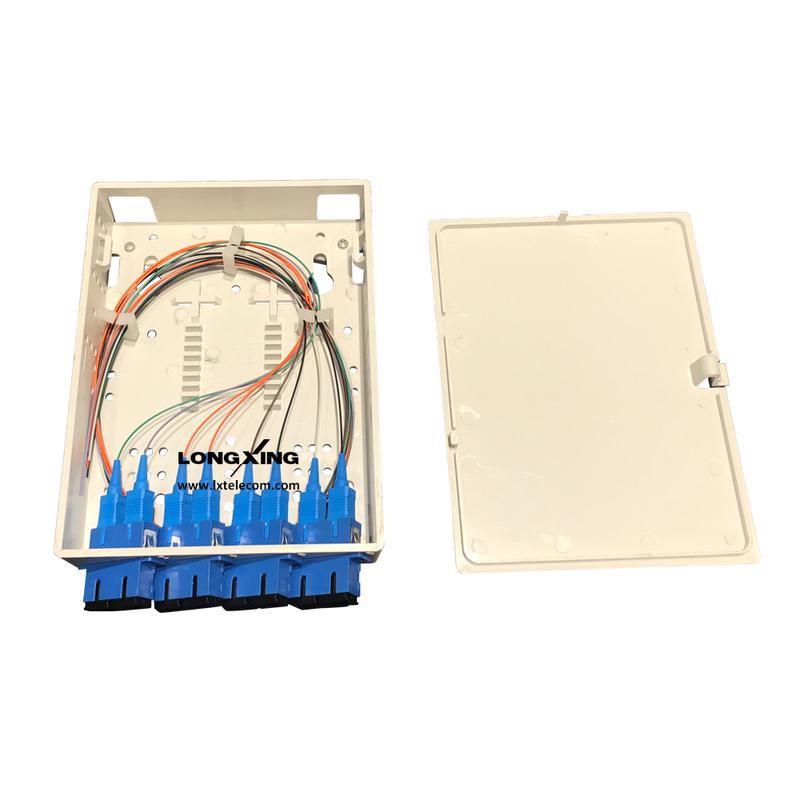

This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port. It supports splicing, distribution, mechanical connection and wall mounted installation. GP31-1P08A ftth optical distribution box can be installed with 8 pcs sc fiber optic adapter to fix and splice & fiber optic pigtails. This 8 cores ftth optical distribution box applies to the inlet of indoor ftth drop cable, the maximum length of fiber storage is 15m.
Features
l ABS material used ensures the body strong and light

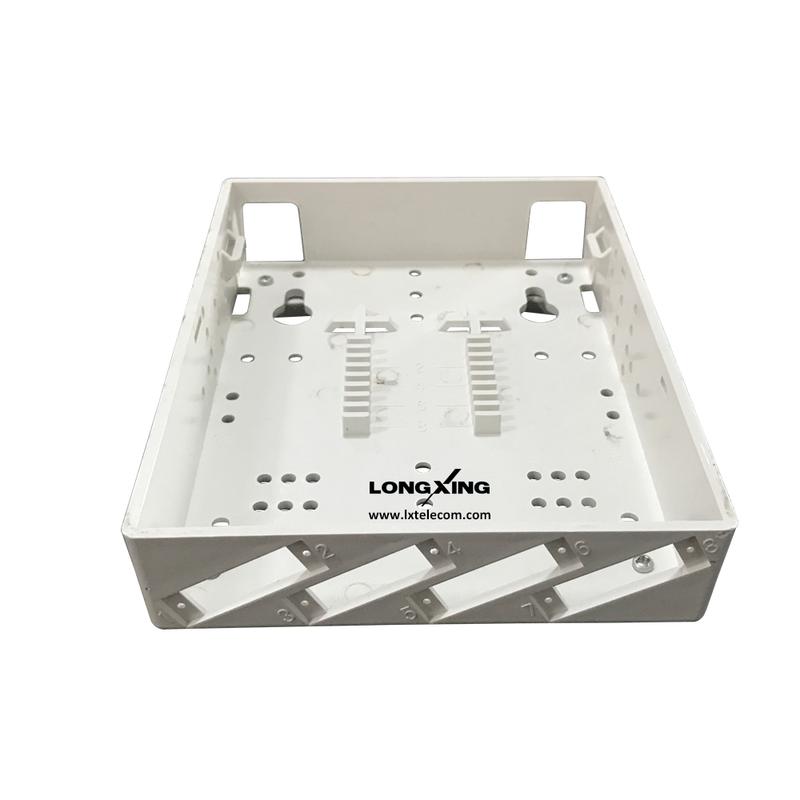

l Reasonable inner design for optical fiber
l Small size, light weight, good appearance
l Capacity of 8 cores basically
l Suitable for SC fiber adapter
l Easy for fiber bending radius and operation

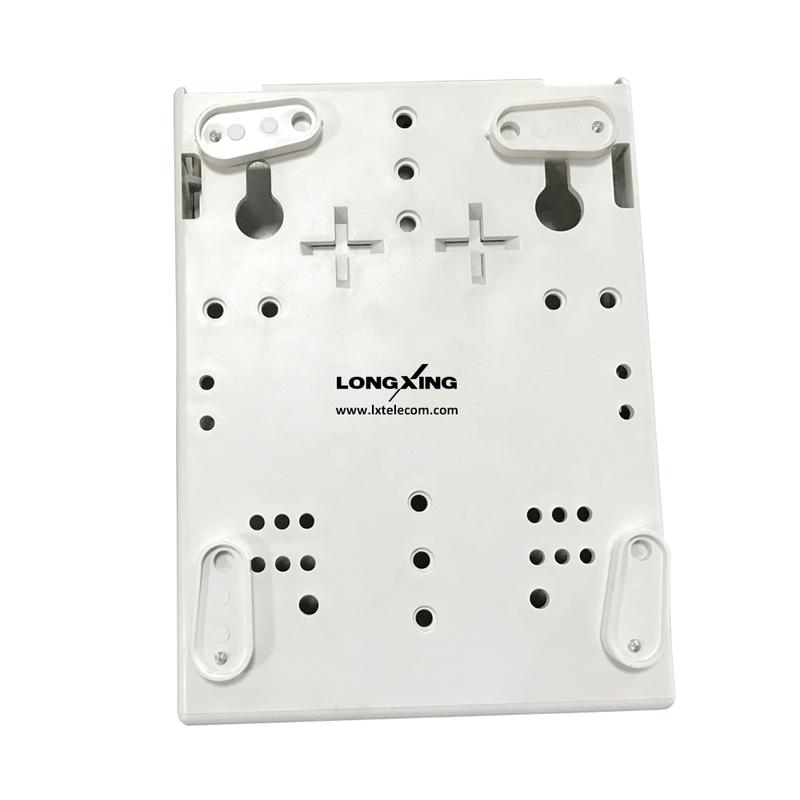

l Wall-mount with mechanical protection
Add To Quote List
Add To Compare
Inquiry Now
l Reasonable inner design for optical fiber
l Small size, light weight, good appearance
l Capacity of 8 cores basically
l Suitable for SC fiber adapter
l Easy for fiber bending radius and operation
l Wall-mount with mechanical protection
| Dimensions and Capability | |
| Adapter Capacity | SC Duplex 8 Cores |
| Dimensions (W*H*D) | 118mm*158mm*32mm |
| Number of Cable Entrance | Max Diameter 18mm*Q2 |
| Weight | 0.46 KG |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes |
| Installation | Wall-Mounted |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Mini terminal box, 1 unit; Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 135mm*175mm*45mm |
| Material | Carton box |
| Weight | 0.85kg |
| Lead Time | 10-15 working days normally |
