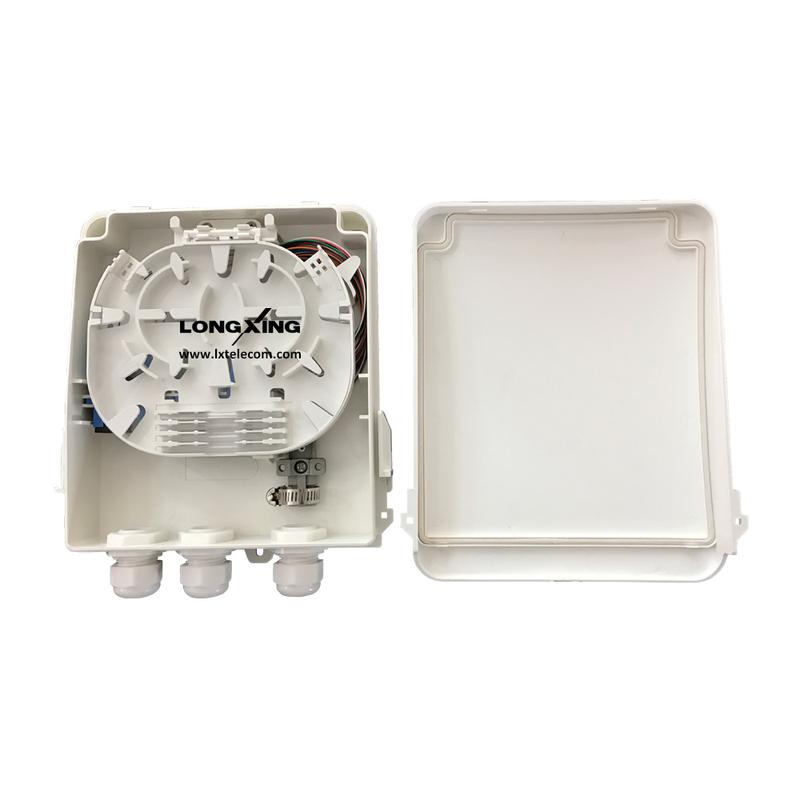

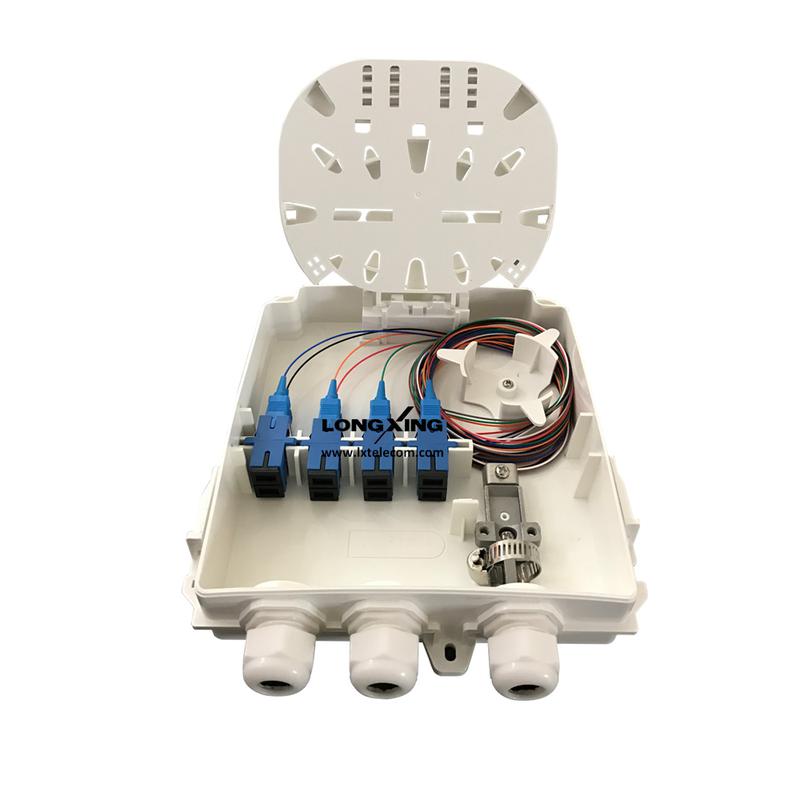

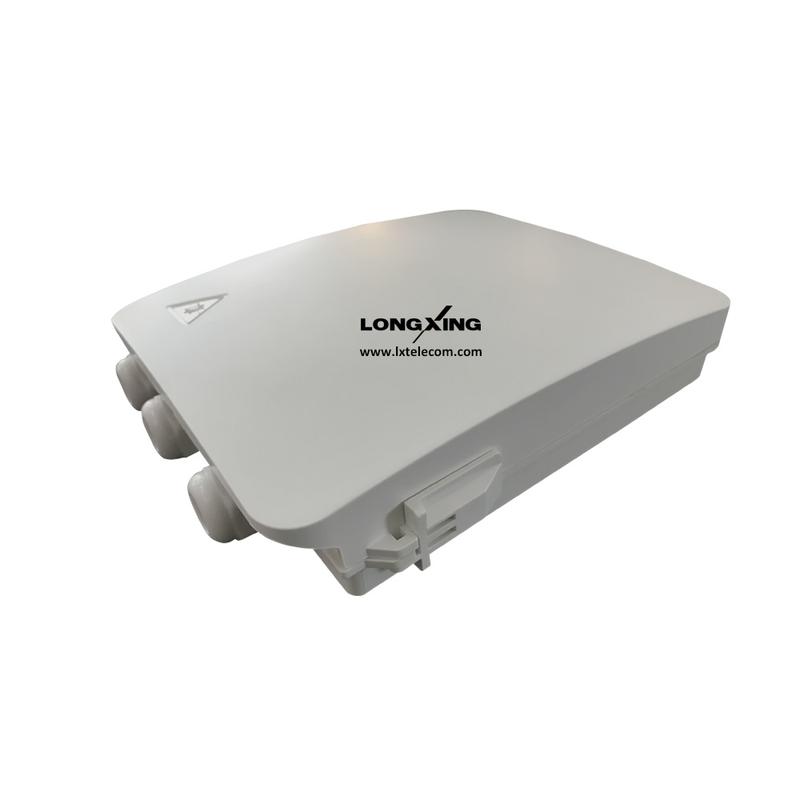

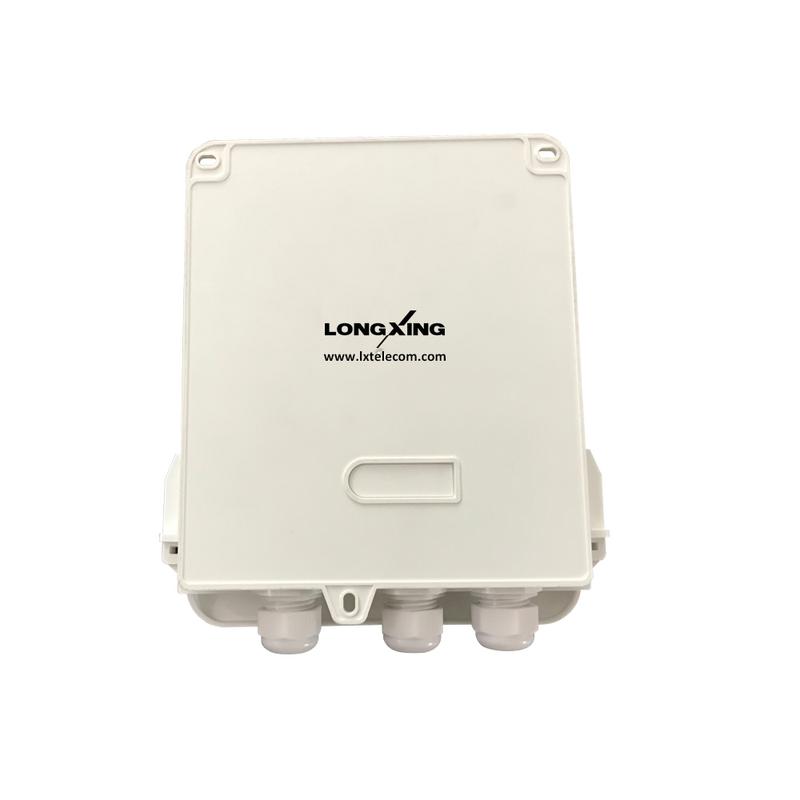

Fiber Optics Distribution Box GP31-1P08B
Overview
This fiber optics distribution box GP31-1P08B is a new generation product for fiber to the home. The box is light and compact, it is especially for connecting and protection for fiber cable of FTTH.
Features
l ABS
l Mechanical seal: good sealing, can repeat use.
l Protective level: IP65.
l Laying: indoor wall-mounting.
l FTTH products, passive optical points wiring special terminal box.
l Suitable for 8 SC adapters installation and usage.
l It is easily to access the box by sliding shackle.
l It is applicable for outdoor cables or indoor soft cables.
l The maximum capacity is 12 fibers.
Add To Quote List
Add To Compare
Inquiry Now
l Mechanical seal: good sealing, can repeat use.
l Protective level: IP65.
l Laying: indoor wall-mounting.
l FTTH products, passive optical points wiring special terminal box.
l Suitable for 8 SC adapters installation and usage.
l It is easily to access the box by sliding shackle.
l It is applicable for outdoor cables or indoor soft cables.
l The maximum capacity is 12 fibers.
| Dimensions and Capability | |
| Adapter Capacity | SC: 8 cores |
| Dimensions (W*H*D) | 210mm*175mm*50mm |
| Number of Cable Entrance | Max Diameter 15mm*Q1 |
| Number of Cable Exit | Max Diameter 15mm*Q2 |
| Weight | 0.5 KG |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Splice Tray, Optical Splitter |
| Installation | Wall-Mounted or Pole-Mounting |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 1 key; Wall mount accessories: 1 set |
| Package Dimensions(W*H*D) | 230mm*200mm*80mm |
| Material | Carton box |
| Weight | 1.2 KG |
| Lead Time | 10-15 working days normally |
