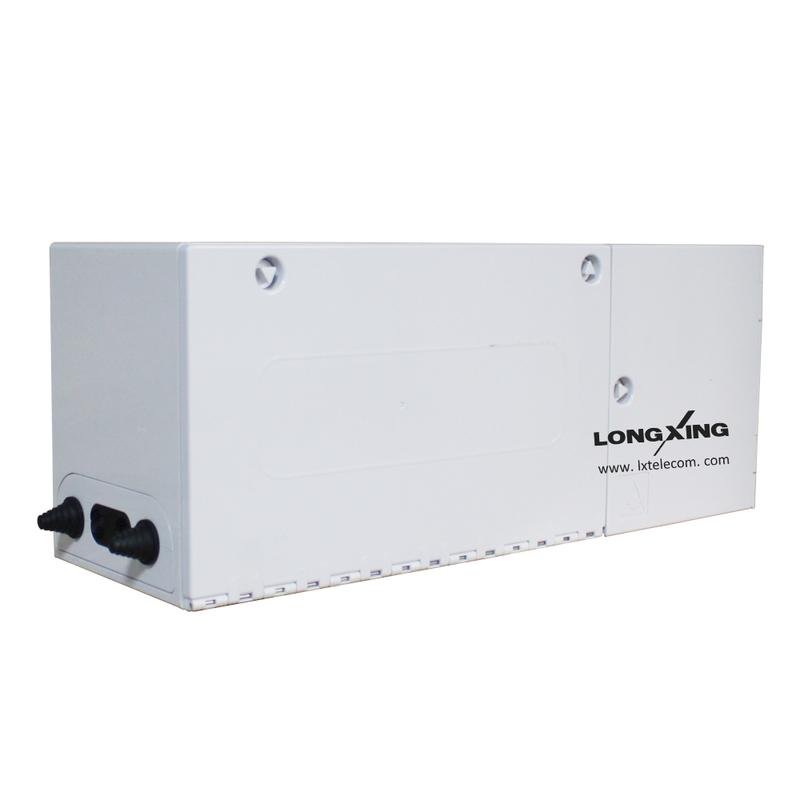

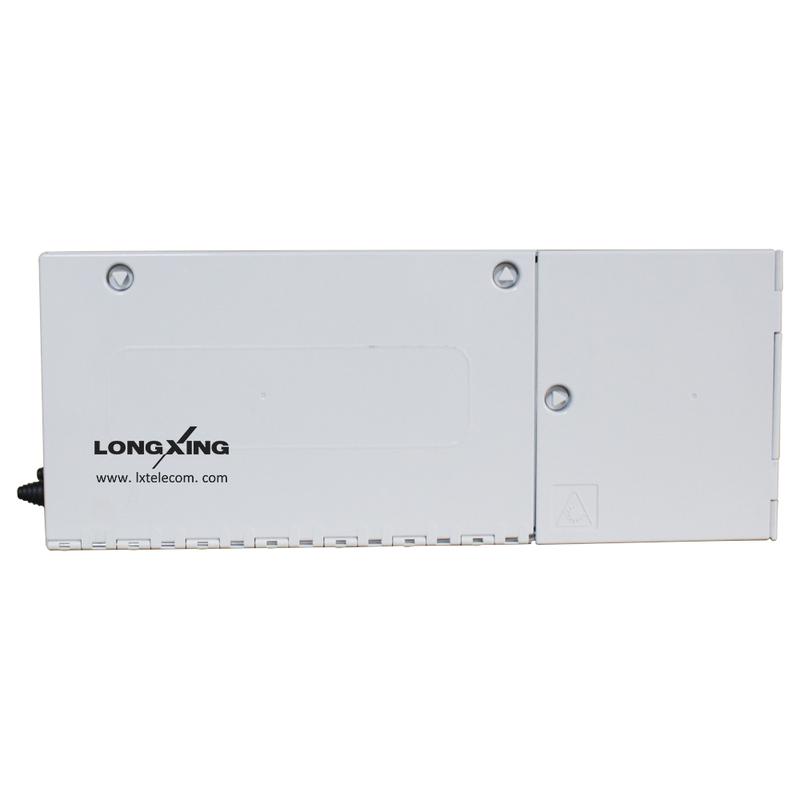

Fiber Optics Distribution Box GP31-1P48A
Overview
LongXing 1P48A distribution box is used as a termination point for up to 48 optical fibers. This box integrates fiber splicing, coupling and stirring in one unit. It supports inside buildings installation for FTTH applications. This box can be stacked to enable applications of greater capacity.
Features
l Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP30.
l Optical cables access left with lashing system.
l Integrating fiber splicing, coupling and stirring in one box.

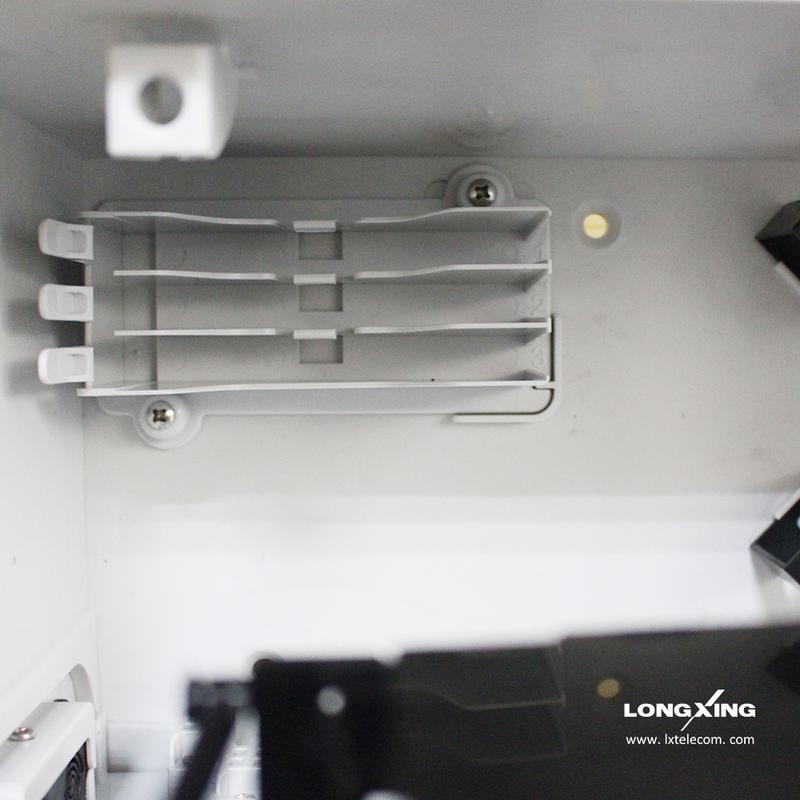

l Separate compartments for splicing and patching. Each compartment is equipped with a triangle key system.
l Distribution panel can be flipped up, easy for maintenance and installation.
l This box can be installed by the way of wall-mounted, suitable for indoor uses.
Add To Quote List
Add To Compare
Inquiry Now
l Optical cables access left with lashing system.
l Integrating fiber splicing, coupling and stirring in one box.
l Separate compartments for splicing and patching. Each compartment is equipped with a triangle key system.
l Distribution panel can be flipped up, easy for maintenance and installation.
l This box can be installed by the way of wall-mounted, suitable for indoor uses.
| Dimensions and Capability | |
| Adapter Capacity | SC simplex 48 cores |
| Dimensions (W*H*D) | 450mm*182mm*150mm |
| Number of Cable Entrance/Exit Ports | 3 |
| Diameter of Fiber Cable | Max diameter 18mm |
| Capacity of Splice Tray | 8F |
| Optional Accessories | Adapters, pigtails, heat shrink tubes |
| Operation Conditions | |
| Working Temperature | -25℃ -- +55℃ |
| Relative Humidity | 5% -- 95% |
| Atmospheric pressure | 70kPa – 106kPa |
| Shipping Information | |||
| Package Contents | Terminal box, 6 units; 1 key for each unit | ||
| Package Dimensions(W*H*D) | 570 mm*500 mm*460 mm | ||
| Material | Carton box | ||
| Weight | 17.73 KG | ||
| Lead Time | 10-15 working days normally | ||
