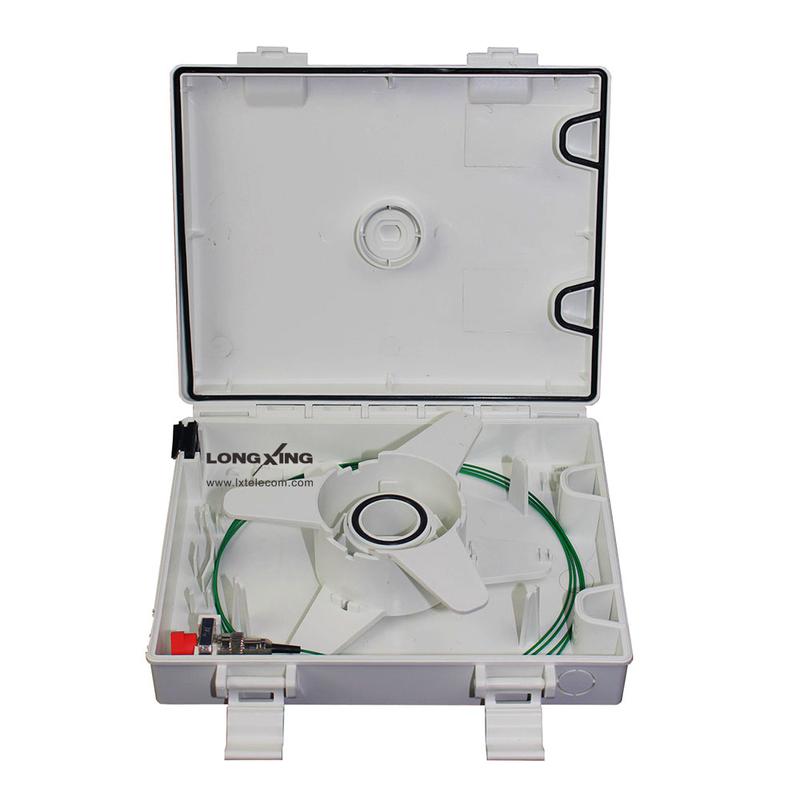

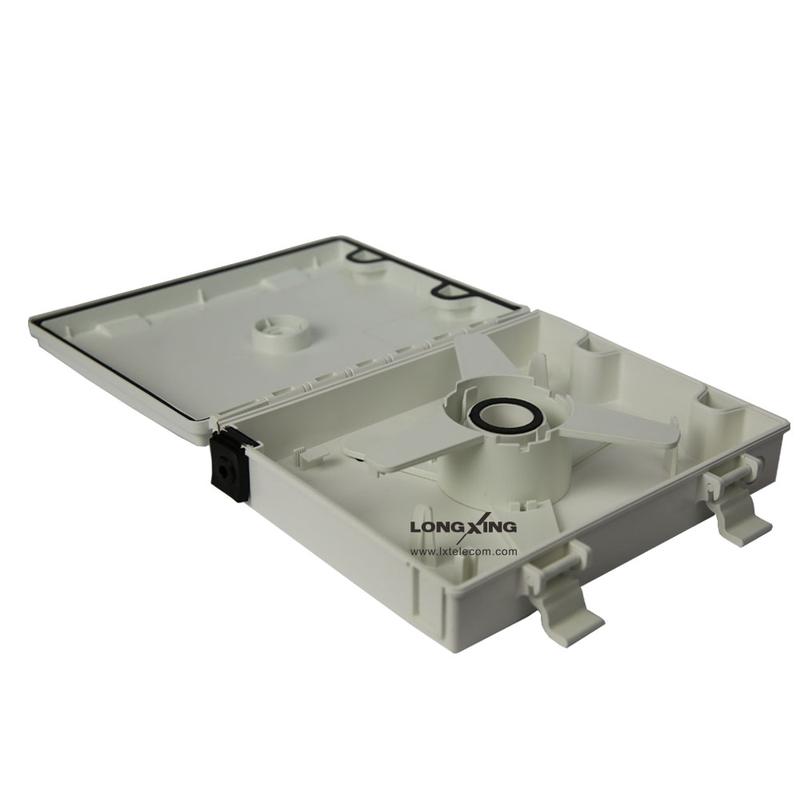

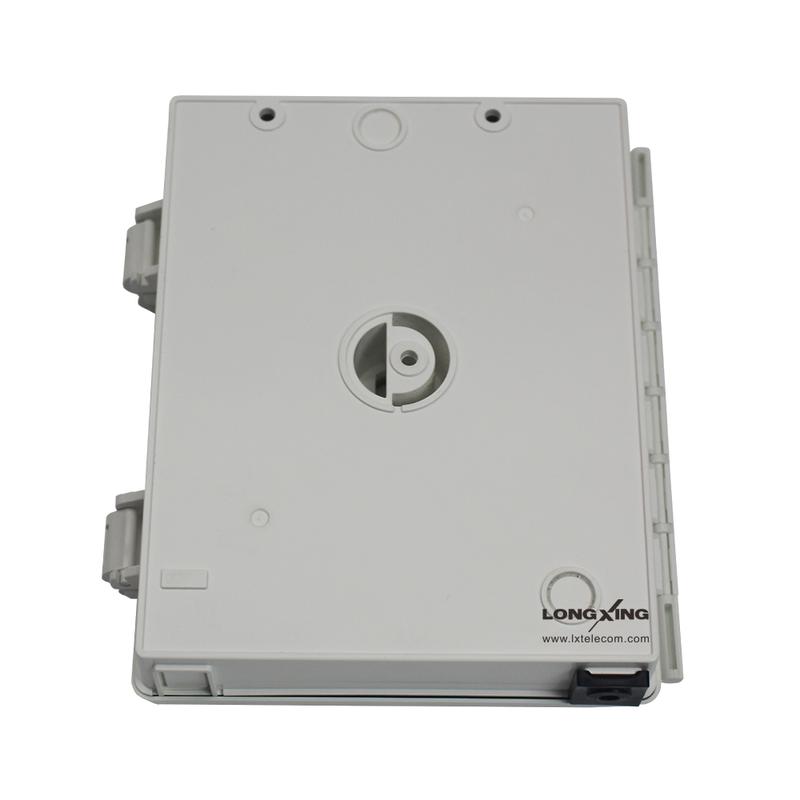

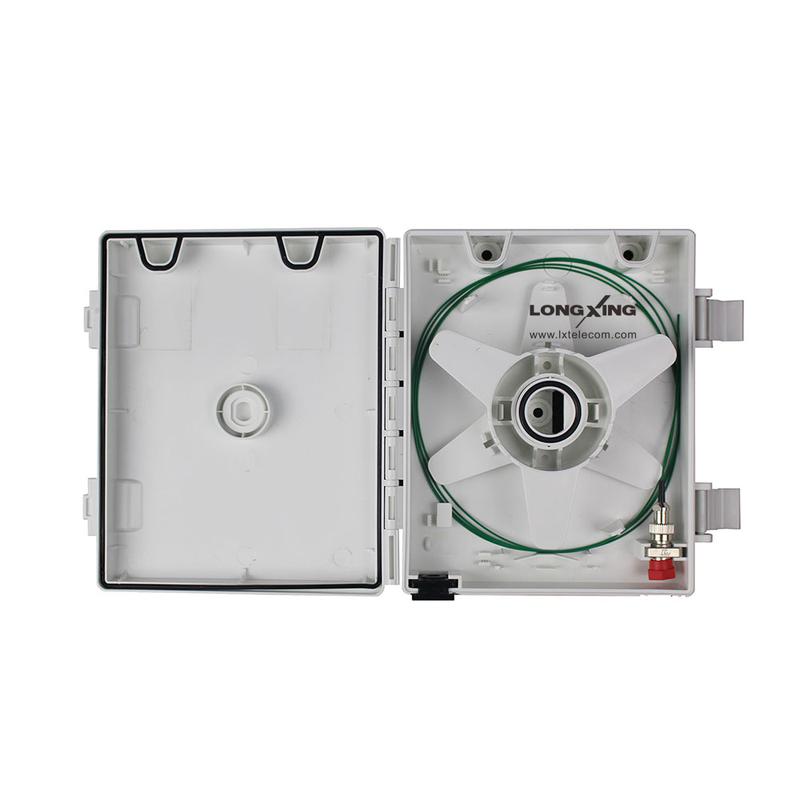

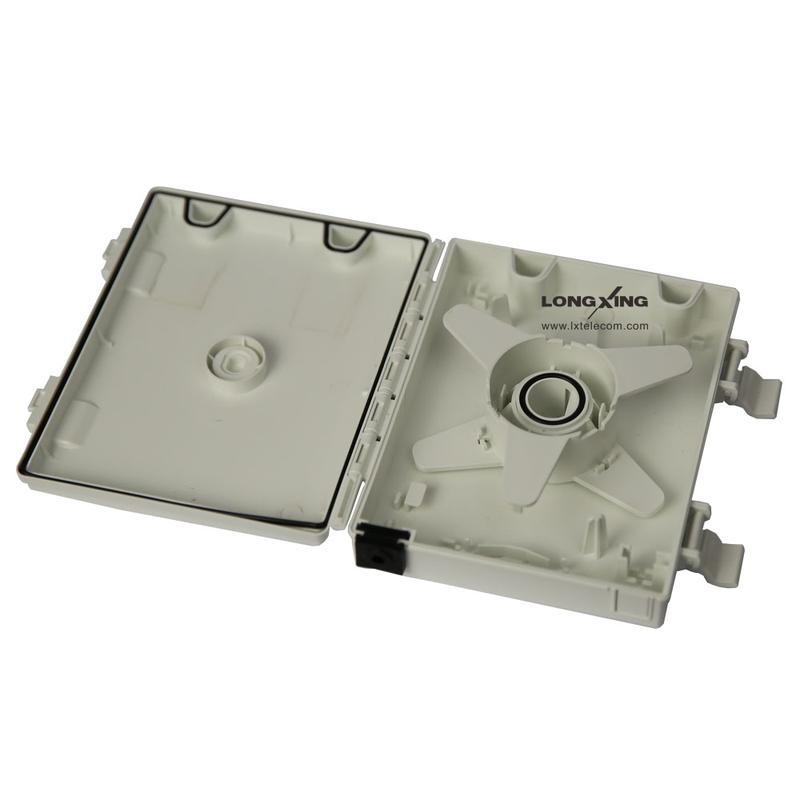

FTTH Fiber Reservation Box GP31-2P01B
Overview
This box offers a perfect cost-effective solution for fiber optic cable coiling. It coils an outside optical cable up to 30 meters long and works under both indoor and outdoor environment.
Features
l ABS material used ensures the body strong and light.
l Protective door designed for dust-proof.
l Sealing ring designed for water-proof.
l Easy installations: Ready for wall mount – installation kits provided.
l Cable fixing units provided for fixing optical cable.
l Removable cable entrance.
l Bend radius protected and cable routing paths provided.
l 30 meters long fiber optic cable can be coiled.
l Easy operation: no extra key is needed for closing
l Optional drop cable exit available on the top, side and bottom.
l Optional two fiber splicing available.
Add To Quote List
Add To Compare
Inquiry Now
l Protective door designed for dust-proof.
l Sealing ring designed for water-proof.
l Easy installations: Ready for wall mount – installation kits provided.
l Cable fixing units provided for fixing optical cable.
l Removable cable entrance.
l Bend radius protected and cable routing paths provided.
l 30 meters long fiber optic cable can be coiled.
l Easy operation: no extra key is needed for closing
l Optional drop cable exit available on the top, side and bottom.
l Optional two fiber splicing available.
| Dimensions and Capability | ||
| Adapter Capacity | LC Duplex | SC Simplex |
| 2 | 1 | |
| Dimensions (W*H*D) | 153mm*175mm*42mm | |
| Number of Cable Entrance | Max Diameter 5mm*Q1 | |
| Weight | 0.45 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes | |
| Installation | Wall-Mounted | |
| Operation Conditions | |
| Temperature | -40〜+85℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Distribution box, 1 unit; Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 180mm*200mm*60mm |
| Material | Carton box |
| Weight | 0.95 KG |
| Lead Time | 10-15 working days normally |
