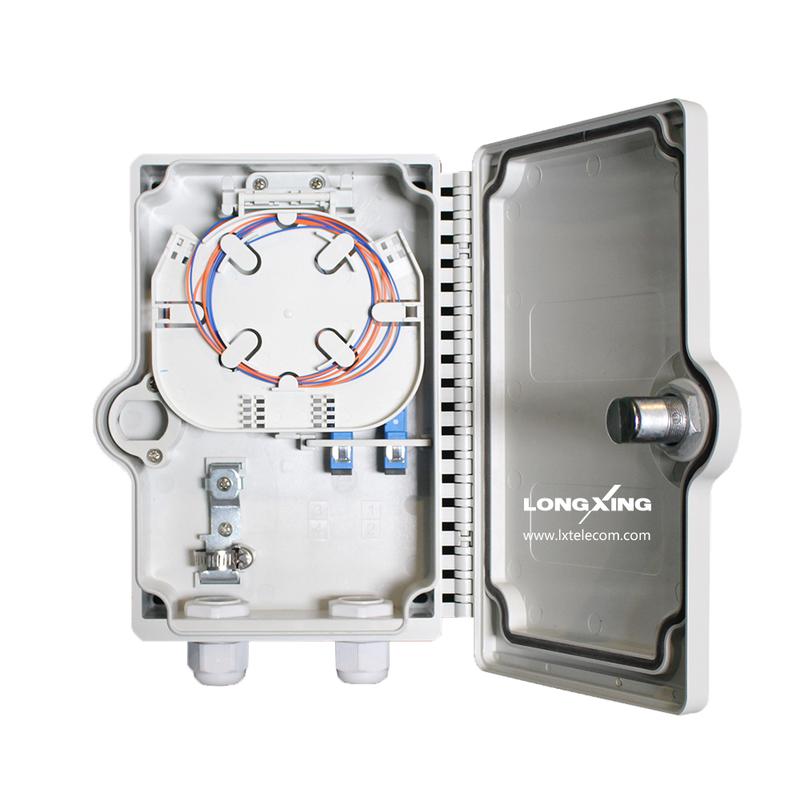

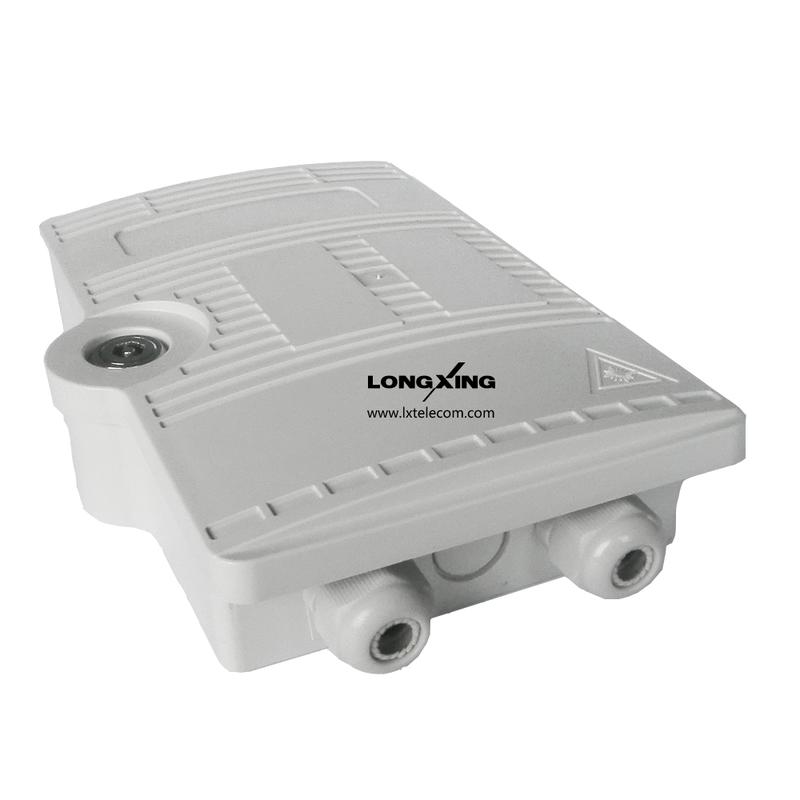

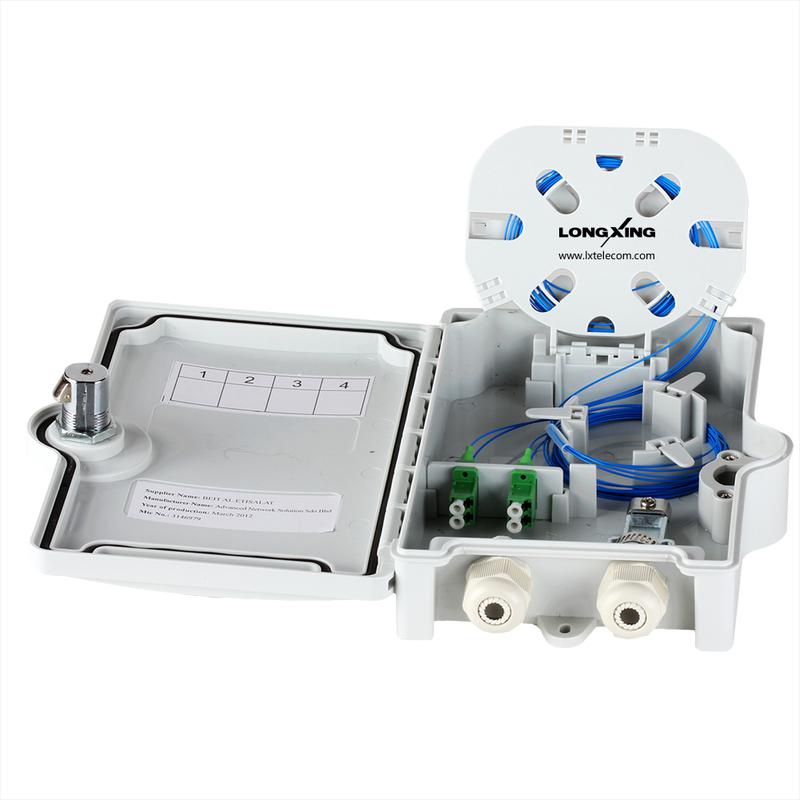

Fiber Optics Distribution Box GP31-2P04B
Overview
LongXing GP31-2P04B is a new generation product for fiber to the home( FTTH). The box is light and compact; it is especially for connecting and protection for fiber cable of FTTH.
GP31-2P04B box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
l Wall mounting.
l Protection grade: IP65.
l Design for the installation and application of LC(Duplex) / SC adapter.
l Design for outdoor cable or indoor drop cable.
l Dimension :208×153×52(mm).
l Maximum 4 cores of LC (double core) / 2 cores of SC.
Add To Quote List
Add To Compare
Inquiry Now
l Protection grade: IP65.
l Design for the installation and application of LC(Duplex) / SC adapter.
l Design for outdoor cable or indoor drop cable.
l Dimension :208×153×52(mm).
l Maximum 4 cores of LC (double core) / 2 cores of SC.
| Dimensions and Capability | ||
| Adapter Capacity | LC Duplex | SC Simplex |
| Option 1 | 4 | 2 |
| Option 2 | 8 | 4 |
| Dimensions (W*H*D) | 208mm*153mm*52mm | |
| Number of Cable Entrance | Max Diameter 18mm*Q1 | |
| Number of Cable Exit | Up to 4 Drop Cables | |
| Weight | 0.82 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes | |
| Installation | Wall-Mounted or Pole-Mounting | |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Distribution box, 1 unit; Keys for lock, 2 keys Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 225mm*160mm*60mm |
| Material | Carton box |
| Weight | 0.82 KG |
| Lead Time | 10-15 working days normally |
