Fiber Optics Distribution Box GP31-2P08A

This fiber optics distribution box terminates up to 3 fiber optic cables, offers spaces for splitters and up to 8 fusions, allocates 8 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

l  ABS with PC material used ensures the body strong and light.
l  Water-proof design for outdoor uses.

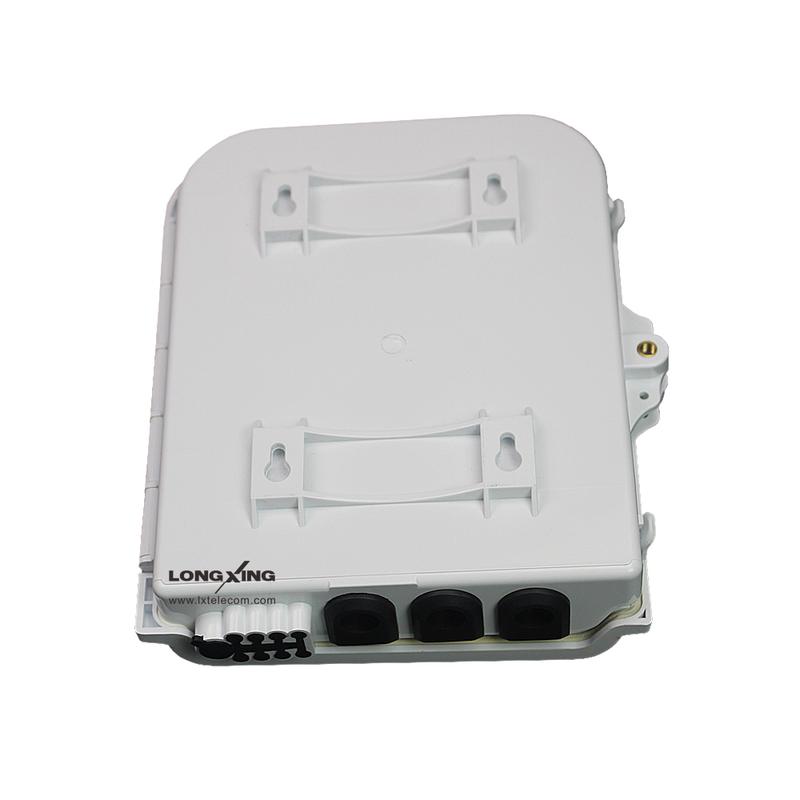

l  Easy installations: Ready for wall mount - installation kits provided.
² Pole mount (optional) – installation kits need to be ordered.

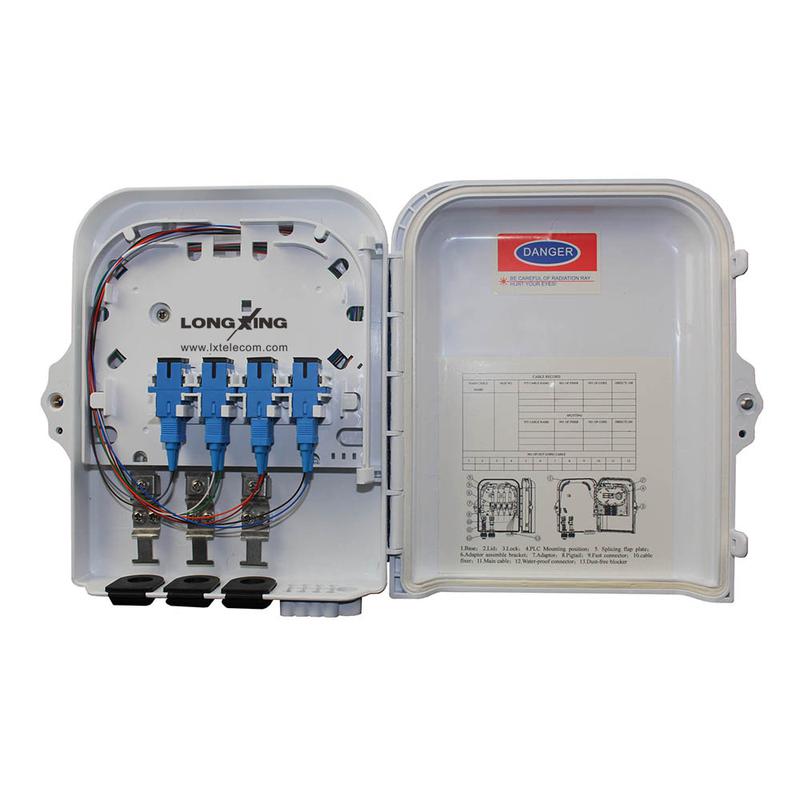

l  Adapter slots used – No screws and tools needed for install SC adapters and distribution.
l  Ready for splitters: designed space for adding splitters.

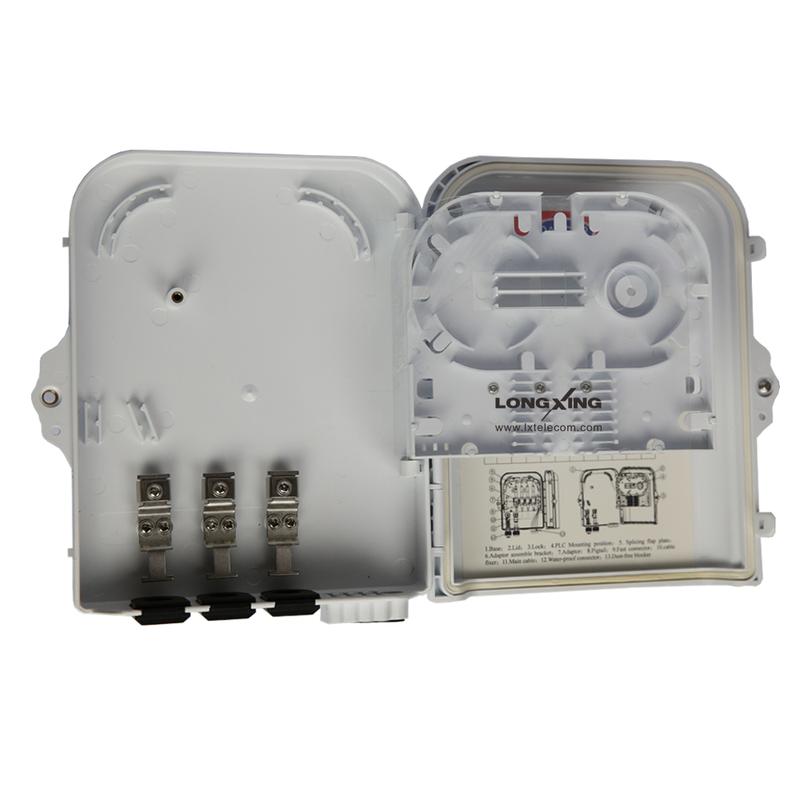

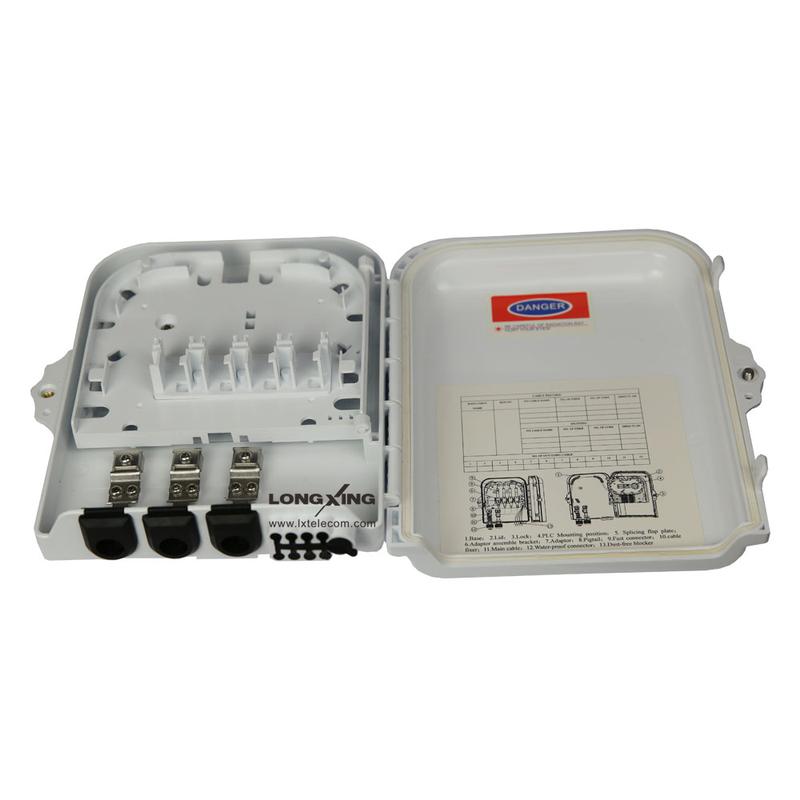

l  Space saving! Double-layer design for easier installation and maintenances:
² Lower layer for splitters and over length fiber storage.
² Upper layer for splicing, cross-connecting and fiber distribution.
l  Cable fixing units provided for fixing the outdoor optical cable.
l  Protection Level: IP55.

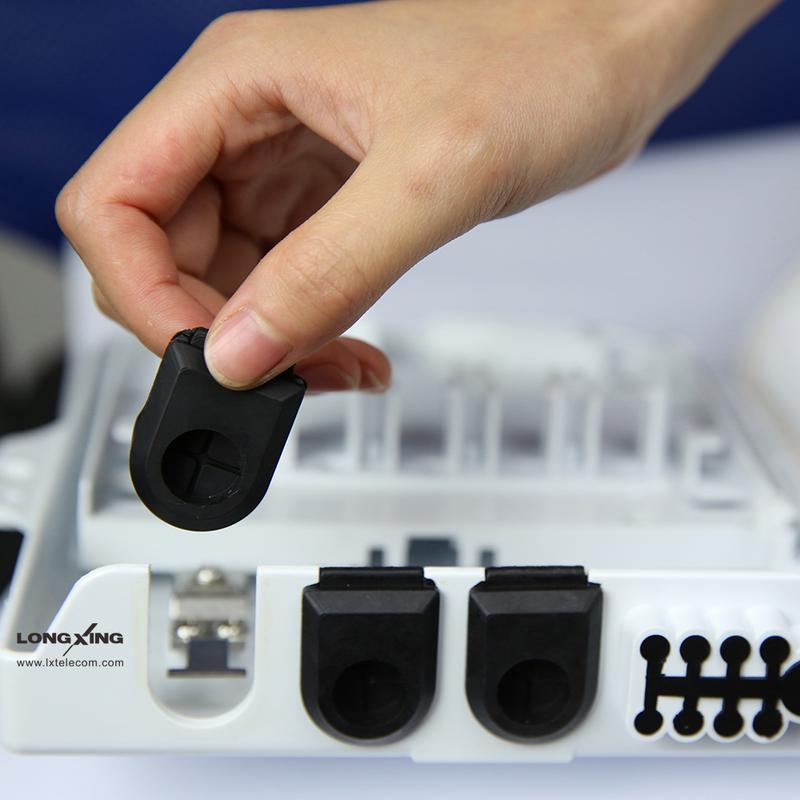

l  Accommodates both cable glands as well as tie-wraps.
l  Lock provided for extra security.
l  Max allowance for entry cables: max diameter 12mm, up to 3 cables.
l  Max allowance for exit cables: up to 8 simplex cables.
