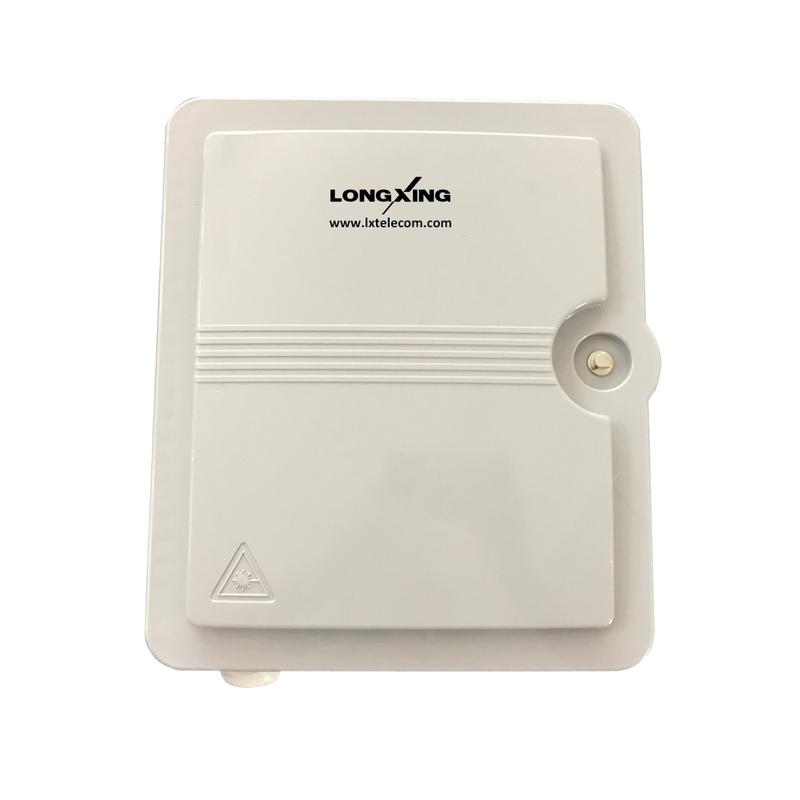

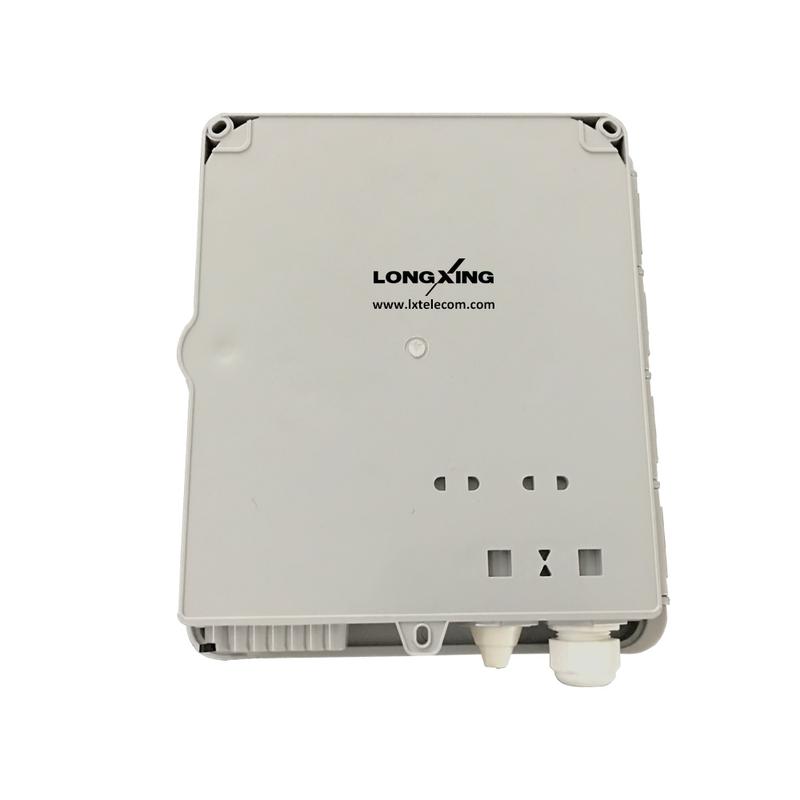

Fiber Optics Distribution Box GP31-2P08C
Overview
This fiber optics distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 8 fusions, allocates 8 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
l PC+ABS
l Mechanical seal: good sealing, can repeat use.
l Protective level: IP55.
l Laying: outdoor wall-mounting and pole-mounting.
l FTTH products, passive optical points wiring special terminal box;
l The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use;
l Can be installed 1:8 SC module type splitter;
l The maximum capacity is 12 fibers.
Add To Quote List
Add To Compare
Inquiry Now
l Mechanical seal: good sealing, can repeat use.
l Protective level: IP55.
l Laying: outdoor wall-mounting and pole-mounting.
l FTTH products, passive optical points wiring special terminal box;
l The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use;
l Can be installed 1:8 SC module type splitter;
l The maximum capacity is 12 fibers.
| Dimensions and Capability | |
| Adapter Capacity | SC: 8 cores |
| Dimensions (W*H*D) | 230mm*198mm*60mm |
| Number of Cable Entrance | Max Diameter 15mm*Q2 |
| Number of Cable Exit | Up to 12 Drop Cables |
| Weight | 1.0 KG |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Splice Tray, Optical Splitter |
| Installation | Wall-Mounted or Pole-Mounting |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories: 1 set |
| Package Dimensions(W*H*D) | 250mm*215mm*75mm |
| Material | Carton box |
| Weight | 1.8 KG |
| Lead Time | 10-15 working days normally |
