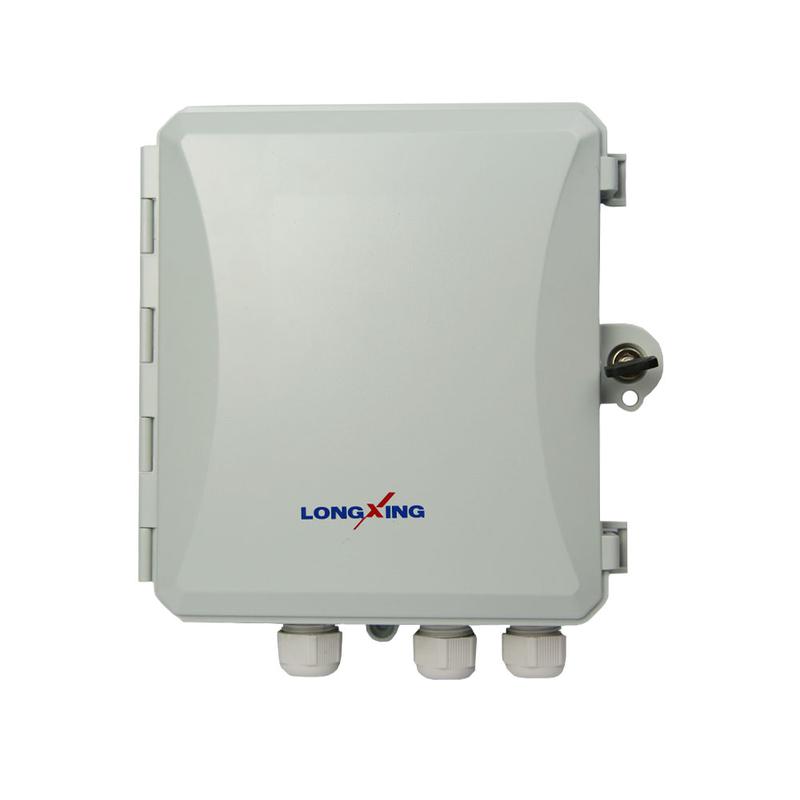

Fiber Optics Distribution Box GP31-2P12C
Overview
This box is used as an ideal termination point for the feeder cable to connect with drop cable in FTTx communication network system. It offers space for splitters, 12 fusions, 12 FC, SC, LC adapters and 12 drop cables and works both indoors and outdoors.
Features
l ABS material used ensures the body strong and light.
l Water-proof design for outdoor uses.
l Ready for splitters: designed space for adding splitters.

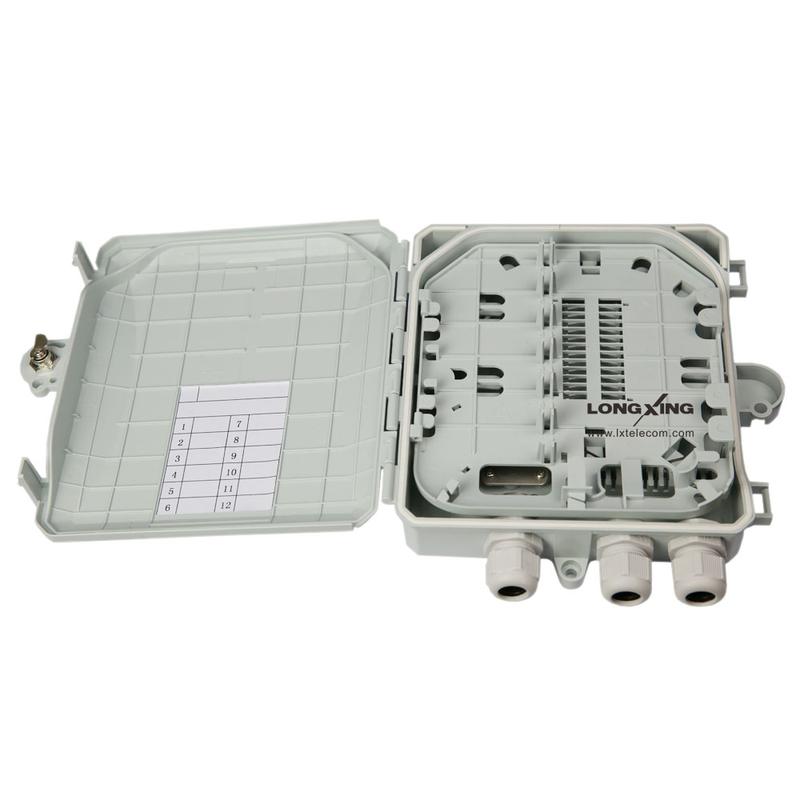

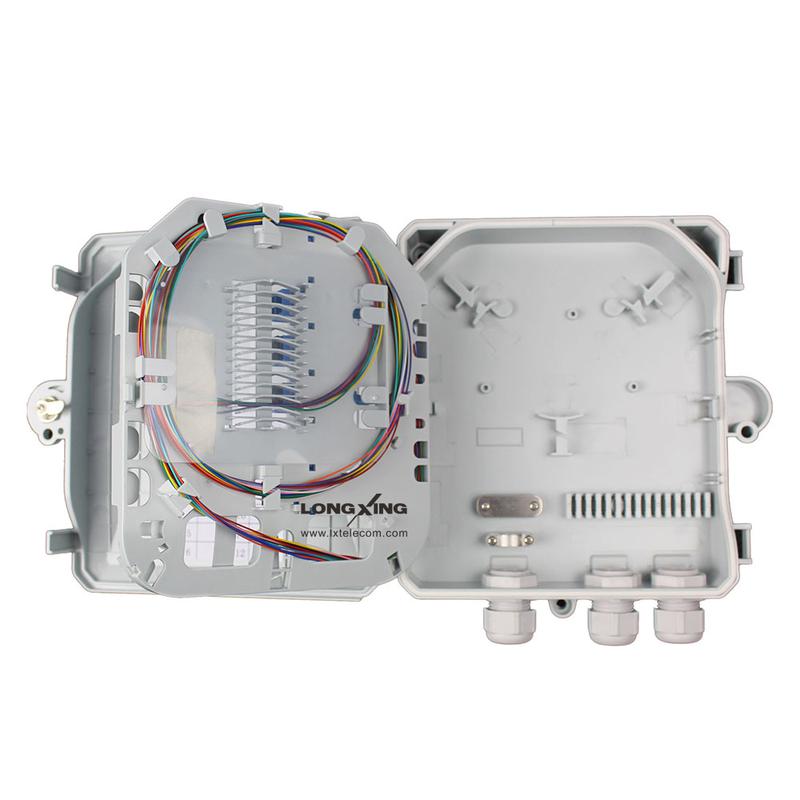

l Double-layer design for easier installation and maintenances:
² Lower layer for splitters and over length fiber storage.
² Upper layer for splicing, cross-connecting and fiber distribution.

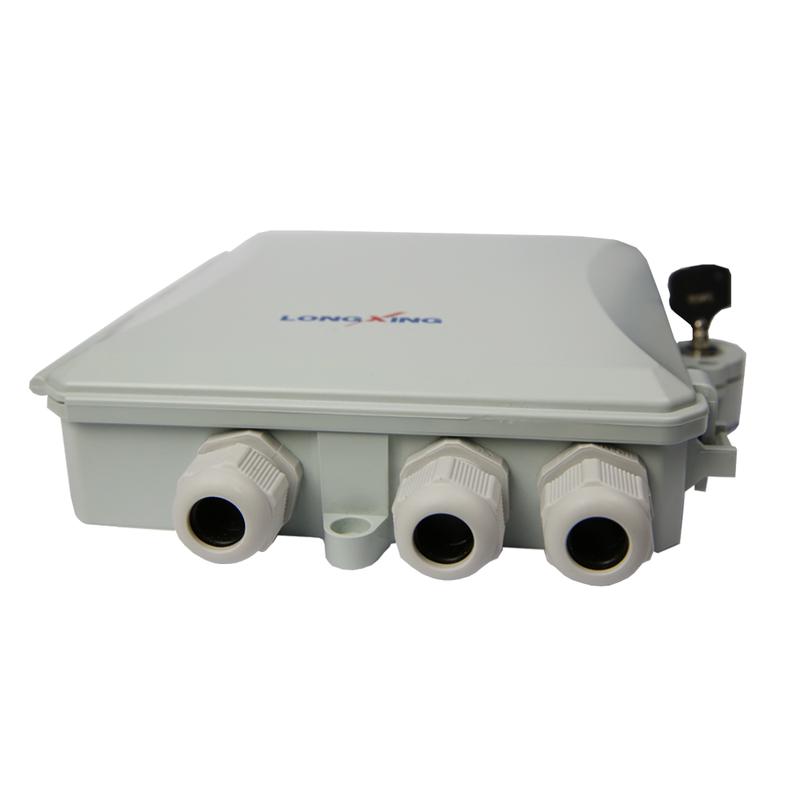

l Cable fixing units provided for fixing the outdoor optical cable.
l Lock and clasps provided for extra security and tight sealing.
l Protection Level: IP55.
Add To Quote List
Add To Compare
Inquiry Now
l Water-proof design for outdoor uses.
l Ready for splitters: designed space for adding splitters.
l Double-layer design for easier installation and maintenances:
² Lower layer for splitters and over length fiber storage.
² Upper layer for splicing, cross-connecting and fiber distribution.
l Cable fixing units provided for fixing the outdoor optical cable.
l Lock and clasps provided for extra security and tight sealing.
l Protection Level: IP55.
| Dimensions and Capability | ||
| Adapter Capacity | LC Duplex | SC Simplex |
| 24 | 12 | |
| Dimensions (W*H*D) | 194mm*228mm*58mm | |
| Number of Cable Entrance | Max Diameter 14mm*Q1 | |
| Number of Cable Exit | Max Diameter 14mm*Q2, Up to 12 Drop Cables | |
| Weight | 0.6 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Optical Splitter | |
| Installation | Wall-Mounted or Pole-Mounting | |
| Operation Conditions | |
| Temperature | -40〜+85℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Distribution box, 1 unit; Keys for lock, 2 keys Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 220mm*250mm*120mm |
| Material | Carton box |
| Weight | 1.6 KG |
| Lead Time | 10-15 working days normally |
