Fiber Optics Distribution Box GP31-2P16A

This fiber optics distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 16 fusions, allocates 16 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

l   ABS with PC material used ensures the body strong and light.
l   Water-proof design for outdoor uses.

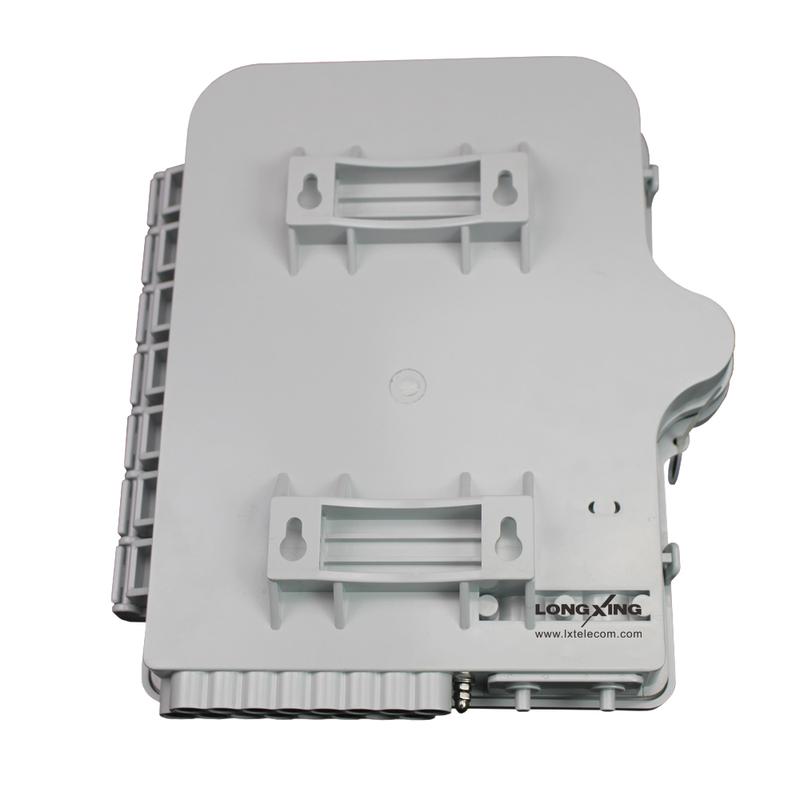

l   Easy installations: Ready for wall mount - installation kits provided.
²  Pole mount (optional) – installation kits need to be ordered.
l   Adapter slots used – No screws and tools needed for install SC adapters and distribution.
l   Ready for splitters: designed space for adding splitters.

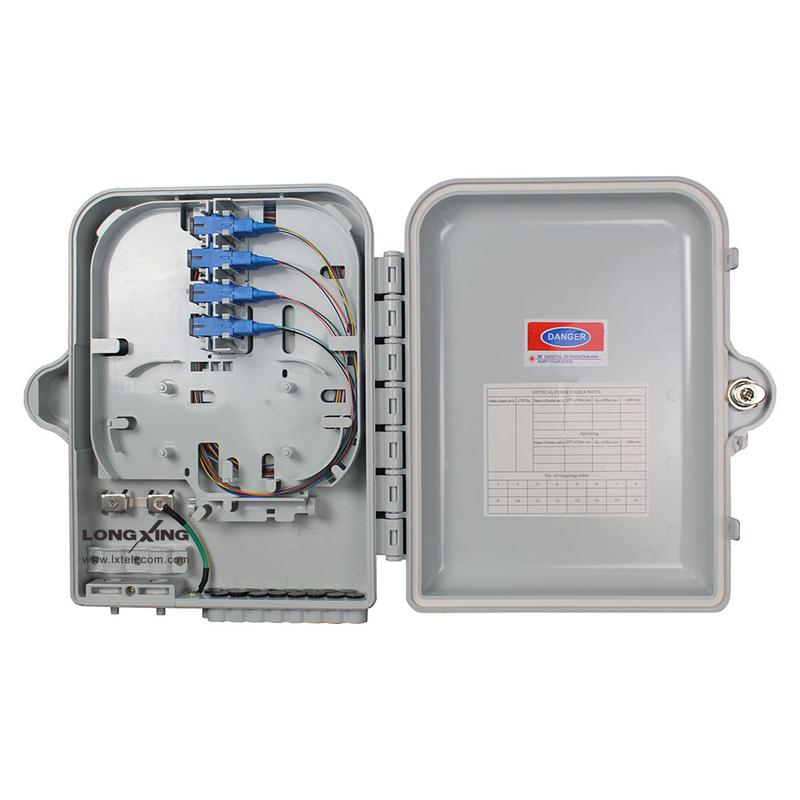

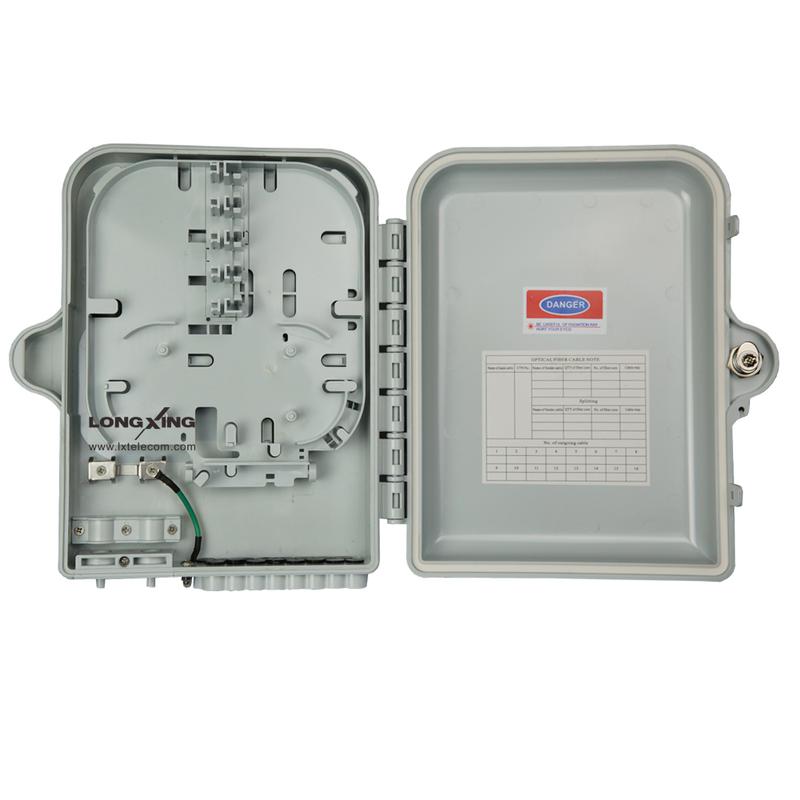

l   Space saving! Double-layer design for easier installation and maintenances:
²  Lower layer for splitters and over length fiber storage.
²  Upper layer for splicing, cross-connecting and fiber distribution.
l   Cable fixing units provided for fixing the outdoor optical cable.
l   Protection Level: IP55.

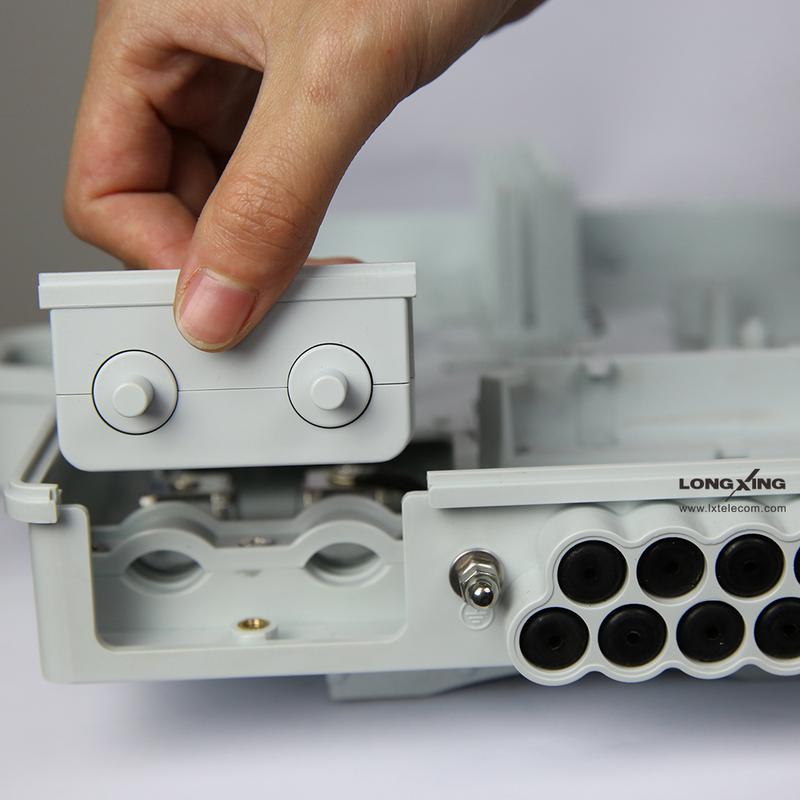

l   Accommodates both cable glands as well as tie-wraps.

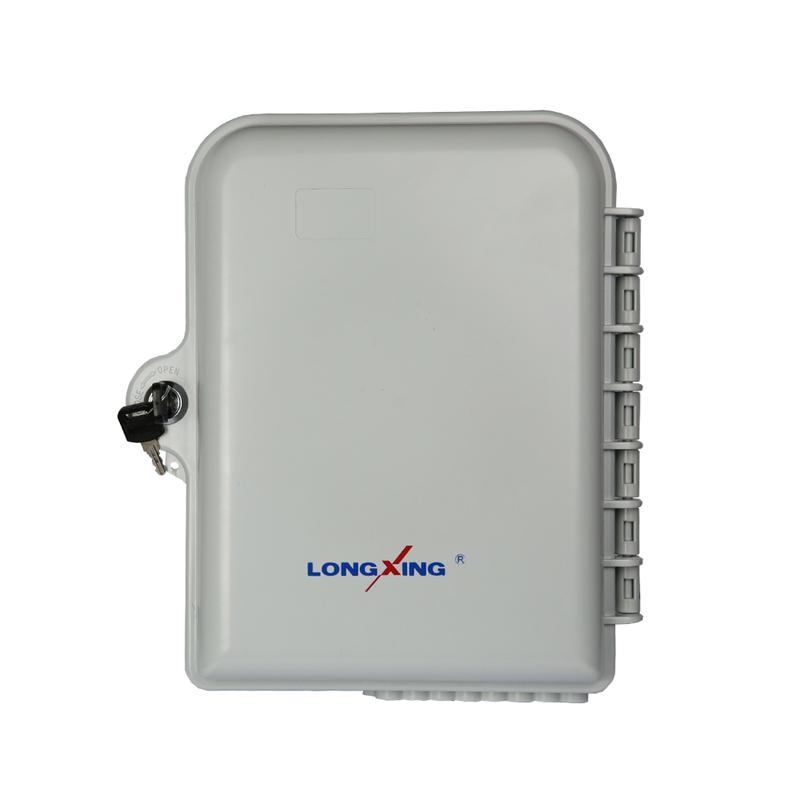

l   Lock provided for extra security.
l   Max allowance for entry cables: max diameter 12mm, up to 2 cables.
l   Max allowance for exit cables: up to 16 simplex cables.
