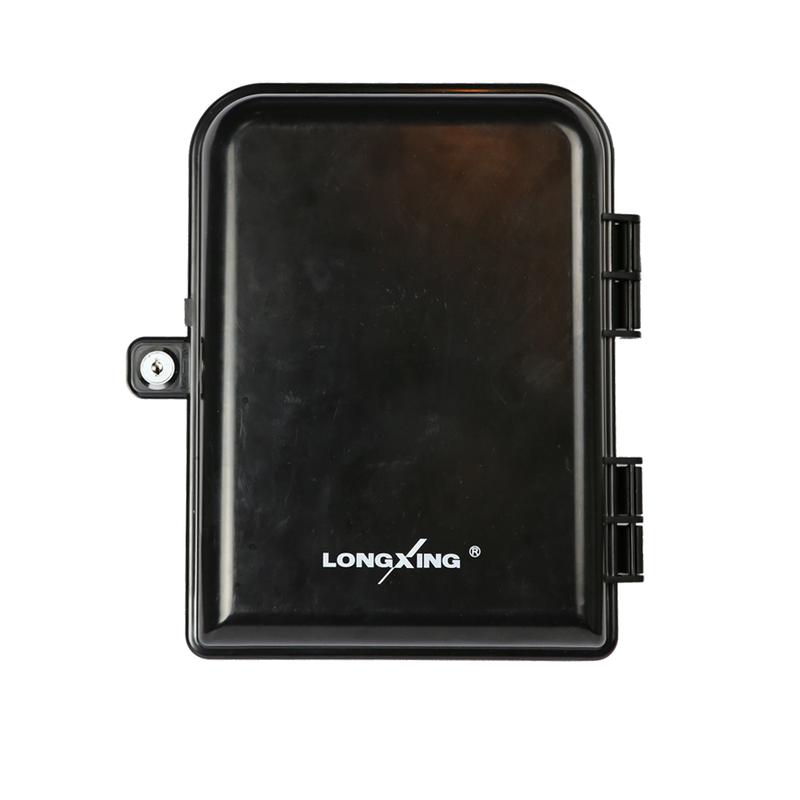

Fiber Optics Distribution Box GP31-2P16C
Overview
This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 16 fusions, allocates 16 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
l ABS with PC material used ensures the body strong and light.
l Water-proof design for outdoor uses.

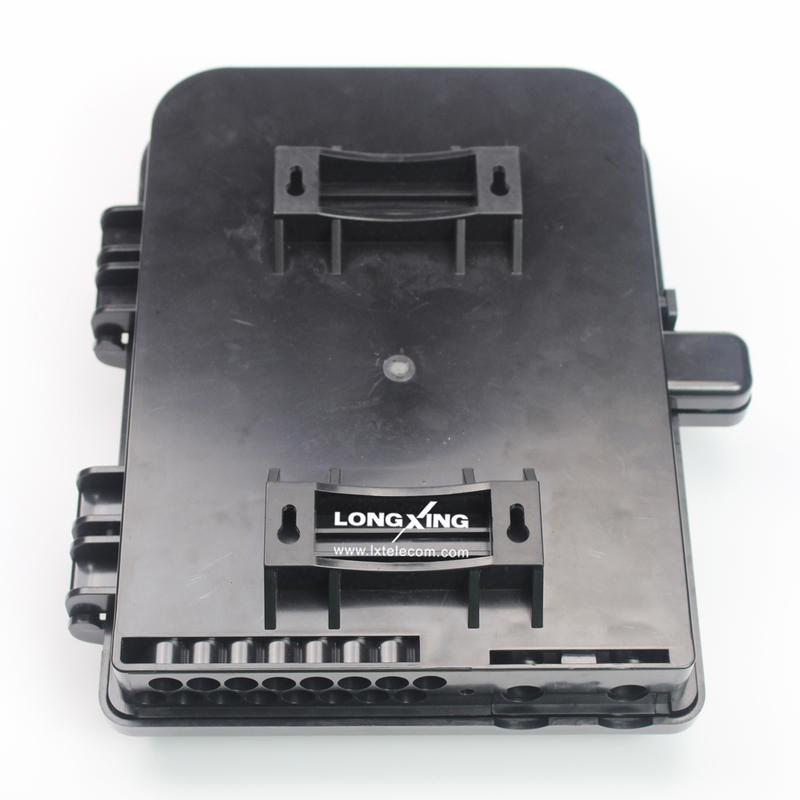

l Easy installations: Ready for wall mount - installation kits provided.
² Pole mount (optional) – installation kits need to be ordered.
l Adapter slots used – No screws and tools needed for install SC adapters and distribution.

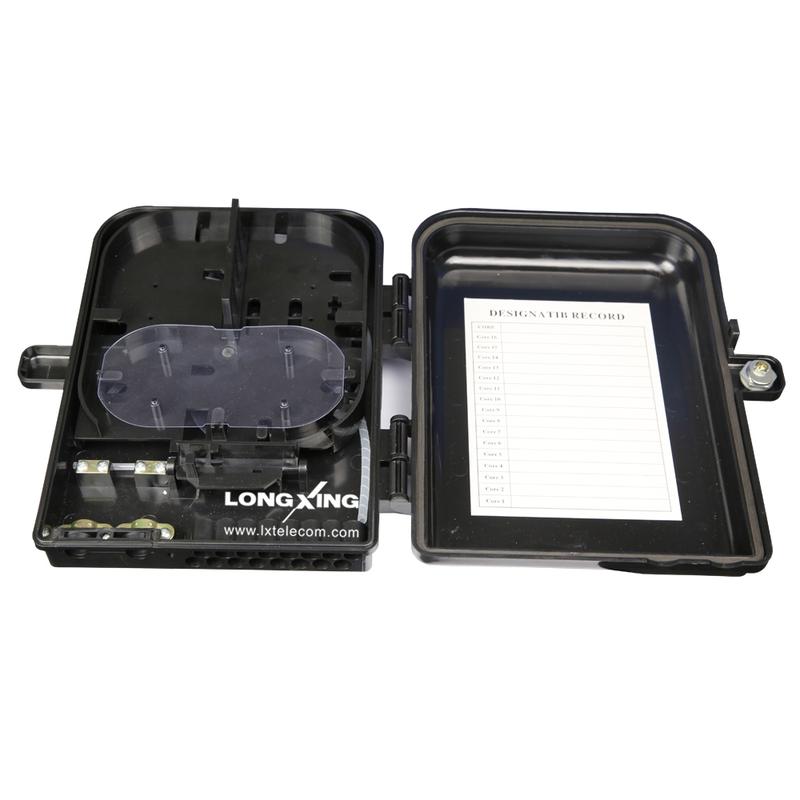

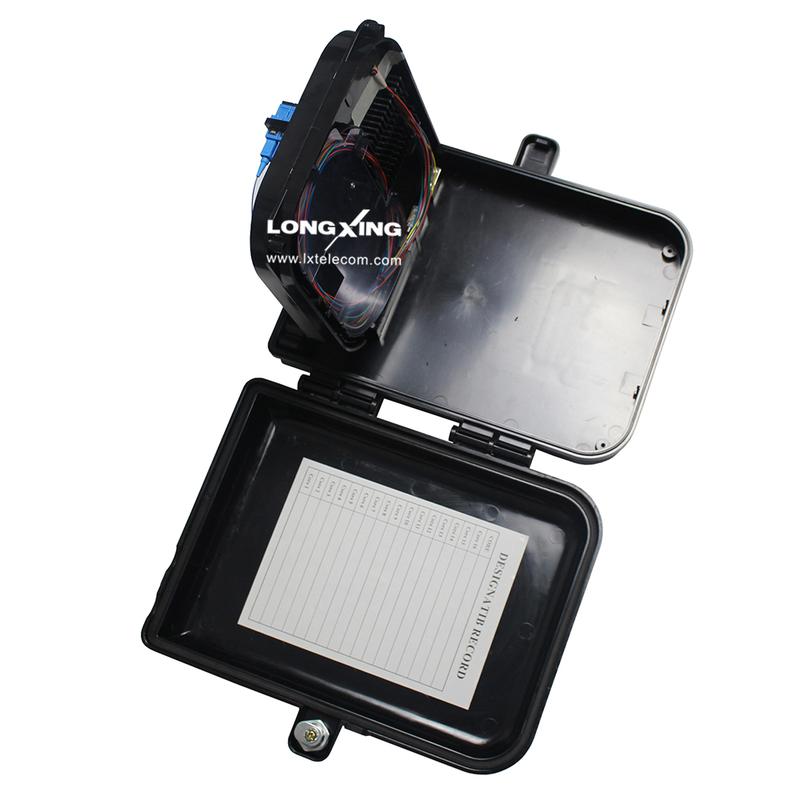

l Lower layer for splicing.
l Cable fixing units provided for fixing the outdoor optical cable.
l Protection Level: IP55.
l Accommodates both cable glands as well as tie-wraps.
l Lock provided for extra security.
l Max allowance for entry cables: max diameter 10mm, up to 2 cables.
l Max allowance for exit cables: up to 16 simplex cables.
Add To Quote List
Add To Compare
Inquiry Now
l Water-proof design for outdoor uses.
l Easy installations: Ready for wall mount - installation kits provided.
² Pole mount (optional) – installation kits need to be ordered.
l Adapter slots used – No screws and tools needed for install SC adapters and distribution.
l Lower layer for splicing.
l Cable fixing units provided for fixing the outdoor optical cable.
l Protection Level: IP55.
l Accommodates both cable glands as well as tie-wraps.
l Lock provided for extra security.
l Max allowance for entry cables: max diameter 10mm, up to 2 cables.
l Max allowance for exit cables: up to 16 simplex cables.
| Dimensions and Capability | ||
| Adapter Capacity | LC Duplex | SC Simplex |
| 32 | 16 | |
| Dimensions (W*H*D) | 300mm*223.5mm*92mm | |
| Number of Cable Entrance | Max Diameter 14mm*Q2 | |
| Number of Cable Exit | Up to 16 Drop Cables | |
| Weight | 1.5 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Optical Splitter | |
| Installation | Wall-Mounted or Pole-Mounting | |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Terminal box, 1 unit; Keys for lock, 2 keys; Wall mount accessories: 1 set |
| Package Dimensions(W*H*D) | 320mm*250mm*120mm |
| Material | Carton box |
| Weight | 2.5KG |
| Lead Time | 10-15 working days normally |
