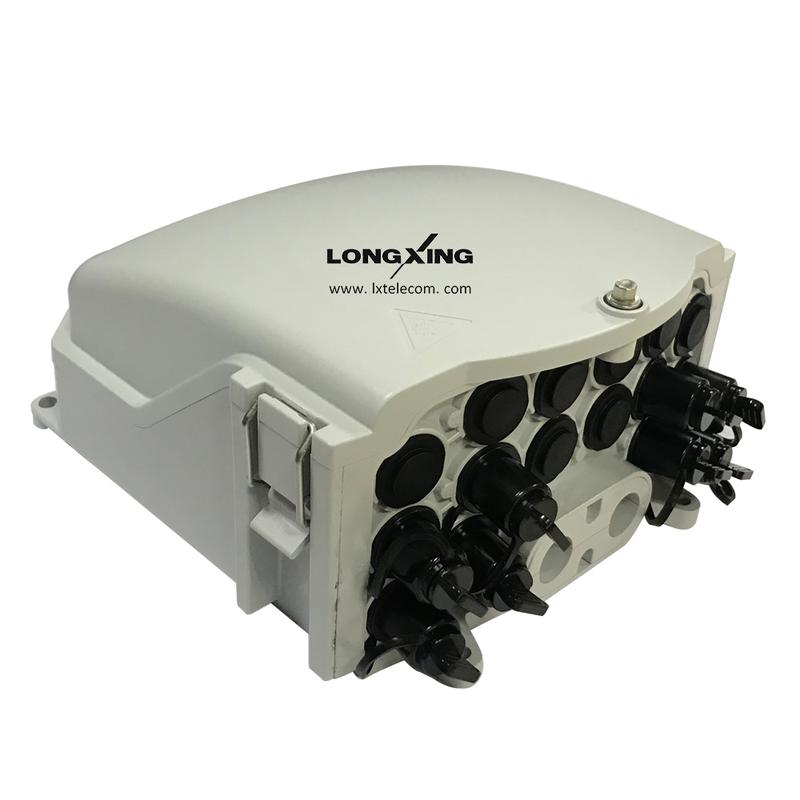

Fiber Optics Distribution Box GP31-2P16E
Overview
LongXing GP31-2P16E is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
l ABS + PC material used ensures the body strong and light.
l Water-proof design for both indoor and outdoor uses.
l Easy installations: wall-mounted or poled-mounted.
l Protection Level: IP65.
l Accommodates both feeder cables and drop cables.
l Micro type PLC splitter installation, easy maintenance.
l Cables, pigtails, and patch cords are running through their own paths without disturbing each other. This structure enables easy maintenance.
l Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
Add To Quote List
Add To Compare
Inquiry Now
l Water-proof design for both indoor and outdoor uses.
l Easy installations: wall-mounted or poled-mounted.
l Protection Level: IP65.
l Accommodates both feeder cables and drop cables.
l Micro type PLC splitter installation, easy maintenance.
l Cables, pigtails, and patch cords are running through their own paths without disturbing each other. This structure enables easy maintenance.
l Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
| Dimensions and Capability | |
| Dimensions (H*W*D) | 241mm*208mm*117mm |
| Weight | 1.16KG |
| Adapter Capacity | 16 SC |
| Number of Cable Entrance | Max diameter 18mm, up to 2 cables |
| Optional Accessories | Pole mount accessories |
| Operation Conditions | |
| Temperature | -40℃ -- 85℃ |
| Humidity | 85% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents of Each Set | Terminal box, 1 unit; 1 key; Wall mount accessories: 1 set |
| Package Dimensions(W*H*D) | 650mm*465mm*310mm (10 sets each package) |
| Material | Carton box |
| Weight | 16KG |
| Lead Time | 10-15 working days normally |
