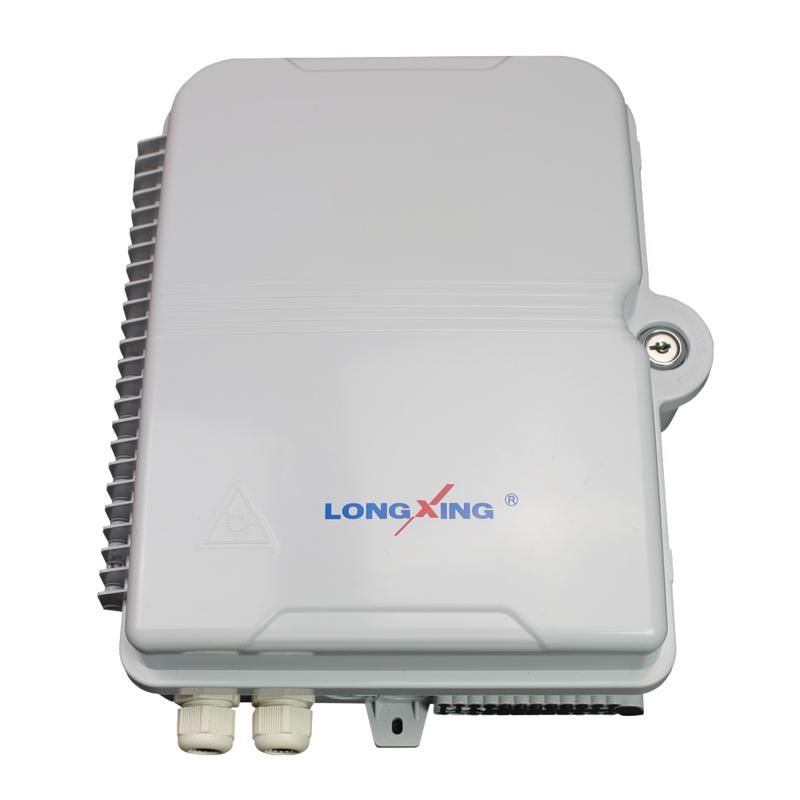

Fiber Optics Distribution Box GP31-2P24B
Overview
This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 48 fusions, allocates 24 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
l ABS material used ensures the body strong and light.
l Water-proof design for outdoor uses.
l Easy installations: Ready for wall mount – installation kits provided.
l Adapter slots used – No screws and tools needed for installing adapters.
l Ready for splitters: designed space for adding splitters.

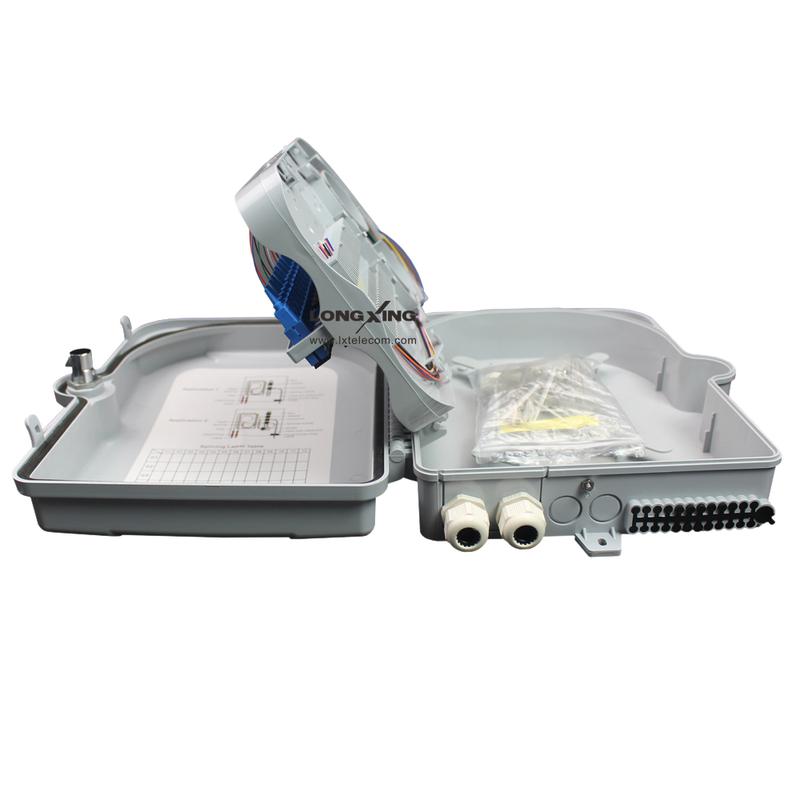

l Space saving! Double-layer design for easier installation and maintenances:
l Lower layer for splitters and over length fiber storage.
l Upper layer for splicing, cross-connecting and fiber distribution.
l Cable fixing units provided for fixing the outdoor optical cable.
l Protection Level: IP65.
l Accommodates both cable glands as well as tie-wraps
l Lock provided for extra security.
Add To Quote List
Add To Compare
Inquiry Now
l Water-proof design for outdoor uses.
l Easy installations: Ready for wall mount – installation kits provided.
l Adapter slots used – No screws and tools needed for installing adapters.
l Ready for splitters: designed space for adding splitters.
l Space saving! Double-layer design for easier installation and maintenances:
l Lower layer for splitters and over length fiber storage.
l Upper layer for splicing, cross-connecting and fiber distribution.
l Cable fixing units provided for fixing the outdoor optical cable.
l Protection Level: IP65.
l Accommodates both cable glands as well as tie-wraps
l Lock provided for extra security.
| Dimensions and Capability | ||
| Adapter Capacity | LC Duplex | SC Simplex |
| 48 | 24 | |
| Dimensions (W*H*D) | 300mm*380mm*100mm | |
| Number of Cable Entrance | Max Diameter 14mm*Q2 | |
| Number of Cable Exit | Up to 24 Drop Cables | |
| Weight | 2 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Optical Splitter, Splice Tray | |
| Installation | Wall-Mounted or Pole-Mounting | |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Distribution box, 1 unit; Keys for lock, 2 keys; Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 320mm*400mm*120mm |
| Material | Carton box |
| Weight | 3 KG |
| Lead Time | 10-15 working days normally |
