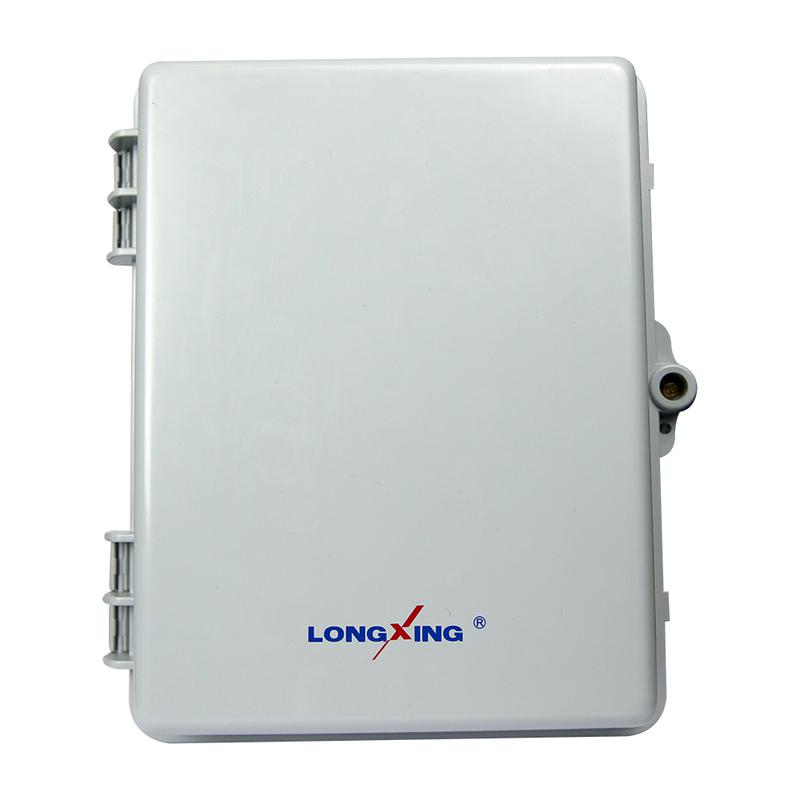

Fiber Optics Distribution Box GP31-2P24C

This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 48 fusions, allocates 24 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

l   ABS with PC material used ensures the body strong and light.
l   Water-proof design for outdoor uses.
l   Easy installations: Ready for wall mount – installation kits provided.
l   Adapter slots used – No screws and tools needed for installing adapters.
l   Ready for splitters: designed space for adding splitters.

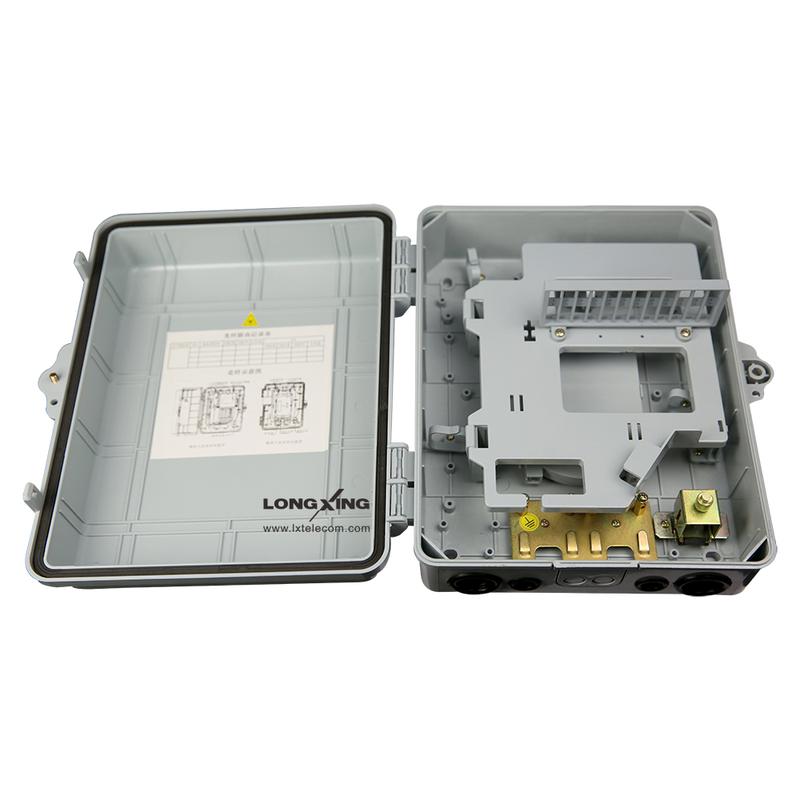

l   Space saving: double-layer design for easier installation and maintenance:

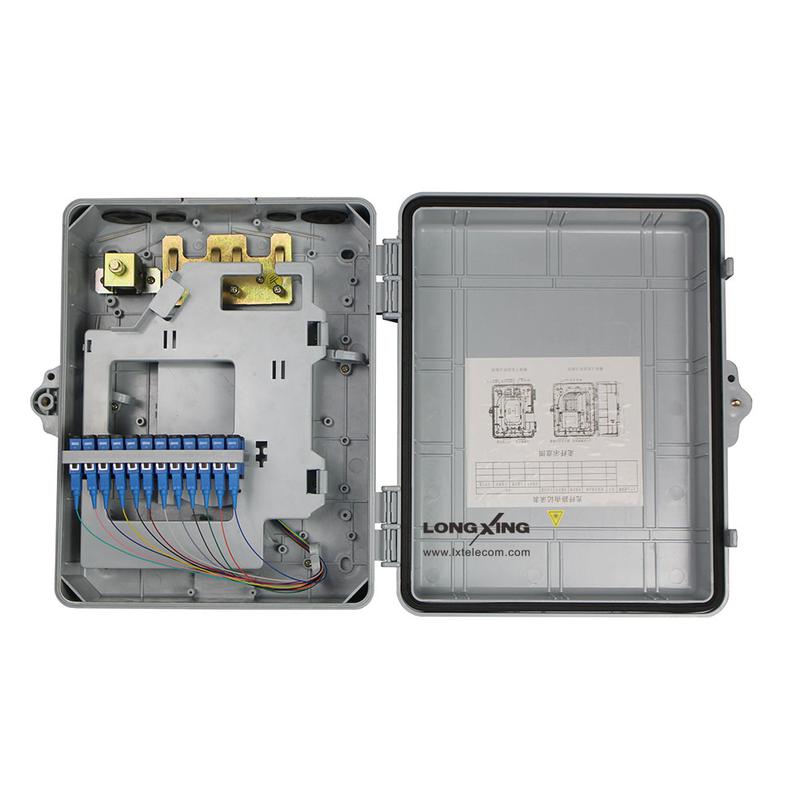

Upper layer for splitters and distribution or for 24 SC adapters and distribution.
Lower layer for splicing.
l   Cable fixing units provided for fixing the outdoor optical cable.
l   Protection Level: IP55.
l   Accommodates both cable glands as well as tie-wraps.
l   Lock provided for extra security.
l   Max allowance for entry cables: max diameter 15mm, up to 2 cables.
l   Max allowance for exit cables: up to 24 simplex cables.
