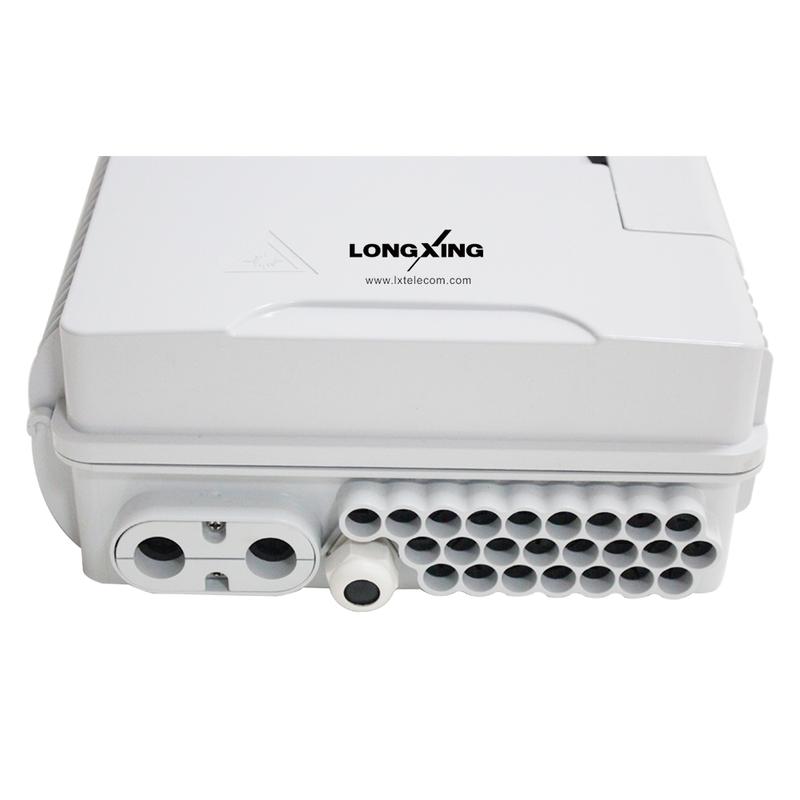

Fiber Optics Distribution Box GP31-2P24E
Overview
This fiber optics distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
l Water-proof design for both indoor and outdoor uses.
l Material: PC+ABS.
l Mechanical seal: good sealing, can repeat use. Protective level: IP66.
l Laying: outdoor wall-mounting and pole-mounting.
l Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
l The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use.
l Can be installed 1:8 or 1:16 Mini-splitter.
l LC biggest for 48cores, SC biggest for 24 cores.
Add To Quote List
Add To Compare
Inquiry Now
l Material: PC+ABS.
l Mechanical seal: good sealing, can repeat use. Protective level: IP66.
l Laying: outdoor wall-mounting and pole-mounting.
l Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
l The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use.
l Can be installed 1:8 or 1:16 Mini-splitter.
l LC biggest for 48cores, SC biggest for 24 cores.
| Dimensions and Capability | |||
| Adapter Capacity | LC Duplex | SC Simplex | PLC |
| 48 | 24 | 1:8 or 1:16 | |
| Dimensions (W*H*D) | 250mm*340mm*110mm | ||
| Cable Entrance | Max Diameter 18mm*Q1 | ||
| Number of Cable Exit | Up to 24 Drop Cables | ||
| Uncut Cable Entrance and Exit | Max Diameter 13.5mm | ||
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Splice Tray, Optical Splitter | ||
| Installation | Wall-Mounted or Pole-Mounting | ||
| Technical Specifications | |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |
| Life of insertion and extraction | ＞1000 times |
| Surge Protection | |
| Isolation resistance | ≥2*104 MΩ/500V |
| Withstand voltage between grounding device and cabinet | ≥3000V(DC)/min, no puncture, no flashover |
| Operation Conditions | |
| Temperature | -40℃～+85℃ |
| Humidity | ≤85%@+30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set |
| Material | Carton box |
| Lead Time | 10-15 working days normally |
