SMC Distribution Box GP31-2P32C

Overview

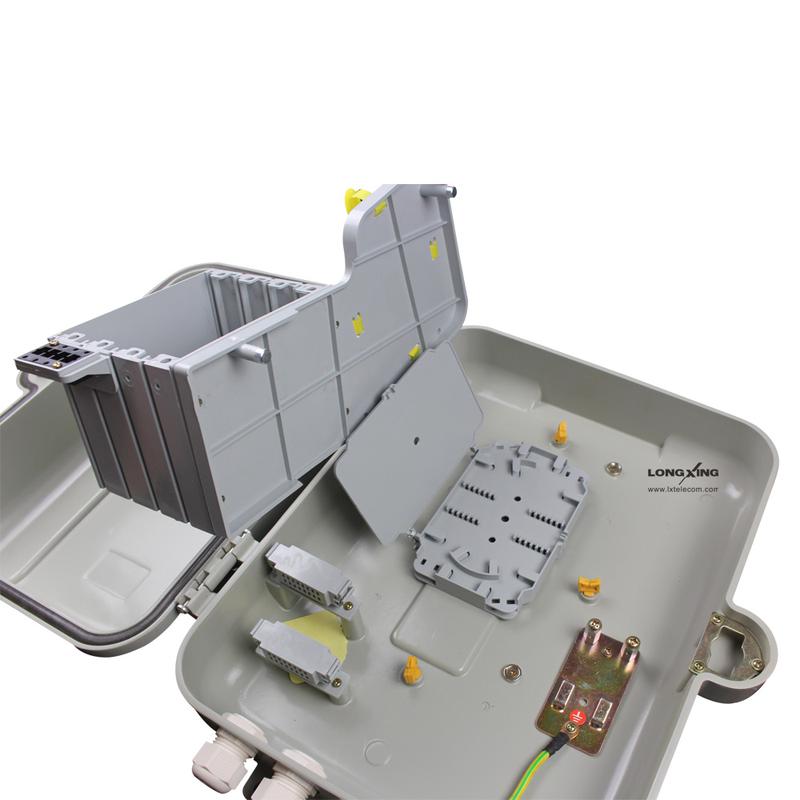

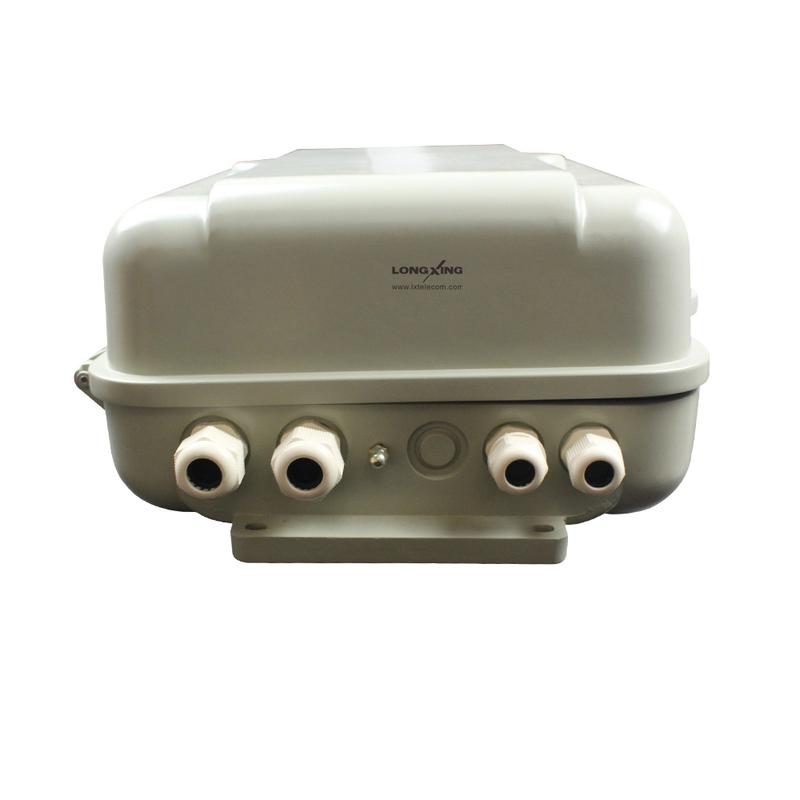

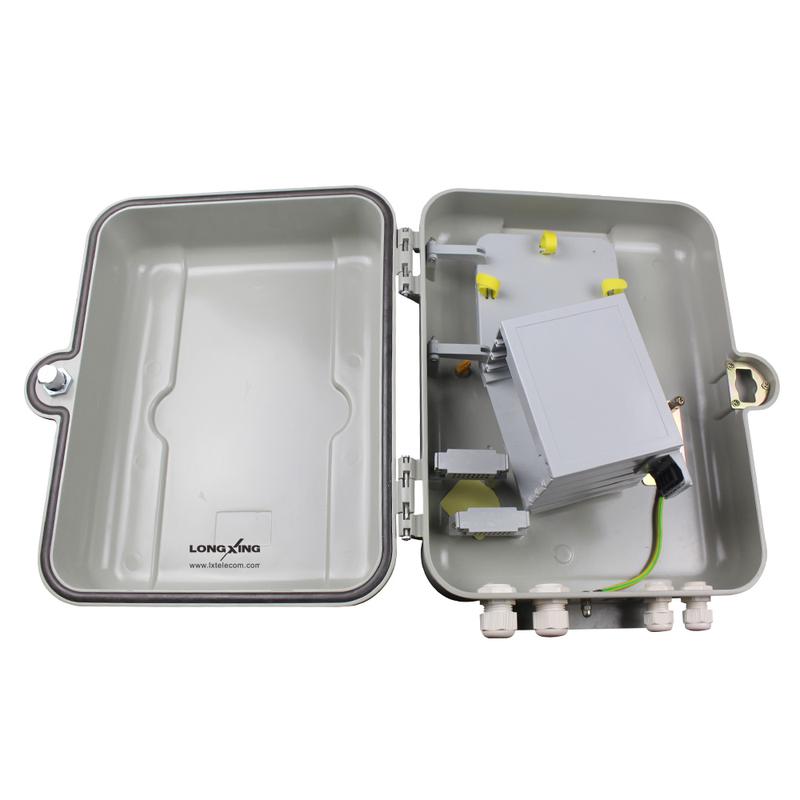

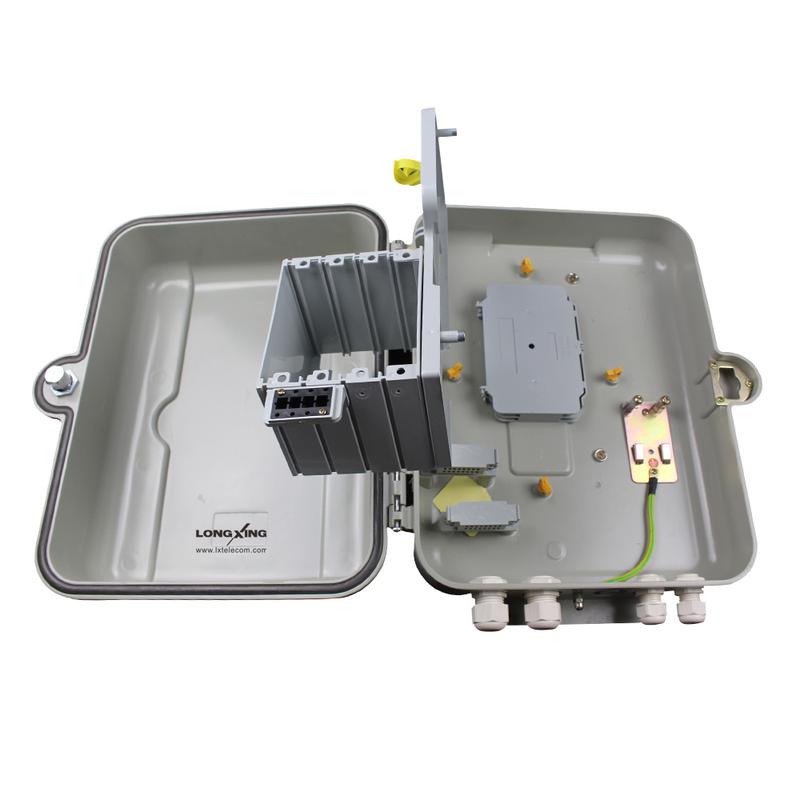

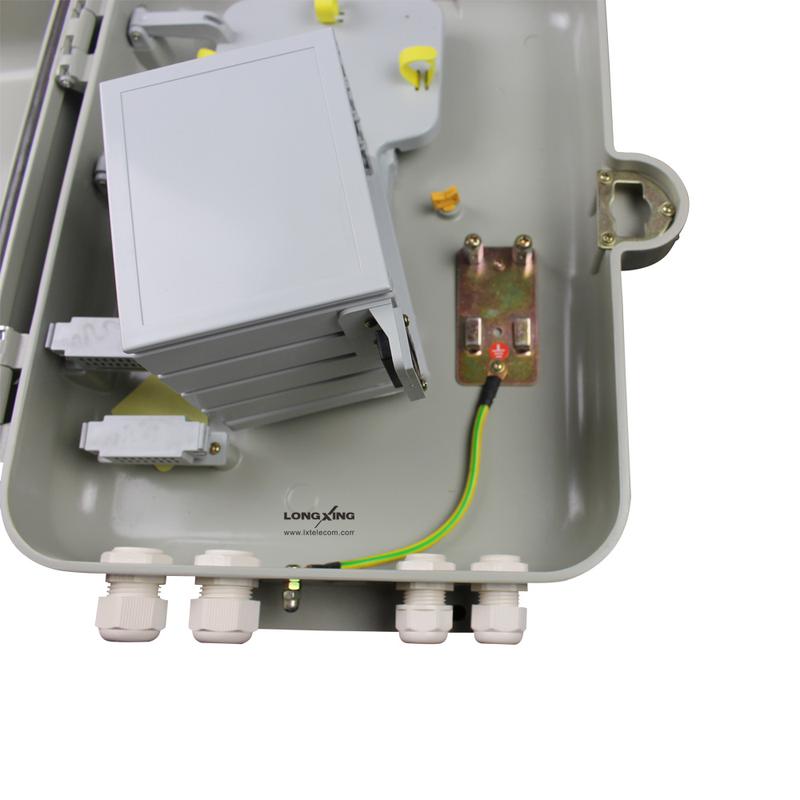

LongXing GP31-2P32C Fiber Optical Splitter Terminal Box is mainly used Blade Design, and which is equipped with splitter module, PLC splitter and connector. The material of this box is usually made of PC, ABS, SMC, PC+ABS or SPCC. The box is suitable for fiber terminational point to complete connection, distribution and scheduling between perimeter fiber cables and terminal equipment. Therefore it widely used in optical fiber communication network project.

Features

l Fiber Glass material used ensures the body strong and light.
l Water-proof design for outdoor uses.
l Protection Level: IP65.
l Sufficient slot design
l Plug in type splitter design
l Easy and save time for adjust fiber
l Easy and convenience for installation
l Install in the wall or telegraph pole
l Upper layer light splitting, Lower layer splicing
l Specific FTTH cable and outdoor cable lock device
l Use the mounting plate separating the up and down
l Up to 32 FTTH drops, accommodate 4 pieces 1x8 PLC splitter
l Installation: Wall mounting or Pole mounting.
Add To Quote List Add To Compare
Dimensions and Capacity
Capacity 16 SC 32 SC
Dimensions(H*W*D) 426mm*350mm*120mm 420mm*350mm*170mm
Material SMC (Fiber glass)
Fiber Splitter Quantity 4 1x8 PLC splitter
Weight 8.5 KG



Operation Conditions
Temperature -40ºC - 60ºC
Humidity 93% at 40℃
Air Pressure 62kPa – 101kPa



Shipping Information
Package Contents Terminal box, 1 unit; Installation accessories, 1 set
Material Carton box
Lead Time 10-15 working days normally
