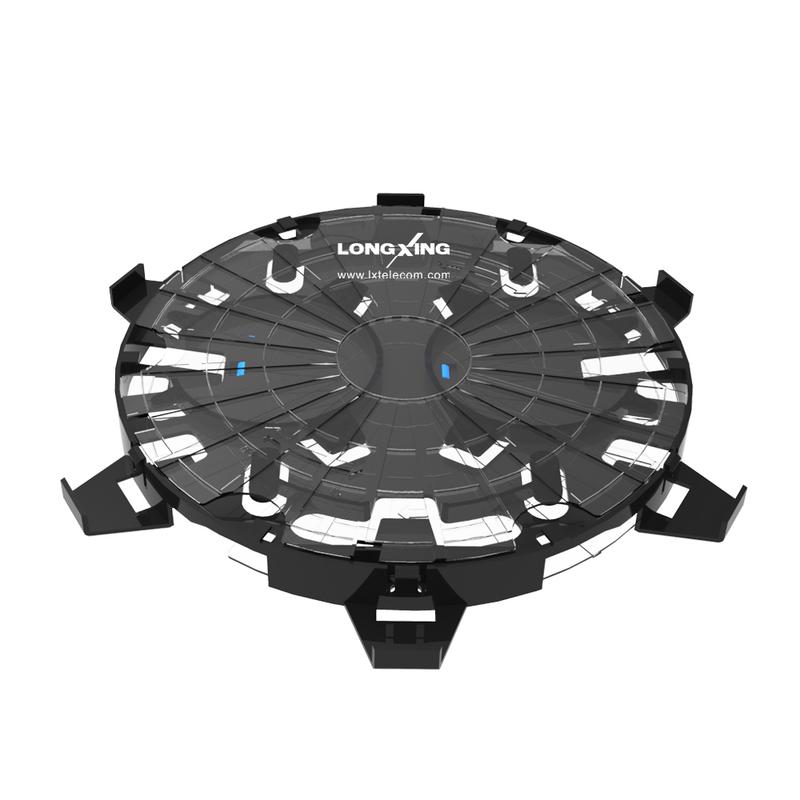

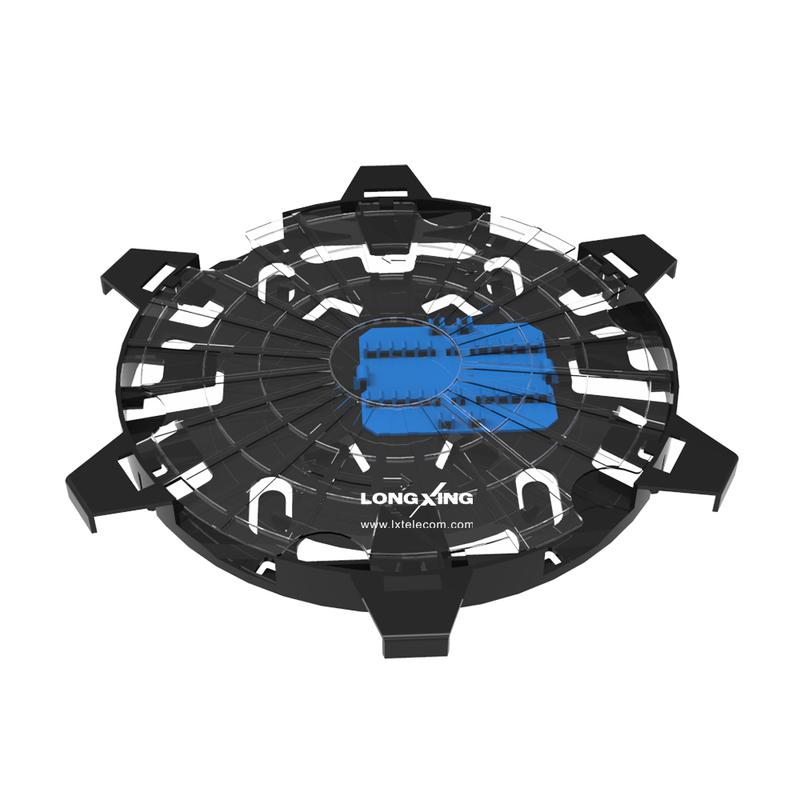

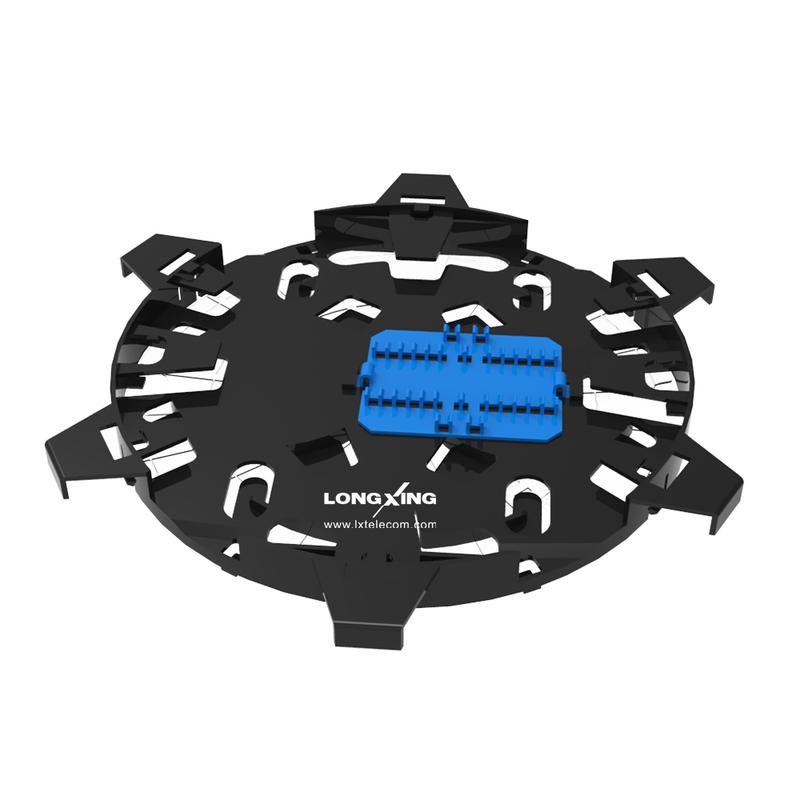

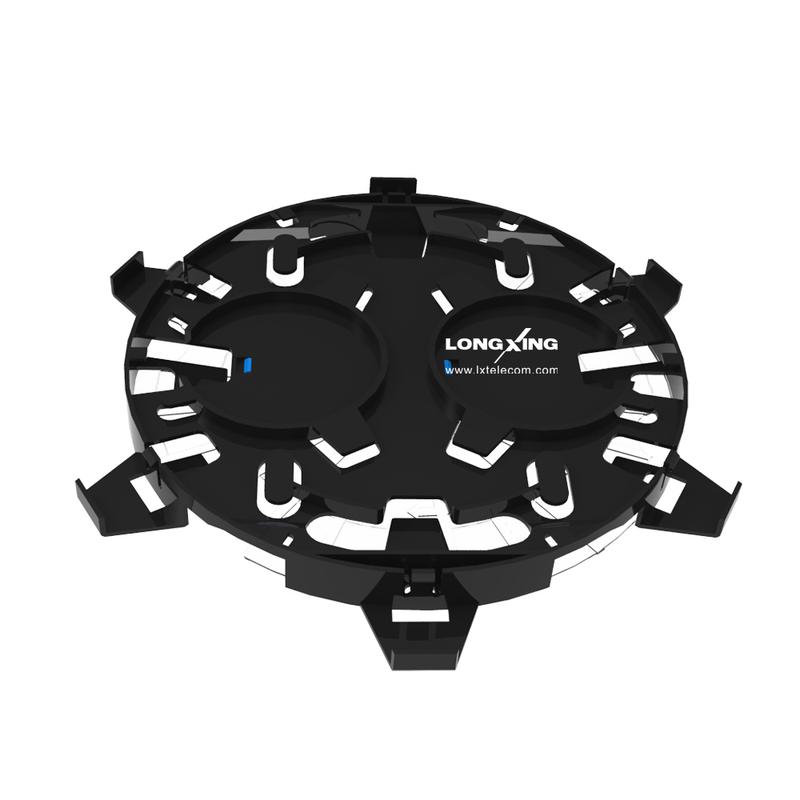

Round Splice Tray Frisbee ST-1D24B
Overview
The LongXing GPX82-1-2 splice module provides protection and a mounting location for round splice trays. Each splice module is two mounting positions tall and holds 24 splice trays. Each splice tray can house up to 24 splices, which offers a combination of splicing protection and associated fiber/pigtail storage. The fiber optical splice trays are applicable to the fiber distribution cabinets, terminal boxes, fiber splicing patching shelves.
Features
l Frisbee style splice tray.
l Double layered structure.
l Closed protection.
l Capacity of 24 cores per tray.
l Flame-retardant materials used.
l Curvature radius of fiber over 40mm.
Add To Quote List
Add To Compare
Inquiry Now
l Double layered structure.
l Closed protection.
l Capacity of 24 cores per tray.
l Flame-retardant materials used.
l Curvature radius of fiber over 40mm.
| Dimensions and Capability | |
| Dimensions (W*H*D) | Φ212mm, δ16mm |
| Capacity | 24 cores |
| Optional Accessories | Heat Shrink Tubes, Heat Shrink Splice Holder |
| Max diameter of entry cable | 10.0mm |
| Weight | 0.175 KG |
| Operation Conditions | |
| Temperature | -40℃ -- 55℃ |
| Sealing performance | Remain unchanged for72 hours on pressure 70kpa |
| Air Pressure | 70kPa – 106kPa |
| Tensile Strength | >1000N |
| Compressive Strength | Withstand 2000N/10Cm² in 1min |
| Shipping Information | |
| Package Contents | Splice Tray Base with Splice Holder; Splice Tray Cover |
| Package Dimensions(W*H*D) | 260mm*260mm*60mm |
| Material | Carton box |
| Weight | 0.65 KG |
| Lead Time | 10-15 working days normally |
